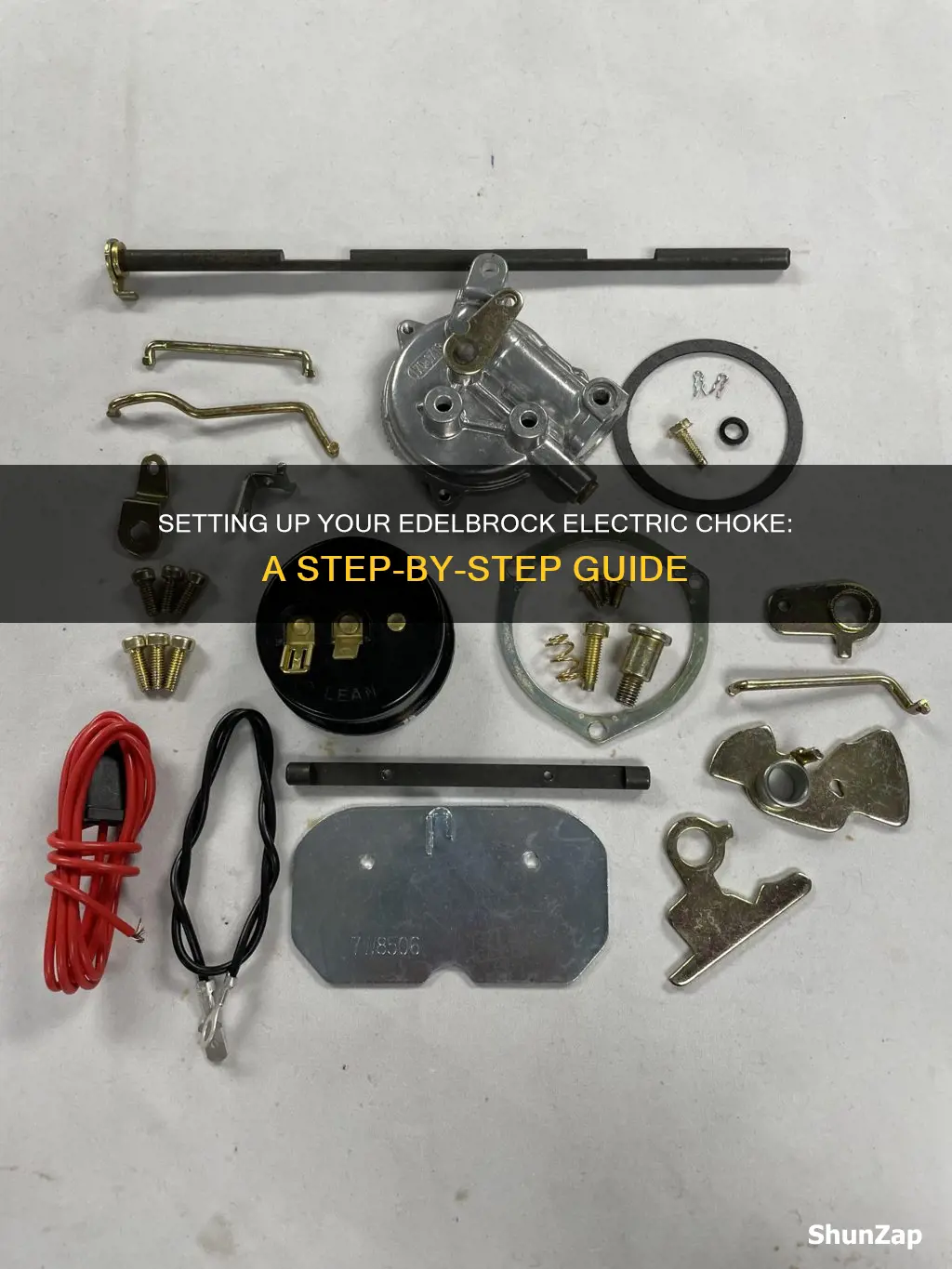

Edelbrock offers a range of electric choke kits, such as the Electric Choke Kit #1478, which is designed to convert manual choke Edelbrock Performer series carburetors to electric choke. Setting up an Edelbrock electric choke involves a series of steps, including verifying the voltage, adjusting the choke setting, and lubricating the choke linkage. It is important to refer to the Edelbrock manual for specific instructions, as the process may vary depending on the vehicle and choke model. Some common issues encountered when setting up an Edelbrock electric choke include erratic butterfly opening, failure of the choke and fast idle cam to engage immediately, and a rich mixture after warming up.
Explore related products
What You'll Learn
- The bi-metal spring: closing the choke when cold, forcing it to full open when warm
- Loosen set screws, turn the adjusting cap to close the choke, then back off to fully open
- Idle settings: no higher than 900 rpm unless the cam is aggressive
- Edelbrock procedure: set the idle mixture and speed
- Choke linkage lubrication: lubricate the linkages with minimal teardown
The bi-metal spring: closing the choke when cold, forcing it to full open when warm
The Edelbrock electric choke is a critical component that adjusts the combination of air and fuel during cold starts. It inhibits air entry into the carburetor, thereby increasing the quantity of gasoline in the mixture. The choke employs a heating element to heat a bimetallic spring. The bi-metal spring not only closes the choke when cold but also forces it to "full open" when warm.
The bi-metal spring is heated by a 12V wire connected to the choke. When the key is turned to 'RUN', the resistance heater begins to warm the spring and the choke slowly opens. The bi-metal spring has a small loop at the end that captures the linkage tab. The choke plate should be closed by loosening the adjusting screws and rotating the cover toward "rich". Conversely, rotating it towards "lean" will force the choke plate open.
The Edelbrock manual provides a detailed procedure for setting the electric choke. It is recommended that you warm the engine to operating temperature before adjusting the choke coil spring tension. The choke coil spring tension can be adjusted by opening the hood and locating the Edelbrock carburetor. The carburetor is usually mounted on top of the engine's intake manifold. The choke housing can be found on the carburetor's right side and features a two-wire hookup.
The bi-metal spring plays a crucial role in the proper functioning of the Edelbrock electric choke. By responding to temperature changes, the spring ensures the choke is closed when cold and fully open when warm, optimizing the air-fuel mixture for engine performance.
