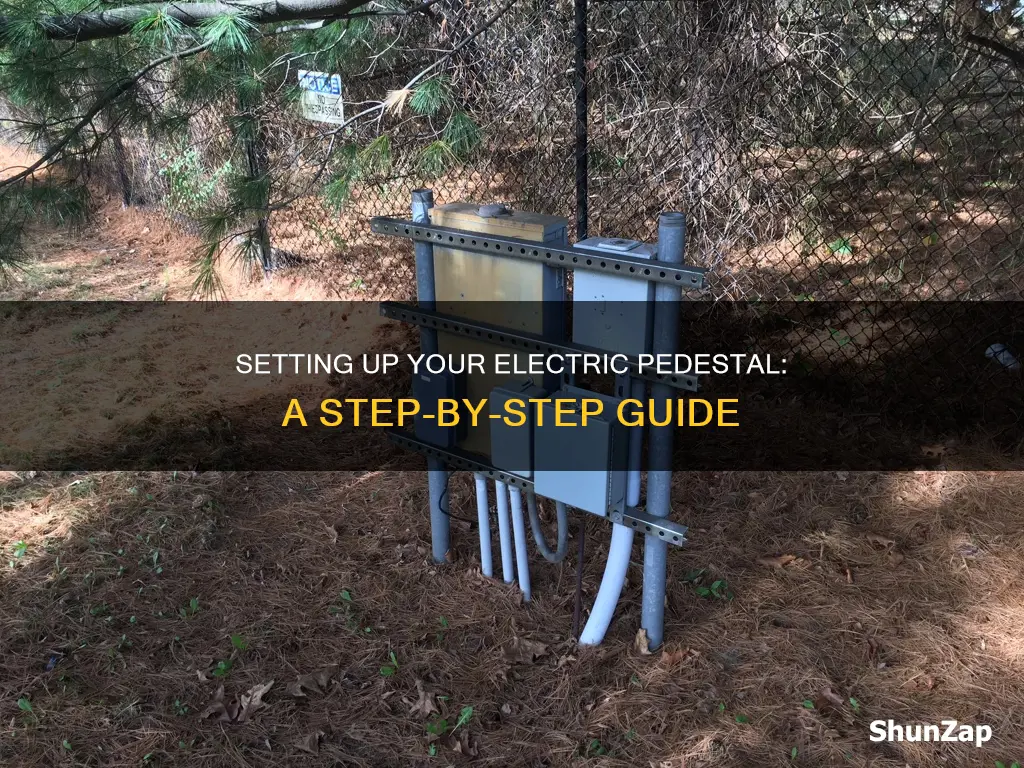

Setting Up Your Electric Pedestal: A Step-By-Step Guide

Setting up an electric pedestal requires careful planning and consideration of various factors. Electric pedestals, also known as power pedestals, are essential for delivering power to essential systems, especially in marine or RV settings. The location of the pedestal is crucial, and one must decide between placing it at the front of the property or opting for a more cost-effective option. Electric companies typically handle the wiring and installation, but some DIY options are available. To ensure safety and compliance, it is important to consult guidelines and professionals before installing a pedestal, as they may provide specific requirements for mounting, grounding, and wiring.

Choose the best location for the pedestal

When choosing the best location for an electrical pedestal, there are several factors to consider. Firstly, you need to decide whether the pedestal will be freestanding or attached to a structure, such as a house. If it is attached, you will need to ensure that it is in close proximity to the structure it will serve. This could involve placing it next to the house or building, or even inside, as in the case of a warehouse.

It is important to check with your local electric company or power company to see if there are any placement guidelines or restrictions. For example, there may be rules regarding the distance between the pedestal and the power pole, or whether the pedestal needs to be in an unobstructed line to the pole. You may also need to consider any local regulations or requirements, such as the National Electric Code (NEC) guidelines, which could impact the placement of the pedestal.

The location of the power pole itself is also a factor to consider. In some cases, the power company may be willing to move the pole or upgrade the transformer to serve your lot, but it is important to discuss these options with them directly. If you are responsible for running the wiring from the pole to the pedestal, the distance and any obstacles between the two locations will impact the cost and complexity of the installation.

Finally, consider the specific power requirements of the pedestal's location. For example, if it is intended for a boat or RV, you will need to evaluate the number of electrical outlets and power connections needed. This may influence the placement of the pedestal in relation to the power source and the structure it serves.

Understand the electrical requirements

Understanding the electrical requirements is a crucial step in setting up an electrical pedestal. These requirements will vary depending on the intended use and specific needs of the user.

For example, if you are installing an electrical pedestal for a boat or RV, you will need to evaluate the power requirements, including the number of electrical outlets and power connections needed. It is also important to consider any limitations of the dock slip configuration or campground sites and set a realistic budget.

In terms of the electrical setup, you will need to decide whether to opt for a freestanding or attached meter. This will involve installing a main breaker panel and ensuring proper grounding. A grounding electrode system (GES) is typically required, and you will need a 4-wire feed to the structure served by the pedestal. It is important to note that some electrical companies may have specific placement guidelines for the pedestal, so be sure to consult with them beforehand.

Additionally, consider the specific electrical components you will need. For instance, the Newport Harbor Mate offers a variety of electrical services with a capacity of up to 140 amps, while the Lighthouse Power Pedestal comes pre-wired and offers customizable options for powering one or two boats or RVs. Understanding your specific electrical requirements will help you choose the right components and ensure a safe and functional setup.

Install a grounding electrode system

The installation of a grounding electrode system involves specific requirements for rod, pipe, and plate electrodes. Firstly, ensure that the electrodes are free from non-conductive coatings and, where possible, embed them below the permanent moisture level. A single electrode must be supplemented by an additional electrode unless its resistance to earth is 25 ohms or less.

When installing multiple electrodes, space them at least 1.8 meters apart, with a minimum of 2.44 meters in contact with the soil. It is important to follow specified guidelines when connecting electrodes with bonding jumpers. If using metal underground water pipes as electrodes, it is necessary to add supplemental electrodes.

Before beginning any electrical work, it is important to consult the relevant guidelines and regulations for your specific location and situation. These guidelines will provide detailed instructions and safety precautions that must be followed during the installation process.

Consider the number of electrical outlets needed

When setting up an electric pedestal, it is important to consider the number of electrical outlets required. This will depend on the intended use of the pedestal and the types of appliances that will be plugged into it. For example, if the pedestal is intended for outdoor use, such as powering maintenance equipment or facility operations, you will need to ensure that it can support the required electrical devices and their amperage.

It is also important to follow the relevant electrical codes and guidelines when determining the number of outlets. The National Electrical Code (NEC) provides recommendations on outlet spacing and types to use in different areas, such as general living areas, bathrooms, and kitchens. For instance, in kitchens, countertop outlets should be no farther than 48 inches apart, and in bathrooms, there must be a GFCI-protected receptacle at least 3 feet from the outside edge of the sink basin.

To ensure you have enough outlets, consider the number of appliances that may need to be plugged in simultaneously. For areas with heavy use, such as people charging phones or using laptops, it may be advisable to have shorter spacing between outlets. Additionally, consider the types of outlets required for your specific needs. For instance, 15-amp outlets are commonly used for small appliances and lamps, while 20-amp outlets are necessary for major appliances like microwaves.

By taking into account the intended use, relevant electrical codes, and the types of appliances, you can determine the appropriate number of electrical outlets needed for your electric pedestal.

Ensure it is drawn and approved before installation

When setting up an electrical pedestal, it is crucial to ensure that the installation plan is drawn up and approved by all relevant parties before any work begins. This step is essential to avoid potential issues and ensure a smooth installation process.

First, carefully plan the installation by creating a detailed drawing that outlines the specific location of the electrical pedestal and how it will be installed. This drawing should include relevant details such as the placement of the pedestal relative to the pole, transformer, and any structures nearby. It is also important to consider the wiring requirements and ensure they are accurately represented in the drawing.

Once the drawing is complete, it is necessary to seek approval from all involved parties. This may include the property owner, the electric company, and any relevant authorities or inspectors. By doing so, you can ensure that the installation plan complies with regulations, safety standards, and any placement guidelines that may exist. For example, there may be specific requirements regarding unobstructed access to the pole or the placement of main disconnects.

In some cases, the electric company or local guidelines may provide a rule book or guidelines that outline their specific requirements for electrical pedestal installations. These guidelines can help ensure your installation plan aligns with their expectations. It is also a good idea to consult with the electric company and inspectors directly to clarify any questions or concerns and ensure everyone is on the same page.

By taking the time to create a detailed drawing and seeking the necessary approvals beforehand, you can help ensure a seamless installation process for your electrical pedestal, avoiding potential delays, non-compliance issues, or additional costs associated with last-minute changes.
