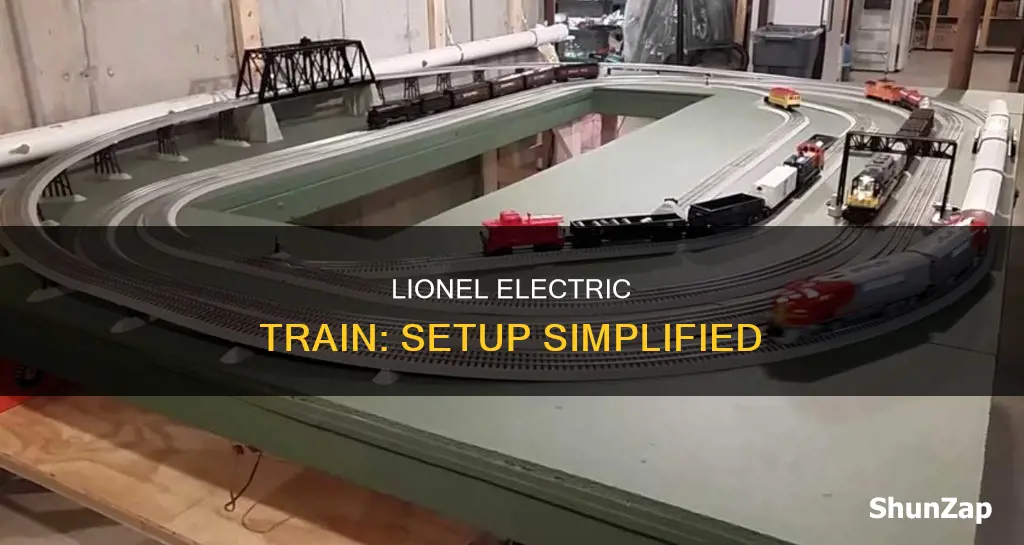

Setting up a Lionel electric train can be a daunting task, especially when it comes to wiring. Electricity can be challenging to understand since it is invisible, and troubleshooting can be difficult when something goes wrong. However, with the right resources and guidance, it is certainly achievable. Lionel LLC, the makers of Lionel Trains, provide step-by-step video tutorials and online resources to assist in setting up the basic LEGACY system and expanding command control. Online forums, such as the Model Train Forum, also offer valuable information and tips for setting up Lionel train sets, including manual recommendations and troubleshooting advice for specific issues like coupler spring problems.
| Characteristics | Values |
|---|---|
| Wiring | A daunting task due to the complexity and invisibility of electricity; however, tutorials and guides are available to help with the process |
| Legacy Installation | Step-by-step video tutorials are provided to set up the basic LEGACY system and expand command control |
| Control Switches | Options include the SC-2, suitable for twin-coil type machines, and the ASC (Accessory Switch Controller), which handles twin-coil machines and motors |
| Coupler Issues | Weakened coupler springs due to age; temporary fixes include using rubber bands to hold knuckles closed or replacing the springs |
| Engine Options | AC engine (8603) with a two-position reverse or DC engine (8903) with forward and reverse at the transformer |
Explore related products
What You'll Learn
Wiring your railroad
To begin, separate the power you'll want for trains from the power you'll want for everything else, such as lights, switch machines, and animated accessories. The amount of power you'll need depends entirely on how much power you'll use. Lionel makes a variety of power supplies and control systems, and additional options are available from other sources.
Next, you'll want to familiarise yourself with some basic electrical principles and practices. The three-rail O-gauge toy trains sold in the United States are intended to run on approximately 5 to 20 volts of 60-cycle alternating current (AC). This is reduced from the standard 115-volt house current by a transformer. Bus wires usually run around the perimeter or down the middle of a layout, allowing for splicing relatively short runs from the bus wires to track and accessories. Using several fixed-voltage buses can be helpful. We find that 14 to 16 volts works for most accessories, and 18 to 20 volts works well for Lionel track switch motors. Having a common ground bus can also be handy, allowing transformers around the layout to connect to it instead of each other.
When wiring, always check your wiring as you go. It is much easier to find a mistake before you've wired a dozen accessories! An inexpensive electrical test meter is a great tool to keep on hand as you go. A simple lightbulb can also be used to test many circuits – much easier and less risky than experimenting with a locomotive! Don't be afraid of wiring. Taken one step at a time, wiring a layout is not very difficult, and mistakes are easy to find and correct. Your Lionel transformers have built-in circuit breakers that will help prevent major catastrophes if you do make a mistake.
Finally, for switches, you will need to find the wiring installation diagrams so they're wired correctly, and they should be given their own independent power supply if possible. Keep everything organized by keeping all the wires in neat patterns and preventing them from crossing over each other without proper identification.
Android Dreams: Electric Sheep and Amazon's AI Revolution
You may want to see also
Explore related products
Understanding electricity
Setting up a Lionel electric train involves understanding some basic electrical principles, particularly relating to Alternating Current (AC). AC is the type of electricity found in households, but for model trains, a lower voltage is used. In the US, AC current alternates between + and – 60 times per second (60Hz), while overseas it is 50Hz. Lionel trains are designed for 60Hz frequency, but adapters can be used for other electrical systems.
Variable voltage control allows you to adjust the voltage, which is what makes the model train speed up or slow down. The higher the AC voltage, the greater the peaks and troughs of the curve. Fixed voltage, on the other hand, remains constant and is more suitable for accessories with a single speed or intensity, such as lights.
The relationship between Watts, Amps, and Volts is important to understand when it comes to transformers. The equation Watts = Amps x Volts (or W=A*V) can be used to determine the properties of a transformer. For example, a transformer with 180 Watts of power and a maximum voltage of 18V would have 10 Amps (180 Watts / 18 Volts = 10 Amps). This knowledge is essential when deciding on the type and number of transformers needed for your layout.
Bus wires are typically run around the perimeter or down the middle of a layout, allowing for shorter connections to tracks and accessories. Using multiple fixed-voltage buses can be advantageous, with 14-16V suitable for accessories and 18-20V for Lionel track switch motors. A common ground bus is also useful, as it allows transformers to connect to it instead of each other.
Lionel offers a range of power supplies, including the top-tier ZW-L transformer, which can output AC power for various train layouts. The Plug-Expand-Play system is recommended for connecting accessories to power. Additionally, Lionel's TrainMaster Command Control is an electronic control system that can be utilised by dividing your layout into blocks, minimising voltage drop and simplifying troubleshooting.
Choosing the Right Electric Supplier in PA: A Guide
You may want to see also
Explore related products
Troubleshooting coupler springs
First, identify the issue. If your couplers are not springing open, it is likely that the springs are broken or damaged. You can purchase replacement springs and rivets online from stores like Olsen Toy Toy Trains, The Train Tender, or even eBay. When replacing the spring, you will also need to replace the rivet, so be sure to have both parts on hand.
Next, carefully disassemble the coupler. Remove the old spring and rivet, taking note of how they are positioned so you can install the new ones correctly. Clean and inspect the coupler assembly, ensuring no debris or damage is present that could hinder the spring's function.
Now, it's time to install the new spring. Place the new spring onto the new rivet, and position the knuckle onto the outside of the rivet, with the spring sitting next to it. Gently pull up on the rivet until the knuckle slips into place. You should now have the spring and knuckle assembled onto the rivet.
Before securing the rivet, ensure the coupler is properly aligned. Use a toothpick to line up the hole in the coupler with the coil spring's hole. Once aligned, you can crimp the rivet in place using a rivet tool. If you don't have a rivet tool, you can use a center punch and a small hammer to lightly spread the rivet tail.
Finally, test the coupler to ensure it is functioning correctly. The spring should allow the coupler to open and close smoothly. If you have any issues, carefully disassemble and check that all parts are correctly positioned and secured.
With these steps, you can troubleshoot and repair the coupler springs on your Lionel electric train, ensuring your trains run reliably and smoothly on their tracks.
The Electric Potential Unit: Understanding the Volt's Power
You may want to see also
Explore related products
Using a transformer
When setting up your transformer, it is important to ensure that it is providing the correct voltage for your train set. Lionel recommends 14 V AC for most of its accessories. This will ensure that your train runs smoothly and prevent any issues with overheating or motor stress.
If you have a larger layout or are running multiple locomotives, you may need to upgrade to a more powerful transformer, such as the Powerhouse, which provides 180 Watts of power. For even more power, you can string together multiple power supplies.
As your railroad grows and you add multiple transformers, it is important to make sure that they are all in phase. This means that the common and hot terminals of the transformers are at the same polarity. To do this, start by powering up two transformers to the same voltage and use a test light to check if they are in phase. Attach one lead of the bulb to the common terminal on one transformer and the hot terminal on the other. If the light turns on, your transformers are in phase.
By following these instructions, you can effectively use a transformer to power your Lionel electric train and any additional accessories, ensuring a smooth and enjoyable train operation.
Playing Electric Bass: Piano Edition
You may want to see also
Explore related products
$109.79 $119.99
Setting up a basic LEGACY system
Step 1: Understand the Basics
Lionel offers two command control systems: TMCC (Train Master Command Control) and LEGACY. The LEGACY system provides the same control and functions as TMCC but with enhanced features. The key difference is that LEGACY uses a 9-bit digital signal, allowing for 200 speed steps and unique sound effects.
Step 2: Gather the Required Components
For any command control system, including LEGACY, you will need two essential components: a power supply and a command system. The power supply provides electricity to the train's rails, while the command system sends controlling signals to the train. Most power supplies used for conventional control trains are also compatible with command control systems.
Step 3: Power Supply Setup
To set up the power supply for your LEGACY system, simply connect a constant 18V voltage to all the rails. There is no need to switch voltages, as the command system controls the trains, while the tracks act as a simple power supply. Ensure you have enough power districts to support your layout size, with each district powered by a separate transformer.
Step 4: Command System Setup
The LEGACY command system is easy to install. All you need is a single wire connected to your outside rails. Refer to the official Lionel LLC video tutorials for detailed, step-by-step guidance on installing the LEGACY system. These videos will guide you through the entire setup process, ensuring a smooth installation.
Step 5: Remote Control Familiarization
The LEGACY remote control is your central control unit. It features an LCD screen that displays menus for programming and operating your trains. The keypad is another critical component, allowing you to navigate through different menus and control various locomotive functions. Take some time to familiarize yourself with the remote, as it is the heart of your LEGACY system.
By following these steps, you'll be well on your way to setting up a basic LEGACY system for your Lionel electric train. Remember to refer to the official resources and tutorials provided by Lionel LLC for more detailed instructions and troubleshooting guidance.
Chicago Electric DA Polisher: Grease Replacement Guide
You may want to see also
Frequently asked questions
Setting up a Lionel electric train can be daunting, especially when it comes to wiring. You can refer to the official blog of Lionel LLC for step-by-step video tutorials and guides.
The number of control switches, block sections, transformers, etc. depends on the size of your railroad, the number of trains, and the accessories you have.
Try replacing the coupler springs or holding the knuckles closed with a small rubber band as a temporary fix.
You can try searching for it on eBay or reaching out to Lionel directly.
