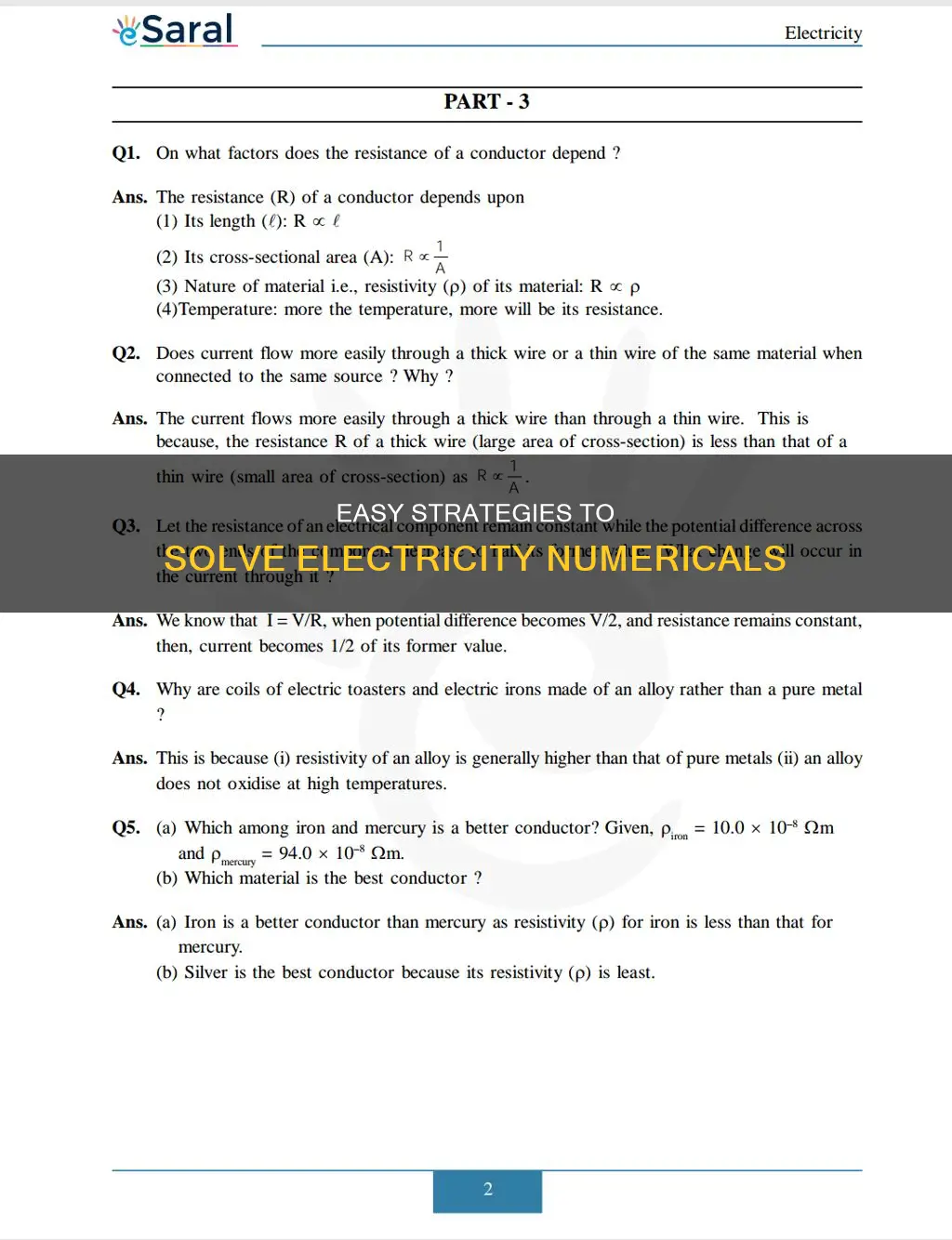

Students in Class 10 often find it challenging to solve electricity numericals, which are an essential part of understanding the basics of electrical circuits, Ohm's law, and other key concepts. However, with a systematic approach and practice, these problems can be tackled effectively. This involves understanding the underlying theory, applying formulas correctly, and interpreting the given data to find solutions. Practice with a variety of numerical problems boosts confidence and prepares students well for their exams.
| Characteristics | Values |
|---|---|
| Topics | Electric circuits, Ohm's Law, resistivity, current, voltage, power, resistance, conductivity, heating effect of electric current, electrical appliances |
| Example Question | What is the resistance of an electric iron connected to the same source as three appliances (an electric lamp of 100 Ω, a toaster of 50 Ω, and a water filter of 500 Ω) that take the same amount of current? |
| Example Answer | The resistance of the electric iron is 31.25 Ω. |
| Example Calculation | $\frac{1}=\ \frac{1}{100}+\ \frac{1}{50}+\ \frac{1}{500} $= \co: 11> \frac{5+10+1}{500}=\ \frac{16}{500}</co: 11> $R = \frac{500}{16}\ =31.25 $Ω |
Explore related products
What You'll Learn
Resistivity of wires
When a voltage source is connected to a conductor, it applies a potential difference that creates an electrical field. This electrical field then exerts a force on free charges, resulting in an electric current. The amount of current that flows depends on the voltage and the characteristics of the material the current is flowing through.
The measure of how much a material resists the flow of charges is known as its resistivity. This is a fundamental property of a material and is represented by the Greek letter rho (ρ). Resistivity is the opposite of conductivity, which represents a material's ability to conduct electric current. Materials with low resistivity readily allow electric current to pass through them.
Resistivity is important when considering which materials to use for wiring. Silver, gold, and aluminum are all used for making wires, with silver having the highest conductivity. Gold does not oxidize, making it good for connections between components, but it is expensive. Aluminum is cheaper than copper but has a higher rate of thermal expansion, which can lead to loose connections. It also has a higher resistivity than copper, so a larger diameter is needed to match the resistance per length of copper wire.
Resistivity can also be influenced by temperature. For example, the resistivity of silver at 30 °C is 1.65 x 10^-8, calculated using the formula Δρ = α ΔT ρ0.
Building Electrical and Logic Gates: A Beginner's Guide
You may want to see also
Explore related products
Heat dissipated by resistors
When an electric current passes through a high-resistance wire, the wire becomes hot and produces heat. This is called the heating effect of electric current. The heat dissipation within a resistor is simply the power dissipated across that resistor, as power represents the energy per time put into a system.
The formula for power in a circuit is:
P = IV
Where P is power, I is current, and V is voltage.
The formula for power can also be derived from the classic formula for Ohm's law:
V = IR
Where R is resistance.
The formula for power in a circuit with a single resistor is:
P = IV = I^2R = V^2/R
Where P is power, I is current, V is voltage, and R is resistance.
The heat dissipated by a resistor can be calculated using the formula:
H = I^2RT
Where H is heat, I is current, R is resistance, and T is time.
For example, let's consider a problem where we are given the following information:
- Potential difference (V) = 6 V
- Resistance of R1 (R1) = 2 Ω
- Resistance of R2 (R2) = 4 Ω
- Time (t) = 5 s
We want to find the heat dissipated by the 4 Ω resistor.
First, we need to find the current (I) using Ohm's law:
V = IR
I = V/R
I = 6/6
I = 1 A
Now, we can calculate the heat dissipated by the 4 Ω resistor:
H = I^2RT
H = (1)^2 (4) (5)
H = 20 J
Therefore, the heat dissipated by the 4 Ω resistor in 5 s is 20 J.
Electric Scooter Maintenance: Simple Steps for Smooth Riding
You may want to see also
Explore related products
Number of electrons passing through a filament
To calculate the number of electrons passing through a filament, we need to know the current drawn and the time taken. Let's assume the current drawn is 1 ampere (1 A) and the time taken is 16 seconds (16 s).
First, we need to find the charge flown. Let the charge flown be denoted by Q. We know that current (I) is equal to the charge (Q) divided by time (t), so we can rearrange this equation to find Q:
> Q = I * t
> Q = 1 A * 16 s
> Q = 16 C
Now, we need to determine the number of electrons in a 1 C charge. We know that the charge on 1 electron is approximately 1.6 x 10^-19 C. Therefore, we can set up a proportion to find the number of electrons in a 1 C charge:
> 1.6 x 10^-19 C = 1 electron
> 1 C = (10^20 / 16) electrons
> 1 C = 10^20 / 16 electrons
Now that we know the number of electrons in a 1 C charge, we can calculate the total number of electrons passing through the filament:
> Number of electrons = Q * (number of electrons in 1 C)
> Number of electrons = 16 C * (10^20 / 16) electrons/C
> Number of electrons = 10^20 electrons
So, the number of electrons passing through the filament in 16 seconds is approximately 10^20.
This type of calculation is essential in understanding and analyzing electrical circuits, particularly when dealing with filament bulbs or other similar components.
Realistic Electric Fireplaces: Immerse Yourself in the Warm Ambiance
You may want to see also
Explore related products
Equivalent resistance for resistors in series
When resistors are connected in a series, the current flowing through the circuit remains the same across all the resistors. The voltage across the circuit is the sum of the voltage drops across each resistor.
The formula for calculating the equivalent resistance of resistors in series is:
R = R1 + R2 + R3 + ...
Where:
- R is the total or equivalent resistance
- R1, R2, R3, ... are the individual resistances in the circuit
For example, let's say we have three resistors with resistances of 2 Ω, 4 Ω, and 6 Ω, respectively, connected in series. To find the equivalent resistance, we use the formula:
R = 2 Ω + 4 Ω + 6 Ω
R = 12 Ω
So, the equivalent resistance of the three resistors in series is 12 Ω.
It's important to note that the equivalent resistance in a series combination is always greater than or equal to the largest resistance value in the series. In the case where all the resistors have the same resistance, the total resistance is simply the sum of all the individual resistances.
Verify Your Michigan Electrical Journeyman License: A Guide
You may want to see also
Explore related products
Current in terms of resistance and voltage
Voltage, current, and resistance are the three fundamental building blocks of electrical circuits. They are all interconnected and influence each other. Voltage, current, and resistance are defined as follows:
Voltage
The amount of potential energy between two points on a circuit is known as voltage. One point has a higher charge than the other. This difference in charge between the two points is called voltage. It is measured in volts, which is the potential energy difference between two points that will impart one joule of energy per coulomb of charge that passes through it. The unit "volt" is named after the Italian physicist Alessandro Volta, who invented what is considered the first chemical battery. Voltage is also referred to as electromotive force or potential difference.
Current
The movement of electrons through an object, such as a wire, is known as current. It is measured in amps (A), and if the current is very small, it is described in milliamps (mA), with 1000 mA equalling 1A. Current is the rate at which charge is flowing. It is often referred to in terms of "flow," similar to the flow of a liquid through a pipe.
Resistance
Resistance is a material's tendency to resist the flow of charge (current). It is the property of a material that limits current flow and is measured in ohms (). The longer a conductor, the greater its resistance. For example, a two-metre wire has twice the resistance of a one-metre wire of similar properties. The larger the cross-section of a conductor, the lower its resistance. Overhead power cables, for instance, have a much lower resistance than a lamp flex of the same length. Different materials also have different resistances; metals are good conductors, while ceramics and glass are insulators.
Ohm's Law
Georg Ohm was a Bavarian scientist who studied electricity and developed Ohm's Law, which defines the relationship between voltage, current, and resistance. According to Ohm's Law, the current flowing in a circuit is directly proportional to the applied voltage and inversely proportional to the resistance of the circuit, provided the temperature remains constant. Mathematically, this relationship can be expressed as Current (I) = Voltage (V) / Resistance (R).
Solving Numericals
To solve numericals involving electricity, it is essential to understand the relationships between voltage, current, and resistance. Here are some examples of how to approach such problems:
- Example 1: A circuit has a voltage of 12V and a resistance of 4Ω. What is the current? Solution: Using Ohm's Law, we can calculate the current as I = V/R = 12V / 4Ω = 3A.
- Example 2: A wire has a current of 2A and a resistance of 6Ω. What is the voltage? Solution: Again, using Ohm's Law, we find that V = IR = 2A 6Ω = 12V.
- Example 3: A lamp has a voltage of 120V and draws a current of 0.5A. What is the resistance of the lamp? Solution: In this case, we rearrange Ohm's Law to find resistance: R = V/I = 120V / 0.5A = 240Ω.
These are basic examples of how to apply Ohm's Law to solve numericals involving voltage, current, and resistance. When solving more complex problems, it is important to consider factors such as temperature and the characteristics of the materials involved.
Electric Dryers and Flames: What's the Truth?
You may want to see also
Frequently asked questions
A continuous conducting path consisting of wires and other resistances and a switch between the two terminals of a cell or a battery along which an electric current flows.
The unit of current is Ampere. 1 Ampere is said to be when 1 coulomb of charge flows through any cross-section of a conductor in 1 second.
1C = 6 x 10^18 electrons.
Resistivity of the wire is given by ρ = R x A / L. The unit is Ohm-m.
Advantages of parallel connection:
- If one appliance stops working, the others keep working.
- Each appliance has its own switch and can be turned on or off independently.
- Each appliance gets the same voltage as the power supply line.
