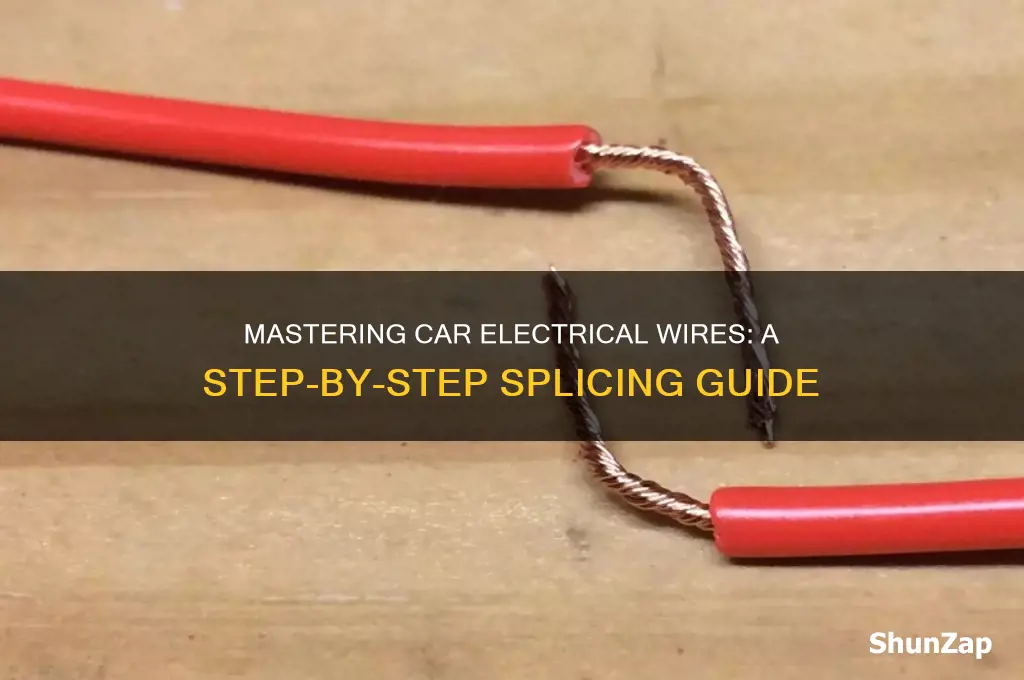

Splicing car electrical wires is a fundamental skill for anyone looking to repair, modify, or upgrade their vehicle’s electrical system. Whether you’re fixing a broken wire, installing aftermarket components, or troubleshooting a faulty circuit, understanding how to properly splice wires ensures a reliable and safe connection. The process involves stripping the insulation from the wires, twisting or joining the exposed conductors, and securing the connection with solder, heat shrink tubing, or electrical tape. Proper techniques, such as using the correct tools and materials, are crucial to prevent shorts, corrosion, or loose connections that could lead to electrical failures or safety hazards. Mastering this skill not only saves time and money but also empowers car enthusiasts to tackle a wide range of automotive electrical projects with confidence.
| Characteristics | Values |
|---|---|
| Tools Required | Wire strippers, crimping tool, soldering iron, heat shrink tubing, electrical tape, multimeter |
| Wire Types | Single-strand, multi-strand, solid core, stranded core |
| Splicing Methods | Butt connectors, soldering, crimping, twist and tape, wire nuts |
| Wire Stripping Length | 1/4 to 1/2 inch (6-12 mm) depending on connector size |
| Soldering Technique | Clean wires, apply flux, heat wires, add solder, insulate with heat shrink tubing |
| Crimping Technique | Insert stripped wires into connector, crimp with tool, ensure tight connection |
| Heat Shrink Tubing | Use tubing 1-2 sizes larger than wire, heat until snug fit |
| Electrical Tape Usage | Wrap tightly around spliced wires, overlap layers for insulation |
| Testing Connections | Use a multimeter to check continuity and voltage before reinstalling |
| Safety Precautions | Disconnect battery, wear safety goggles, work in well-ventilated area |
| Common Applications | Repairing damaged wires, extending wires, adding aftermarket accessories |
| Wire Gauge Compatibility | Match connector size to wire gauge (e.g., 22-18 AWG, 16-14 AWG) |
| Insulation Material | PVC, silicone, or heat-resistant materials for automotive use |
| Professional vs. DIY | DIY for minor repairs, professional for complex systems or high-voltage circuits |
| Longevity of Splice | Properly spliced wires can last as long as original wiring if done correctly |
| Cost of Materials | $10-$50 depending on tools and connectors needed |
| Time Required | 15-60 minutes per splice, depending on method and complexity |
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire strippers, connectors, heat shrink tubing, soldering iron, electrical tape
- Prepare Wires: Strip insulation, twist exposed strands, clean with alcohol
- Choose Splicing Method: Crimp, solder, or twist-and-tape based on wire type
- Insulate Connections: Use heat shrink tubing or electrical tape to protect splices
- Test & Secure: Verify continuity, wrap with loom or zip ties for durability
Gather Tools & Materials: Wire strippers, connectors, heat shrink tubing, soldering iron, electrical tape
Before splicing car electrical wires, gather the right tools and materials to ensure a safe, durable connection. Wire strippers are essential for removing insulation without damaging the conductive core. Choose a stripper with adjustable settings to match the wire gauge, typically 18 to 10 AWG for most automotive applications. Precision here prevents weak spots or breaks in the wire, which could lead to intermittent faults or failures.
Connectors are the backbone of any splice, providing a secure mechanical and electrical bond. Butt connectors are ideal for joining two wires end-to-end, while posi-taps allow tapping into existing circuits without cutting the wire. Select connectors rated for automotive use, as they’re designed to withstand vibration, temperature fluctuations, and moisture. Crimping these connectors with a dedicated crimping tool ensures a tighter hold than pliers, reducing the risk of loose connections over time.
Heat shrink tubing is a professional-grade solution for insulating splices. Cut a piece 1–2 inches longer than the splice area, slide it over the wire, and apply heat from a heat gun or lighter to shrink it snugly around the connection. This creates a waterproof, abrasion-resistant barrier that mimics the original wire insulation. For high-temperature areas like the engine bay, use tubing rated for at least 125°C (257°F) to prevent melting or degradation.
A soldering iron elevates the splice’s reliability by creating a low-resistance, permanent bond. Use 60/40 rosin-core solder for its balance of strength and ease of use, and apply flux to the wire ends to ensure the solder flows evenly. Heat the wire, not the solder, to avoid cold solder joints. While soldering is optional, it’s particularly useful for fine-strand wires or high-current applications where crimped connections might fail under load.
Electrical tape is a versatile fallback for quick insulation or temporary repairs, but it’s not a substitute for heat shrink or proper connectors. Use it sparingly, in layers, and only in low-stress areas. For best results, stretch the tape slightly as you wrap it to ensure it adheres tightly and doesn’t unravel. However, in automotive environments, its adhesive can degrade over time, making it unsuitable for long-term use in critical circuits.
By assembling these tools and materials, you’ll be equipped to handle most car wiring splices with confidence. Each item serves a specific purpose, and combining them—such as crimped connectors sealed with heat shrink and reinforced with solder—creates a connection that rivals the factory original. Proper preparation ensures not just functionality, but safety and longevity in the demanding conditions of a vehicle.
DIY Electric Cars: Can They Charge at Tesla Stations?
You may want to see also
Explore related products
Prepare Wires: Strip insulation, twist exposed strands, clean with alcohol
Before splicing car electrical wires, proper preparation is crucial to ensure a secure and reliable connection. The first step involves stripping the insulation from the wire ends, a task that demands precision. Using a wire stripper, carefully remove about ½ inch of insulation from each wire, taking care not to nick or damage the delicate copper strands beneath. This exposes the conductive material, allowing for a solid electrical connection. It's essential to choose the correct stripping tool and technique, as improper stripping can lead to weakened wires or inadequate contact.
The exposed wire strands, now vulnerable to oxidation and contamination, require attention. Gently twist the strands together to create a compact, unified core. This process not only strengthens the wire but also increases the surface area for electrical contact. However, it's vital to avoid over-twisting, which can cause the strands to break or fray. A firm, yet gentle, twisting motion is key to achieving the desired result. Imagine you're wringing out a soft cloth – enough pressure to remove excess moisture, but not so much that it damages the fabric.
Cleaning the exposed wire strands is a critical, yet often overlooked, step in the preparation process. Contaminants like dirt, grease, or oxidation can compromise the electrical connection, leading to voltage drops or intermittent faults. To mitigate this, use a small amount of isopropyl alcohol (at least 90% concentration) and a clean cloth or cotton swab to gently clean the twisted strands. This simple step removes impurities, ensuring a clean and reliable connection. Be cautious not to oversaturate the wires, as excessive moisture can lead to corrosion or short circuits.
In the context of automotive electrical systems, where vibrations and temperature fluctuations are common, proper wire preparation is essential. Consider the environment in which the spliced wires will operate: under the hood, where temperatures can soar, or in the cabin, where wires may be subject to frequent movement. By stripping, twisting, and cleaning the wires, you're creating a robust foundation for the splice, one that can withstand the unique challenges of the automotive environment. As a practical tip, always test the continuity of the prepared wires before proceeding with the splice, using a multimeter to verify a solid connection. This simple check can save time and prevent potential issues down the road.
As you prepare wires for splicing in a car's electrical system, remember that attention to detail is paramount. Each step – stripping, twisting, and cleaning – plays a vital role in ensuring a reliable and long-lasting connection. By mastering these techniques and understanding their significance, you'll be well-equipped to tackle even the most complex automotive wiring projects. With practice and patience, you'll develop a sense for the nuances of wire preparation, allowing you to create professional-quality splices that meet the demands of modern vehicles.
Electric Cars: City or Highway Efficiency – Which Reigns Supreme?
You may want to see also
Explore related products
Choose Splicing Method: Crimp, solder, or twist-and-tape based on wire type
Selecting the right splicing method for car electrical wires hinges on the wire type and the application’s demands. Crimp connectors are ideal for multi-strand wires commonly found in automotive systems. They create a secure, gas-tight connection when properly executed with a high-quality crimping tool. For example, when joining wires in a door harness, crimping ensures durability against vibration and movement. However, crimping requires precision—overdoing it can weaken the wire, while underdoing it risks a loose connection. Always use the correct crimp tool and connector size for the wire gauge.
Soldering offers a superior electrical and mechanical bond, making it the go-to method for single-strand wires or high-current applications. It’s particularly effective for thin, delicate wires where crimping might cause damage. To solder effectively, strip ¼ inch of insulation, apply flux to the exposed wire, and heat the wire—not the solder—to create a smooth, shiny joint. Avoid overheating, as it can degrade the wire’s insulation. Soldering is more time-consuming and requires skill, but it’s unmatched for reliability in critical circuits like ignition systems.
Twist-and-tape is the simplest method, best reserved for temporary fixes or low-current applications. Twist the stripped wire ends together tightly, then wrap with electrical tape or vinyl tape. While convenient, this method lacks durability and can fail under vibration or heat. For instance, using it in an engine bay is risky due to temperature fluctuations. If you must use this method, add a layer of heat shrink tubing for added protection, but prioritize crimping or soldering for long-term solutions.
When deciding between these methods, consider the wire’s gauge, flexibility, and the environment it will operate in. Crimping suits most automotive scenarios, soldering excels in precision work, and twist-and-tape serves as a last resort. Always match the method to the wire type and the application’s requirements to ensure safety and reliability. For example, a crimped connection in a headlight circuit will outperform a twisted joint over time, even if both initially function. Choose wisely—the right splice method can prevent failures and extend the life of your vehicle’s electrical system.
Electric Car Energy Consumption: Understanding Your Vehicle's kW Usage
You may want to see also
Explore related products
Insulate Connections: Use heat shrink tubing or electrical tape to protect splices
Exposed electrical connections are a recipe for disaster in any vehicle. Moisture, dirt, and vibration can all lead to corrosion, shorts, or even fires. That's why insulating your splices is a critical step in any automotive wiring project. Heat shrink tubing and electrical tape are your two primary weapons in this battle against the elements.
Heat shrink tubing offers superior protection due to its tight, waterproof seal. Imagine a plastic sleeve that, when heated, shrinks snugly around your spliced wires, creating a barrier against moisture and debris. Choose tubing with a diameter slightly larger than your wire bundle, allowing for easy sliding before heating. A heat gun or hairdryer on a medium setting is ideal for activation, ensuring even shrinkage without damaging the wires.
Electrical tape, while less robust than heat shrink, is a versatile and readily available alternative. Its adhesive backing allows for quick and easy application, making it suitable for temporary repairs or situations where heat shrink is impractical. However, its effectiveness relies heavily on proper technique. Wrap the tape tightly around the splice, overlapping each layer by half to ensure complete coverage. Be mindful of the tape's thickness – too much can create bulk, while too little leaves gaps vulnerable to moisture intrusion.
For optimal results, consider a combined approach. Use heat shrink tubing for the core splice, providing a strong, waterproof foundation. Then, apply a layer of electrical tape over the shrunk tubing for added abrasion resistance and insulation. This dual-layer defense significantly enhances the longevity and reliability of your electrical connections. Remember, in the world of automotive wiring, a little extra insulation goes a long way in preventing costly and potentially dangerous problems down the road.
Converting Your Car: Can You Install an Electric Engine?
You may want to see also
Explore related products
Test & Secure: Verify continuity, wrap with loom or zip ties for durability
After splicing car electrical wires, the integrity of your connection is paramount. A single loose strand or break can lead to intermittent faults, power loss, or even safety hazards. This is where testing and securing your splice becomes critical. Before you tuck that wire away, grab a multimeter and verify continuity. Set the multimeter to the continuity or resistance setting, touch one probe to each end of the spliced wire, and listen for the beep or check the resistance reading. A consistent beep or near-zero resistance confirms a solid connection. If the multimeter remains silent or shows high resistance, re-examine your splice—poor stripping, insufficient solder, or misaligned wires could be the culprits.
Once continuity is confirmed, securing the splice is your next priority. Exposed wires are vulnerable to vibration, moisture, and abrasion, which can degrade the connection over time. A wire loom or split loom tubing is an excellent choice for protection. Slide the spliced area into the loom, ensuring it’s fully enclosed. For smaller splices, zip ties can be used to bundle wires neatly, but avoid overtightening, as this can crush the wires. Alternatively, heat-shrink tubing provides a snug, waterproof seal when heated with a heat gun or lighter. Whichever method you choose, ensure the splice is insulated and shielded from environmental factors.
Consider the location of your splice when selecting a securing method. In engine bays or areas exposed to heat, opt for high-temperature materials like silicone-coated looms or heat-shrink tubing rated for 200°C or higher. For interior wiring, standard PVC looms or zip ties may suffice. Always leave enough slack in the wires to prevent tension on the splice, especially in areas with moving parts. A well-secured splice not only ensures longevity but also simplifies future troubleshooting by keeping wires organized and accessible.
A common mistake is underestimating the importance of this step. While a splice may appear secure visually, unseen issues like stranded wires not fully seated or solder voids can cause problems later. Testing continuity is your safeguard against these hidden defects. Securing the splice, on the other hand, prevents physical damage and maintains the connection’s integrity under real-world conditions. Think of it as the difference between a temporary fix and a professional repair—one that stands the test of time and miles.
In practice, here’s a quick checklist: Test continuity before and after securing the splice, use materials suited to the environment, and inspect the area for potential hazards like sharp edges or heat sources. By treating this step as non-negotiable, you’ll avoid the frustration of diagnosing electrical issues caused by poor splicing. After all, a car’s electrical system is only as reliable as its weakest connection. Take the time to test and secure, and your splice will remain trouble-free for years to come.
Charging Electric Cars in the Rain: Safe Practice or Risky Move?
You may want to see also
Frequently asked questions
You’ll need wire strippers, a utility knife or wire cutter, electrical tape, heat shrink tubing, a heat gun or lighter, and optionally a soldering iron and solder for more secure connections.
Use wire strippers to carefully remove about 1/2 inch of insulation from each wire end. Avoid damaging the wire strands, and ensure the exposed wires are clean and free of debris.
The most reliable method is soldering the wires together, then covering the joint with heat shrink tubing. If soldering isn’t possible, twist the wires tightly, wrap them with electrical tape, and secure with heat shrink tubing for added protection.
