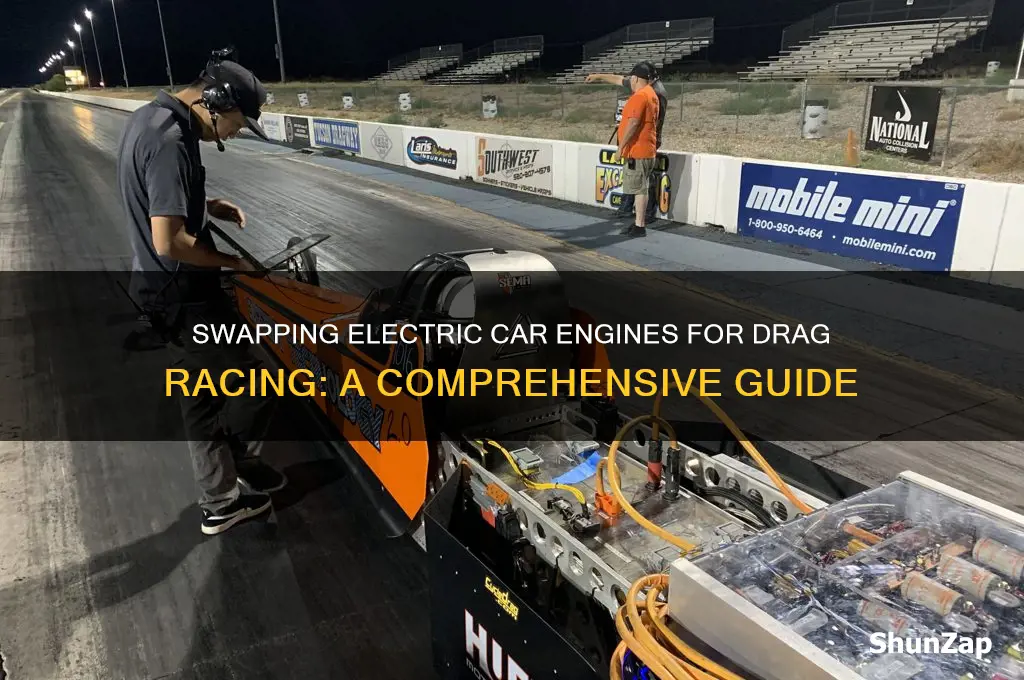

Swapping an electric car engine into a drag racing vehicle is an innovative and increasingly popular way to combine the high-performance demands of drag racing with the cutting-edge technology of electric powertrains. This process involves replacing a traditional internal combustion engine with an electric motor, battery pack, and associated components, offering benefits such as instant torque, reduced maintenance, and a smaller environmental footprint. However, it requires careful planning, including selecting the right electric motor and battery system, ensuring proper cooling and weight distribution, and integrating the new powertrain with the vehicle’s existing chassis and drivetrain. Successfully executing an electric engine swap for drag racing not only pushes the boundaries of automotive performance but also showcases the potential of electric vehicles in high-speed, high-power applications.
Explore related products
What You'll Learn
- Battery Pack Compatibility: Ensure new battery fits chassis, matches voltage, capacity, and cooling system requirements
- Motor and Controller Swap: Replace motor, upgrade controller for higher power output and torque
- Wiring and Safety: Rewire harness, add fuses, and install kill switch for safety
- Weight Distribution: Balance battery and motor placement for optimal traction and handling
- Performance Tuning: Adjust software, calibrate sensors, and optimize gear ratios for drag racing
Battery Pack Compatibility: Ensure new battery fits chassis, matches voltage, capacity, and cooling system requirements
Swapping an electric car engine for drag racing demands precision, especially when integrating a new battery pack. The first critical step is ensuring physical compatibility: the battery must fit within the chassis without compromising structural integrity or safety. Measure the available space meticulously, accounting for clearance around the pack to allow for thermal expansion and maintenance access. Even a millimeter of mismatch can lead to catastrophic failure under the extreme stresses of drag racing.
Voltage and capacity alignment is equally non-negotiable. The battery’s voltage must match the motor’s requirements to avoid underperformance or damage. For instance, a 400V battery paired with an 800V motor will halve power output, while over-volting risks immediate burnout. Capacity, measured in kilowatt-hours (kWh), dictates range and power delivery. Drag racing favors high-discharge batteries (e.g., 3C or higher) to sustain peak power for 8–12 seconds. Calculate the energy draw of your setup to ensure the battery can handle the load without overheating or voltage sag.
Cooling system integration is the linchpin of reliability. Drag racing generates heat exponentially, and the battery’s thermal management must be upgraded to match. Liquid cooling is superior to air cooling for high-discharge scenarios, but ensure the new pack’s cooling ports align with your existing system. If retrofitting, consider a secondary radiator or chiller to dissipate heat efficiently. Ignoring this step risks thermal runaway, which can lead to fire or permanent battery damage.
Finally, test compatibility before final installation. Use a battery management system (BMS) to monitor voltage, temperature, and state of charge during bench testing. Simulate race conditions with load testing equipment to verify performance and identify potential bottlenecks. This proactive approach not only ensures safety but also maximizes the efficiency of your electric dragster. Remember, in drag racing, every component must work in harmony—and the battery pack is no exception.
