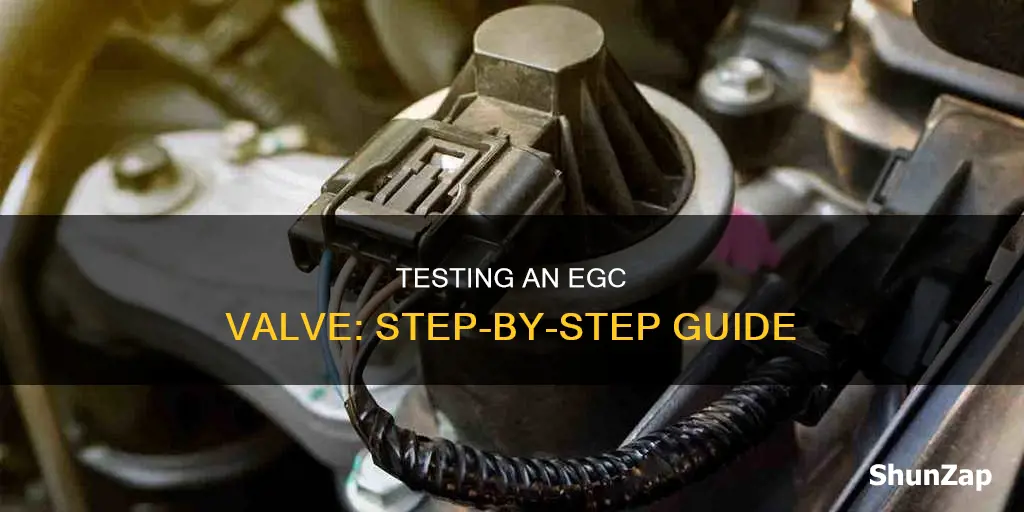

Testing an electric EGR valve is a simple procedure that can be done by following the vehicle manual's instructions. Modern vehicles have electric EGR valves that can be tested with a digital multimeter. The multimeter should read above 0.9 volts; otherwise, the system needs servicing. If there is no voltage, the EGR valve is faulty and requires replacement. Before testing, it is important to clean all carbon deposits at the intake ports and ensure that the problem is not electrical or vacuum-related.
| Characteristics | Values |
|---|---|
| Testing equipment | Multimeter, vacuum pump, EGR Tester, carburetor cleaner, solvent, dull scraper, wire brush |
| Testing procedure | Locate the EGR valve, attach red lead wire to the EGR circuit labelled "C", connect the black multimeter lead to a ground point, turn the ignition key to the "On" position, read the multimeter |
| Test results | High volts could indicate a blockage in the EGR valve, no voltage could indicate a problem with valve and computer communication |
| Faults | Carbon deposits, sticking, complete failure, poor running at idle and low load, poor fuel consumption, reduced engine performance |
Explore related products
What You'll Learn
Locating the EGR valve
The EGR valve is usually located near the engine, often on the exhaust manifold. It is connected to the engine's intake system by a series of tubes and channels. The specific location of the EGR valve can vary depending on the vehicle's make and model. For example, in some cars, the EGR valve may be located on the firewall, which is the wall separating the engine compartment from the passenger compartment. In other cars, it may be located on the intake manifold, which is the part of the engine that distributes the air-fuel mixture to the cylinders.
It is important to consult a repair manual specific to your vehicle's make and model to get an exact location of the EGR valve. Once you have located the EGR valve, you can proceed to inspect it for any signs of damage or malfunction.
The EGR valve operates in a hostile environment and is subject to wear and tear over time. The biggest cause of failure is the buildup of carbon particles and soot from the exhaust gases along the EGR and intake system passages. This buildup can clog tubes and channels, eventually causing the valve's plunger mechanism to stick in an open or closed position. Therefore, when locating the EGR valve, it is also important to inspect the surrounding tubes and channels for any signs of clogging or buildup.
Mitsubishi Electric Air Conditioner: Troubleshooting Guide
You may want to see also
Explore related products
Using a multimeter
Firstly, open the bonnet and locate the EGR valve, which is usually mounted on the exhaust manifold. Refer to your vehicle repair manual for the exact location and a diagram. Then, turn the multimeter on and set it to the correct settings. To test the voltage, set it to Volts DC. To test the resistance, set it to measure resistance (ohms).
Next, attach the multimeter probes to the EGR valve. For voltage testing, connect the red lead wire to the EGR circuit labelled "C". The EGR has five circuits, labelled A-E. Then, connect the black multimeter lead to a ground point, such as the battery negative cable. For resistance testing, connect one lead of the multimeter to each terminal of the EGR valve. Ensure that the connections are secure and in contact with the terminals.
Now, you can read the multimeter. If you are testing the voltage, turn the ignition key to the "On" position and read the multimeter. If the voltage is above 0.9 volts, the EGR system should be serviced as high voltage could indicate a blockage. If you are testing the resistance, you should see a reading between 1 and 10 ohms if the valve is functioning properly.
Additionally, you can test for continuity with a multimeter. Set the multimeter to measure continuity (ohms) and connect one lead to each terminal of the EGR valve. If there is no continuity (no connection) between the terminals, the EGR valve is working properly.
Electricity in Rural Areas: Reliable or Not?
You may want to see also
Explore related products
Interpreting the multimeter reading
Voltage Readings
When testing the voltage of an EGR valve, set the multimeter to "Volts DC" and connect the leads as instructed. If the reading is between 0 and 5 volts, the valve is functioning correctly. If there is no voltage, it indicates a problem with the valve and computer communication, suggesting a possible replacement. Additionally, high voltage readings could signify a blockage within the valve, warranting further investigation.
Resistance Readings
To measure resistance, set the multimeter to Ohms (Ω). Connect the leads to the terminals of the EGR valve. A reading between 1 and 10 ohms indicates proper functioning. If the resistance is higher than expected, it could suggest an issue with the valve or wiring.
Continuity Readings
Continuity tests help determine if there is a continuous electrical path. Set the multimeter to measure continuity (ohms) and connect the leads to the terminals. If the multimeter indicates no continuity (no connection) between the terminals, the valve is functioning as expected. However, if continuity is detected when it shouldn't be, it could indicate a short circuit or wiring issue.
Solenoid Operation
Testing the solenoid involves measuring voltage and resistance. When checking voltage, ensure the solenoid receives the correct voltage from the power source. If the voltage matches the rated voltage, the solenoid is operating normally. If not, the coil may be faulty. For resistance testing, consult the manufacturer's documentation to determine the expected range. High resistance readings could indicate an incomplete circuit, while low resistance could suggest a short circuit.
Gas Valve Readings
When testing a gas valve, it is important to check for the correct voltage. Typically, gas valves operate at 24 volts, but they could also use 120 volts. Set the multimeter accordingly and touch the test leads to the corresponding terminals. If the gas valve receives the expected voltage when the igniter glows but fails to open, the issue likely lies with the gas valve itself. If the gas valve doesn't receive the required voltage, the problem may be with the wiring, control board, or grounding.
Voltage and Electric Potential: Are They Interchangeable?
You may want to see also
Explore related products
Removing the valve
To remove the EGR valve, you will first need to locate it. The EGR valve is usually found on the exhaust manifold, and you will need to open the bonnet to access it.
On some models, you will only need to remove two mounting bolts to release the valve. However, on other engines, you may also need to disconnect the valve from a steel pipe that connects it to the exhaust manifold. You may also need to remove other components to gain access to the valve, depending on your car model.
Once the valve is removed, you can use an EGR valve cleaner, or carburettor cleaner, to clean the passages at the bottom of the valve, as well as the intake and exhaust passages. Make sure to avoid any electronic components attached to the valve. You can use a dull scraper and wire brush to remove carbon deposits from the bottom of the valve, plunger, and valve seat.
It is important to note that the EGR valve is an unserviceable part and cannot be repaired. If it is not functioning properly, it must be replaced.
Electric Spectrum Peak Assignment: A Comprehensive Guide
You may want to see also
Explore related products
$23.4
Cleaning the valve
To clean an electric EGR valve, you should first disconnect the negative battery cable to ensure no current is flowing through the system. Then, remove any sensors and electrical connections, as well as any hoses.
Next, loosen the bolts to remove the valve and gasket. Check the hoses, gasket, and passage under the valve for wear and carbon buildup. If the connectors appear corroded, you may want to use electronic cleaner and di-electric grease. If the passage under the valve is clogged with carbon, gently chip it out with a screwdriver and vacuum it.
Once the valve is removed, you can choose to spray it with carburetor cleaner, using a brush to clean out any carbon buildup in small holes. Alternatively, you can soak the valve in carburetor cleaner to ensure any carbon buildup is loosened and washed out. Make sure to keep the gasket clean and dry, as the cleaner may damage it.
After cleaning the valve, reinstall it using a new gasket and bolts, and reconnect the electrical connections, sensors, and hoses. Finally, reconnect the negative battery terminal.
Lightning's Electrical Nature: A Powerful Spark
You may want to see also
Frequently asked questions
You will need a vacuum pump, a multimeter, and some common tools to clean carbon buildup from the EGR system passages.
Turn the ignition key to the "On" position and read the multimeter. If the voltage is above 0.9 volts, the system should be serviced. If there is no voltage, the EGR needs to be replaced.
Use an EGR valve cleaner, carburetor cleaner, or solvent. Apply the cleaner to the passages, intake, and exhaust passages at the bottom of the valve. Use a scraper and wire brush to remove carbon deposits. Reinstall the valve once cleaned.
It is recommended to test and service the EGR valve every one to two years. Some car manufacturers suggest specific intervals for inspection.
Common issues include clogged valves, which can cause the vehicle to shudder while driving. Another issue is melted wires from the starter to the battery, which can burn a hole in the EGR tube and affect the starting system.
