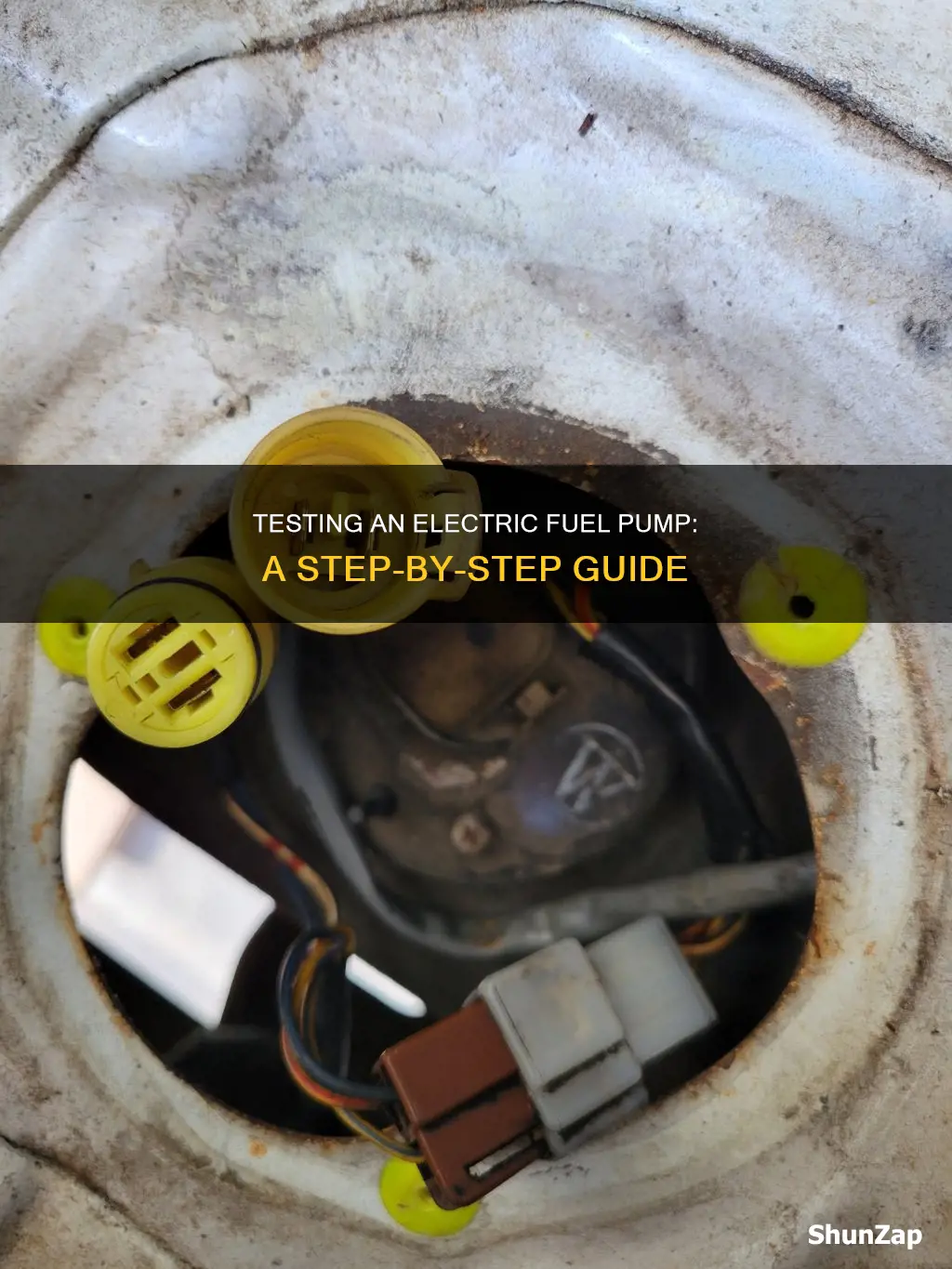

Testing an electric fuel pump can be done in several ways, depending on the equipment available and the suspected fault. A common issue with fuel pumps is debris blocking the mechanism, which can cause trouble accelerating and other symptoms that suggest your car is not getting enough fuel. Before testing, it is important to check the fuse and fuel filter, as well as the wiring, to ensure these are not the root cause of the problem. If these look fine, you can perform a fuel pressure test, a fuel pump volume test, or a voltage test.
A fuel pressure test involves using a pressure gauge to measure the pressure at the fuel rail, which should meet the manufacturer's specifications. A fuel pump volume test can be performed by connecting a gauge and placing the bleed end of its hose into a clean container. Without starting the engine, you can then activate the pump for 15 seconds while holding down the relief valve. A voltage test can be performed by connecting the positive lead of a voltmeter to the battery and the negative lead to the positive wire at the fuel pump connector.
It is important to note that other issues can mimic a faulty fuel pump, so a thorough diagnosis is necessary to ensure the pump is the problem before replacing it.
| Characteristics | Values |
|---|---|
| Test type | Fuel pump volume test, fuel pressure test, voltage test, oscilloscope test |
| Tools required | Fuel pressure gauge, voltmeter, oscilloscope, fire extinguisher |
| Pre-test checks | Check the fuse, fuel filter, wiring, and pump |
| Test procedure | Locate the fuel pump test point, hook up the pressure gauge, rev the engine, check the pressure, perform a voltage test, inspect for leaks or corrosion |
| Post-test actions | If pressure is low, replace the fuel filter and retest; if voltage is low, find the issue within the wires; if the voltage is correct, perform a voltage drop test |
Explore related products
What You'll Learn
Check the fuel pump relay and fuse for any issues
The fuel pump relay is an electromagnetic switch that uses low current to control a higher current circuit. It is a necessary component for the combustion engine model to function, as it ensures the engine gets the fuel it needs. The relay can eventually fail, causing the fuel pump to malfunction. Some common symptoms of a failing fuel pump relay include ignition issues, the fuel pump running continuously, and an illuminated check engine light.
Before checking your fuel pump, locate the fuse that corresponds to the pump and remove it to inspect for any burn marks or breaks. If the fuse looks fine, check the voltage at the pump to ensure the charge leaving the fuse is reaching the pump. If the voltage is low, you will need to find the issue within the wires. If the voltage is correct, perform a voltage drop test.
To perform a voltage drop test, connect the positive lead of the voltmeter to the battery and the negative lead to the positive wire at the fuel pump connector. Repeat for the negative side. If you have more than a 0.5-volt drop on either side of the circuit, you will need to repair this first.
You can also test the fuel pump relay with a multimeter. First, take the fuel pump relay out of your vehicle and clean and inspect it. Then, use the multimeter to check the resistance going through the relay's circuit to see if it is faulty. If you detect zero ohms or any resistance value, your fuel pump relay has shorted power pins and needs to be replaced.
Another way to test the fuel pump relay is to temporarily swap it with another relay from the power distribution box. If the fuel pump runs with the alternate relay installed, the original fuel pump relay needs to be replaced.
