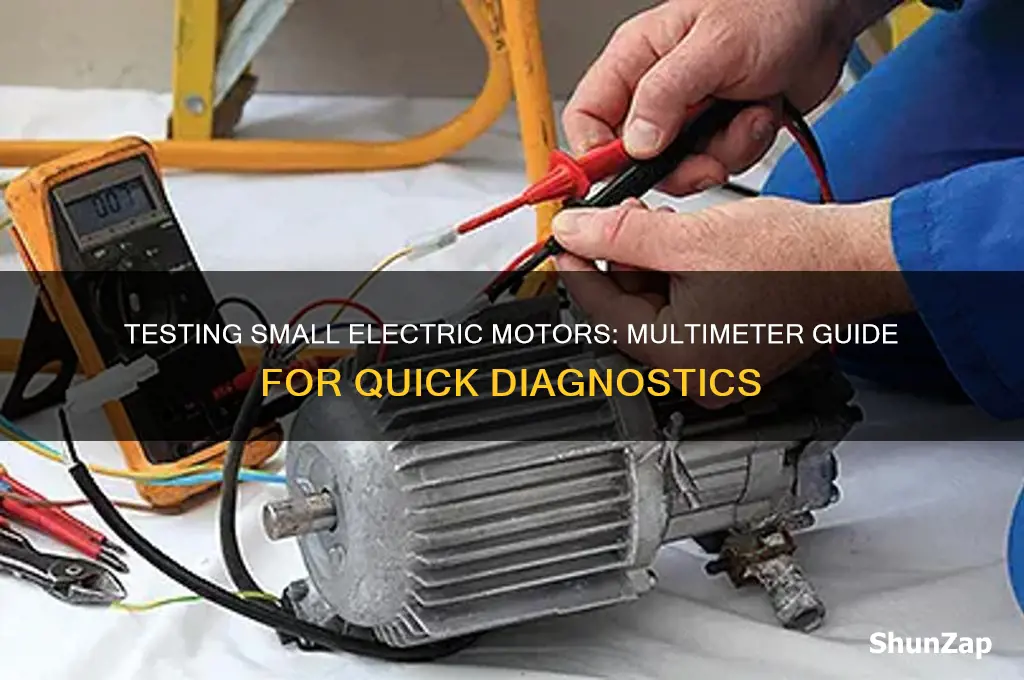

Testing a small electric motor using a multimeter is a straightforward process that helps determine if the motor is functioning properly or if there are any internal issues. To begin, ensure the motor is disconnected from any power source for safety. Set the multimeter to the resistance (ohms) setting and connect the probes to the motor’s terminals. A functional motor should show a low resistance reading, typically a few ohms, indicating continuity between the windings. If the reading is infinite or very high, it suggests an open circuit, while a reading of zero indicates a short circuit. Additionally, you can test for continuity between the motor’s frame and terminals to check for grounding issues. This simple multimeter test is an effective way to diagnose common motor problems before proceeding with further repairs or replacements.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, insulated gloves, safety goggles, power source (battery/power supply) |
| Safety Precautions | Ensure motor is disconnected from power, wear protective gear |
| Test Type 1: Continuity Test | Set multimeter to continuity mode (beep sound indicates closed circuit) |
| Test Type 2: Resistance Test | Measure resistance across motor terminals (compare with datasheet values) |
| Test Type 3: Voltage Test | Apply voltage to motor terminals and measure output (ensure polarity match) |
| Test Type 4: Open/Short Circuit Test | Check for infinite resistance (open circuit) or zero resistance (short circuit) |
| Expected Resistance Range | Typically 1-100 ohms (varies by motor type and size) |
| Polarity Check | Ensure correct terminal connection (positive to positive, negative to negative) |
| Motor Operation Check | Motor should spin freely without unusual noise or vibration |
| Common Faults Detected | Open windings, short circuits, high resistance, burnt-out motor |
| Multimeter Setting Range | Use resistance (Ω) or continuity mode for static tests; voltage (V) for live tests |
| Safety After Test | Disconnect power source immediately after testing |
Explore related products
What You'll Learn
- Check for Continuity: Test motor windings for open or closed circuits using multimeter's continuity mode
- Measure Resistance: Verify winding resistance against specifications using multimeter's ohmmeter function
- Test for Shorts: Identify short circuits between windings or to ground with resistance checks
- Inspect Capacitors: If motor has capacitors, test capacitance and check for leaks or damage
- Verify Voltage: Ensure motor operates within rated voltage using multimeter's voltage measurement
Check for Continuity: Test motor windings for open or closed circuits using multimeter's continuity mode
Testing a small electric motor for continuity is a critical step in diagnosing its health. The motor's windings are its lifeblood, and a break in these coils can render the motor useless. By using a multimeter in continuity mode, you can quickly determine if the windings form a complete circuit, allowing current to flow as intended. This test is straightforward, requiring only a basic understanding of multimeter operation and a bit of patience to ensure accurate results.
To begin, set your multimeter to continuity mode, often denoted by a symbol resembling a diode or a series of beeps. This mode sends a small current through the circuit and alerts you with a sound or visual indicator if the circuit is closed. With the motor disconnected from any power source, locate the motor’s terminals. These are typically labeled or can be identified by consulting the motor’s datasheet. Place one multimeter probe on each terminal, ensuring a firm connection. A closed circuit will trigger the multimeter’s audible or visual signal, indicating the winding is intact. If there’s no response, the winding is likely open, signaling a break or fault.
A practical tip is to test each winding individually, especially in motors with multiple windings. For instance, a three-phase motor will have three sets of windings, each requiring separate testing. Record the results for each pair to identify which winding, if any, is faulty. This systematic approach ensures no defect goes unnoticed and provides a clear diagnostic path for repair or replacement.
While continuity testing is reliable, it’s not foolproof. False positives can occur if the break in the winding is intermittent or if the multimeter’s probes are not making proper contact. To mitigate this, gently wiggle the motor or probes during testing to detect any loose connections. Additionally, compare the resistance readings (if your multimeter displays them) against the motor’s specifications. A significant deviation from the expected value can indicate a problem, even if continuity is detected.
In conclusion, checking for continuity in motor windings is a simple yet powerful diagnostic tool. It provides immediate insight into the motor’s internal state, helping you pinpoint issues before they escalate. By following these steps and remaining attentive to potential pitfalls, you can ensure your small electric motor operates reliably or identify when it’s time for a replacement.
TENS Devices for Electro Sex: Safe Use and Risks Explained
You may want to see also
Explore related products
Measure Resistance: Verify winding resistance against specifications using multimeter's ohmmeter function
One of the most critical steps in testing a small electric motor with a multimeter is measuring the winding resistance. This process involves using the ohmmeter function to verify that the resistance values align with the motor's specifications, ensuring optimal performance and identifying potential issues. The winding resistance is a key indicator of the motor's health, as deviations from the specified range can signal problems such as short circuits, open circuits, or degraded insulation.
To begin, consult the motor's datasheet or manufacturer specifications to determine the expected resistance values for each winding. These values are typically provided in ohms (Ω) and may vary depending on the motor's design and intended application. For example, a small DC motor might have a winding resistance of 5 to 10 ohms, while a larger AC motor could range from 0.1 to 1 ohm. Armed with this information, set your multimeter to the ohmmeter function and select an appropriate range that exceeds the expected resistance value to ensure accurate readings.
Next, disconnect the motor from any power source and ensure it is safe to test. Identify the motor's terminals, which are usually labeled or color-coded. For a two-terminal motor, measure the resistance between the two leads. For motors with multiple windings (e.g., three-phase motors), measure the resistance between each pair of terminals. Record the readings and compare them to the specifications. A significant discrepancy—such as a resistance value that is too high or too low—may indicate a problem. For instance, an open circuit would result in infinite resistance (OL on the multimeter), while a short circuit would show a resistance close to zero.
Practical tips can enhance the accuracy of your measurements. Ensure the motor is at room temperature, as resistance values can vary with temperature. Clean the motor terminals and multimeter probes to eliminate contact resistance, which could skew readings. If the motor has multiple windings, test each one systematically to avoid confusion. For example, on a three-phase motor, label the terminals as U, V, and W, and measure U-V, V-W, and W-U to verify consistency.
In conclusion, measuring winding resistance with a multimeter is a straightforward yet powerful diagnostic technique. By comparing the readings to the motor's specifications, you can quickly identify issues that might otherwise go unnoticed. This step is not just about troubleshooting; it’s also a preventive measure to ensure the motor operates efficiently and reliably. Whether you’re a hobbyist or a professional, mastering this skill will save time and extend the lifespan of your electric motors.
