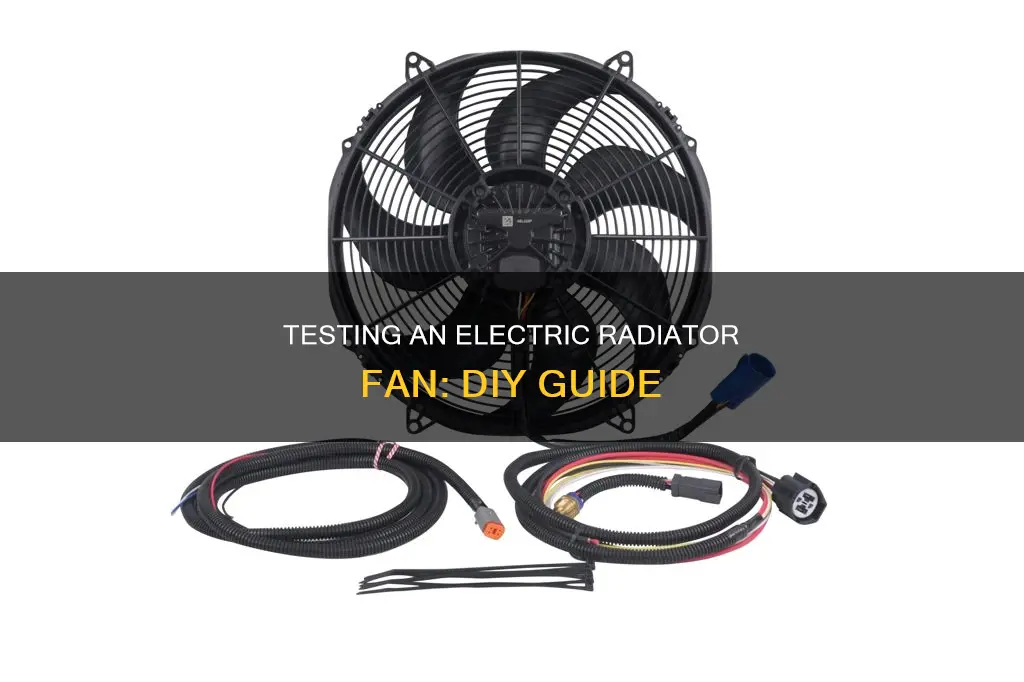

Testing an electric radiator fan is a simple process that can be done using a multimeter or jumper wires. Electric radiator fans are powered by the vehicle's electrical system and are sensitive to temperature, only operating when extra cooling is required. To test the fan, one can either use a multimeter to test the strength of electrical currents or connect jumper wires to its pigtail harness. If the fan is not working, it may require replacement, especially if it is an electric fan, as internal motors cannot typically be repaired.
| Characteristics | Values |
|---|---|
| Tools required | Test light, multimeter, jumper wires, replacement fuses and relays, gloves, eye protection |
| First steps | Check for power at the fuse, then relay, then fan. If power stops at any point, locate damaged wiring. |
| Testing the fan | Using jumper wires, connect to the fan's pigtail harness – one from the positive battery terminal and one from the negative. The fan should turn on and spin smoothly without strange noises. |
| Testing the fuse | If the fuse is burnt, replace it. If it burns again, there is an electrical draw or short. |
| Testing the fan motor | Disconnect the fan and test with 12V applied to it. Alternatively, use a multimeter to test the voltage across the pins on the connector. |
| Testing the connector | Check for loose wires or corrosion. |
Explore related products
What You'll Learn
Using a multimeter to test voltage
To test an electric radiator fan with a multimeter, you will need to locate the fuse boxes in your vehicle. The location of the fuse box varies between vehicle models. Some fuse boxes are located under the dashboard, while others can be found in the engine bay under the front hood. Certain vehicles may also have fuse panels under the back seat or in the trunk.
Once you have located the fuse boxes, set your multimeter to the correct setting. Most cars have a 12V battery with negative to earth, so set your multimeter to Direct Current Voltage (DCV). Kick off the engine or switch the ignition key off to IG2.
Now, you can start checking the voltage of the fuses. The multimeter method measures the voltage of the specific fuse that protects the radiator fan circuit. Touch the black multimeter probe to the negative battery terminal or a metal ground point on the car, depending on whether you are testing an under-hood or under-dash fuse. Then, touch the red probe to any of the two contacts on the fuse and take the reading. A reading of 12V on both contacts indicates that the fuse is functioning properly. If you get a reading of 12V on one contact and 0V on the other, it means the fuse is blown and needs to be replaced.
If the fuses are functioning properly, you can disconnect the connector and use the multimeter to read the voltage across the pins on the connector when the fan is supposed to be on. A voltage reading indicates that the connections are fine, and the issue is likely with the fan motor.
Electric Rods: The Future of Eco-Friendly Pest Control
You may want to see also
Explore related products
Checking the fuse
First, locate the fuse box in your vehicle. There may be more than one, so be sure to check under the dash and under the hood. Once you have located the fuse boxes, identify the fuse that corresponds to the radiator fan. This may be indicated by a label or a diagram on the fuse box.
With the engine off and the accessories powered on, use a multimeter to test the fuse. Set the multimeter to Direct Current Voltage (DCV) as most cars have a 12V battery with a negative-to-earth polarity. Connect the black lead (negative) of the multimeter to an earth point, then touch the red lead (positive) to each end of the fuse in turn. A reading of 0 ohms indicates a good fuse, while a reading of infinite ohms indicates a blown fuse. If the fuse is blown, replace it with a new one of the same size and type.
If the new fuse blows, this could indicate an excessive electrical draw or a short circuit. In this case, further diagnostics are required to identify the root cause of the problem. It may be necessary to consult a professional mechanic or an auto electrician to identify and resolve the issue.
Storing Electricity at Home: DIY Guide for Beginners
You may want to see also
Explore related products
Inspecting for visible damage
When inspecting an electric radiator fan for visible damage, it's important to be cautious as fans can rotate at high speeds and can be dangerous. Start by checking the fuse, which is typically located in the fuse box of your vehicle. If the fuse is burnt, replace it with the same size and type. If it burns again, there may be an excessive electrical draw or a short circuit.
Next, inspect the fan's physical condition. Look for any visible signs of damage, such as broken or damaged blades. If there are any obvious signs of damage, a replacement fan may be necessary. Check for any broken wires or connector problems, such as pushed-out pins or corrosion. These issues may not be complex to repair, but it's important to ensure they are fixed correctly.
Additionally, examine the wiring connector and the mounting bolts that secure the fan to the radiator. If there are any signs of damage or corrosion on these components, they may need to be replaced or repaired. It's also important to check the internal motor of the electric radiator fan. If the motor is burnt out or damaged, it may need to be replaced, as internal motors often cannot be repaired.
Finally, inspect the radiator itself for any signs of leaks or damage. Ensure that the radiator is not clogged or blocked, as this can impact the fan's performance. By carefully inspecting these components, you can identify visible damage and take appropriate action, such as repairing or replacing the necessary parts to ensure the safe and efficient operation of your electric radiator fan.
Setting Up Electricity Services in Your Apartment
You may want to see also
Explore related products
Testing the motor
Firstly, it is important to ensure that you are wearing the appropriate safety gear, including gloves and eye protection. Then, locate the fuse box in your vehicle, which may be found under the dash or under the hood. Once located, set your multimeter to the correct setting, typically Direct Current Voltage (DCV) for cars with a 12V battery. Ensure the engine is off, but accessories are powered on, and connect the multimeter's black lead (negative) to an earth point.
You can then disconnect the fan and test it by applying 12V directly to it. Some fans may require a ground connection, which can be achieved through mounting screws or a jumper wire. If the fan does not work, check for a solid ground connection. If the fan still does not work, the issue may lie with the internal motor, which typically requires replacement rather than repair.
Alternatively, you can test the motor by connecting two jumper wires to its pigtail harness, one from the positive battery terminal and one from the negative. If the fan turns on smoothly and without abnormal noises, the issue may lie elsewhere. If it does not turn on, the radiator fan motor likely needs to be replaced.
In some cases, you may need to test individual components, such as the relay, by jumping the supply and load terminals with the ignition in the run position. If the fan still does not turn on, the wiring may be damaged, and you should check for broken or pushed-out pins or corrosion.
GE Aerospace: A General Electric Legacy
You may want to see also
Explore related products
Testing with jumper wires
Testing a radiator fan with jumper wires is a straightforward process. It involves connecting the radiator fan to the car battery using jumper wires to observe whether the fan runs normally. This method bypasses the usual power supply circuit, allowing you to isolate any issues with the fan itself. Here is a step-by-step guide:
Step 1: Locate the Radiator Fan and Battery
The radiator fan is typically located near the radiator in your car. Identify the positive and negative battery terminals of your car battery.
Step 2: Prepare the Jumper Wires
Ensure you have two jumper wires of sufficient length and gauge to reach between the radiator fan and the car battery. One jumper wire will connect to the positive battery terminal, and the other to the negative.
Step 3: Connect the Jumper Wires
Connect one jumper wire from the positive battery terminal to the radiator fan's pigtail harness. Then, connect the second jumper wire from the negative battery terminal to the fan's pigtail harness. Ensure that the connections are secure and that no loose wires are exposed.
Step 4: Observe the Fan's Operation
Once the jumper wires are connected, the radiator fan should start running immediately. Observe the fan's behaviour carefully. It should spin smoothly at full speed without making any abnormal noises. If the fan operates normally, the issue likely lies elsewhere in the electrical system or with another component. If the fan fails to operate as expected, there may be a problem with the fan motor or its internal components.
Step 5: Safety Precautions
Exercise caution during the testing process to avoid potential hazards. Ensure the engine is off before beginning, and never open the radiator cap when it's hot to prevent burns. Wear gloves and eye protection for safety. Additionally, be cautious of the fan's high-speed rotation to prevent injuries.
By following these steps, you can effectively test your electric radiator fan using jumper wires. This process helps isolate any issues with the fan itself, allowing you to determine whether the fan or another component requires replacement or repair.
