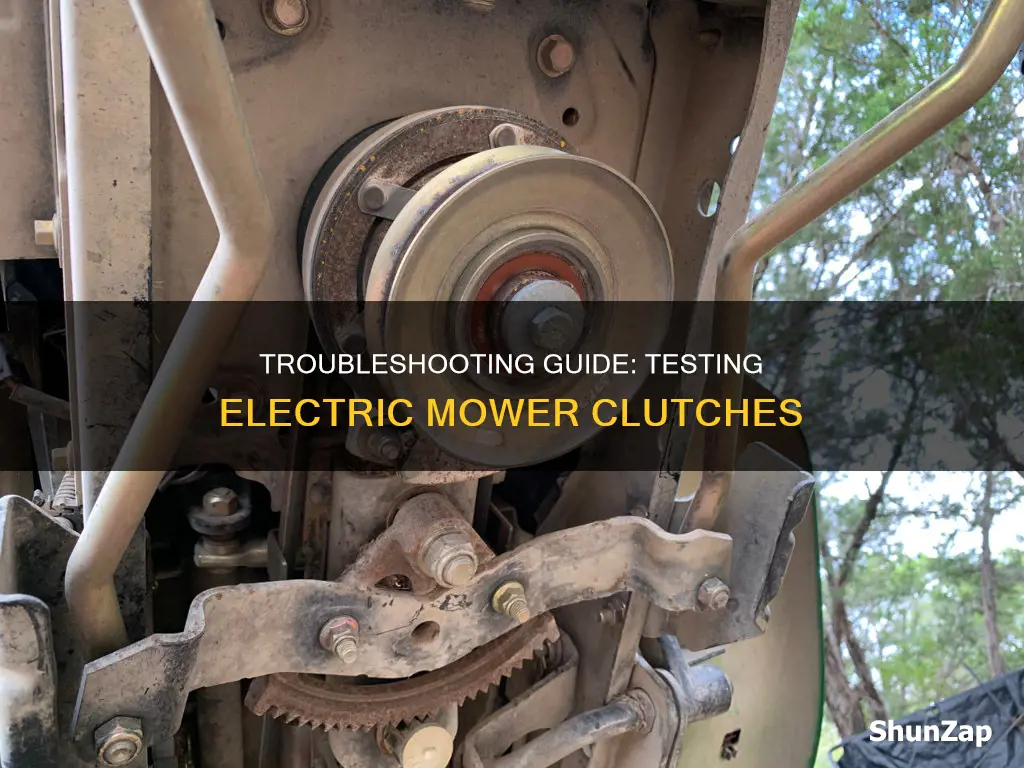

Testing an electric clutch on a mower can be done in several ways, depending on the problem. One common issue is a lack of engagement, which could be due to insufficient battery voltage, a blown fuse, or a faulty switch. To test the battery, a voltmeter can be used to check the voltage, and if it reads 12.5 volts or below, the battery needs to be charged. The fuse can be inspected for any visible damage, and the switch can be tested by connecting a jumper wire from the battery's positive post to the red wire inside the PTO wire jack. If the clutch still fails to engage, the problem may lie within the electrical circuit, specifically at the rotor and armature location. It is important to exercise caution when testing the clutch to avoid any potential hazards.
| Characteristics | Values |
|---|---|
| Problems with the electric clutch | Clutch jams solid, slips excessively, voltage becomes lost, or engine dies when engaged |
| Testing methods | Use a voltmeter or 12-volt test light to check battery voltage, check the in-line fuse, listen for the click of engagement, use a multimeter to measure ohms, check for mower blade operation, test with jumper wire |
| Possible causes | Faulty fuse, electrical circuit problem, safety switch issue, faulty wire |
Explore related products
What You'll Learn
Check the battery voltage
To check the battery voltage, you will need a voltmeter. Place the positive lead of the voltmeter on the red, positive post on the battery. Place the negative voltmeter lead on a good engine source. Read the voltmeter. If the battery output is 12.5 volts or below, charge the battery. The PTO clutch will not engage without sufficient voltage.
If the battery voltage reads correctly, the problem may lie elsewhere. If the battery voltage reads incorrectly, the battery may need to be replaced. Check the in-line fuse between the electrical wiring harness from the lever switch to the PTO clutch assembly under the deck. Unscrew the cap wires to the fuse and inspect the fuse filament. If the fuse appears black or the filament has blown, replace the fuse with one of the same ampere rating as the original.
If the battery voltage is correct and the fuse is intact, the lever switch may be faulty. Use wire strippers to cut a length of jumper wire that will reach from the positive post on the battery to the red power lead inside the PTO wire jack. Connect one end of the jumper wire to the positive side of the battery and the other end to the positive, red wire inside the PTO wire jack. Listen for the click of engagement. If you do not hear a click, the problem is likely within the electrical circuit of the PTO clutch assembly, possibly at the rotor and armature location.
You can also test the PTO and the electrical system of the mower by unhooking the connector at the PTO and using a 12-volt test light or a voltmeter. Keep the motor running and the seat switch activated, then probe the wires with the test light. Usually, one wire will be black, which is the ground, and the other may be blue or have a stripe on it.
Music Without Power: Acoustic Alternatives
You may want to see also
Explore related products
Test the in-line fuse
To test the in-line fuse of your electric mower clutch, you will need to locate the fuse between the electrical wiring harness from the lever switch to the PTO clutch assembly under the deck. Start by removing the seat of the riding mower, if it tilts up, to access the battery.
Once you have located the in-line fuse, carefully unscrew the cap wires connected to it. Inspect the fuse filament; if it appears black or the filament is broken, the fuse is blown and needs to be replaced. Be sure to use a new fuse with the same ampere rating as the original.
Before replacing the fuse, you can perform a voltage test on the battery to ensure it is functioning correctly. Connect the positive lead of a voltmeter to the positive post on the battery, and the negative lead to a good engine source. If the battery output is 12.5 volts or below, the battery needs to be charged, as the PTO clutch requires sufficient voltage to engage.
After replacing the fuse, start the engine and let it warm up. Engage the lever to activate the clutch, and from a safe distance, observe the mower blades for operation. Listen for any unusual noises, such as squealing, which may indicate an issue.
If the mower blades are not functioning properly and the fuse continues to blow, there may be a short circuit or a problem with the electrical circuit of the PTO clutch assembly. In this case, further diagnostics and repairs may be required.
Electric Showers: How Many Are Too Many?
You may want to see also
Explore related products
Use a voltmeter
To test an electric clutch on a mower, you can use a voltmeter. First, lift the mower with a floor jack and place two jack stands under the front frame and two under the rear frame, so you can access the underside of the mower deck and see the clutch drive assembly. Next, refer to your owner's manual for the battery location. Place the positive lead of the voltmeter on the red, positive post on the battery. Place the negative voltmeter lead on a good engine source. Read the voltmeter; if the battery output is 12.5 volts or below, charge the battery. The PTO clutch will not engage without sufficient voltage.
Look for the in-line fuse between the electrical wiring harness from the lever switch to the PTO clutch assembly under the deck. Unscrew the cap wires to the fuse and inspect the fuse filament. If the fuse appears black or the filament has blown, replace the fuse with one of the same ampere rating as the original. If the battery voltage reads correctly and the in-line fuse checks out, the lever switch may be the problem.
If the battery voltage is correct and the fuse is intact, use wire strippers to cut a length of jumper wire that will reach from the positive post on the battery to the red power lead inside the PTO wire jack. Ensure that the battery cables are connected. Connect one end of the jumper wire to the positive side of the battery and the other end to the positive, red wire inside the PTO wire jack. Listen for the click of engagement. If you can't hear anything, the problem is likely within the electrical circuit of the PTO clutch assembly, specifically the rotor and armature.
Be cautious when testing the mower clutch. When running the engine and engaging the clutch, keep your head and hair away from the underside of the mower deck. Summon an assistant to turn the key and clutch engagement lever while you observe the clutch operation from a safe distance.
Why Lifeline Trumps Electric E-brake
You may want to see also
Explore related products
Check the clutch drive assembly
To check the clutch drive assembly, you must first lift the mower with a floor jack. Place two jack stands under the front frame and two jack stands under the rear frame, ensuring the wheels are above the pavement. This will give you enough clearance to inspect the clutch drive assembly under the mower deck.
Next, you need to check the battery voltage. Place the positive lead of a voltmeter on the positive post on the battery, and the negative lead on a good engine source. If the battery output is 12.5 volts or below, the battery needs to be charged. The clutch will not engage without sufficient voltage.
Now, look for the in-line fuse in the electrical wiring harness from the lever switch to the clutch assembly under the deck. Remove the cap wires and inspect the fuse. If the fuse is black or the filament is broken, replace it with a new fuse of the same ampere rating.
Start the engine and let it warm up. Then, activate the lever to engage the clutch. From a safe distance, look underneath the deck and observe the mower blade operation. If you hear any unusual noises, immediately shut off the engine and remove the key.
Composite Handles: Electric-Proof Ratchet Safety
You may want to see also
Explore related products
Listen for the click of engagement
Listen carefully for the click of engagement after connecting the jumper wire. If you don't hear a click, there is likely an issue with the electrical circuit of the PTO clutch assembly, specifically at the rotor and armature location. The PTO clutch on a small engine uses electricity to engage a clutch with the main engine crankshaft. The battery sends voltage to a magnetic armature and rotor, which engages the clutch and plate, allowing full contact.
The PTO clutch may not engage without sufficient voltage. If you suspect low voltage is the issue, place the positive lead of a voltmeter on the positive post on the battery. Place the negative voltmeter lead on a good engine source. If the battery output is 12.5 volts or below, charge the battery.
If the battery voltage reads correctly, the problem may be with the lever switch. Cut a length of jumper wire that will reach from the positive post on the battery to the red power lead inside the PTO wire jack. Ensure that you connect the battery cables. Connect one end of the jumper wire to the positive side of the battery and the other end to the positive red wire inside the PTO wire jack.
