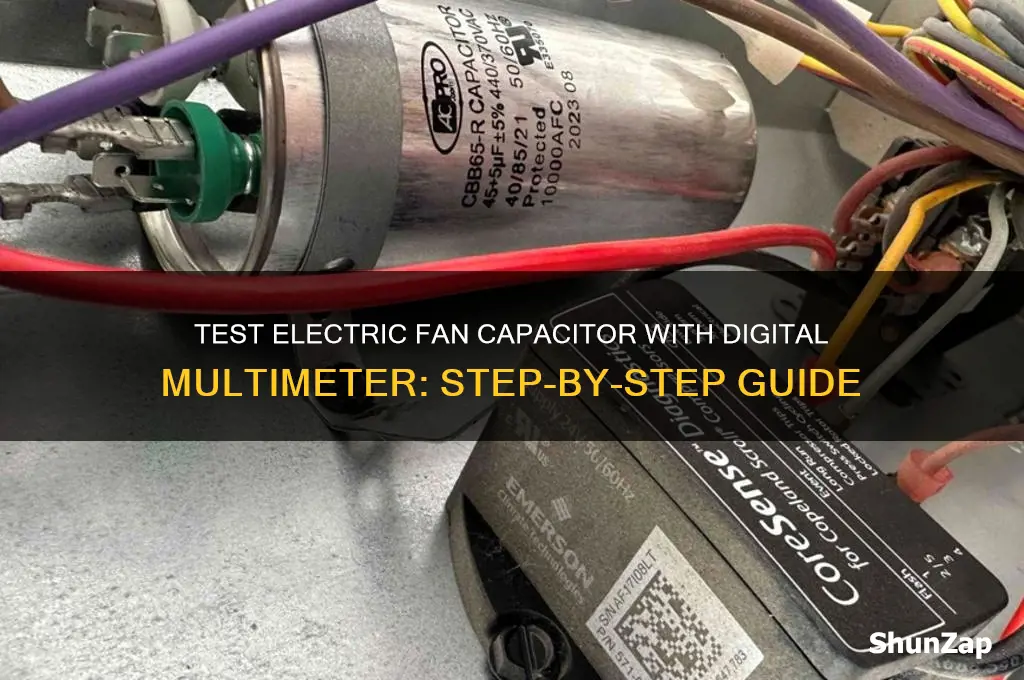

Testing an electric fan capacitor using a digital multimeter is a straightforward process that helps diagnose issues with the fan's performance. Begin by ensuring the fan is disconnected from the power source to avoid electrical hazards. Set the multimeter to the capacitance (uF) measurement mode, as capacitors are rated in microfarads (uF). Discharge the capacitor by connecting a resistor or insulated screwdriver across its terminals to prevent electric shock. Next, connect the multimeter probes to the capacitor terminals, observing the correct polarity if the capacitor is polarized. A functional capacitor should display a reading close to its rated value, while a significant deviation or no reading indicates a faulty capacitor. Always handle components with care and refer to the multimeter manual for specific instructions.
| Characteristics | Values |
|---|---|
| Required Tools | Digital Multimeter (DMM), Insulated Screwdriver, Safety Gloves |
| Safety Precautions | Disconnect power, discharge capacitor, wear gloves |
| Capacitor Types | Run capacitor (for continuous operation), Start capacitor (for starting) |
| DMM Setting | Capacitance mode (Farads, μF, or nF) |
| Expected Capacitance Range | Typically 1.5 μF to 100 μF (varies by fan model) |
| Testing Steps | 1. Discharge capacitor 2. Set DMM to capacitance mode 3. Connect leads to capacitor terminals 4. Compare reading to rated value |
| Normal Reading | Within ±5% of the rated capacitance value |
| Faulty Capacitor Symptoms | Fan not starting, humming noise, slow speed, or no oscillation |
| Faulty Reading Indicators | Significant deviation from rated value, "OL" (open circuit), or "0" |
| Replacement Criteria | Replace if capacitance is outside tolerance or shows open/short circuit |
| Additional Tips | Test in-circuit only if necessary; remove capacitor for accurate testing |
Explore related products
What You'll Learn
- Safety Precautions: Ensure fan is unplugged, discharge capacitor before testing to avoid electric shock
- Capacitor Removal: Disconnect capacitor wires carefully, label them for correct reinstallation after testing
- Multimeter Setup: Set multimeter to capacitance mode or resistance mode for accurate readings
- Capacitance Testing: Connect multimeter leads to capacitor terminals, check reading against rated value
- Interpret Results: Replace capacitor if reading is significantly lower or higher than specified value
Safety Precautions: Ensure fan is unplugged, discharge capacitor before testing to avoid electric shock
Before testing an electric fan capacitor with a digital multimeter, prioritize safety to prevent electric shock. Always unplug the fan from the power source. Even if the fan appears off, residual electricity can remain in the capacitor, posing a hazard. This simple step eliminates the risk of live current during testing.
Capacitors store electrical energy, even when the device is disconnected. Failure to discharge the capacitor before testing can result in a dangerous shock. To discharge it, use a screwdriver with an insulated handle. Carefully place the screwdriver tip across the capacitor terminals, ensuring contact between them. This creates a short circuit, safely releasing stored energy. Avoid using metal tools without insulation, as they increase the risk of electric shock or short circuits.
While discharging the capacitor, wear rubber gloves and stand on a dry, insulated surface for added protection. Moisture or direct contact with conductive materials can increase the risk of shock. If unsure about the process, consult a professional or refer to detailed guides specific to your fan model. Safety should never be compromised for convenience.
After discharging, verify the capacitor is safe by testing it with the multimeter set to the resistance (ohms) setting. Place the probes on the terminals; a functional capacitor will show a brief rise in resistance before stabilizing. If the meter reads zero or fluctuates erratically, the capacitor may still hold a charge or be faulty. Always double-check before proceeding with further tests.
Save on Energy Bills: Discover Cheaper Electricity Usage Times
You may want to see also
Explore related products
Capacitor Removal: Disconnect capacitor wires carefully, label them for correct reinstallation after testing
Before testing an electric fan capacitor with a digital multimeter, you must first remove it safely from the fan. Start by turning off the power supply to the fan to prevent electrical shock. Locate the capacitor, typically a cylindrical or oval-shaped component near the motor, and identify the wires connected to its terminals. These wires are often color-coded or labeled, but their positions are critical for proper reinstallation. Use a screwdriver or appropriate tool to loosen the terminal screws and carefully disconnect the wires, ensuring no damage to the terminals or insulation. Label each wire immediately with tape or a marker, noting its original position (e.g., "L1," "L2," "C"). This step is non-negotiable—incorrect reconnection can lead to motor damage or malfunction.
Analyzing the removal process reveals a common pitfall: haste. Many DIYers rush this step, assuming wire positions are intuitive or easily remembered. However, capacitors in electric fans often have multiple terminals, and wires may appear similar in color or length. A single misconnected wire can short-circuit the motor or prevent the fan from operating at the correct speed. For example, a dual-value capacitor with three terminals (HER, C, and FAN) requires precise reconnection to ensure the motor runs and the fan blades oscillate correctly. Labeling wires immediately after disconnection eliminates guesswork during reinstallation, saving time and preventing errors.
Persuasively, consider the long-term benefits of meticulous wire labeling. While it may seem tedious, this practice aligns with professional standards in electrical maintenance. Technicians use labels not just for convenience but as a safety measure, ensuring systems function as intended post-repair. For instance, a mislabeled capacitor wire in a ceiling fan could cause the motor to overheat, reducing its lifespan or posing a fire hazard. By investing a few extra seconds in labeling, you safeguard both the appliance and its user, turning a simple repair into a responsible act of preventive maintenance.
Comparatively, the process of removing and labeling capacitor wires mirrors surgical procedures where precision is paramount. Just as a surgeon labels incisions or instruments to avoid errors, an electrician labels wires to maintain system integrity. In both cases, the goal is to restore functionality without introducing new problems. While a misplaced wire won’t have life-or-death consequences like a surgical error, the principle remains: attention to detail during disassembly ensures successful reassembly. This analogy underscores why labeling isn’t optional—it’s a cornerstone of effective troubleshooting.
Descriptively, imagine the capacitor as the heart of the fan’s electrical system, with wires acting as its lifelines. Each wire carries a specific current or signal, and their connections dictate the fan’s performance. When you disconnect these wires, you’re temporarily severing those lifelines, and labeling them is akin to mapping a complex network. Without this map, reassembly becomes a gamble. For instance, a wire labeled "C" (common) might appear interchangeable with another terminal, but its correct placement is crucial for capacitor functionality. This visual approach transforms a technical task into a logical, step-by-step process, making it accessible even to novice repairers.
Electrical Stimulation Therapy: A Potential Solution for Shy B Ladder?
You may want to see also
Explore related products
Multimeter Setup: Set multimeter to capacitance mode or resistance mode for accurate readings
Testing an electric fan capacitor with a digital multimeter requires precision, and the first critical step is setting your multimeter to the correct mode. Most modern multimeters offer a capacitance mode, specifically designed to measure the capacitance value of components like capacitors. This mode is ideal for directly reading the microfarad (µF) rating of the capacitor, ensuring you can compare it against the manufacturer’s specifications. If your multimeter lacks a capacitance mode, you’ll need to use the resistance mode (ohms setting) to perform a continuity test, which indirectly assesses the capacitor’s functionality.
In capacitance mode, connect the multimeter probes to the capacitor terminals, ensuring the capacitor is discharged to avoid inaccurate readings or damage. A healthy capacitor should display a value close to its rated capacitance. For example, a 5 µF capacitor should read between 4.5 µF and 5.5 µF. If the reading is significantly lower or higher, the capacitor is likely faulty. This method is straightforward and provides a clear diagnosis, making it the preferred choice when available.
When using resistance mode, the process is more nuanced. Discharge the capacitor, then connect the probes across its terminals. Initially, the multimeter will show low resistance (near zero ohms) as the capacitor charges. The reading should gradually increase until it displays "OL" (open loop), indicating the capacitor is fully charged. Reverse the probes and observe the same behavior. If the resistance remains low or fails to rise, the capacitor is shorted. Conversely, if the reading immediately shows "OL," the capacitor is open and needs replacement.
Choosing the right mode depends on your multimeter’s capabilities and the level of detail you require. Capacitance mode offers direct, quantitative data, while resistance mode provides a qualitative assessment of the capacitor’s health. For most users, capacitance mode is the more efficient and accurate option, but resistance mode serves as a reliable fallback when necessary.
A practical tip: Always discharge the capacitor before testing to prevent false readings or damage to the multimeter. Use a screwdriver with an insulated handle to short the terminals for a few seconds. This step is crucial, especially when using resistance mode, as residual charge can skew results. By mastering these multimeter settings, you’ll confidently diagnose capacitor issues and ensure your electric fan operates smoothly.
Plumber's Grease on Electrical Connections: Safe or Risky Practice?
You may want to see also
Explore related products
Capacitance Testing: Connect multimeter leads to capacitor terminals, check reading against rated value
Testing an electric fan capacitor using a digital multimeter begins with understanding the capacitor’s role: it stores and releases electrical energy to maintain consistent motor performance. To assess its health, capacitance testing is critical. Start by connecting the multimeter leads directly to the capacitor terminals—red to positive, black to negative. Ensure the fan is unplugged to avoid electrical hazards. The multimeter should be set to the capacitance (farad) measurement mode, typically denoted by a symbol resembling a capacitor or labeled "F." A functional capacitor will display a reading close to its rated value, usually printed on its body (e.g., 4.5 µF or 6 µF). If the reading is significantly lower or zero, the capacitor is likely faulty and needs replacement.
Analyzing the reading requires attention to detail. A slight deviation (up to 10%) from the rated value is acceptable due to manufacturing tolerances or age-related wear. However, a reading of zero indicates a short circuit, while an infinite or "OL" (open loop) reading suggests an open circuit. Both scenarios render the capacitor unusable. For dual-capacitor models (common in fans with multiple speeds), test each section separately by isolating the terminals. If one section fails, the entire capacitor must be replaced, as partial functionality can still cause motor issues.
Practical tips enhance accuracy and safety. Discharge the capacitor before testing by connecting a resistor (e.g., 10KΩ) across its terminals for 10–15 seconds to prevent electrical shock. If the multimeter lacks a capacitance mode, use the resistance setting to check for continuity: a functional capacitor will show a brief spike in resistance before dropping to zero as it charges. While less precise, this method can indicate basic functionality. Always compare results with the rated value, as visual inspection alone cannot diagnose internal degradation.
Comparatively, capacitance testing is more reliable than voltage or resistance tests for capacitors. Voltage testing only confirms power flow, not energy storage capacity, while resistance testing is indirect and less definitive. Capacitance testing directly measures the component’s ability to store charge, making it the gold standard for diagnosing fan capacitor issues. By focusing on this method, you ensure a thorough and accurate assessment, saving time and preventing unnecessary replacements.
In conclusion, capacitance testing is a straightforward yet powerful diagnostic tool for electric fan capacitors. By connecting multimeter leads to the terminals and comparing the reading to the rated value, you can quickly determine the capacitor’s condition. This method combines precision with practicality, making it essential for anyone troubleshooting fan performance issues. Master this technique, and you’ll diagnose capacitor problems with confidence, ensuring your fan operates efficiently and reliably.
Electric Bikes on PA State Game Lands: Rules and Regulations Explained
You may want to see also
Explore related products
Interpret Results: Replace capacitor if reading is significantly lower or higher than specified value
A digital multimeter reading that deviates significantly from the capacitor's specified value is a clear indicator of malfunction. For instance, a capacitor rated at 4.5 µF (microfarads) should ideally show a reading within ±5% of this value when tested. If your multimeter displays 3.8 µF or 5.2 µF, the discrepancy signals a compromised component. This variance can manifest as fan symptoms like slow startup, erratic speeds, or complete failure to operate.
Analyzing the nature of the deviation provides insight into the type of failure. A reading significantly lower than the specified value often points to a *shorted* capacitor, where internal plates have lost their ability to store charge effectively. Conversely, a reading markedly higher suggests an *open* capacitor, indicating a break in the internal circuitry that prevents proper energy discharge. Both scenarios disrupt the fan motor’s ability to receive the necessary phase shift for efficient operation.
Replacing the capacitor is non-negotiable when readings fall outside acceptable limits. Attempting to continue using a faulty capacitor risks further damage to the fan motor or associated circuitry. For example, a shorted capacitor can cause excessive current draw, overheating windings, while an open capacitor may prevent the motor from starting altogether. Always match the replacement capacitor’s specifications (µF rating, voltage, and physical dimensions) to the original to ensure compatibility and performance.
Practical tip: When testing, ensure the capacitor is fully discharged before measurement to avoid inaccurate readings or safety hazards. Use the multimeter’s capacitance setting, and if unavailable, employ the resistance mode to check for shorts or opens. A shorted capacitor will show a low resistance reading that quickly drops to zero, while an open one will display infinite resistance (OL). These secondary checks reinforce the primary capacitance reading, providing a comprehensive diagnosis.
Gas Washers and Dryers: Electricity Usage Explained
You may want to see also
Frequently asked questions
Most capacitors have two terminals labeled "C" (common) and "FAN" or numbered terminals. Use the digital multimeter to test between these two terminals. Set the multimeter to the capacitance (Farad) setting and touch the probes to the respective terminals. If the multimeter shows a reading close to the capacitor's rated value, it is functioning correctly.
When testing a capacitor with a digital multimeter in capacitance mode, the reading should be close to the capacitor's rated microfarad (μF) value, typically printed on its body. A significant deviation or a reading of zero indicates a faulty capacitor. If the multimeter shows "OL" (open loop), the capacitor may be completely discharged or damaged.
Yes, you can test the capacitor using the resistance (ohms) setting. Turn the multimeter to the resistance mode, connect the probes to the capacitor terminals, and observe the display. Initially, the reading should spike and then drop to zero. If the reading remains at zero or spikes and stays high, the capacitor is likely faulty. This method tests the capacitor's ability to charge and discharge, not its exact capacitance value.
