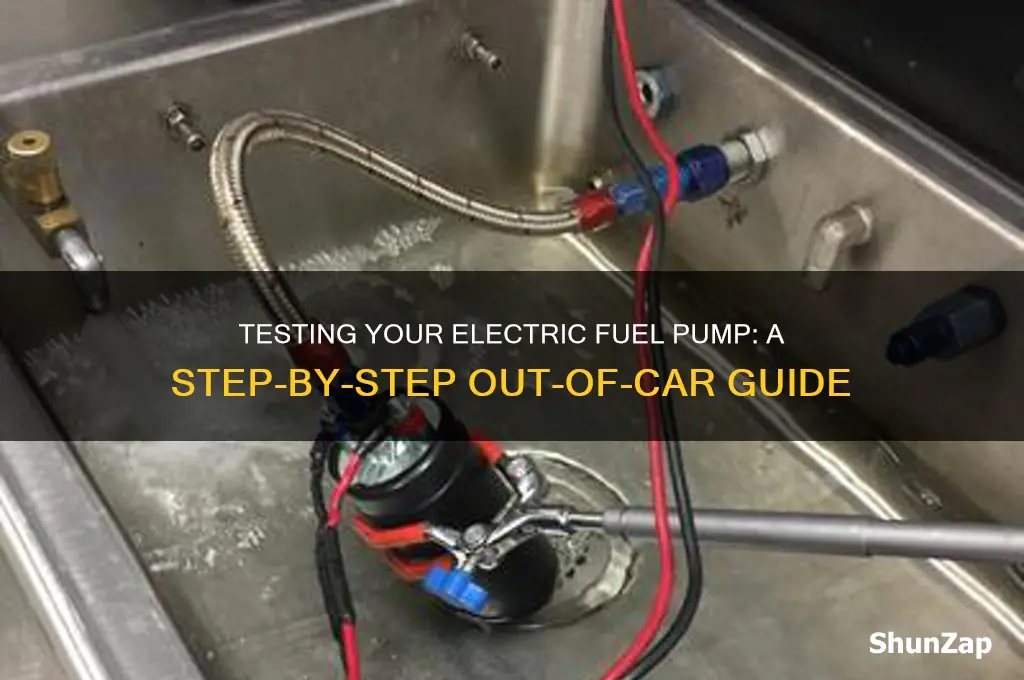

Testing an electric fuel pump outside of the vehicle is a practical way to diagnose issues without the complexity of the car's fuel system. To begin, ensure the pump is disconnected from the vehicle and placed in a safe, well-ventilated area. Connect the pump to a power source using a 12-volt battery or a bench power supply, making sure to observe proper polarity. Use a fuel line to direct the output into a container to measure flow rate and pressure, and check for leaks. Additionally, listen for unusual noises that may indicate internal damage. Testing the pump’s resistance with a multimeter can also confirm if the electrical components are functioning correctly. This method allows for a thorough assessment of the pump’s performance before reinstallation or replacement.
| Characteristics | Values |
|---|---|
| Tools Required | Multimeter, 12V battery or power source, fuel pressure gauge, safety gear |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, avoid sparks |
| Testing Method 1: Power Check | Connect pump to 12V power source, listen for humming sound |
| Testing Method 2: Voltage Test | Use multimeter to check voltage at pump connector (should match battery voltage) |
| Testing Method 3: Fuel Pressure Test | Connect pressure gauge to pump outlet, apply power, check pressure reading |
| Expected Pressure Range | Typically 30-60 PSI (varies by vehicle, check manual) |
| Resistance Check | Measure resistance across pump terminals (refer to manufacturer specs) |
| Common Failure Signs | No humming sound, low/no pressure, inconsistent fuel delivery |
| Duration of Test | 5-10 minutes per method |
| Cost of DIY Testing | Minimal (if tools are already owned) |
| Professional Testing Recommendation | If unsure, consult a mechanic for accurate diagnosis |
Explore related products
What You'll Learn
- Gather Tools and Materials: Multimeter, battery, jumper wires, fuel line disconnect tool, safety gear
- Disconnect Fuel Lines: Release pressure, detach lines carefully, and plug them to prevent spills
- Power the Pump: Connect battery directly to pump terminals using jumper wires for testing
- Check Pressure and Flow: Use gauge to measure output pressure and ensure proper fuel flow
- Inspect for Leaks or Noise: Look for leaks, listen for unusual sounds, and verify operation
Gather Tools and Materials: Multimeter, battery, jumper wires, fuel line disconnect tool, safety gear
Testing an electric fuel pump outside of the vehicle requires precision and the right tools. The multimeter, for instance, is your diagnostic lifeline. It measures voltage, current, and resistance, allowing you to verify if the pump is receiving power and functioning correctly. Ensure your multimeter is digital and has a minimum range of 0-20 volts DC for accurate readings. Without it, you’re essentially guessing whether the pump is operational.
Next, a reliable battery is essential to power the fuel pump during testing. A 12-volt automotive battery works best, as it mimics the vehicle’s electrical system. If using a portable battery pack, confirm it can deliver sufficient amperage to operate the pump, typically around 5-10 amps. Jumper wires are equally critical; they connect the battery to the pump’s terminals, completing the circuit. Opt for thick, insulated wires to handle the current safely and avoid overheating.
The fuel line disconnect tool is often overlooked but indispensable. It allows you to safely detach the fuel lines from the pump without damaging them or causing leaks. This tool varies by vehicle make and model, so verify compatibility before starting. Improper disconnection can lead to fuel spills or system damage, undermining the entire testing process.
Safety gear is non-negotiable. Fuel is flammable, and testing involves electricity, creating a potentially hazardous environment. Wear nitrile gloves to protect your skin from fuel exposure, safety goggles to shield your eyes from splashes, and a fire extinguisher rated for Class B fires should be within reach. Additionally, work in a well-ventilated area to minimize fume inhalation and reduce fire risk.
Finally, organize your workspace efficiently. Lay out all tools and materials within arm’s reach to streamline the process. Label wires and connections to avoid confusion during testing. A systematic approach not only saves time but also reduces the likelihood of errors. With these tools and precautions in place, you’re equipped to diagnose your electric fuel pump accurately and safely.
Electric Vehicle Features: Understanding the Core Innovations
You may want to see also
Explore related products
Disconnect Fuel Lines: Release pressure, detach lines carefully, and plug them to prevent spills
Before disconnecting fuel lines to test an electric fuel pump outside the vehicle, safety and precision are paramount. Fuel systems operate under pressure, and mishandling can lead to spills, fires, or personal injury. Start by relieving the system pressure using the Schrader valve on the fuel rail, if equipped, or by loosening the fuel filler cap to equalize pressure. Always work in a well-ventilated area, away from open flames or sparks, and wear safety goggles and nitrile gloves to protect against fuel exposure. This initial step is non-negotiable—skipping it risks fuel spraying uncontrollably when lines are detached.
Detaching fuel lines requires both care and the right tools. Use a fuel line disconnect tool to avoid damaging the quick-connect fittings, which are often made of plastic and can crack under force. Grip the tool firmly and pull steadily to release the line. If the lines are stubborn, gently wiggle them back and forth while applying steady pressure. Once disconnected, immediately plug the lines with fuel line caps or clamps to prevent fuel leakage and contamination. Keep a drip pan nearby to catch any residual fuel, and dispose of it according to local regulations. Precision here ensures the integrity of the fuel system and minimizes environmental hazards.
Comparing methods for plugging fuel lines reveals the importance of preparation. Temporary solutions like rags or tape are risky—they can dislodge or fail, leading to spills. Purpose-built fuel line plugs or clamps, available at auto parts stores, provide a secure seal and are reusable. For DIY enthusiasts, a small piece of rubber hose clamped tightly over the line can work in a pinch, but it’s less reliable. Investing in proper tools not only safeguards against accidents but also streamlines the testing process, allowing focus to remain on the fuel pump’s performance rather than managing leaks.
Finally, consider the broader implications of this step in the context of fuel pump testing. Disconnecting and plugging fuel lines isn’t just about preventing spills—it’s about creating a controlled environment to accurately assess the pump’s functionality. A compromised fuel line connection can skew test results, leading to misdiagnosis and unnecessary repairs. By executing this step methodically, you ensure the test reflects the pump’s true condition, saving time and money in the long run. Treat this as a critical checkpoint, not a mere preliminary task, and the overall diagnostic process will be more efficient and reliable.
Unlocking Electric Car Grants: A Step-by-Step Guide to Save Big
You may want to see also
Explore related products
Power the Pump: Connect battery directly to pump terminals using jumper wires for testing
Directly powering an electric fuel pump outside of a vehicle is a straightforward method to test its functionality. Begin by disconnecting the pump from the fuel tank and ensuring it’s in a well-ventilated area, away from open flames or sparks. The core of this test lies in bypassing the vehicle’s electrical system and supplying power directly to the pump’s terminals. Using jumper wires, connect the positive terminal of a 12-volt battery to the pump’s positive terminal and the negative terminal to the pump’s ground. This setup simulates the power supply the pump would receive in a vehicle, allowing you to assess its performance in isolation.
Steps to Execute the Test:
- Prepare the Pump: Remove the pump from the vehicle and clean any debris or residue from its terminals. Ensure the fuel lines are disconnected and capped to prevent spills.
- Gather Materials: You’ll need a 12-volt battery, two jumper wires with alligator clips, and a container to catch any fuel that may be expelled during testing.
- Connect the Wires: Attach one jumper wire from the battery’s positive terminal to the pump’s positive terminal. Connect the second wire from the battery’s negative terminal to the pump’s ground. Double-check connections to avoid polarity errors.
- Activate the Pump: Touch the wires to their respective terminals momentarily. A functional pump should produce a humming sound and expel fuel through the outlet.
Cautions and Considerations:
Always wear safety goggles and gloves when handling fuel and electrical components. Avoid prolonged operation of the pump without fuel flowing through it, as this can cause overheating. If the pump fails to activate, verify the battery’s charge and inspect the wires for damage. Polarity reversal can damage the pump, so ensure correct connections.
Analyzing Results:
A humming sound without fuel expulsion may indicate a clogged filter or faulty check valve. No sound suggests an electrical issue, such as a broken wire or failed motor. If the pump operates as expected, the issue likely lies elsewhere in the fuel system, such as a faulty relay or clogged fuel lines.
Practical Tips:
For a more controlled test, submerge the pump in a container of fuel during operation. This mimics real-world conditions and allows you to observe fuel flow rate and pressure. If testing an in-tank pump, ensure the fuel level in the container matches the pump’s typical operating depth to simulate accurate resistance.
By directly powering the pump, you isolate its functionality from other variables, providing a clear diagnosis of its condition. This method is cost-effective and requires minimal tools, making it an essential technique for DIY mechanics and professionals alike.
Defeating Electric Man in Mega Man 1: Essential Weapons and Tactics
You may want to see also
Explore related products
Check Pressure and Flow: Use gauge to measure output pressure and ensure proper fuel flow
Testing an electric fuel pump outside the vehicle requires precision, and checking pressure and flow is a critical step. A fuel pressure gauge becomes your diagnostic ally here, offering insights into the pump’s performance. Connect the gauge to the pump’s output line, ensuring a secure, leak-free seal. Start the pump and observe the gauge readings against the manufacturer’s specifications—typically 30 to 60 PSI for most vehicles. If the pressure falls short, suspect a weak pump or clogged filter. If it exceeds, the regulator might be faulty. This step isolates performance issues before they escalate into engine problems.
Consider the flow rate, a less-discussed but equally vital metric. After confirming pressure, measure the volume of fuel delivered per minute. A healthy pump should output 0.7 to 1.0 gallons per minute (gpm) under load. Use a graduated container and timer for accuracy. Low flow indicates internal pump wear, such as damaged impellers or worn brushes. High flow is rare but suggests a malfunctioning check valve. Pairing pressure and flow data provides a comprehensive diagnosis, distinguishing between pump, filter, or regulator issues.
Practical tips enhance accuracy. Always test the pump at operating temperature, as cold components skew results. Use a power supply that matches the vehicle’s voltage (typically 12V) to simulate real-world conditions. If testing a high-pressure pump (e.g., for turbo engines), ensure the gauge is rated beyond the maximum expected PSI. For in-line pumps, simulate backpressure by partially restricting the return line—this mimics in-vehicle conditions and reveals hidden weaknesses.
Comparing results to benchmarks is key. For instance, a Ford Mustang GT’s pump should deliver 52 PSI and 0.8 gpm, while a Toyota Camry’s operates at 45 PSI and 0.7 gpm. Deviations signal specific failures: low pressure with normal flow points to a regulator issue, while low flow with normal pressure suggests pump fatigue. This comparative approach transforms raw data into actionable insights, guiding repair or replacement decisions.
In conclusion, pressure and flow testing is a diagnostic cornerstone for electric fuel pumps. It demands attention to detail, from gauge calibration to load simulation. By combining analytical rigor with practical techniques, this method not only identifies failures but also predicts potential issues, ensuring the pump’s reliability before reinstallation. Master this step, and you’ll diagnose with confidence, saving time and preventing roadside breakdowns.
Who Fixes Electrical Problems in Cars? A Guide to Auto Electricians
You may want to see also
Explore related products
Inspect for Leaks or Noise: Look for leaks, listen for unusual sounds, and verify operation
A faulty fuel pump can manifest in subtle yet critical ways, often before it fails completely. One of the first signs of trouble is a leak, which can occur at the pump’s connections, seals, or body. Even a small leak can lead to fuel loss, reduced efficiency, or a potential fire hazard. Inspect the pump thoroughly for wet spots, stains, or the smell of gasoline, paying close attention to areas where hoses and wires attach. Use a flashlight to illuminate hard-to-see areas, and consider running the pump briefly (with proper safety precautions) to observe active leaks under pressure.
Unusual noises are another red flag during a fuel pump inspection. A healthy pump operates quietly, with a faint hum that’s barely audible. If you hear whining, grinding, or rattling sounds, it could indicate worn bearings, a failing motor, or debris in the system. To test this, connect the pump to a power source and listen closely while it runs. Compare the sound to known examples of healthy and failing pumps, which are often available in online videos or diagnostic guides. Noise paired with erratic fuel pressure readings is a strong indicator of internal damage.
Verifying operation involves more than just turning the pump on; it requires observing its performance under simulated conditions. Attach a fuel pressure gauge to the pump’s outlet and monitor the pressure while it runs. A typical electric fuel pump should maintain pressure within the manufacturer’s specified range, usually between 30 and 60 PSI, depending on the vehicle. If the pressure fluctuates, drops, or fails to reach the target, the pump may be weak or clogged. Test the pump at different voltages (e.g., 12V and 13.5V) to simulate varying electrical loads, as voltage drops can affect performance.
Practical tips can enhance the accuracy of your inspection. For leak detection, use a spray bottle with soapy water around suspected areas; bubbles will form where fuel escapes. When testing for noise, isolate the pump from vibrations by mounting it securely on a bench or block of wood. Always work in a well-ventilated area, away from open flames or sparks, and wear safety goggles and gloves. If you’re unsure about the results, consult a professional or cross-reference your findings with vehicle-specific diagnostic manuals.
In conclusion, inspecting for leaks, noise, and proper operation is a multi-faceted process that combines visual, auditory, and performance-based assessments. By systematically checking these aspects, you can diagnose fuel pump issues before they escalate, saving time and preventing potential hazards. This methodical approach not only ensures the pump’s functionality but also builds confidence in your ability to troubleshoot automotive components effectively.
Electric Car Production: Uncovering the Carbon Footprint Impact
You may want to see also
Frequently asked questions
While some basic tests can be done in-car, a thorough out-of-car test is recommended for accuracy. Disconnect the pump, apply power directly, and check for proper pressure and flow using a fuel pressure gauge.
You’ll need a 12V power source (battery or jumper pack), a fuel pressure gauge, a container for fuel, and basic hand tools to disconnect the pump and lines.
Connect the fuel pressure gauge to the pump’s outlet, apply power, and compare the reading to the manufacturer’s specifications. Ensure the pump reaches and maintains the required pressure.
Check for power at the pump’s connector. If power is present but the pump doesn’t run, the pump is likely faulty. If no power, inspect the wiring, relay, and fuse for issues.
