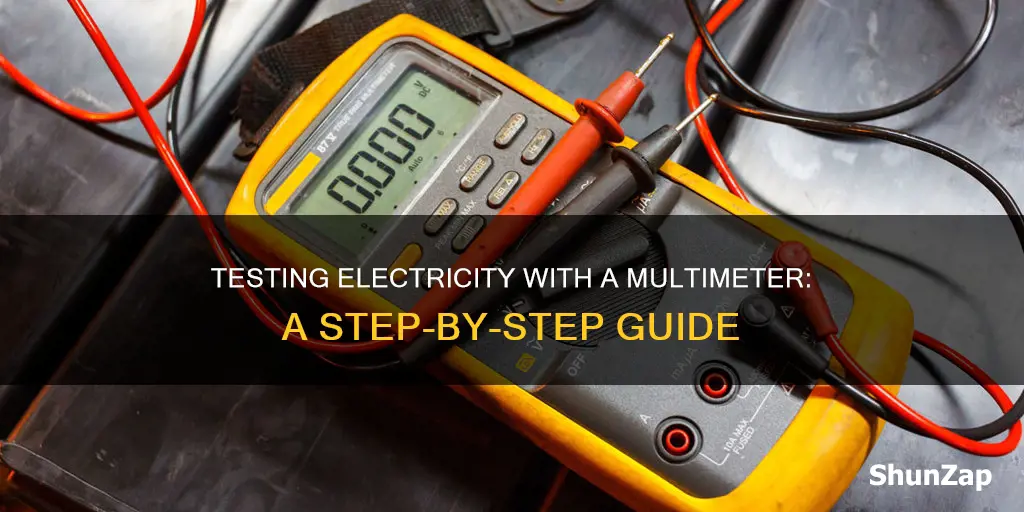

A multimeter is a small electronic device used to measure electrical properties such as voltage, current, and resistance. It can be used to test electricity in batteries, appliances, and outlets. When testing, it is important to start with a high range and dial it down. Before testing, the multimeter should be set to the correct unit to avoid any accidents. To test an outlet, the power should be turned off and the multimeter should be set to AC voltage. The probes should then be inserted into the outlet slots and the voltage should be read. A properly functioning outlet should give a reading of 110 to 120 volts. If there is no reading, the wiring and outlet should be checked.
| Characteristics | Values |
|---|---|
| Purpose | To test electrical outlets, batteries, appliances, and circuits |
| Testing voltage | Set the multimeter to measure voltage, insert a probe into each slot, and read the line voltage measurement. A properly working outlet gives a reading of 110 to 120 volts. |
| Polarity test | Insert one probe of a multimeter into the large slot and the other against the screw. If the voltage detector lights up, the wires are reversed and the wiring should be checked. |
| Testing power | Set the meter to the "Volts AC" setting. Choose a setting higher than what you expect to get. |
| Testing a light switch | Unscrew the faceplate from the wall and touch the probes on a contact voltage tester to the screw terminals on the side of the light switch to detect a live current. |
| Testing a battery | Place one probe on the negative terminal and the other probe on the positive terminal. If the voltage tester beeps, the battery is live. A multimeter can also be used to determine the voltage across the battery. |
| Safety | Always set your multimeter to the correct unit to avoid danger and blown fuses. Hold the prongs by the insulated parts only and avoid touching metal parts to prevent electric shocks. |
Explore related products
What You'll Learn
Checking voltage
Firstly, ensure you have the correct equipment. A multimeter can be purchased at a home improvement store, hardware store, or anywhere that sells tools. Costs vary depending on the precision of measurement required. For basic, non-professional use, a simple handheld multimeter will cost between $15 and $50.
Before you begin, always read the instructions that came with your multimeter, as different models can vary. Check your equipment for any signs of damage, such as cracks on the multimeter or fraying wires, and ensure the area you are testing is dry.
To test the voltage of an outlet, turn off all power to the plug, including any circuits and the plug itself. Then, set your multimeter to measure voltage. The black probe is the common port and does not carry live electricity, so plug this into the neutral slot. The red probe is the positive or 'hot' wire and should be plugged into the large slot. Insert a probe into each slot and read the line voltage measurement. A typical reading for a household outlet in the United States is between 110 and 120 volts. If there is no reading, check the wiring and the outlet.
You can also use a multimeter to check the voltage of a battery. Place the black probe on the negative terminal, which is typically labelled with a minus sign, and the red probe on the positive terminal, marked with a plus sign. A car battery should ideally measure between 12.6 and 12.8 volts.
It is important to note that a multimeter can also be used to test live circuits, but this can be dangerous and may lead to property damage, personal injury, or even death. If you are not comfortable working on live wiring, it is recommended that you contact a licensed electrician.
Electricity Supply: Powering Buildings, Step by Step
You may want to see also
Explore related products
Polarity test
A polarity test is essential to determine whether all the conductors in an electrical installation are properly connected and not mistakenly reversed, which can be dangerous. Before you begin, ensure that you have turned off the power and disconnected the outlet from the wiring.
To conduct a polarity test, set your multimeter to Ohms. Insert one probe into one of the outlet slots, and the other probe on the nearest terminal screw. The multimeter should indicate continuity. Next, test the remaining slot and terminal. Finally, test the ground slot against the grounding terminal.
When testing, always start with a high range and adjust it down. Always set your multimeter to the correct unit to avoid danger and blown fuses. When testing for polarity, it is important to know which probe is which. The black probe always plugs into the common port and does not carry live electricity, while the red probe plugs into the port for the unit or property being measured and tests voltage, resistance, or frequency.
If you are testing the polarity of a DC circuit, such as a lithium battery, connect the multimeter's positive lead (usually red) to the positive terminal of the circuit, and the negative lead (usually black) to the negative terminal. If you get a negative reading, the connections are reversed.
Electricity Rates: Cheaper After 5 PM?
You may want to see also
Explore related products
Testing outlets
To test an outlet with a multimeter, first read the instructions that came with your device. Different models can vary, and it is important to follow the instructions to keep yourself safe. You should also check that your multimeter is capable of testing the voltage of the outlet. If the voltage is too high for the multimeter to measure, you may break it by trying to take the measurement.
When testing, always start with a high range and dial it down. A range that is too low can cause problems. Always set your multimeter to the correct unit to avoid danger and blown fuses. Set the device to AC voltage mode and insert the leads correctly, with one prong in the hot slot and one in the neutral slot. The multimeter should have two prongs, one red and one black. The black lead typically connects to the ground, while the red lead measures voltage. Insert the black probe into the neutral slot (the larger of the two vertical slots) and the red probe into the hot slot (the smaller slot).
A typical reading for a household outlet in the United States is 110 to 120 volts. If there is no reading, check the wiring and the outlet. If the reading is abnormal, it indicates a wiring issue that must be addressed before proceeding, potentially preventing electrocution or fire.
Powering Light Bulbs with Potatoes: The Science Behind It
You may want to see also
Explore related products
Measuring resistance
To measure resistance with a multimeter, you will need to use a digital multimeter or a clamp multimeter. The former is more common and is also known as a multitester.
Before you begin, ensure that the multimeter is in good condition. Check for cracks on the device and fraying or nicks in the wires.
To get started, turn off the power and disconnect the component to be tested from the circuit. Treat the circuit as if it still has power until you measure the voltage. If your multimeter measures voltage, that means the circuit still has power.
Next, insert the test leads into the appropriate multimeter ports. The red lead goes into the port marked with an "Ω" symbol (for resistance), and the black lead goes into the port marked with "COM" (for common ground).
Then, set the multimeter dial to the "Ω" symbol. Touch the probes to the component terminals to get the resistance measurement on the multimeter display.
Note that multimeters measure resistance by sending a small test voltage through the component. Therefore, it is important to ensure that the circuit is powered off before measuring resistance. If the circuit is still powered, the multimeter may not provide an accurate measurement, and it might interfere with the measurement due to the existing current or voltage.
Additionally, always handle the multimeter and probes with care to avoid electrical shocks or damaging the device. Avoid touching the metal parts with your fingers, and ensure that the probe ends do not touch each other during the measurement to prevent short-circuiting.
If your multimeter shows "OL" (overload) when measuring resistance, adjust the range to a higher setting to obtain an accurate reading.
Burying Electric Warning Tape: How Deep Should You Go?
You may want to see also
Explore related products
$22.79 $36.04
Current and continuity
A multimeter is a small electronic device used to measure electrical properties such as voltage, current, and resistance. It can be used to test electricity in batteries, appliances, and outlets. It is also used to check the voltage of circuits.
To test an outlet with a multimeter, follow these steps:
- Turn off all power to the plug, including circuits and the plug itself.
- Set the mode on your multimeter to AC voltage.
- Ensure your multimeter is set higher than the voltage number printed on the cord.
- Insert a probe into each slot and read the voltage measurement.
- A properly functioning outlet should read between 110 and 120 volts.
- If there is no reading, check the wiring and the outlet.
To test for continuity (to verify that an electrical circuit is complete), you can use the ohms setting on your multimeter. Here are the steps:
- Turn off the power to the circuit you are testing.
- Set your multimeter to the ohms setting at the lowest value.
- Touch one probe to a known good ground and the other to the "hot" conductor.
- With the probe still touching the ground, touch the other probe to the "neutral" conductor.
- Touch one probe to the "hot" conductor and the other to the "neutral".
- When measuring between "hot" and "neutral", you should measure line voltage (about 120 volts).
- When measuring between ground and "neutral", you should measure 0 volts.
It is important to always follow safety precautions when working with electricity. Make sure to read the instructions that came with your multimeter and work carefully to avoid electrical shocks.
