The Mallory electric fuel pump is a popular choice for car enthusiasts, with many opting for the 140 model. The pump is known for its quiet and reliable performance, thanks to its Gerotor design, which also eliminates the possibility of vane breakage. When testing the Mallory electric fuel pump, it is important to check the fuel pressure and ensure that the pump is primed correctly. This can be done by checking the pressure at the fuel pressure port and separating the regulator from the pump to test pure, unregulated pump pressure. Additionally, ensuring that the pump is mounted below the fuel level and using rubber washers on the mounting bolts can help reduce noise and improve performance.

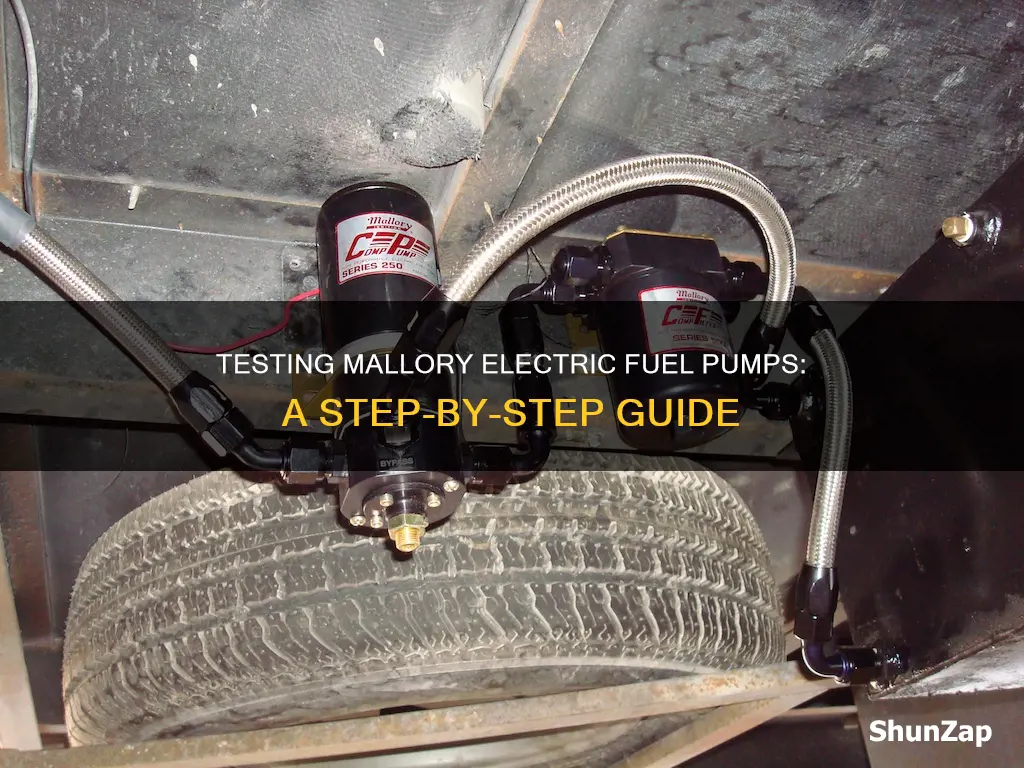

Testing a Mallory Electric Fuel Pump
| Characteristics | Values |
|---|---|
| Pump type | Gerotor |
| Pressure problem | Fuel pressure port |
| Fuel line and pipe fitting size | 5/16" |
| Pickup tube size | 5/8" steel braided |
| Filter type | Fram HPG1 |
| Priming method | Held line higher than the fuel pump and poured fuel into it |
| Noise level | Quiet |
| Rebuildable | Yes |
| Mounting | Mount on rubber isolators or use rubber washers on mounting bolts |
| Fuel compatibility | Alcohol/methanol, gasoline |
Explore related products
What You'll Learn
Check the fuel pressure before the regulator
Checking the fuel pressure before the regulator is an important step in diagnosing fuel pump issues. Here is a detailed guide on how to perform this check for a Mallory electric fuel pump:
Prepare the Vehicle:
- Park the vehicle in a well-ventilated area and ensure it is turned off.
- Put on safety gear, including gloves and eye protection. Fuel under pressure can be dangerous, so take necessary precautions.
- Locate the fuel pump and regulator. Refer to your vehicle's service manual or seek advice from a mechanic if you are unsure.
Check Fuel Pressure:
- Start the vehicle and let it idle.
- Install a fuel pressure gauge before the regulator. Ensure it is securely connected.
- Run the fuel pump and observe the pressure reading on the gauge.
- Compare the pressure reading to the manufacturer's specifications. This information can typically be found in the vehicle's service manual or online.
- If the pressure is significantly lower than the specified value, there may be an issue with the fuel pump or the regulator.
Further Troubleshooting:
- If the pressure is low, check for any signs of fuel leaks or blockages in the fuel lines.
- Inspect the fuel filter for any restrictions or clogs. A clogged filter can impede fuel flow and affect pressure.
- Consider removing the regulator and performing a direct pressure test on the fuel pump to isolate the issue.
- If the pressure is within the acceptable range, perform a fuel volume test to ensure the proper amount of fuel is being delivered to the fuel injectors.
Maintenance and Repairs:
- If you suspect an issue with the fuel pump or regulator, consult a qualified mechanic for further diagnostics and repairs.
- Fuel pumps and regulators are precision components, and repairs or replacements should be approached with caution.
- Ensure that any replacement parts are compatible with your vehicle's specific make, model, and fuel system design.
Remember to prioritize safety and always work within your comfort level. If you are unsure about any aspect of the process, seek advice from a professional mechanic or a trusted automotive forum.
