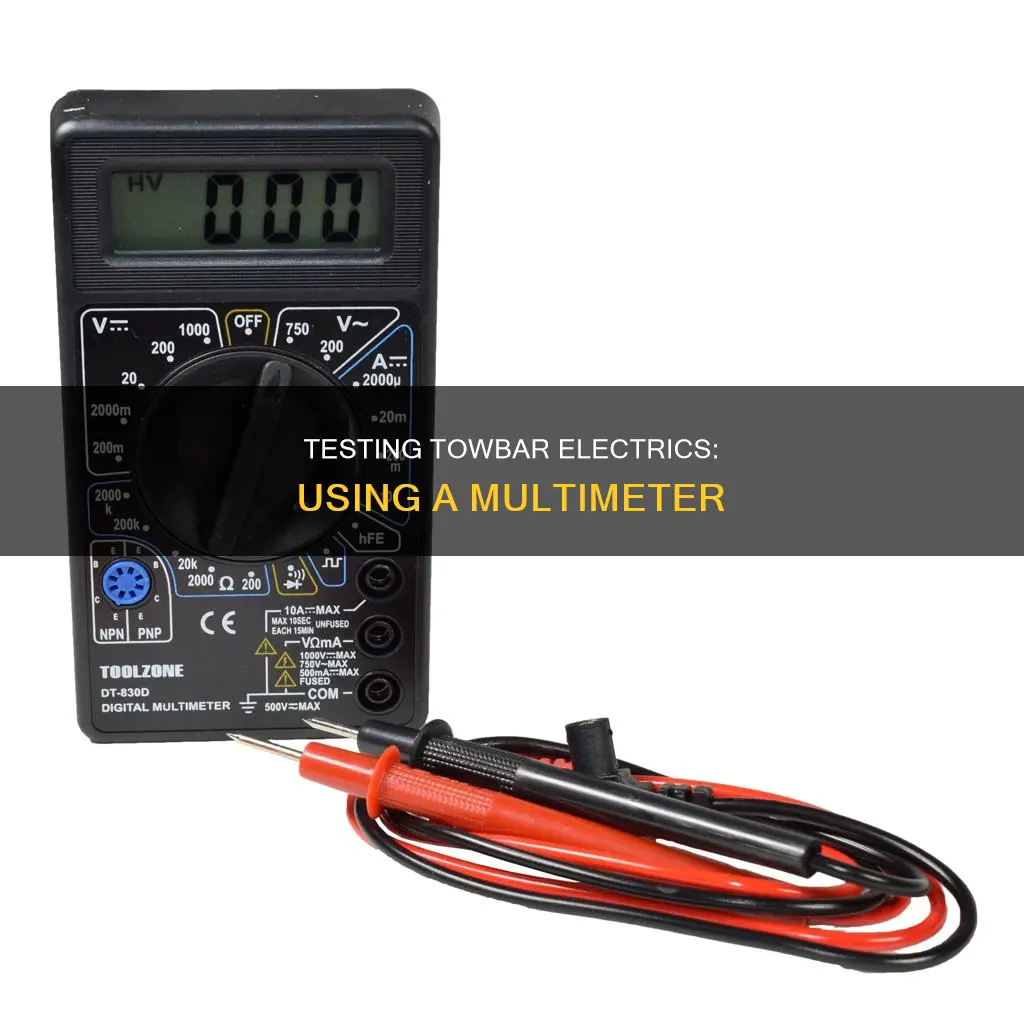

Testing towbar electrics with a multimeter is a vital step to ensure safe and legal towing. Faulty towbar electrics can cause issues with the trailer or caravan's lights, indicators, and other electrical components, posing a safety hazard on the road. By using a multimeter, you can test the voltage at the socket's pins and identify any potential issues. This process involves checking for blown bulbs, inspecting wiring for damage or corrosion, verifying battery connections, and ensuring the tow bar plug is securely connected. It is important to consult a professional if you are unsure about any aspects of the testing process, as faulty towbar electrics can lead to dangerous and illegal driving conditions.
Explore related products
![True Mods 5-Way Flat Trailer Wiring Tester [Nickel-Plated Copper Terminals] [Male & Female] [Continuity Test] 5-Pin Trailer Light Wire Circuit Tester](https://m.media-amazon.com/images/I/71yrB5Jc8TL._AC_UL320_.jpg)
![True Mods 4-Way Flat Trailer Wiring Tester [Nickel-Plated Copper Terminals] [Male & Female] [Continuity Test] 4-Pin Trailer Light Wire Circuit Tester](https://m.media-amazon.com/images/I/714csEeqykL._AC_UL320_.jpg)
What You'll Learn
Check for breaks in wiring with a continuity tester
Testing your towbar electrics before towing is essential to ensure your safety and that of other road users. It is also vital for legal towing. To check for breaks in wiring with a continuity tester, follow these steps:
First, locate the fuse by referring to your vehicle's manual. Next, inspect the fuse to determine if it is blown. If the fuse is blown, replace it with the correct rating. Ensure that the tow bar plug is securely connected to the vehicle socket. Check for any signs of corrosion, dirt, or damage on the plugs and sockets, and clean if necessary.
With the vehicle ignition on, use the continuity tester to check for breaks in the wiring by tracing the wiring from the socket to the trailer lights. Inspect for any damage, such as damaged insulation or frayed wires, which could indicate a break in the wiring. It is important to also test the resistance using a multimeter to test earth continuity.
By systematically addressing potential issues and regularly maintaining your tow bar electrics, you can prevent common problems and ensure reliable and safe towing. If you are unsure about any aspect, it is recommended to seek professional assistance.
Plug-in Hybrids: Electric or Not?
You may want to see also
Explore related products
Test for voltage at the socket pins
Testing the voltage at the socket pins is an important step in ensuring your towbar electrics are functioning correctly. Here is a detailed guide to help you through the process:
First, ensure that you have the correct equipment. You will need a multimeter, which you can use to measure voltage. It is also important to have a basic understanding of the socket layout and the functions of each pin. For example, on a 13-pin towing socket, pin 3 is typically the ground pin for pins 1-8, while pins 9 and 10 have their grounds on pins 13 and 11, respectively.
Before beginning the test, make sure you are not touching any live wires, and that your vehicle's ignition is on if required for power at the socket. Now, let's begin testing:
- Connect the ground of the multimeter to the appropriate ground pin on the socket. For example, if you are testing pins 1-8, connect the multimeter's ground to pin 3.
- With the multimeter connected, signal a turn, press the brakes, or turn on your lights. This will activate the circuit and allow you to measure the voltage.
- Connect the red probe of the multimeter to the pin you wish to test. For example, if you are testing the turn signals, connect the red probe to the corresponding pin for the left or right turn signal.
- Read the voltage displayed on the multimeter. A reading of around 12 volts or more indicates that the circuit is functioning correctly. If the multimeter shows a reading of 0 or close to 0 volts, there may be an issue with the wiring or the socket.
- Repeat this process for each pin that you want to test, ensuring that you connect the multimeter to the corresponding ground pin for each set of pins.
It is important to note that the voltage readings may vary slightly, especially for the turn indicators, as the voltage fluctuates with the signal. However, you should still observe a change in voltage when testing the indicators.
By following these steps and comparing your readings to the vehicle's specifications, you can effectively test for voltage at the socket pins of your towbar electrics.
Turning Off Your TV: Energy Saving or Myth?
You may want to see also
Explore related products
![True Mods 7-Way Blade Trailer Wiring Tester [Nickel-Plated Copper Terminals] [Continuity Test] [Rugged Material] 7-Pin Trailer Light Wire Circuit Tester](https://m.media-amazon.com/images/I/71flnxZqsvL._AC_UL320_.jpg)
Inspect bulbs for damage
Inspecting bulbs for damage is an important step in testing towbar electrics with a multimeter. This process can help identify potential problems and ensure optimal performance. Here are the steps you should follow:
Firstly, it is crucial to handle the bulbs with care to prevent any damage during the inspection and testing process. Before removing the bulb, ensure that you have carefully handled the socket and wires and gently disconnected the bulb from the wiring harness. This step is essential to isolate the bulb for testing.
Once the bulb is removed, visually inspect it for any signs of damage. Look for issues such as a darkened tube, which could indicate that the bulb needs to be replaced. If you are working with LED bulbs, you may need to refer to the manufacturer's literature to identify the anode and cathode contacts.
For detailed inspections, consider using a magnifying glass or magnifying light to examine small parts and welds. This can help you identify any damage or defects that may not be visible to the naked eye.
After the visual inspection, you can use a multimeter to evaluate the operating status of the bulb. Ensure that your multimeter is functioning correctly and set it to the appropriate mode for the type of bulb you are testing. For CFL bulbs, set the multimeter to the continuity setting, usually indicated by a sound wave icon. For LED bulbs, set the multimeter to the diode function, typically denoted by a symbol similar to an arrow struck by a line.
By following these steps, you can thoroughly inspect bulbs for damage and utilize the multimeter to assess their operating status, facilitating timely maintenance or replacement if necessary.
Electric Skateboard Range: How Far Can You Go?
You may want to see also
Explore related products
Test lights by connecting the trailer
To test your towbar electrics with a multimeter, you must first connect the trailer and test all lights, including brake lights, indicators, and tail lights. If one light is out, it may be a single faulty bulb, but if multiple lights are out, it could be a wiring or fuse issue.
Firstly, ensure that all connections are secure. Check that the tow bar plug is securely connected to the vehicle socket. You can then start up the tow vehicle or truck with the trailer attached. Ensure that the wire to the trailer is plugged into the connector on the back of your vehicle.
If you don't have someone to help you test the lights, you can buy a tow-vehicle tester light online. Plug this into your vehicle's connector and if the tester light turns red or yellow, there is a problem with your vehicle's connector.
If all connections are secure and there is no issue with the connector, you can then test the lights by pressing the brake, hazard lights, and both blinker lights. If some lights don't turn on or are dim, make a note of which ones are malfunctioning.
If one light isn't working, it may be a blown bulb. Use a screwdriver to remove the screws in each corner of the faceplate over the light on the trailer, then replace the bulb with one of the same voltage. Test the lights again by pressing the brakes.
If the lights still aren't working, you can test for continuity with a multimeter. Clip the multimeter to the green contact on the trailer cord and set it to continuity mode. Take the red wire from the multimeter and clip it to the contact connected to the green wire inside the plug in the connector for the trailer.
Will Lil Durk Face the Electric Chair?
You may want to see also
Explore related products
Verify vehicle battery and connections
When testing towbar electrics with a multimeter, it is important to verify the vehicle's battery and connections. Here is a detailed guide on how to do this:
Firstly, ensure the vehicle's battery is charged. A fully charged battery should typically read over 13 volts. If your battery is reading significantly lower than this, it may need to be charged before proceeding with testing the towbar electrics.
Next, check that all connections are secure. Inspect the plugs and sockets for any signs of corrosion, dirt, or damage. Look for any visible signs of wear or loose connections. Corrosion, dirt, or loose connections can interfere with the electrical current and cause issues with the towbar electrics.
Additionally, it is important to locate and inspect the fuse. Refer to the vehicle manual to find the towing circuit fuse. Check if the fuse is blown and replace it with the correct rating if necessary. A blown fuse can disrupt the electrical current and cause the towbar electrics to malfunction.
By verifying the vehicle's battery and connections, you can ensure that the basic requirements for the towbar electrics are met. This process will help identify any fundamental issues that may be causing problems with the towbar electrics, such as a low battery or a blown fuse.
It is important to note that towbar electrics are vital for safe and legal towing. Regular maintenance and systematic troubleshooting can help prevent common problems and ensure reliable and safe towing. If you are ever unsure about the status of your towbar electrics, it is recommended to seek the assistance of a professional.
