Tracing automotive electrical wiring can be a complex task, but with the right tools and knowledge, it can be a safe and efficient process. Automotive wiring diagrams are essential for understanding electrical issues and modifying vehicle systems. These diagrams visually represent the connections between switches, relays, sensors, motors, and lights, helping to identify breaks or faults in the circuit. When dealing with electrical systems, it is crucial to ensure proper grounding, as many issues stem from poor grounding. Before beginning any work, it is important to turn off the power to the circuit and use a voltage tester to confirm that the wire is not live, preventing accidental electrical shocks. With the necessary precautions in place, individuals can then proceed to trace the wire's path from the source to the destination, using tools such as a wire tracer kit, multimeter, or voltmeter to locate and identify the wire accurately.
| Characteristics | Values |
|---|---|
| Starting point | Battery and power supply |
| Wire colors | Red, black, green, yellow/orange, blue |
| Red wire | Power supply, constant or switched |
| Black wire | Ground |
| Green wire | Signal wires, often for sensors |
| Yellow/orange wire | Communication wires, especially in modern vehicles |
| Blue wire | High-current circuits, such as headlights or motors |
| Lines | Represent wires |
| Dots | Indicate connections between wires |
| Breaks in lines | Show where wires do not connect, even if they cross |

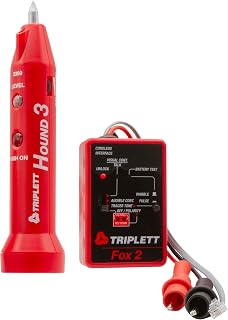

| Tracing wires | Use a wire tracer kit or multimeter |
| Voltage tester | Used to determine if the wire being traced is live |
| Tracing path | From the source (e.g., circuit breaker) to the destination (e.g., outlet or appliance) |
| Tracing process | Labeling wires, taking notes, creating a diagram of the wire's path |
| Tracing challenges | Complex electrical systems, wires hidden behind walls, ceilings, or insulation |
| Tools | Circuit breaker finder, wire locator tool |
Explore related products
What You'll Learn
Using a multimeter or voltmeter
A multimeter or voltmeter is a valuable tool for any car owner to diagnose and troubleshoot electrical issues. These tools can be purchased from most online stores and are simple to use, allowing you to save money on expensive repairs.
Using a Multimeter
Before using a multimeter, it is important to read the instructions and refer to your car's handbook to understand its electrical system. Always ensure the multimeter is off before connecting the leads. The red lead connects to the positive terminal, while the black lead connects to the negative terminal. To measure voltage, current, and resistance, follow the respective steps:
- For voltage, connect the red lead to the component's positive terminal and the black lead to the negative terminal.
- For current, connect the black lead to the component's negative terminal and the red lead to the positive terminal.
- For resistance, connect the red lead to one end of the resistor and the black lead to the other end.
To check for a short circuit, disconnect the positive wire from the battery. Place the positive probe of the multimeter on the load side of the fuse and the negative probe on the battery's negative end. If there is a short circuit, the test light will activate or the multimeter will beep. Alternatively, measure the voltage drop across the circuit by connecting the probes to each end of the circuit. A significant voltage drop indicates a short circuit.
To test a car battery, set the multimeter to "20 volts" and follow the previous steps for measuring voltage. If the reading is 12 volts or higher, your battery is functioning properly. For a more comprehensive test, use a special type of multimeter that measures performance under heavy load, such as during ignition. Touch the multimeter's prongs to the battery terminals and ensure the voltage does not fall below 9 volts.
Using a Voltmeter
A voltmeter can be used to test the continuity of wires in a circuit. First, turn on the ignition and switch the voltmeter to DC voltage. Touch the negative lead to a good ground source and use the positive lead to probe the connector terminals. If voltage is detected, the system is functioning, and you can determine if the computer system has power. No voltage may indicate a blown fuse. Identifying connector wiring colours is important, and you may need to strip the wiring cover to see the individual colours.
Electric Dryer Fuses: What You Need to Know
You may want to see also
Explore related products
Reading wiring diagrams

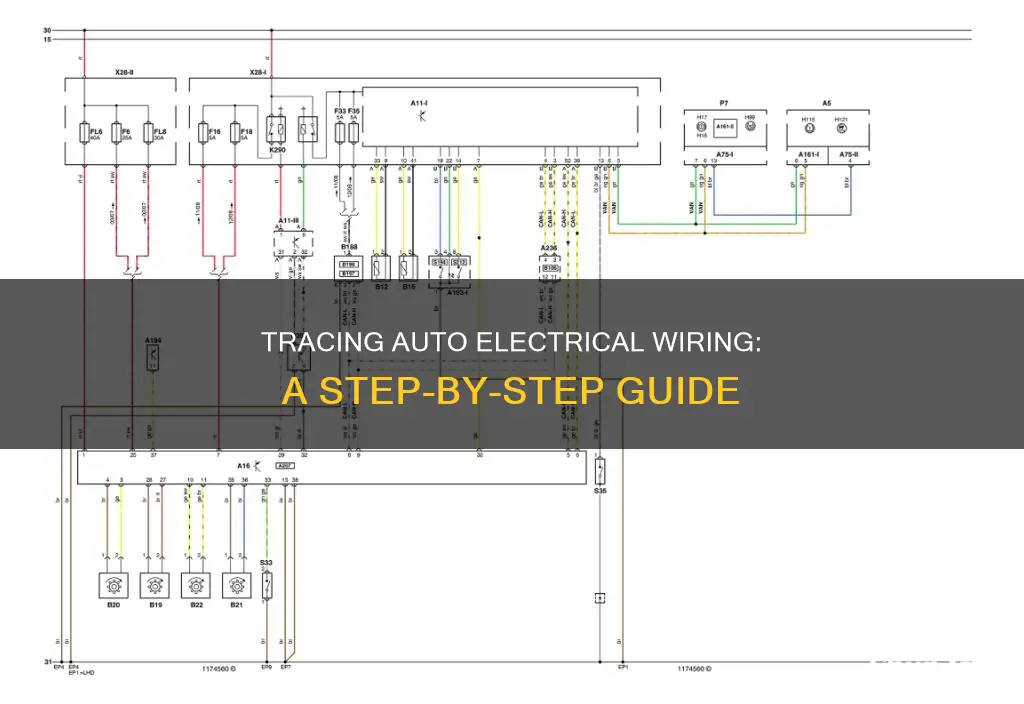

Automotive wiring diagrams can be intimidating at first glance, but they are essential tools for understanding a vehicle's electrical system. These diagrams serve as maps, illustrating the paths of circuits, their power sources, and grounding points. While each diagram may differ, the fundamentals are generally consistent, and understanding them is a crucial skill for anyone working with automotive electronics.
