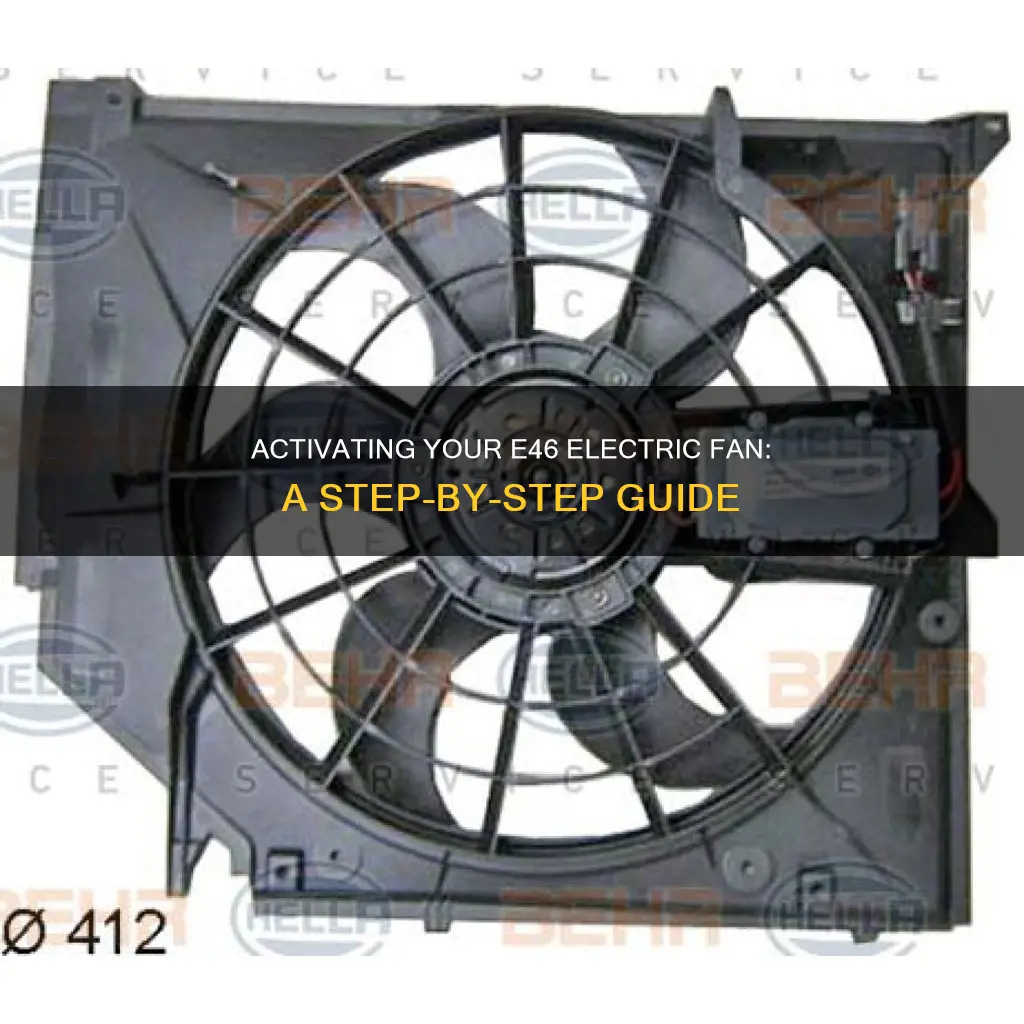

The BMW E46 is a beautiful and timeless car, part of the brand's 4th generation 3 series. However, some users have reported issues with the electric fan not turning on or not turning off. This can cause the car to overheat at idle. To fix this, some have suggested replacing the fan control unit, while others have recommended replacing the entire fan. Running the AC can also force the fan on, but this is only a temporary solution. For those looking to upgrade their fan, an electric cooling fan can be quieter and more reliable than the stock viscous fan system.
Characteristics and Values Table for the E46 Electric Fan
| Characteristics | Values |
|---|---|
| Fan Type | Electric |
| Car Type | BMW E46, 4th generation 3 series |
| Car Models | BMW 325i (2001-2005), BMW 325Xi (2001-2005), BMW 325Ci (2001-2006), BMW 325ti (2001-2004) |
| Fan Function | Engine cooling, radiator cooling |
| Fan Control | Fan control unit, temperature sensors |
| Common Issues | Fan not turning on or off, overheating at idle |
| Troubleshooting | Check fan control unit, replace fan, check solder joints, check capacitor |
| Fan Replacement Steps | Remove expansion rivets, disconnect electrical connectors, separate viscous coupler, install new fan, connect electrical connectors, install rivets and fasteners |
| Fan Speed | Varies with engine temperature, higher speed with AC on |
| Fan Operation | Always on from key turn to engine start, spins at constant speed |
| Fan Power | Electrically powered, depends on alternator and battery |
| Fan Conversion | Electric fan can replace mechanical and auxiliary fans |
| Fan Benefits | Quiet operation, reliable, improved maintenance access, reduced noise |
Explore related products
What You'll Learn
The electric fan only works when the engine is on
The BMW E46 electric fan is designed to activate when the engine is on and the coolant temperature rises. However, there have been reports of issues with the electric fan not turning on or staying on consistently, leading to overheating at idle.
If your E46 electric fan is not functioning properly, there are several potential causes and solutions to consider:
Check for Faulty Components
Before attempting any repairs, it's important to diagnose the issue. Check the signal to the fan to determine if it is receiving the signal to turn on. If the signal is present and the fan is not responding, the fan or its components may be faulty. You can try diagnosing the fan control unit, the fan itself, and related sensors.
Replace the Fan or Components
If the fan or its components are faulty, replacement may be necessary. You can choose to replace the entire fan assembly, or you may only need to replace specific parts, such as the fan motor, final stage, or control unit. This can be a complex process, so it may be advisable to seek professional assistance or refer to detailed repair guides specific to your vehicle.
Temporary Workarounds
Until you can obtain replacement parts, there are temporary workarounds to force the fan to turn on:
- Running the air conditioning (AC): Turning on the AC will force the fan to operate, regardless of the engine temperature. However, this is not a permanent solution as it may not work in all scenarios.
- Unplugging the temperature sensor: Disconnecting the temp sensor in the lower radiator hose will trick the CPU into assuming a hot engine, activating the fan.
- Messing with the PWM signal: Adjusting the PWM (Pulse Width Modulation) signal to the fan may help, but proceed with caution as incorrect adjustments can cause further issues.
- Wiring a manual switch: You can wire a switch to bypass the original control circuit and force the fan to turn on, but this requires electrical expertise.
Please note that these workarounds are temporary fixes and should not replace proper diagnostics and repairs. Always refer to reliable sources and seek professional assistance if you are uncomfortable performing any of the suggested actions.
Mechanical vs Electrical Engineering: Which Path to Choose?
You may want to see also
Explore related products
Check the fan control unit and fan for faults
To check the fan control unit and fan for faults, you can perform the following steps:
Firstly, check the signal to the fan. If the fan is not receiving a signal to turn on, it may be faulty. This can be done by checking the wires that connect to the "control box" for corrosion or damage. You can also test the fan by applying 12V directly to the motor. If the fan spins when powered directly, the issue may lie in the "output final stage" or the fan control unit.
You can also try diagnosing the fan control unit by performing tests on sensors and replacing the fan control unit with a new one to see if that fixes the issue. If the fan is not working properly, it could be due to a faulty connector, a faulty controller (final output stage), or a faulty temperature sensor.
Another way to test the fan is by using a scan tool to command the fan on. You can also try turning on the AC, as this will force the fan to turn on. Additionally, you can try removing the lower temperature sensor from the bottom hose, leaving it connected, and placing it in boiling water while switching on the ignition. If the fan comes on, it indicates that the sensor is working properly.
If the fan is not working properly and you suspect an electrical fault, you may need to replace the entire fan assembly, which includes the fan, final stage, and shroud. This is because the "output final stage" is typically not sold separately.
It is important to note that these are general guidelines, and for specific instructions on how to check the fan control unit and fan for faults in your E46, it is recommended to refer to the vehicle's repair manual or seek assistance from a qualified technician.
Traveling with an Electric Scooter: A Guide to Flying Smoothly
You may want to see also
Explore related products
The electric fan replaces the mechanical and auxiliary fans
The electric fan is also a popular choice for those who want to avoid the hassle of dealing with a fan clutch, which can be time-consuming and frustrating to remove and reinstall. In some cases, it may be just as cheap to buy a whole new electric fan setup as it is to replace the fan clutch.
However, some E46 owners prefer to keep the stock setup, especially if they live in a warm climate, as they believe the system is designed to work with the transmission. They argue that it is better to maintain a water pump and fan clutch than to risk an automatic transmission rebuild or replacement.
There are also mixed reviews about the electric fan's performance, with some users reporting that their electric fan stopped working or caused their engine to overheat. Therefore, it is essential to carefully consider the benefits and potential drawbacks of switching to an electric fan before making any modifications.
Electricity Savings: Night-time Rates in the UK
You may want to see also
Explore related products
The fan may not turn on due to a faulty connector
The E46 electric fan is a component of BMW's 4th generation 3 series. While the electric fan in this model is generally reliable, some users have reported issues with it not turning on or staying on, leading to overheating at idle.
One potential cause of the fan's malfunction is a faulty connector. In some cases, the fan may only operate at low speed and fail to reach high speed due to a faulty connection. This issue can be temporary, with the fan functioning fine once the car is back home, but it can also persist and require a more permanent solution.
To diagnose a faulty electric cooling fan, several tests can be performed. One test involves the following steps:
- Turn off the car engine.
- Unplug the lower radiator hose coolant temperature sensor.
- Start the car and let it idle for 15 seconds, then turn on the AC compressor.
- Observe if the fan starts spinning on high speed within 30 seconds. If it does not, shut off the car to prevent overheating.
This test helps determine if the fan motor is operational, but it does not indicate if the coolant temperature sensor (CTS) is functioning correctly or if the DME and fan module are processing correctly. If the fan does not spin on high speed, the issue could be a faulty connector, among other potential causes.
To address a faulty connector, one suggestion is to replace the entire fan, as dealing with the electronics can be complex. However, this may not be the only solution, and further diagnosis of the specific issue is recommended before taking such action.
Texas Power Outage: Is the Electric Back On?
You may want to see also
Explore related products
The fan may not turn off due to a short circuit
The E46 electric fan is designed to turn on when the engine is hot. However, in some cases, the fan may not turn off even after the radiator has cooled down, leading to overheating issues. This issue could be caused by a short circuit in the fan's electrical system.
To address this problem, it is recommended to check for any fractured solder joints on the board and inspect the capacitor for functionality. If issues are found, soldering in a new capacitor may be necessary. Additionally, it is worth considering replacing the entire fan, as it may be more straightforward than repairing the electronics. A new fan can be purchased for a reasonable price and installed with relative ease, resolving the issue effectively.
In the meantime, as a temporary solution, running the air conditioning (AC) can force the fan to turn on and cool the engine. However, this is not a permanent fix, and it is important to monitor the engine's temperature to prevent overheating. Another temporary solution is to unplug the temperature sensor in the lower radiator hose, which will make the CPU assume a hot engine and keep the fan running.
It is important to note that the E46 electric fan's operation is controlled by a fan control unit, which requires a sin-wave to function. In some cases, the fan control unit may malfunction, leading to the fan turning on and off intermittently. Diagnosing the fan control unit and the fan itself can help determine if they are the source of the issue.
If the fan continues to run even when the car is turned off, it may be necessary to unplug the cable connected to the fan to stop it from running. This issue could be caused by a faulty resistor, known as the FSR, which can fail and leave the fan running continuously, draining the car's battery. Replacing the FSR resistor can be a potential solution to this problem.
Electricity's Hidden Dangers: What You Should Know
You may want to see also
Frequently asked questions
The issue could be a faulty connector, a faulty fan control unit, or a faulty fan. You can try diagnosing the fan control unit and the fan itself, and then replacing the faulty part.
First, remove the front bumper and disconnect the battery negative cable. Then, working at the top of the radiator, remove the expansion rivets from the intake air duct using a small flathead screwdriver and needle-nose pliers. Next, remove the intake air duct from the radiator support by lifting it up and out from the intake air housing duct. Disconnect the electrical connectors at the right side of the cooling fan. Install the new fan, connect the electrical connectors, and install the expanding rivet and Torx screw. Finally, install the intake air duct and reconnect the battery negative cable.
You can try turning on the AC, which will force the fan on to cool the AC coil. Alternatively, you can wire the fan to a switch or run 12V directly to the motor, but this will require you to disconnect the plug to turn the fan off.
