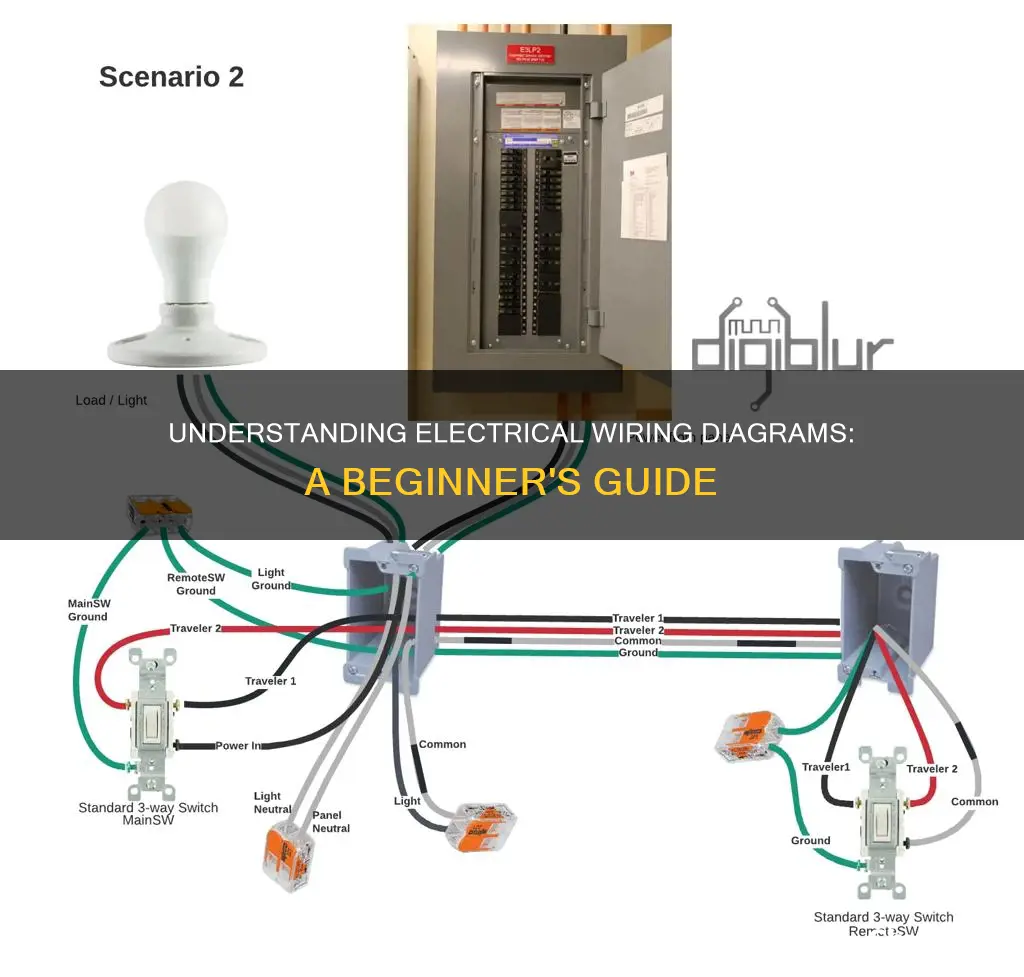

Electrical wiring diagrams are essential for electricians, engineers, and automation technicians. They are graphical representations of electrical systems that show how components are connected and how current flows through the system. Wiring diagrams are often straightforward, allowing users to easily follow the paths from power sources to various endpoints. They are useful for hands-on work, while circuit diagrams are better for understanding the principles behind a system. Symbols are used to represent components like resistors, switches, and power sources, and these symbols are crucial for interpreting the diagrams. The diagrams also use lines to represent wires, with solid lines for power and signal wires, and dashed lines for protective wires. Understanding electrical wiring diagrams is a foundational skill for electrical work and can aid in diagnosing faults and working safely with electrical installations.
| Characteristics | Values |
|---|---|
| Purpose | Electrical wiring diagrams are essential for electricians, engineers, and automation technicians to understand the operation of devices, diagnose faults, and work safely with electrical installations. They are also crucial when installing new electrical systems, allowing for the precise placement and connection of components. |
| Components | Electrical diagrams consist of several basic elements represented by graphic symbols. These include power supply, ground, wire and connection, switches, output devices, logic gates, resistors, lights, etc. |
| Symbol Examples | A switch is symbolized by a dashed line crossing two connection lines. A relay is depicted with a coil and contacts. A fuse is represented by a dashed line, indicating circuit interruption in case of overload. |
| Types of Diagrams | Schematic diagrams focus on functionality and use symbols to represent components without showing their physical location. Ladder diagrams show electrical components, connections, switches, and resistors. Single-line diagrams use single lines to represent multiple wires or connections, offering a simplified view of complex circuits. |
| Use Cases | Wiring diagrams are used for practical installation details and are common in electrical work, construction, and industrial environments. They are particularly useful for hands-on work, troubleshooting, and understanding physical wire routes and connections. |
Explore related products
What You'll Learn
Know the standard symbols
Standard symbols are an essential aspect of electrical wiring diagrams, enabling technicians to interpret how electricity flows through a system. These symbols represent various electrical components and connections, offering a visual roadmap of the circuit. Here's what you need to know about standard symbols in electrical wiring diagrams:
- Standardisation: Electrical symbols used in wiring diagrams are mostly standardised, allowing for consistent interpretation across the industry. This standardisation ensures that electricians, engineers, and safety managers can easily understand the diagram.
- Common Symbols: Familiarise yourself with commonly used electrical symbols, such as switches, resistors, fuses, connection points, outlets, lights, ground wires, lighting fixtures, and circuit breakers. These symbols are likely to appear in most wiring diagrams.
- Legend or Key: Most diagrams include a legend or key that defines the symbols used. Refer to this frequently until you become familiar with the symbols. The legend helps you understand any variations or unique symbols in the diagram.
- Wire Colour Codes and Labels: Wiring diagrams often use wire colour codes, labels, or numbered lines to indicate the path of each wire. Cross-reference these with the legend or notes to ensure clarity. Pay attention to wire gauge specifications to avoid common mistakes like using the wrong wire size.
- Symbol Variations: Commercial diagrams may include additional or unique symbols to represent complex components like three-phase power systems, industrial machinery, or advanced control systems. Always check the manufacturer's wiring diagram to familiarise yourself with any proprietary symbols or layouts.
- Symbol Libraries: When creating wiring diagrams, software libraries provide a range of standard symbols for each component. Using these libraries ensures consistency and adherence to standard symbol conventions.
Understanding and recognising these standard symbols is crucial for accurately interpreting electrical wiring diagrams. They provide a universal language for technicians to communicate and work with electrical systems effectively.
Electrifying Someone: A Personal Architect's Guide
You may want to see also
Explore related products
Understand the types of diagrams
There are several types of electrical wiring diagrams, each serving a different purpose and helping us visualise electrical systems in various levels of detail. Here are some of the most commonly used types:
Single-Line Diagrams (SLDs)
Single-line diagrams use a single line and standard symbols to represent the path of electrical circuits. They provide a simplified view, showing the main connections and branches of the circuit rather than all the actual wires. SLDs are useful for depicting complex electrical distribution systems, such as those found in buildings or power plants, in the initial stages of circuit design.
Multiline Diagrams
Multiline diagrams, in contrast to SLDs, depict each conductor separately. They include detailed information about connections, wire sizes, colours, and types. They are used when specific information about the physical wiring is necessary, such as during the installation, troubleshooting, or maintenance of electrical systems.
Schematic Diagrams
Schematic diagrams illustrate the connections and functional items of an electrical circuit, but not the physical layout of the wires. They use standardised symbols to represent electrical components like resistors, capacitors, inductors, switches, and power sources. They are used in designing and troubleshooting electrical circuits in appliances, industrial machinery, or electronic devices. Ladder diagrams are a type of schematic diagram that shows electrical components and their connections. They are commonly used in North America.
Wiring Diagrams
Wiring diagrams provide practical installation details, showing the exact route each electrical wire should take to connect power sources to switches, outlets, or other equipment safely and efficiently. They are commonly used in electrical work, construction, and industrial environments. Wiring diagrams are often straightforward and easy to follow, making them the go-to for hands-on work.
Panel Diagrams
Panel diagrams show the layout of components within a physical enclosure, such as an electrical panel or control box, in a mix of 2D and 3D representations. They include details about the physical arrangement of components, wiring connections, and the pathways for conductors. Panel diagrams are essential for the installation, maintenance, and troubleshooting of control panels in various settings.
Attaching Electric Fans: A Step-by-Step Guide for Your Radiator
You may want to see also
Explore related products
![Wiring Bible: [6 IN 1] The Complete Guide With Step-by-Step Projects and Money-Saving Strategies | Expert Advice to Handle and Fix the Most Common Home Wiring Problems](https://m.media-amazon.com/images/I/61+dkhWK8vL._AC_UY218_.jpg)
Learn how to read a diagram
Learning how to read an electrical wiring diagram is a valuable skill for electricians, engineers, and automation technicians. Electrical wiring diagrams are graphical representations of electrical systems that illustrate how components are connected and how current flows through the system. Here are some steps to help you understand and read electrical wiring diagrams effectively:
Understand the Basics:
Start by familiarizing yourself with the fundamental purpose of electrical wiring diagrams. These diagrams serve as roadmaps for electrical systems, providing information on the physical layout of electrical interconnections. They are essential for understanding how devices operate, diagnosing faults, and ensuring safe installations.
Recognize Different Types of Diagrams:
There are various types of electrical diagrams, including schematic diagrams, ladder diagrams, and single-line diagrams. Schematic diagrams focus on functionality and use symbols to represent components like resistors, switches, and power sources. Ladder diagrams illustrate electrical components, connections, switches, and resistors within a system. Single-line diagrams, or one-line diagrams, simplify complex circuits and power flows by using single lines to represent multiple wires or connections.
Interpret Symbols and Lines:
Symbols and lines are crucial elements in electrical wiring diagrams. Learn the standard symbols for components such as switches, fuses, relays, resistors, and more. For example, a switch is symbolized by a dashed line crossing two connection lines, while a relay typically includes a coil and contacts in its symbol. Additionally, understand that lines represent wires connecting different components. Solid lines often symbolize power and signal wires, while dashed lines may indicate protective wires.
Understand Current Flow and Connections:
Electrical wiring diagrams show how current flows through the system. Pay attention to the direction of current flow, usually indicated by arrows or the arrangement of components. Understand that symbols on the same rung of a ladder diagram represent connections on the same circuit. For instance, if a contactor on a rung is open, the component on that rung will not receive power.
Practical Application:
Apply your knowledge of electrical wiring diagrams to real-world scenarios. These diagrams are essential during installation, maintenance, and troubleshooting. When installing new electrical systems, diagrams ensure precise placement and connection of components. During maintenance, they help quickly pinpoint issues and guide you to specific points in the circuit.
Electrical wiring diagrams vary in complexity and can range from a single-page schematic for a ceiling fan to a 200-page document for a large industrial control panel. By following these steps and gaining practical experience, you will become proficient in reading and understanding electrical wiring diagrams.
Rough-In Electrical Wiring: DIY or Call an Electrician?
You may want to see also
Explore related products
Identify the components
To identify the components of an electrical wiring diagram, you must first understand that each electrical component, such as a switch, fuse, relay, or resistor, has its own graphic symbol. These symbols are designed to simplify and standardise the way components are represented, so that anyone working with the diagram can quickly understand what components they are dealing with, regardless of the manufacturer.
The lines in the diagram represent wires that connect different components. A solid line usually indicates power and signal wires, while a dashed line may indicate protective wires (PE). These lines indicate where wires are physically connected. Terminals are an important feature, as they allow the connection of wires, sometimes from different parts of the installation.
Some standard or fundamental elements used in a wiring diagram include power supply, ground, wire and connection, switches, output devices, logic gate, resistors, and lights.
A switch, for example, may include sub-symbols such as a push-to-break switch, push-to-make switch, 2-way switch, DPST switch, or DPDT switch. A battery, on the other hand, represents more than one cell to indicate electrical energy.
In more complex systems, diagrams often span several pages, with cross-references showing the location of the next part of a connection. Potential lines indicate the voltage level in a given circuit, such as +12V, +24V, or circuit ground (GND).
It is also helpful to work with the technical documentation of devices. Manufacturers often provide full electrical diagrams in user manuals, which can help you learn to identify individual system components and understand their functions.
Electricity's Reach in 1950: How Many Homes?
You may want to see also
Explore related products
Understand the flow of electricity
Understanding the flow of electricity is crucial when reading electrical wiring diagrams. These diagrams visually represent electrical circuits and their connections. The flow of electricity is depicted through the arrangement and connections between electrical components, which are represented by symbols.
To understand the flow of electricity, one must be familiar with the symbols used in wiring diagrams. These symbols represent various components such as power supply, ground, wires, connections, switches, output devices, logic gates, and resistors. For example, a switch may have sub-symbols like a push-to-break switch or a 2-way switch. Being able to interpret these symbols is essential for comprehending the flow of electricity in the circuit.
The diagrams themselves can take different forms, such as schematic diagrams, pictorial diagrams, block diagrams, or ladder diagrams. Schematic diagrams focus on functionality and use symbols to represent the connections and arrangements between components. Pictorial diagrams are more simplified and use graphic representations, making them suitable for those unfamiliar with schematic symbols. Block diagrams, also known as layout diagrams, use blocks to represent major electrical components and their overall arrangement in the system. Ladder diagrams are particularly useful for understanding series and parallel circuits, as they clearly show the electrical components and their connections.
When interpreting wiring diagrams, it is important to pay attention to the colour of the lines. In some cases, colour coding is used to differentiate between power circuits and control circuits. Active or live wires, for example, are typically any colour other than green, yellow, green/yellow, black, or light blue. On the other hand, neutral wires are often black or light blue, while protective earth or ground wires are green/yellow striped. These colour codes are crucial for safety and functionality in electrical installations.
Finally, understanding relay logic and PLC I/O mappings is essential when dealing with automation and control circuits. Modern systems often integrate PLC programming with wiring diagrams for efficient troubleshooting. By following a systematic approach and starting at the power source, one can trace the current flow through the circuit, which is essential for diagnosing faults and verifying connections.
Setting Up Outdoor Cameras: Electrical Connection Guide
You may want to see also
Frequently asked questions
A wiring diagram is a graphical representation of an electrical system that shows how the components are connected and how the current flows through the system.
There are several types of wiring diagrams, including schematic diagrams, ladder diagrams, single-line diagrams, and block diagrams. Each type of diagram has its own advantages and use cases.
Wiring diagrams provide a clear understanding of how electrical systems are connected and how they function. They are essential for electricians, engineers, and technicians working with electrical installations. Wiring diagrams are also useful for troubleshooting and maintenance work, as they help pinpoint issues quickly.
To read a wiring diagram, you need to understand the different symbols and elements used. These include symbols for power supply, ground, wire and connection, switches, output devices, logic gates, resistors, and lights. The lines in the diagram represent the wires connecting different components, with solid lines usually indicating power and signal wires, and dashed lines indicating protective wires.
Wiring diagrams are typically created and approved by professionals, such as engineers, safety specialists, or electrical designers. They can be found in installation manuals, maintenance guides, or online resources specific to the electrical system or device you are working with.
