Molly Ayala

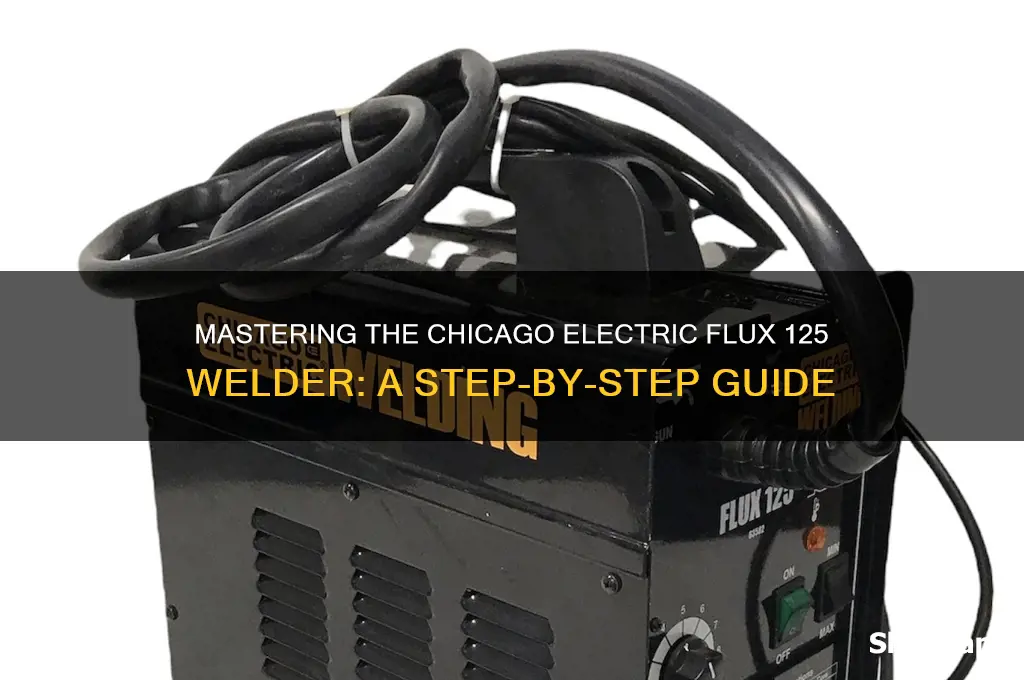

The Chicago Electric Flux 125 Welder is a versatile and user-friendly tool ideal for both beginners and experienced welders, offering a portable and efficient solution for flux-cored arc welding (FCAW). Designed for light to medium-duty tasks, this welder operates on standard 120V household power, making it accessible for home workshops, DIY projects, and small repairs. To use it effectively, start by ensuring proper setup: connect the welder to a power source, attach the grounding clamp to the workpiece, and thread the flux-cored wire through the machine. Adjust the wire feed speed and voltage settings based on the thickness of the metal and the type of wire being used. Always wear appropriate safety gear, including a welding helmet, gloves, and protective clothing, to shield yourself from sparks and UV radiation. With its straightforward controls and reliable performance, the Chicago Electric Flux 125 Welder simplifies the welding process, allowing users to achieve clean, strong welds with minimal hassle.
Explore related products
What You'll Learn
- Setup and Assembly: Unbox, assemble parts, attach gas tank, and ensure proper grounding for safe operation
- Welding Techniques: Master MIG/flux-cored welding, adjust wire feed speed, and maintain consistent travel speed
- Safety Precautions: Wear PPE, ensure ventilation, inspect cables, and avoid touching hot surfaces
- Troubleshooting Tips: Fix wire feeding issues, resolve arc instability, and clear nozzle blockages
- Maintenance Guide: Clean the machine, replace worn parts, and store in a dry, safe place
Setup and Assembly: Unbox, assemble parts, attach gas tank, and ensure proper grounding for safe operation
Unboxing your Chicago Electric Flux 125 welder is the first step toward mastering this versatile tool. As you carefully remove the machine from its packaging, take a moment to inspect the contents. The welder typically comes with essential components such as the welding gun, ground clamp, and a user manual. Lay out these parts systematically to ensure nothing is missing or damaged. This initial organization not only streamlines the assembly process but also fosters a sense of preparedness, crucial for a smooth setup.
Assembling the parts of the Flux 125 is straightforward but requires attention to detail. Begin by attaching the welding gun to the machine, ensuring the connection is secure and properly aligned. Next, connect the ground clamp to the designated terminal, tightening it firmly to guarantee a reliable electrical circuit. The user manual often includes diagrams to guide this process, so keep it handy. Proper assembly is not just about functionality; it’s about safety, as loose connections can lead to inefficiencies or hazards during operation.
Attaching the gas tank is a critical step that demands precision. The Flux 125 uses shielding gas to protect the weld from contamination, so ensure the tank is securely connected to the gas inlet on the welder. Check for leaks by applying soapy water to the connection points; bubbles indicate a problem that needs immediate attention. Always handle gas tanks with care, keeping them upright and away from heat sources. This step bridges the gap between assembly and operation, setting the stage for effective welding.
Grounding the welder is perhaps the most vital aspect of setup, as it prevents electrical shocks and ensures stable performance. Connect the ground clamp to a clean, unpainted metal surface, such as a workbench or the material being welded. Avoid surfaces with rust or paint, as these can compromise the connection. Test the grounding by running the welder briefly before starting any project. Proper grounding is not just a safety measure—it’s a cornerstone of achieving clean, consistent welds.
In conclusion, the setup and assembly of the Chicago Electric Flux 125 welder are foundational steps that require methodical execution. From unboxing to grounding, each stage plays a unique role in preparing the machine for safe and efficient use. By following these guidelines, you not only ensure the welder’s longevity but also enhance your overall welding experience. Remember, a well-assembled machine is the first step to mastering the art of welding.
Using Fewer Light Bulbs: A Simple Way to Save Electricity?
You may want to see also
Explore related products
Welding Techniques: Master MIG/flux-cored welding, adjust wire feed speed, and maintain consistent travel speed
Mastering MIG and flux-cored welding with the Chicago Electric Flux 125 Welder begins with understanding the interplay between wire feed speed and travel speed. The wire feed speed determines how quickly the welding wire is fed through the gun, directly affecting the heat input and weld bead size. Too slow, and the weld may be cold and porous; too fast, and it can cause excessive spatter and burn-through. Adjust the wire feed speed incrementally, starting at the manufacturer’s recommended setting (typically 150–250 IPM for 0.030" flux-cored wire), and fine-tune based on the material thickness and joint type. For example, thinner metals (18–20 gauge) require slower speeds (100–150 IPM) to prevent warping, while thicker materials (1/8" or more) may need speeds up to 300 IPM for adequate penetration.
Maintaining a consistent travel speed is equally critical to achieving a uniform weld bead. Inconsistent movement can result in undercuts, overlaps, or uneven penetration. Practice moving the gun at a steady pace, roughly 10–16 inches per minute for flux-cored welding, depending on the wire feed speed and material thickness. A common technique is to use a ruler or welding magnet as a guide to ensure straight, even travel. For vertical or overhead welds, reduce the travel speed by 20–30% to compensate for gravity’s effect on the molten metal. Remember, the goal is to strike a balance between wire feed and travel speed to create a smooth, consistent bead without defects.
Comparing MIG and flux-cored welding on the Chicago Electric Flux 125 reveals distinct advantages for each. MIG welding, which uses a solid wire and shielding gas, produces cleaner, more precise welds but requires external gas and is less portable. Flux-cored welding, on the other hand, uses a hollow wire filled with flux, eliminating the need for gas and making it ideal for outdoor use or windy conditions. However, flux-cored welding tends to create more spatter and smoke. When switching between the two, adjust the wire feed speed accordingly: flux-cored welding typically operates at slightly higher speeds due to the wire’s composition. For instance, a MIG setup might run at 200 IPM with 0.023" wire, while flux-cored welding with 0.030" wire could require 250 IPM for similar results.
To optimize performance, regularly inspect and maintain the welder’s components. Clean the wire feed rollers to prevent jamming, and ensure the contact tip is free of debris to maintain proper electrical conductivity. For flux-cored welding, use a wire brush to remove slag from the nozzle after each session, as it can insulate the tip and cause arc instability. Additionally, monitor the polarity setting: the Chicago Electric Flux 125 is typically set to DCEN (direct current electrode negative) for flux-cored welding, which provides better penetration and arc stability. Ignoring these maintenance steps can lead to poor weld quality, increased spatter, and premature wear on the machine.
Finally, practice is key to mastering these techniques. Set up scrap metal of varying thicknesses and experiment with different wire feed and travel speeds to observe their effects. Start with simple bead-on-plate welds, then progress to lap joints, T-joints, and corner joints. Record your settings for each successful weld to create a reference guide for future projects. Over time, you’ll develop a feel for how adjustments impact the weld, allowing you to troubleshoot issues on the fly. With patience and repetition, the Chicago Electric Flux 125 will become a versatile tool for both MIG and flux-cored welding, capable of handling a wide range of applications with precision and efficiency.
Can Plastic Replace Copper in Electrical Wiring? Exploring the Possibilities
You may want to see also
Explore related products
Safety Precautions: Wear PPE, ensure ventilation, inspect cables, and avoid touching hot surfaces
Welding with the Chicago Electric Flux 125 is a powerful skill, but it demands respect for the hazards involved. Before striking an arc, prioritize your safety by donning personal protective equipment (PPE). This isn't optional – it's your first line of defense against burns, sparks, and harmful fumes. Leather welding gloves shield your hands from heat and spatter, while a welding helmet with the appropriate shade protects your eyes from the intense arc light. Don't skimp on a long-sleeved jacket and pants made from flame-resistant materials, and ensure your footwear covers your ankles. Remember, PPE isn't just about comfort; it's about preventing serious injuries.
Welding fumes are a silent danger, containing harmful particles that can damage your lungs over time. Proper ventilation is crucial when using the Chicago Electric Flux 125. Always weld in a well-ventilated area, preferably outdoors. If indoor welding is necessary, use a fume extractor to capture and remove fumes at their source. Cross-ventilation, achieved by opening windows and doors on opposite sides of the workspace, can also improve air circulation. Don’t underestimate the importance of fresh air – it’s as vital as your PPE.
The Chicago Electric Flux 125 relies on its cables to deliver power to the welding process. Before each use, meticulously inspect the power cable and welding cable for any signs of damage, such as fraying, cracks, or exposed wires. A faulty cable can lead to electrical shocks or equipment failure. Ensure the cables are properly connected and secured, and never attempt to weld with damaged cables. Remember, a few moments spent inspecting cables can prevent accidents and costly repairs.
The welding process generates intense heat, leaving behind surfaces that remain dangerously hot long after the arc is extinguished. Avoid touching the workpiece, electrode holder, or any other component of the welder until they have had ample time to cool down. Use pliers or tongs to handle hot materials, and be mindful of your surroundings to prevent accidental contact with hot surfaces. Burns are a common welding injury, but they are entirely preventable with caution and awareness.
Packing Tape vs. Electrical Tape: Safe Alternative or Risky Substitute?
You may want to see also
Explore related products
Troubleshooting Tips: Fix wire feeding issues, resolve arc instability, and clear nozzle blockages
Wire feeding issues can halt your welding project faster than a cold start on a winter morning. If the wire isn’t feeding smoothly, first inspect the drive roller tension. Too loose, and the wire slips; too tight, and it deforms. Adjust the tension knob incrementally—a quarter turn at a time—until the wire feeds without resistance. Next, check for debris in the liner or feed tube. A bent or clogged liner is a silent culprit; replace it if necessary. Lastly, ensure the wire spool is properly aligned and not tangled. Misalignment causes uneven feeding, leading to inconsistent welds.
Arc instability turns a clean weld into a jagged mess, often stemming from incorrect voltage or wire speed settings. Start by verifying the welder’s output matches the wire type and thickness of your material. For flux-cored wire, a voltage too high or too low disrupts the arc. Adjust in 0.1-volt increments until the arc stabilizes. Wire speed is equally critical; too slow, and the arc sputters; too fast, and it burns through the material. Fine-tune the speed in 10-foot-per-minute adjustments, testing after each change. Remember, consistency is key—small, deliberate changes yield better results than drastic ones.
Nozzle blockages are the bane of any welder’s existence, causing spatter and poor penetration. To clear a blockage, first disconnect the power and allow the nozzle to cool. Use a nozzle cleaning tool or a stainless steel brush to remove debris gently—avoid tools that can scratch or damage the nozzle. For stubborn blockages, tap the nozzle lightly on a solid surface to dislodge particles. Prevention is just as important: regularly inspect and clean the nozzle after every welding session. A clean nozzle ensures a clear path for the wire and shielding gas, resulting in smoother, more efficient welds.
Comparing these issues highlights a common thread: maintenance and precision. Wire feeding problems, arc instability, and nozzle blockages often arise from neglect or rushed setup. Dedicate time to pre-weld checks—inspect the wire path, verify settings, and clean components. Think of it as tuning an instrument before a performance; the welder must be in harmony with your technique. By addressing these issues methodically, you not only fix immediate problems but also extend the life of your Chicago Electric Flux 125 welder, ensuring it remains a reliable tool for years to come.
Using White PVC Pipe as Electrical Conduit: Safe or Risky Choice?
You may want to see also
Explore related products
Maintenance Guide: Clean the machine, replace worn parts, and store in a dry, safe place
Regular maintenance is the backbone of any welding machine’s longevity, and the Chicago Electric Flux 125 is no exception. Dust, debris, and spatter accumulate over time, hindering performance and posing safety risks. Begin by unplugging the machine and using a soft brush or compressed air to remove surface dirt. Pay special attention to vents, nozzles, and the wire feed mechanism, as clogs in these areas can disrupt airflow and wire feeding. For stubborn residue, a damp cloth with mild detergent works, but ensure the machine is completely dry before use. Neglecting this step can lead to overheating or inconsistent welds, so make cleaning a post-project ritual.
Worn parts are inevitable in any machine subjected to the rigors of welding. Inspect the Flux 125’s contact tips, drive rolls, and liner regularly for signs of wear or damage. Contact tips should be replaced every 8–10 hours of welding, depending on usage intensity, to ensure smooth wire feeding and prevent bird-nesting. Drive rolls may need replacement every 20–30 hours, or sooner if they’re slipping or causing wire deformation. The liner, often overlooked, should be checked for kinks or wear and replaced annually or as needed. Keeping a log of usage hours and replacement dates can streamline this process, ensuring your machine operates at peak efficiency.
Storage is as critical as cleaning and repairs in preserving your Flux 125. Moisture is the enemy of electrical components, so store the machine in a dry, climate-controlled environment. A dedicated toolbox or cabinet with desiccant packs can prevent rust and corrosion. Cover the machine to shield it from dust and debris, but avoid plastic covers that trap moisture. If storing long-term, disconnect the gas supply and secure all cables to prevent tangling or damage. Proper storage not only protects your investment but also ensures the machine is ready for immediate use when you need it.
A proactive approach to maintenance transforms the Flux 125 from a tool into a reliable partner in your welding projects. By integrating cleaning, part replacement, and thoughtful storage into your routine, you minimize downtime and maximize performance. Think of it as preventive care for your machine—small, consistent efforts that avert major issues down the line. Whether you’re a hobbyist or a professional, this guide ensures your Flux 125 remains a dependable asset, delivering clean, precise welds project after project.
Using StarCraft Electra Foils with Laminators: Compatibility and Tips
You may want to see also
Frequently asked questions
Start by assembling the welder according to the manual, ensuring the wire feeder and gas hose are properly connected. Attach the grounding clamp to the workpiece and the welding gun to the machine. Set the wire feed speed and voltage based on the material thickness and type, and ensure the gas flow is correct if using shielding gas.
This welder is compatible with flux-cored wire, typically 0.030" or 0.035" diameter. Choose the wire based on the material you're welding (e.g., mild steel) and the desired weld characteristics. Always refer to the wire specifications for compatibility.
Locate the wire feed speed control knob on the welder. Turn it clockwise to increase the speed or counterclockwise to decrease it. Adjust based on the thickness of the material and the wire type being used, ensuring a smooth and consistent weld bead.
Yes, this welder is designed for gasless flux-cored welding. The flux coating on the wire acts as a shielding agent, eliminating the need for external gas. Ensure you’re using the correct flux-cored wire for gasless operation.
