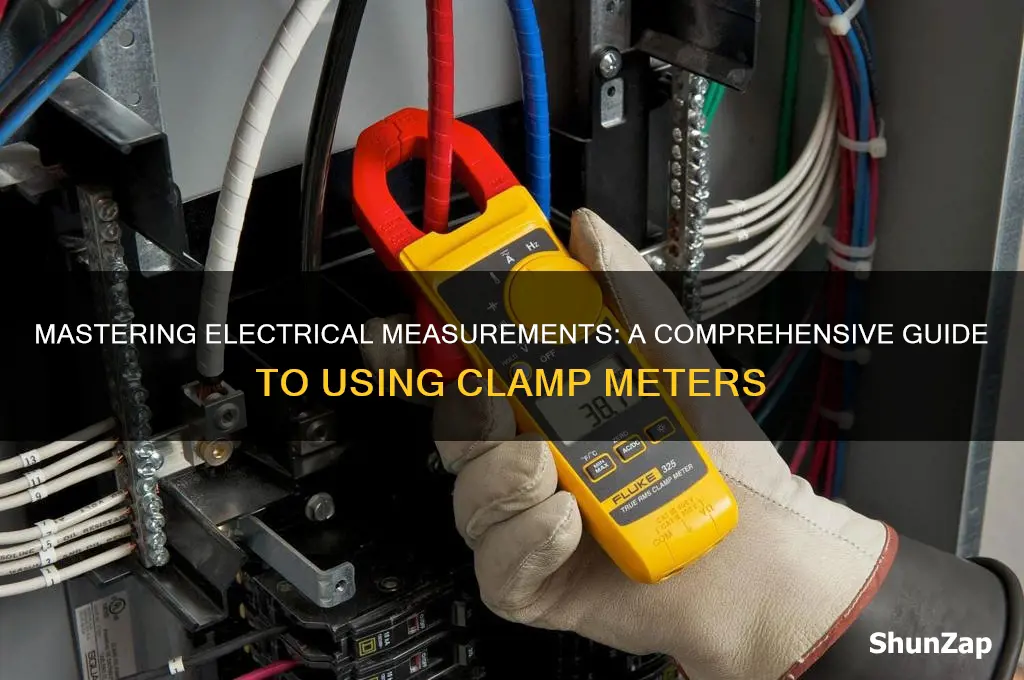

Mastering Electrical Measurements: A Comprehensive Guide To Using Clamp Meters

how to use a clamp meter in electrical measurement

A clamp meter is an essential tool for electrical measurement, allowing professionals and DIY enthusiasts to safely and efficiently measure current without breaking the circuit. Unlike traditional multimeters, a clamp meter features a hinged jaw that clamps around a conductor, enabling non-contact current measurement. This makes it ideal for troubleshooting electrical systems, verifying load currents, and ensuring compliance with safety standards. To use a clamp meter, start by selecting the appropriate current range and ensuring the device is set to the correct measurement mode (AC or DC). Open the jaw, clamp it around the conductor, and read the displayed value. Always prioritize safety by wearing insulated gloves, avoiding live circuits, and following manufacturer guidelines to prevent accidents and ensure accurate readings.

shunzap

Understanding Clamp Meter Basics

Clamp meters, also known as current clamps, are essential tools for electricians and technicians, offering a non-invasive way to measure electrical current. Unlike traditional multimeters, which require direct contact with the circuit, clamp meters provide a safer and more convenient method for current measurement. This is particularly useful when dealing with high-voltage systems or hard-to-reach wires, as it eliminates the need to break the circuit or expose live conductors.

The Science Behind Clamp Meters

At the heart of a clamp meter is a current transformer, which operates on the principle of electromagnetic induction. When the meter's jaw is clamped around a conductor, the magnetic field generated by the flowing current induces a proportional voltage in the transformer's secondary winding. This induced voltage is then measured and displayed as the current value. The key advantage here is that the meter never comes into direct contact with the live wire, ensuring user safety and maintaining circuit integrity.

Using Clamp Meters: A Step-by-Step Guide

  • Select the Right Range: Before taking a measurement, ensure the clamp meter is set to the appropriate current range. Most meters have multiple ranges, typically starting from 400mA or 4A and going up to 400A or 600A. Choosing the correct range is crucial for accurate readings and preventing overloading.
  • Open the Jaw and Clamp: Depress the trigger to open the meter's jaw, then carefully clamp it around the conductor. Ensure the wire is centrally positioned within the jaw for optimal accuracy.
  • Read the Display: With the jaw securely clamped, read the current value from the meter's display. Modern digital clamp meters often provide additional information, such as AC/DC voltage, resistance, and continuity, making them versatile tools for various electrical tasks.

Cautions and Considerations

While clamp meters offer convenience, there are important considerations. Firstly, they are primarily designed for measuring current in a single conductor. Clamping around multiple wires may lead to inaccurate readings due to the complex magnetic fields generated. Additionally, external magnetic fields can interfere with measurements, so it's essential to be mindful of the environment. Always ensure the meter is properly calibrated and regularly checked for accuracy, especially in critical applications.

In summary, understanding the basics of clamp meters involves recognizing their unique ability to measure current without direct contact, appreciating the underlying technology, and following a straightforward measurement process. By mastering these fundamentals, users can effectively and safely utilize clamp meters in various electrical measurement scenarios.

shunzap

Safety Precautions for Clamp Meter Use

Clamp meters are indispensable tools for electrical measurements, but their misuse can lead to severe hazards. Before engaging with any electrical system, always ensure the clamp meter is rated for the voltage and current levels you’re measuring. Using a meter with insufficient ratings can cause insulation failure, arc flashes, or equipment damage. For instance, a meter rated for 600V should never be used on a 1000V system. Verify the meter’s category rating (CAT II, III, or IV) matches the application—higher categories are designed for more hazardous environments, such as industrial settings.

Personal protective equipment (PPE) is non-negotiable when using a clamp meter. Wear insulated gloves, safety goggles, and flame-resistant clothing to protect against electrical shocks, arc flashes, and burns. In high-energy environments, consider using a face shield and a hard hat. Ensure the work area is dry and free of conductive materials, as moisture or metal objects can increase the risk of accidental grounding or short circuits. If working on live circuits, use insulated tools and maintain a safe distance from exposed conductors.

Never touch the jaws of the clamp meter while it’s in use, as they are designed to isolate the user from the circuit. However, this isolation can fail if the meter is damaged or misused. Always inspect the meter for cracks, frayed wires, or malfunctioning displays before use. If the meter has been dropped or exposed to extreme conditions, have it tested by a professional. Additionally, avoid clamping around multiple conductors unless the meter is specifically designed for this purpose, as this can lead to inaccurate readings or damage to the meter.

De-energize the circuit whenever possible before taking measurements. While clamp meters are designed for live measurements, working on de-energized circuits minimizes risk. If de-energizing is not feasible, use a one-handed technique to operate the meter, keeping your other hand in your pocket or behind your back to prevent accidental contact with other conductive surfaces. Always stand on an insulated surface, such as a rubber mat, to reduce the risk of becoming a path for electrical current.

Finally, understand the limitations of your clamp meter and the environment you’re working in. Some meters may not accurately measure distorted waveforms or high-frequency signals, leading to incorrect readings. In such cases, consult the manufacturer’s guidelines or use a meter with advanced features like true RMS measurement. Always prioritize safety over convenience—if in doubt, seek assistance from a qualified electrician. By adhering to these precautions, you can ensure safe and effective use of a clamp meter in electrical measurements.

shunzap

Measuring AC/DC Current Accurately

Accurate measurement of AC and DC current is a cornerstone of electrical diagnostics, ensuring systems operate safely and efficiently. A clamp meter, with its non-invasive design, simplifies this task by allowing technicians to measure current without breaking the circuit. However, precision hinges on understanding the nuances of AC and DC measurements. AC current, alternating in direction, requires a clamp meter with a true RMS (Root Mean Square) function to account for waveform irregularities, while DC current, flowing in a single direction, demands a meter with a sensitive zero-crossing detector for accurate readings.

To measure AC current accurately, begin by ensuring the clamp jaw is fully closed around the conductor, isolating the target wire to avoid interference from adjacent cables. Select the AC current range that exceeds the expected value to prevent overloading the meter. For instance, if the circuit typically draws 15A, set the range to 20A or higher. Hold the clamp steady for a few seconds to allow the meter to stabilize, especially in environments with fluctuating loads. Modern clamp meters often feature auto-ranging capabilities, automatically adjusting to the optimal range for convenience and accuracy.

DC current measurement presents unique challenges due to its unidirectional flow. Start by verifying the polarity of the circuit, as incorrect orientation can lead to negative readings or damage to the meter. Unlike AC measurements, DC current requires the clamp jaw to be opened and closed around the conductor while the circuit is live, necessitating caution to avoid short circuits. Use the relative mode (zero function) to nullify background current, ensuring the reading reflects only the target circuit. For low-current applications, such as in electronics, select a clamp meter with a high resolution, capable of measuring down to milliamps (mA) with precision.

Practical tips can further enhance accuracy. Always inspect the clamp meter for physical damage, such as cracked jaws or frayed leads, before use. Calibrate the meter periodically to maintain reliability, especially in critical applications like industrial machinery or medical equipment. When working in high-current environments, prioritize safety by wearing insulated gloves and ensuring the meter is rated for the expected current levels. For instance, a meter rated for 600A is unsuitable for measuring currents exceeding this value, risking both the device and the operator.

In conclusion, measuring AC/DC current accurately with a clamp meter demands a blend of technical knowledge and practical vigilance. By understanding the differences between AC and DC measurements, selecting the appropriate meter features, and adhering to safety protocols, technicians can achieve reliable results. Whether troubleshooting a home circuit or maintaining industrial systems, precision in current measurement is not just a skill—it’s a safeguard against inefficiency and hazard.

shunzap

Identifying Open/Short Circuits with Clamp Meters

Clamp meters are indispensable tools for diagnosing electrical issues, particularly when identifying open or short circuits. An open circuit occurs when the flow of current is interrupted, often due to a broken wire or loose connection, while a short circuit happens when current bypasses its intended path, typically due to a fault like insulation failure. Both scenarios can cause system malfunctions, but their symptoms and detection methods differ. By understanding how to use a clamp meter effectively, you can pinpoint these issues swiftly and accurately.

To identify an open circuit, start by measuring the voltage across the suspected circuit. If the clamp meter reads zero voltage, it indicates a complete break in the circuit. However, partial opens can be trickier to detect. In such cases, measure the resistance using the meter’s ohmmeter function. A significantly higher resistance than expected suggests an open. For instance, if a wire should measure 5 ohms but reads 50 ohms, an open is likely present. Always ensure the circuit is de-energized before testing resistance to avoid damaging the meter or the circuit.

Short circuits, on the other hand, often manifest as excessive current flow. To detect a short, measure the current in the circuit using the clamp meter’s amperage function. If the reading is abnormally high, it indicates a short. For example, a circuit rated for 10 amps showing a reading of 50 amps points to a short. Additionally, inspect the circuit for physical signs like burnt wires or melted insulation, which often accompany shorts. Always prioritize safety by wearing insulated gloves and ensuring the circuit is properly grounded before testing.

A comparative approach can further enhance accuracy. Test adjacent circuits or components to establish a baseline for normal operation. If one circuit reads 5 amps while the suspected circuit shows 50 amps, the discrepancy confirms a short. Similarly, compare resistance readings across multiple points to isolate opens. This method not only identifies the issue but also helps localize it, saving time during troubleshooting.

In conclusion, clamp meters are powerful tools for diagnosing open and short circuits, but their effectiveness depends on proper usage. By combining voltage, resistance, and current measurements with a systematic approach, you can accurately identify and resolve these common electrical faults. Always adhere to safety protocols and use the meter’s features judiciously to ensure reliable results.

shunzap

Testing Continuity and Resistance Features

Clamp meters are indispensable tools for electrical troubleshooting, and their continuity and resistance testing features are particularly vital for diagnosing circuit integrity. Continuity testing verifies whether a complete electrical path exists between two points, while resistance measurement quantifies the opposition to current flow in a circuit. Both functions are critical for identifying open circuits, short circuits, or degraded components. For instance, a continuity test on a fuse will emit a beep if the fuse is intact, indicating a closed circuit, whereas no beep suggests an open circuit and a faulty fuse. Similarly, measuring resistance can reveal whether a wire’s resistance aligns with expected values, such as 0.1 to 0.5 ohms for a healthy copper wire, or if it’s abnormally high due to corrosion or damage.

To perform these tests effectively, follow a systematic approach. Begin by ensuring the circuit is de-energized to prevent damage to the meter or personal injury. For continuity testing, connect the clamp meter’s test leads across the component or circuit segment in question. A clear, audible tone or visual indicator (like a lit LED) confirms continuity. If testing a switch, toggle it between on and off positions to verify the circuit opens and closes as expected. For resistance measurement, set the meter to the resistance mode and connect the leads across the component. Compare the reading to the component’s rated resistance or industry standards. For example, a resistor labeled 100 ohms should read close to that value, with minor deviations acceptable due to environmental factors.

While these tests are straightforward, certain precautions ensure accuracy and safety. Always verify the meter’s functionality by testing it on a known good circuit or component before use. Avoid touching the test leads together while measuring resistance, as this can lead to erroneous readings or damage the meter. Additionally, be mindful of the component’s power rating; applying excessive voltage or current during testing can cause permanent damage. For instance, testing a low-power resistor with a high-current setting can burn it out. Always consult the component’s datasheet or manufacturer guidelines for safe testing parameters.

The practical applications of continuity and resistance testing are vast, from residential wiring inspections to industrial machinery diagnostics. For example, an electrician might use these features to trace a broken wire in a wall, while a technician could diagnose a faulty heating element in an appliance by comparing its resistance to specifications. In automotive diagnostics, testing the continuity of a starter motor circuit can quickly pinpoint whether the issue lies in the wiring or the motor itself. By mastering these features, professionals can streamline troubleshooting, reduce downtime, and ensure systems operate safely and efficiently.

In conclusion, the continuity and resistance features of a clamp meter are powerful diagnostic tools that require both technical understanding and practical skill. By adhering to proper procedures, interpreting results accurately, and applying them in real-world scenarios, users can effectively identify and resolve electrical issues. Whether for routine maintenance or complex troubleshooting, these features underscore the clamp meter’s versatility and indispensability in electrical measurement.

Frequently asked questions

A clamp meter is a specialized electrical testing tool designed to measure current without breaking the circuit. It features a hinged "jaw" that clamps around a conductor, allowing for non-invasive current measurements. Unlike a standard multimeter, which requires direct contact with the circuit to measure current, a clamp meter is safer and more convenient for live wire measurements.

To safely use a clamp meter, first ensure the circuit is live but de-energized if possible. Open the clamp jaw, place it around the conductor carrying the current, and close the jaw. Select the appropriate current range on the meter, then read the measurement on the display. Avoid touching any exposed wires or components while measuring, and ensure the clamp meter is rated for the voltage and current levels in the circuit.

Yes, many clamp meters include additional functions like voltage, resistance, and continuity testing, similar to a multimeter. However, their primary advantage is current measurement. When using a clamp meter for voltage or resistance, follow the same procedures as with a multimeter: connect the test leads to the appropriate terminals and select the correct measurement mode on the device. Always ensure the circuit is de-energized when measuring resistance or continuity.
