Wiktor Wise

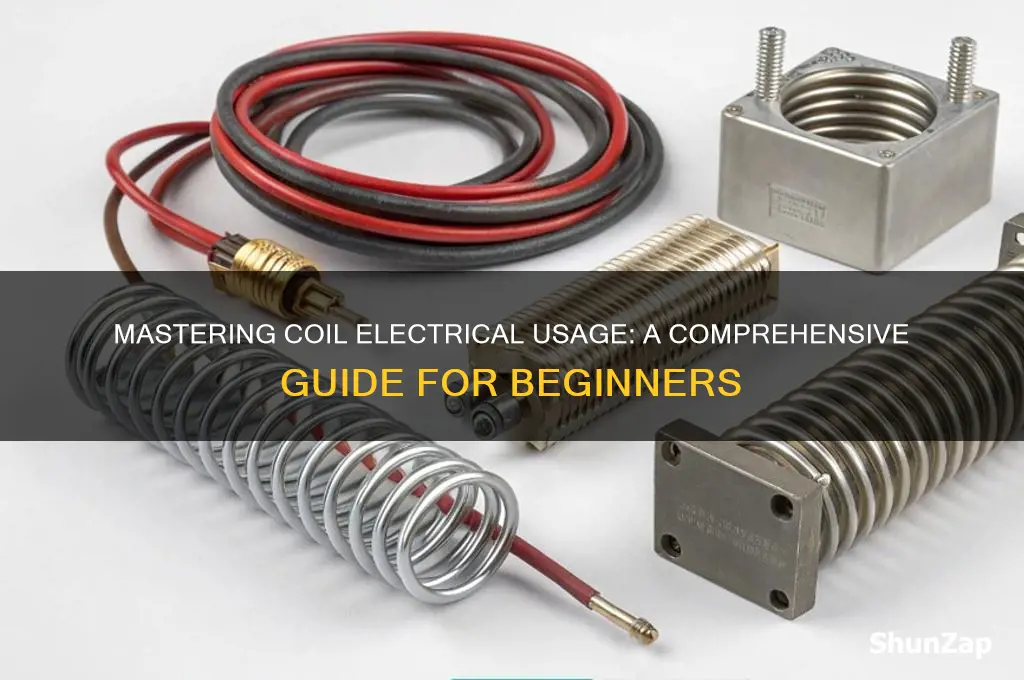

Understanding how to use a coil in electrical applications is essential for anyone working with electromagnetism, inductors, or transformers. A coil, typically made of insulated wire wound in a helical shape, functions by generating a magnetic field when an electric current passes through it, a principle known as electromagnetic induction. This property makes coils fundamental components in devices like motors, generators, solenoids, and inductors. To effectively use a coil, one must consider factors such as the number of turns (windings), wire gauge, and core material, as these determine its inductance and magnetic strength. Proper application involves connecting the coil to a power source, ensuring the current flows in the correct direction, and managing heat dissipation to prevent overheating. Whether for DIY projects or professional engineering, mastering coil usage opens up a wide range of electrical and electronic possibilities.
| Characteristics | Values |
|---|---|
| Purpose | To generate a magnetic field when an electric current passes through it, or to induce a voltage when exposed to a changing magnetic field. |
| Material | Typically made of copper or aluminum wire due to their high conductivity. |
| Shape | Commonly cylindrical or helical, but can be customized for specific applications. |
| Turns (Number of Loops) | Varies based on application; more turns increase magnetic field strength or induced voltage. |
| Wire Gauge | Depends on current requirements; thicker wire (lower gauge) for higher currents. |
| Core Material | Air core (no core), ferromagnetic core (e.g., iron for enhanced magnetic field), or non-ferromagnetic core (e.g., plastic for specific applications). |
| Current Flow | Direct Current (DC) or Alternating Current (AC), depending on the application. |
| Magnetic Field Strength | Proportional to the number of turns, current, and core material permeability. |
| Inductance | Measured in Henrys (H); depends on turns, core material, and coil geometry. |
| Applications | Transformers, inductors, electromagnets, motors, generators, relays, and solenoids. |
| Cooling Requirements | May require cooling (e.g., air or liquid) for high-power applications to prevent overheating. |
| Insulation | Wire must be insulated to prevent short circuits between turns. |
| Frequency Response | AC coils have a frequency limit; high frequencies may cause skin effect or proximity effect. |
| Efficiency | Depends on material quality, design, and application; energy losses occur due to resistance and hysteresis. |
| Safety Considerations | Avoid short circuits, ensure proper insulation, and handle high currents/voltages with care. |
Explore related products
![ASE Test Preparation - A6 Electronic / Electrical Systems (Motor Age Training) [Spiral-bound]](https://m.media-amazon.com/images/I/71Czlngo4+L._AC_UY218_.jpg)
What You'll Learn
- Coil Basics: Understand coil types, materials, and core functions for electrical applications
- Wiring Techniques: Learn proper coil connection methods to ensure safe and efficient operation
- Power Requirements: Determine voltage, current, and wattage needs for optimal coil performance
- Troubleshooting Tips: Identify common coil issues and effective solutions for quick repairs
- Safety Measures: Follow precautions to prevent overheating, short circuits, and electrical hazards
Coil Basics: Understand coil types, materials, and core functions for electrical applications
Electrical coils are the unsung heroes of modern technology, quietly powering everything from your smartphone charger to industrial transformers. At their core, coils are simply wires wound in a helical shape, but their design and materials dictate their performance in electrical applications. Understanding the basics—types, materials, and core functions—is crucial for anyone looking to harness their potential effectively.
Types of Coils: A Purpose-Driven Classification
Coils are not one-size-fits-all. Solenoid coils, for instance, are designed to generate a uniform magnetic field when current flows through them, making them ideal for applications like door locks or valves. Toroidal coils, shaped like a doughnut, excel in minimizing electromagnetic interference due to their closed-loop design, often used in high-frequency circuits. Flat spiral coils, commonly found in wireless charging pads, prioritize compactness and efficiency. Each type serves a specific function, so selecting the right one depends on the application’s requirements, such as space constraints, frequency, and magnetic field strength.
Material Matters: Conductivity, Resistance, and Durability
The material of a coil wire significantly impacts its performance. Copper is the most common choice due to its high conductivity and low resistance, ensuring minimal energy loss. However, for high-temperature applications, nickel-chromium alloys are preferred for their heat resistance. Aluminum, while less conductive than copper, is lighter and cost-effective, making it suitable for large-scale projects like power transmission. The core material also plays a role: iron cores enhance magnetic field strength but can introduce energy loss at high frequencies, while ferrite cores are better suited for radio frequency applications due to their non-conductive properties.
Core Functions: Amplifying Magnetic Fields and Efficiency
The primary function of a coil is to convert electrical energy into a magnetic field or vice versa. A core—typically made of ferromagnetic materials—amplifies this field by concentrating magnetic flux. For example, in a transformer, the core ensures efficient energy transfer between coils. However, not all coils require cores; air-core coils are used in applications where a core would introduce unwanted losses, such as in radio transmitters. Understanding the role of the core helps optimize coil performance for specific tasks, whether it’s inductive heating, signal transmission, or energy storage.
Practical Tips for Coil Selection and Use
When working with coils, consider the operating frequency and temperature. For high-frequency applications, choose materials with low resistance and avoid iron cores to minimize eddy currents. Always calculate the required number of turns and wire gauge based on the desired inductance—a formula like *L = (μ₀ * N² * A) / l* (where *L* is inductance, *μ₀* is permeability, *N* is turns, *A* is area, and *l* is length) can guide this process. Regularly inspect coils for signs of overheating or damage, especially in high-power applications. By mastering these basics, you’ll be better equipped to select, design, and troubleshoot coils for any electrical project.
Dielectric Grease: Enhancing Electrical Connections Safely and Effectively
You may want to see also
Explore related products
Wiring Techniques: Learn proper coil connection methods to ensure safe and efficient operation
Coil wiring is a critical aspect of electrical systems, demanding precision to prevent overheating, short circuits, or inefficiency. Proper connection methods ensure that current flows optimally through the coil, whether it’s in a relay, solenoid, or transformer. Start by identifying the coil’s polarity, typically marked with a "+" or "-" symbol, or through color-coding (red for positive, black for negative in many cases). Always consult the manufacturer’s datasheet for specific wiring diagrams, as misalignment can lead to permanent damage or malfunction.
Steps for Safe Coil Connection:
- Strip and Prepare Wires: Use a wire stripper to remove insulation from the ends of the wires, exposing ¼ to ½ inch of conductive material. Avoid nicking the wire, as this weakens the connection.
- Secure Connections: Connect wires to the coil terminals using screw terminals, soldering, or crimped connectors. For screw terminals, tighten securely but avoid over-torquing, which can strip threads or damage the coil. Soldering should be done with a low-wattage iron (25–40 watts) and lead-free solder to prevent heat damage.
- Insulate Exposed Areas: Cover exposed connections with electrical tape or heat-shrink tubing to prevent short circuits. Ensure insulation does not interfere with heat dissipation, especially in high-current applications.
Cautions to Observe:
- Polarity Reversal: Connecting a DC coil in reverse polarity can destroy the internal diode or cause erratic operation. Always double-check polarity before powering the system.
- Overcurrent Risks: Exceeding the coil’s rated current, even briefly, can melt insulation or burn out the windings. Use a fuse or circuit breaker rated at 125% of the coil’s operating current for protection.
- Environmental Factors: Coils in humid or corrosive environments require sealed connectors and waterproof insulation to prevent oxidation or moisture ingress.
Comparative Analysis of Connection Methods:
Soldering provides the most reliable connection but requires skill and heat management. Screw terminals are user-friendly but may loosen over time due to vibration. Crimped connectors offer a balance of durability and ease, ideal for automotive or industrial applications. For high-frequency coils (e.g., in RF transformers), soldering is preferred to minimize inductance losses.
Practical Tips for Efficiency:
- Minimize Wire Length: Shorter wires reduce resistance and voltage drop, improving efficiency. Route wires away from heat sources or moving parts.
- Test Before Powering: Use a multimeter to verify continuity and polarity before applying power. A resistance reading outside the datasheet’s range indicates a faulty connection.
- Label Connections: Clearly mark wires and terminals to simplify troubleshooting and future modifications, especially in complex systems.
By mastering these wiring techniques, you ensure coils operate safely and efficiently, extending their lifespan and preventing costly failures. Attention to detail in connection methods is not just a best practice—it’s a necessity for reliable electrical systems.
Propane Power for RVs: Generating Electricity on the Road
You may want to see also
Explore related products
Power Requirements: Determine voltage, current, and wattage needs for optimal coil performance
Understanding the power requirements of an electrical coil is crucial for ensuring its optimal performance and longevity. Voltage, current, and wattage are the three key parameters that dictate how a coil operates under different conditions. Voltage, measured in volts (V), is the electrical potential difference that drives current through the coil. Current, measured in amperes (A), represents the flow of electrons, while wattage, measured in watts (W), is the power consumed, calculated as the product of voltage and current. Each of these factors must be carefully matched to the coil’s specifications to avoid overheating, inefficiency, or failure.
To determine the appropriate voltage for a coil, start by consulting the manufacturer’s datasheet or specifications. For instance, a solenoid coil might require 12V or 24V, depending on its design and intended application. Applying a voltage higher than recommended can lead to excessive heat generation, while insufficient voltage may result in weak magnetic fields or incomplete actuation. If the coil is part of a larger system, ensure the power supply’s voltage aligns with the coil’s requirements. For DIY projects, a variable power supply can be used to test and fine-tune the voltage for optimal performance.
Current requirements are equally critical, as they directly impact the coil’s ability to generate a magnetic field. A coil’s resistance, measured in ohms (Ω), determines how much current flows when a specific voltage is applied, following Ohm’s Law (I = V/R). For example, a 12V coil with a resistance of 24Ω will draw 0.5A of current. Exceeding the coil’s rated current can cause burnout, while insufficient current may render the coil ineffective. Use a multimeter to measure resistance and calculate the expected current, ensuring it stays within safe limits.
Wattage, the power consumed by the coil, is a critical factor in thermal management. High-wattage coils generate more heat, requiring adequate cooling mechanisms such as heat sinks or fans. For instance, a 24V coil drawing 2A consumes 48W of power. If the coil operates continuously, ensure the system can dissipate this heat to prevent damage. In applications like induction heating, wattage directly correlates to the coil’s efficiency in transferring energy. Always consider the duty cycle—the ratio of operating time to rest time—to avoid overheating during prolonged use.
Practical tips for optimizing power requirements include using a fuse or circuit breaker to protect against overcurrent, selecting a power supply with a slightly higher voltage rating to account for voltage drops, and monitoring temperature with a thermocouple or infrared thermometer. For custom coil designs, online calculators can help estimate voltage, current, and wattage based on wire gauge, number of turns, and core material. By meticulously matching power requirements to the coil’s specifications, you ensure reliable, efficient, and safe operation in any electrical application.
Isopropyl Alcohol vs. Electrical Cleaner: Safe Substitute or Risky Swap?
You may want to see also
Explore related products
Troubleshooting Tips: Identify common coil issues and effective solutions for quick repairs
Coils are the unsung heroes of electrical systems, but when they fail, the consequences can be immediate and disruptive. Identifying the root cause of a coil issue is the first step toward a swift repair. Common symptoms include overheating, buzzing noises, or complete failure to energize. These signs often point to underlying problems such as short circuits, open circuits, or insulation breakdown. By systematically diagnosing these issues, you can avoid unnecessary replacements and restore functionality efficiently.
One of the most frequent coil issues is overheating, which can stem from excessive current, improper voltage, or inadequate cooling. To troubleshoot, start by verifying the applied voltage matches the coil’s rating—typically 12V, 24V, or 110V, depending on the application. Use a multimeter to check for voltage drops or spikes. If the voltage is correct, inspect the coil for physical damage or debris blocking airflow. Reducing ambient temperature or adding a heat sink can also prevent overheating. Remember, prolonged exposure to high temperatures degrades insulation, leading to permanent damage.
Another common problem is an open circuit, where the coil fails to energize due to a broken wire or loose connection. Begin by inspecting the wiring for visible damage or disconnections. A continuity test using a multimeter will confirm if the circuit is intact. If the coil itself is at fault, look for signs of burnt insulation or cracked windings. In some cases, re-soldering connections or replacing the coil may be necessary. Always ensure power is disconnected before handling electrical components to avoid shocks or short circuits.
Short circuits are equally problematic, often caused by damaged insulation or moisture ingress. These can lead to blown fuses or tripped circuit breakers. To diagnose, isolate the coil from the circuit and perform a resistance test. A reading significantly lower than the coil’s specification indicates a short. Inspect the coil for physical damage or signs of arcing. If moisture is suspected, dry the coil thoroughly and apply a suitable conformal coating to prevent future issues. Regular maintenance, such as cleaning and inspecting terminals, can mitigate this risk.
Finally, mechanical issues like misalignment or improper mounting can cause premature coil failure. Ensure the coil is securely mounted and aligned with the core or actuator. Vibration or movement can loosen connections over time, so consider using thread-locking compounds or vibration-damping materials. For applications in harsh environments, opt for coils with IP65 or higher ratings to protect against dust and moisture. Proper installation not only extends the coil’s lifespan but also ensures consistent performance in critical systems.
By addressing these common issues methodically, you can minimize downtime and maintain the reliability of your electrical systems. Each problem has a clear solution, from voltage verification to mechanical adjustments, making coil troubleshooting accessible even to those with limited technical expertise.
Electric Guitar String Sizes: Can Any Gauge Fit Your Instrument?
You may want to see also
Explore related products
Safety Measures: Follow precautions to prevent overheating, short circuits, and electrical hazards
Electrical coils, while versatile, pose significant risks if mishandled. Overheating, short circuits, and electrical hazards can lead to fires, equipment damage, or personal injury. Implementing safety measures is not optional—it’s essential. Start by ensuring the coil operates within its rated voltage and current limits. Exceeding these thresholds generates excessive heat, degrading insulation and increasing failure risk. Always consult the manufacturer’s specifications before use.
Insulation is your first line of defense against short circuits. Inspect coils regularly for cracks, fraying, or exposed wires. Even minor damage compromises safety, allowing current to bypass its intended path. Replace damaged coils immediately, and avoid makeshift repairs. For high-power applications, consider using coils with reinforced insulation or heat-resistant coatings. Additionally, maintain proper spacing between coil turns and nearby conductive materials to prevent accidental contact.
Environmental factors play a critical role in coil safety. Avoid operating coils in damp or corrosive environments, as moisture accelerates insulation breakdown and increases short-circuit risk. If exposure is unavoidable, use waterproof enclosures or coatings rated for the specific conditions. Similarly, ensure adequate ventilation to dissipate heat. Overcrowded or enclosed spaces trap heat, causing the coil to overheat even under normal loads. For prolonged use, incorporate cooling mechanisms like fans or heat sinks.
Grounding is a simple yet often overlooked safety measure. Properly grounding the coil and its enclosure redirects fault currents away from users and equipment, minimizing shock hazards. Verify grounding connections periodically, especially in industrial settings where vibrations or movement can loosen terminals. For portable devices, use grounded power sources and inspect cords for damage. Never bypass grounding pins or use adapters that omit them—this negates a critical safety feature.
Finally, adopt a proactive approach to maintenance and monitoring. Install thermal cutoffs or circuit breakers to automatically shut down the coil if temperatures or currents exceed safe levels. Regularly test these devices to ensure functionality. Train users to recognize warning signs, such as unusual odors, buzzing sounds, or visible sparks, and establish clear protocols for responding to malfunctions. By combining preventive measures with vigilant monitoring, you can significantly reduce the risks associated with electrical coils.
Electric Razors Before Laser Hair Removal: Safe or Risky Choice?
You may want to see also
Frequently asked questions
A coil electrical, also known as an electromagnetic coil, is a wound wire component that generates a magnetic field when an electric current passes through it. Its primary function is to convert electrical energy into magnetic energy, which can be used in applications like transformers, inductors, motors, and relays.
The polarity of a coil can be determined using the right-hand rule. If you grip the coil with your right hand so that your fingers follow the direction of the current (conventional flow, from positive to negative), your thumb will point in the direction of the magnetic field's north pole.
The strength of the magnetic field depends on three main factors: the number of turns in the coil (more turns = stronger field), the magnitude of the current flowing through the coil (higher current = stronger field), and the presence of a ferromagnetic core (a core increases the field strength significantly).
The inductance (L) of a coil can be calculated using the formula \( L = \mu \cdot N^2 \cdot A / l \), where \( \mu \) is the permeability of the core material, \( N \) is the number of turns, \( A \) is the cross-sectional area of the coil, and \( l \) is the length of the coil.
When working with coil electrical components, ensure the power is disconnected to avoid electric shock. Use insulated tools, wear protective gear, and avoid short-circuiting the coil, as it can generate high temperatures or damage the component. Always follow manufacturer guidelines for specific applications.
