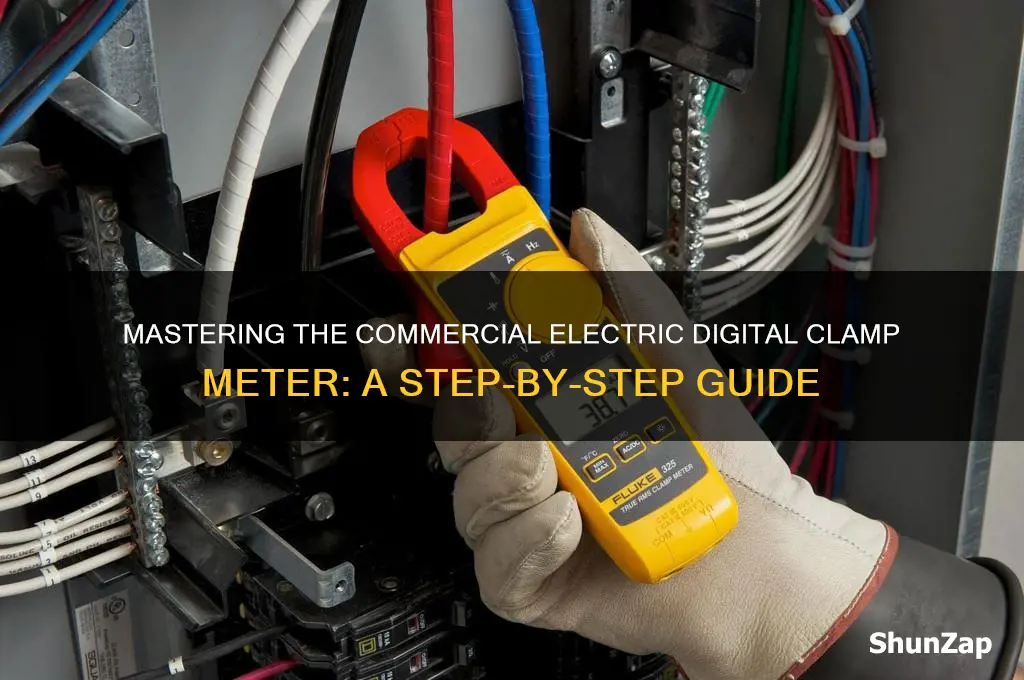

A commercial electric digital clamp meter is an essential tool for professionals and DIY enthusiasts alike, offering a safe and efficient way to measure electrical parameters such as current, voltage, and resistance. To use this device effectively, start by ensuring the meter is set to the correct measurement mode, typically indicated by symbols like A for current or V for voltage. Open the clamp jaw and carefully place it around a single conductor to measure current without breaking the circuit, ensuring the wire is centered for accurate readings. For voltage measurements, use the probe tips to touch the circuit's live and neutral points, while resistance measurements require the circuit to be de-energized and the probes connected across the component being tested. Always prioritize safety by wearing insulated gloves, ensuring the meter is properly rated for the task, and avoiding contact with live circuits unless absolutely necessary. With practice and attention to detail, a digital clamp meter becomes an invaluable asset for troubleshooting and maintaining electrical systems.
Explore related products
What You'll Learn
- Safety Precautions: Essential steps to ensure safe operation and prevent electrical hazards while using the clamp meter
- Selecting the Right Range: How to choose the appropriate measurement range for accurate readings on the device
- Measuring Current: Proper techniques for clamping around conductors to measure AC/DC current effectively
- Voltage and Resistance Tests: Steps to measure voltage and resistance using the meter’s probes and settings
- Interpreting Readings: Understanding the digital display and troubleshooting common issues with meter results
Safety Precautions: Essential steps to ensure safe operation and prevent electrical hazards while using the clamp meter
Before engaging with any electrical equipment, understanding the inherent risks is paramount. A commercial electric digital clamp meter, while an indispensable tool for measuring current, voltage, and resistance, can expose users to electrical hazards if mishandled. The first step in ensuring safety is recognizing that electricity, even in small doses, can cause severe injuries or fatalities. For instance, currents as low as 100 mA can lead to ventricular fibrillation, a potentially fatal condition. This underscores the necessity of treating every measurement with caution, especially in high-voltage environments.
To mitigate risks, always inspect the clamp meter for physical damage before use. Cracks in the casing, frayed cables, or malfunctioning displays can compromise safety. Ensure the device is rated for the voltage and current levels you’re working with—using a meter with insufficient ratings can lead to equipment failure or personal injury. For example, a clamp meter rated for 600V should never be used on a 1000V circuit. Additionally, verify that the meter has been properly calibrated and tested for accuracy, as incorrect readings can lead to dangerous decisions.
Personal protective equipment (PPE) is non-negotiable when working with electrical systems. Wear insulated gloves, safety goggles, and non-conductive footwear to minimize the risk of electric shock or arc flash. In high-risk environments, such as industrial settings, consider using flame-resistant clothing and a face shield. Position yourself to avoid contact with live circuits, and never work alone—having a colleague nearby can provide immediate assistance in case of an emergency.
Proper technique is equally critical. When measuring current, ensure the circuit is de-energized before opening the clamp around a conductor. Never touch exposed wires or terminals with the meter or your hands while the circuit is live. For voltage measurements, use the appropriate probe tips and maintain a firm grip to prevent accidental contact with adjacent conductors. Always follow the manufacturer’s guidelines for operating the meter, including how to interpret readings and troubleshoot errors.
Finally, environmental awareness is key to safe operation. Avoid using the clamp meter in wet or damp conditions, as moisture can increase conductivity and the risk of shock. If working outdoors, ensure the area is free from hazards like standing water or metal structures that could conduct electricity. By adhering to these precautions—inspection, PPE, technique, and environmental awareness—you can significantly reduce the risk of electrical hazards while using a commercial electric digital clamp meter.
Harnessing Light: Innovative Ways to Generate Electricity with Photonics
You may want to see also
Explore related products
Selecting the Right Range: How to choose the appropriate measurement range for accurate readings on the device
Selecting the right range on a commercial electric digital clamp meter is critical for obtaining accurate readings. Most clamp meters offer multiple ranges for measuring current, voltage, and resistance, each tailored to specific magnitudes. For instance, when measuring AC current, common ranges include 400A, 200A, and 40A. Choosing a range too low for the actual value can overload the meter, while selecting a range too high reduces resolution and precision. Always start with the highest range and work downward to avoid damage and ensure clarity in your measurements.
Consider the expected value of the parameter you’re measuring to narrow down the appropriate range. If you’re testing a household circuit, which typically operates at 15–20A, starting with the 40A range is sensible. For industrial applications, where currents can exceed 100A, the 400A range is more suitable. When in doubt, consult the device’s manual or observe visual cues like wire thickness or the size of the electrical panel, which often correlate with higher current loads.
A practical tip is to use the meter’s auto-ranging feature, if available, to let the device select the optimal range automatically. However, manual selection offers greater control and can be more efficient in scenarios where the approximate value is known. For example, if you’re measuring voltage on a 120V circuit, manually setting the range to 200V or 600V ensures the meter captures the value without unnecessary adjustments. Auto-ranging, while convenient, may introduce slight delays as the meter cycles through ranges.
One common mistake is underestimating the importance of range selection in resistance measurements. Unlike current or voltage, resistance values can span several orders of magnitude, from milliohms to megaohms. Always isolate the component being tested and start with the highest resistance range (e.g., 20MΩ) before stepping down. This prevents false readings caused by residual voltage or incorrect range settings, ensuring the meter stabilizes at the true value.
In summary, selecting the right range is a balance of anticipation, observation, and precision. Start high, step down as needed, and leverage auto-ranging judiciously. Understanding the typical values for your application and the meter’s capabilities ensures accurate, safe, and efficient measurements every time. Treat range selection as the first critical step in any clamp meter operation, and you’ll avoid common pitfalls while maximizing the device’s utility.
Electric Motors Efficiency: Power Consumption at Low Speeds Explained
You may want to see also
Explore related products
Measuring Current: Proper techniques for clamping around conductors to measure AC/DC current effectively
Clamping around conductors to measure AC/DC current with a commercial electric digital clamp meter requires precision and awareness of the conductor's properties. Unlike voltage measurements, current measurement demands that the conductor be entirely within the clamp's jaw to ensure the magnetic field generated by the current is accurately captured. Partial clamping or loose positioning can lead to erroneous readings, as the meter relies on the principle of electromagnetic induction. Always verify the conductor is centered and secure before taking a measurement.
The technique for clamping varies depending on whether you're measuring AC or DC current. For AC measurements, the clamp meter inherently accounts for the fluctuating nature of the current, but ensure the meter is set to the correct AC mode. When measuring DC current, some meters require manual zeroing to eliminate residual magnetic fields from previous measurements. Additionally, DC measurements may necessitate a momentary pause to allow the meter to stabilize, as the reading can take slightly longer to register accurately. Always consult the meter’s manual for model-specific procedures.
One practical tip for maximizing accuracy is to isolate the conductor being measured. In complex wiring setups, multiple conductors in close proximity can interfere with the reading due to overlapping magnetic fields. If possible, separate the target conductor from others or use a flexible current probe accessory to isolate it. For high-current applications, such as industrial machinery, ensure the clamp meter is rated for the expected current range to avoid damage or inaccurate readings. Overloading the meter can lead to permanent malfunction.
Safety is paramount when clamping around live conductors. Always wear insulated gloves and ensure the meter is properly rated for the voltage level of the circuit. Avoid clamping around insulated conductors unless the insulation is specifically designed for such measurements, as standard insulation can block the magnetic field. For high-energy systems, consider using a non-contact method or verifying the circuit is de-energized before clamping. Proper technique not only ensures accurate measurements but also protects both the user and the equipment.
Electric Scooters in London: Legal Use, Rules, and Safety Tips
You may want to see also
Explore related products
Voltage and Resistance Tests: Steps to measure voltage and resistance using the meter’s probes and settings
Measuring voltage and resistance with a commercial electric digital clamp meter requires precision and an understanding of the meter’s capabilities. Voltage tests are essential for diagnosing electrical circuits, while resistance measurements help identify faults in components like wires, fuses, or motors. Both tests rely on proper probe placement and correct meter settings, ensuring accurate readings without damaging the device or the user.
Steps for Voltage Measurement:
- Select the Voltage Setting: Turn the dial to the AC or DC voltage range, depending on the circuit type. For household outlets, AC voltage is typical, while batteries require DC.
- Insert Probes: Plug the black probe into the "COM" (common) port and the red probe into the "VΩ" (voltage/resistance) port.
- Touch Probes to Circuit: Place the black probe on the neutral or ground wire and the red probe on the live wire. Ensure firm contact to avoid erratic readings.
- Read the Display: The meter will show the voltage value. Compare it to expected values (e.g., 120V for US outlets, 230V in Europe) to assess circuit health.
Steps for Resistance Measurement:
- Power Off the Circuit: Always de-energize the circuit to prevent damage to the meter or components.
- Set to Resistance Mode: Turn the dial to the resistance (Ω) range, typically marked with an omega symbol.
- Connect Probes: Touch both probes to the ends of the component being tested (e.g., a wire or resistor).
- Interpret Results: A reading of 0Ω indicates a short circuit, while infinite resistance (OL or 1) suggests an open circuit. Expected values depend on the component’s specifications.
Cautions and Practical Tips:
- Avoid touching probe tips while measuring voltage to prevent electric shock.
- For resistance tests, ensure the component is isolated from the circuit to eliminate parallel pathways that skew readings.
- Use the meter’s auto-ranging feature if available, or manually select a range slightly above the expected value for accuracy.
Mastering these steps transforms the clamp meter from a tool into a diagnostic powerhouse, enabling users to troubleshoot electrical issues with confidence and efficiency.
Using PB Blaster on Corroded Electrical Contacts: Safe and Effective?
You may want to see also
Explore related products
Interpreting Readings: Understanding the digital display and troubleshooting common issues with meter results
The digital display on a commercial electric clamp meter is your window into the electrical parameters you're measuring, but it's only useful if you can interpret the readings accurately. Most meters display values in clear, segmented digits, often accompanied by unit indicators like volts (V), amperes (A), or ohms (Ω). Pay attention to the decimal point and any multipliers (e.g., "k" for kilo or "m" for milli) to avoid misreading values. For instance, a reading of "1.2k" on the AC voltage scale means 1,200 volts, not 1.2 volts. Understanding this basic structure is the first step in troubleshooting discrepancies between expected and actual results.
One common issue users encounter is fluctuating readings, which can indicate loose connections or unstable circuits. If your meter shows erratic values while measuring current, ensure the clamp jaw is fully closed around the conductor and the wire is centered within the jaw. For voltage measurements, verify that the test leads are securely connected to the circuit and the meter. Another frequent problem is overload errors, often displayed as "OL" or "OVERLOAD." This occurs when the measured value exceeds the meter's range. For example, attempting to measure 500V AC on a 200V range will trigger this error. Always start with the highest range and work downward to avoid damaging the meter or obtaining inaccurate readings.
False readings can also stem from environmental factors, such as electromagnetic interference (EMI) or high humidity. If you suspect EMI, try moving the meter away from large motors, transformers, or other electrical equipment. In humid conditions, ensure the meter and test leads are dry, as moisture can create conductive paths that skew results. For instance, a damp test lead might show a lower-than-expected resistance reading when testing insulation. Calibration drift is another culprit for inaccurate readings, especially in meters used frequently or in harsh conditions. Regularly compare your meter's readings with a known reference source, such as a calibrated multimeter, to ensure accuracy.
When troubleshooting, consider the context of the measurement. For example, a low voltage reading on a motor circuit might indicate a faulty capacitor or loose wiring, not necessarily a meter issue. Conversely, a high current reading could suggest a short circuit or overloaded device. Cross-referencing meter readings with symptoms in the electrical system can help pinpoint the root cause. For instance, if a circuit breaker trips frequently and your meter shows abnormally high current, the issue likely lies in the circuit, not the meter.
In conclusion, interpreting readings on a digital clamp meter requires a combination of technical knowledge and practical awareness. By understanding the display format, recognizing common errors, and accounting for external factors, you can ensure accurate measurements and effective troubleshooting. Always approach readings critically, considering both the meter's limitations and the broader electrical context. With practice, you'll develop the intuition to distinguish between meter issues and actual system problems, making you a more efficient and reliable technician.
1950s Computers: Power Consumption Compared to Modern Devices
You may want to see also
Frequently asked questions
Ensure the device is off and the test leads are disconnected. Open the clamp jaw fully, select the appropriate measurement range (e.g., AC/DC voltage, current, or resistance) using the dial, and then turn the meter on. Always wear insulated gloves and ensure the device is properly rated for the electrical system you’re testing.
Open the clamp jaw and place it around a single live conductor. Ensure the conductor is centered in the jaw. Select the AC or DC current measurement mode, then close the jaw. Read the value displayed on the screen. Never clamp multiple conductors or use the clamp on high-voltage systems without proper training.
Turn off the clamp meter, switch to the voltage (V) measurement mode, and select AC or DC. Connect the test leads to the appropriate input terminals (red for voltage, black for common). Touch the leads to the circuit’s test points (e.g., hot and neutral wires) and read the voltage value on the display.
Always de-energize the circuit if possible. If working on live systems, use insulated tools, wear PPE (personal protective equipment), and avoid touching conductive parts. Ensure the meter is rated for the voltage level of the system, and never exceed its maximum input ratings to prevent damage or injury.
