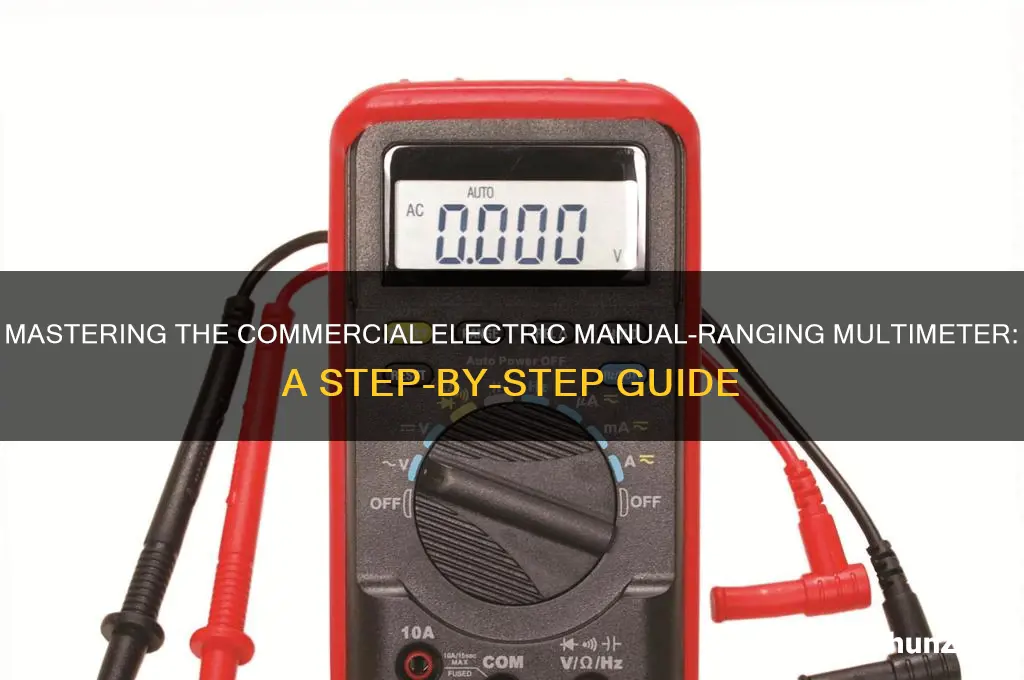

Mastering The Commercial Electric Manual-Ranging Multimeter: A Step-By-Step Guide

how to use a commercial electric manual-ranging multimeter

A commercial electric manual-ranging multimeter is an essential tool for professionals and hobbyists alike, offering precise measurements of voltage, current, and resistance in electrical circuits. To use this device effectively, start by selecting the appropriate range for the parameter you’re measuring—voltage, current, or resistance—using the manual range dial. Ensure the multimeter is set to the correct function (e.g., AC/DC voltage, continuity, or ohms) via the selector switch. Connect the test leads to the corresponding terminals on the multimeter: red for positive and black for negative or common. For voltage measurements, connect the leads in parallel with the circuit; for current, place them in series. When measuring resistance or testing continuity, ensure the circuit is de-energized to avoid damage. Always prioritize safety by wearing insulated gloves, avoiding contact with live circuits, and double-checking settings before taking measurements. With proper use, a manual-ranging multimeter becomes a reliable tool for diagnosing and troubleshooting electrical systems.

shunzap

Safety Precautions: Essential steps to ensure safe multimeter usage, preventing electrical hazards and device damage

Before handling a commercial electric manual-ranging multimeter, always inspect the device for physical damage, such as cracked casing, frayed leads, or exposed wires. Even minor defects can compromise safety, turning a routine measurement into a hazardous situation. A damaged multimeter may fail to provide accurate readings or, worse, expose you to live electrical circuits. Make it a habit to visually and manually check the device and its accessories before each use, discarding or repairing any compromised components immediately.

When measuring voltage, never assume a circuit is de-energized without verifying it first. Use the multimeter to confirm the absence of voltage before proceeding, as incorrect assumptions are a leading cause of electrical accidents. Always connect the test leads to the circuit *before* turning the multimeter on, and remove them *after* powering it down. This sequence prevents accidental shorts or arcing, which can damage both the device and the circuit under test. Treat every measurement as if the circuit is live until proven otherwise.

Selecting the correct range on a manual-ranging multimeter is critical to safety and accuracy. Overloading the device by choosing too low a range can blow fuses or damage internal components, while too high a range may yield inaccurate readings. Refer to the multimeter’s manual for specific range limits and always start with the highest range, stepping down as needed. For instance, when measuring household voltage (120V or 240V), begin with the 600VAC range to avoid overloading the device.

Personal protective equipment (PPE) is often overlooked but essential when working with electrical systems. Wear insulated gloves and safety goggles to protect against shocks and debris, especially when testing high-voltage circuits or working in cramped spaces. Ensure your work area is dry and well-lit, as moisture and poor visibility increase the risk of accidents. Ground yourself by wearing anti-static wrist straps when testing sensitive electronic components to prevent electrostatic discharge, which can irreparably damage circuits.

Finally, never work on live circuits alone, particularly in high-voltage environments. Having a second person nearby can provide immediate assistance in case of an accident. Establish a clear communication protocol and ensure they know how to disconnect power quickly if needed. Regularly attend safety training sessions to stay updated on best practices and emergency response procedures. Safe multimeter usage is not just about the device—it’s about creating a culture of caution and preparedness.

shunzap

Setting Up the Multimeter: How to properly connect probes and select the correct measurement range

Before measuring any electrical parameter with a manual-ranging multimeter, proper setup is critical to ensure accuracy and safety. Begin by identifying the type of measurement you need—voltage, current, or resistance—as this dictates how you’ll connect the probes and select the range. For instance, voltage measurements require the probes to be connected in parallel with the circuit, while current measurements demand a series connection, breaking the circuit to insert the meter. Misconnection can lead to equipment damage or inaccurate readings, so double-check your setup before proceeding.

Selecting the correct measurement range is equally vital, as manual-ranging multimeters do not automatically adjust. Start with the highest range available for the parameter you’re measuring, then gradually decrease the range until the display stabilizes within the optimal zone (typically 20–80% of the range). For example, if measuring a 12V circuit, begin with the 20V range, then switch to the 10V range for precision. Failing to select an appropriate range can result in overloading the meter or obtaining a reading too small to interpret accurately.

When connecting the probes, ensure the red probe is inserted into the port labeled for the parameter you’re measuring (e.g., VΩ for voltage or resistance) and the black probe into the common (COM) port. For current measurements, use the dedicated high-ampere port if available, as the COM port may not handle higher currents. Always inspect the probes for damage, such as frayed wires or cracked tips, as these can compromise safety and accuracy. A practical tip: hold the probes by their insulated handles, not the metal tips, to avoid electrical shocks or short circuits.

In contrast to auto-ranging multimeters, manual-ranging models require a more deliberate approach, blending technical knowledge with careful execution. For instance, when measuring resistance, ensure the circuit is de-energized to prevent damage to the meter or the component being tested. Similarly, when measuring current, be mindful of the circuit’s polarity, as reversing the probe connections can yield incorrect results or harm the meter. This hands-on process fosters a deeper understanding of electrical principles, making manual-ranging multimeters a valuable tool for both beginners and experienced technicians.

To summarize, setting up a manual-ranging multimeter involves a systematic approach: identify the measurement type, connect the probes correctly, and select the appropriate range. By following these steps meticulously, you not only ensure precise measurements but also safeguard your equipment and personal safety. Mastery of this setup process transforms the multimeter from a mere tool into an indispensable ally in diagnosing and troubleshooting electrical systems.

shunzap

Measuring Voltage: Step-by-step guide to accurately measure AC and DC voltage with the multimeter

Voltage measurement is a fundamental skill when working with electrical systems, and a manual-ranging multimeter is an essential tool for this task. Whether you're a professional electrician or a DIY enthusiast, understanding how to accurately measure both AC and DC voltage is crucial for safety and precision. Here's a comprehensive guide to mastering this technique.

Step-by-Step Voltage Measurement:

  • Prepare the Multimeter: Begin by ensuring your multimeter is set to the correct voltage range. For manual-ranging multimeters, this involves selecting the appropriate scale for the expected voltage level. For instance, if you're measuring household AC voltage, set the range to 200V or higher. This initial step is critical to avoid damaging the meter and to ensure accurate readings.
  • Connect the Probes: Multimeters typically have two probes: red for positive and black for negative. For voltage measurement, connect the probes to the circuit in parallel. Touch the red probe to the point where you want to measure the voltage, and the black probe to a common ground or the other end of the component. This simple connection allows the multimeter to detect the potential difference.
  • Read the Display: After connecting the probes, observe the multimeter's display. It will show the voltage value, often with a small 'V' symbol to indicate volts. For AC voltage, the reading might fluctuate slightly due to the alternating nature of the current. Ensure you note the peak or average value, depending on your requirement. Modern multimeters often provide both AC and DC voltage measurements, so double-check the setting if you're measuring different types of voltage in succession.

Cautions and Considerations:

  • Safety First: Always prioritize safety when working with electricity. Ensure the circuit is de-energized before connecting the multimeter, especially when dealing with high-voltage systems. Wear protective gear, such as insulated gloves, to minimize the risk of electric shock.
  • Probe Placement: The accuracy of your measurement depends on correct probe placement. For DC voltage, ensure the red probe touches the positive terminal and the black probe touches the negative. For AC, the orientation doesn't matter, but consistent placement will help in comparing readings over time.
  • Range Selection: Manual-ranging multimeters require careful range selection. If the voltage exceeds the set range, you may damage the meter. Always start with a higher range and adjust downwards if needed. This process ensures you don't accidentally measure a high voltage with a low-range setting.

Practical Tips for Accuracy:

To achieve precise voltage measurements, consider the following:

  • Stability: Allow the multimeter to stabilize before reading the value, especially for analog meters. Digital multimeters often provide a stable reading instantly.
  • Multiple Readings: Take several measurements to ensure consistency, especially in fluctuating AC circuits.
  • Probe Quality: Invest in high-quality probes for better conductivity and more accurate readings.
  • Calibrate Regularly: Calibration ensures your multimeter provides accurate measurements over time. Follow the manufacturer's guidelines for calibration procedures.

By following these steps and considerations, you can confidently measure AC and DC voltage with a manual-ranging multimeter. This skill is invaluable for troubleshooting electrical issues, verifying circuit functionality, and ensuring the safety of electrical systems. Remember, practice and attention to detail are key to mastering voltage measurement.

shunzap

Testing Continuity: Using the multimeter to check circuit continuity and identify breaks or faults

A broken wire or faulty connection can cripple an entire circuit, leaving you scratching your head and your project in limbo. Testing continuity with a multimeter is your Sherlock Holmes moment, allowing you to pinpoint these hidden culprits with precision.

The Setup: Begin by setting your multimeter to the continuity setting, often denoted by a diode symbol or a sound wave icon. This setting sends a small current through the circuit and alerts you if the path is complete. Touch the probes together – a beep or visual indicator confirms the meter is functioning correctly.

The Probe Dance: Think of your multimeter probes as extensions of the circuit. Touch one probe to each end of the segment you suspect might be broken. If the circuit is intact, the multimeter will chirp merrily, indicating a continuous path for electricity. Silence, however, spells trouble – a break in the line.

Beyond the Beep: Continuity testing isn't just about finding open circuits. It's a diagnostic tool for identifying loose connections, corroded terminals, and even faulty switches. A weak or intermittent beep suggests a poor connection, while no beep at all points to a complete break.

Pro Tips: For accurate readings, ensure the power is off to the circuit you're testing. Clean probe tips and secure connections are crucial for reliable results. When testing long wires, gently wiggle them while checking continuity – a broken strand might only reveal itself under slight movement.

shunzap

Measuring Resistance: Techniques for measuring resistance values in circuits using the multimeter

Resistance measurement is a fundamental skill when working with electrical circuits, and a manual-ranging multimeter is an essential tool for this task. To begin, ensure your multimeter is set to the resistance (ohms) function, typically denoted by the Greek letter omega (Ω). This setting allows you to quantify the opposition to current flow in a circuit, a critical parameter for troubleshooting and design.

Technique and Precision: Measuring resistance requires a systematic approach. First, disconnect the component or circuit you're testing from any power source to prevent inaccurate readings or damage. Then, connect the multimeter probes across the component, ensuring a secure contact. The key to accurate measurement lies in understanding the range selection. Manual-ranging multimeters require you to choose the appropriate range before taking a reading. Start with the highest range and gradually decrease it until you obtain a stable reading within the meter's display limits. This process minimizes the risk of overloading the meter and ensures precision.

In practice, let's consider a scenario where you're measuring the resistance of a resistor in a circuit. You set your multimeter to the 200-ohm range and touch the probes to the resistor's leads. If the display shows 'OL' (open loop), it indicates the resistance is higher than the selected range. You'd then switch to a higher range, say 2000 ohms, and retest until you get a readable value. This iterative process is crucial for accurate resistance measurement.

Cautions and Considerations: When measuring resistance, be mindful of the circuit's state. In-circuit measurements can be influenced by parallel paths, leading to erroneous readings. Whenever possible, remove the component from the circuit or isolate it to ensure you're measuring the intended resistance. Additionally, be aware of the multimeter's input impedance, which can affect low-resistance measurements. Modern multimeters often have high input impedance, minimizing this issue, but it's a factor to consider for precise work.

Advanced Techniques: For more complex circuits, you might employ techniques like the four-wire method, especially when dealing with low-resistance values. This method uses four wires to connect the multimeter, eliminating the effect of lead resistance and providing more accurate measurements. It's particularly useful in applications like motor windings or transformer resistance testing, where precision is critical. By understanding these techniques and the multimeter's capabilities, you can confidently measure resistance in various electrical scenarios.

Frequently asked questions

First, ensure the multimeter is set to the correct range for the measurement you intend to take. Insert the test leads into the appropriate ports (usually COM for common and VΩmA for voltage, resistance, or current). Turn the power on using the dial or switch, and verify the meter is functioning by checking the display. Always start with the highest range and adjust downward to avoid damage.

Set the multimeter to the appropriate voltage range (AC or DC) using the dial. Connect the black test lead to the COM port and the red lead to the VΩmA port. Touch the probes to the circuit’s terminals, ensuring proper polarity (red for positive, black for negative). Read the value displayed on the screen.

Turn the dial to the resistance (Ω) range. Disconnect the component or circuit from power to avoid inaccurate readings or damage. Touch the probes across the component or circuit. The multimeter will display the resistance value. If the reading is "OL," the resistance is too high for the selected range.

Always start with the highest current range and adjust downward. Ensure the multimeter is in series with the circuit by breaking the circuit and connecting the meter in between. Use the appropriate current port (usually marked as "A" or "mA"). Never measure current in a live circuit without proper safety measures, as high currents can damage the meter or cause injury.

Check the test leads for damage or loose connections. Ensure the multimeter is set to the correct range and measurement type (voltage, current, resistance, etc.). Verify the battery is not depleted, as low power can affect accuracy. Calibrate the meter if necessary, following the manufacturer’s instructions. If issues persist, consult the user manual or contact technical support.
