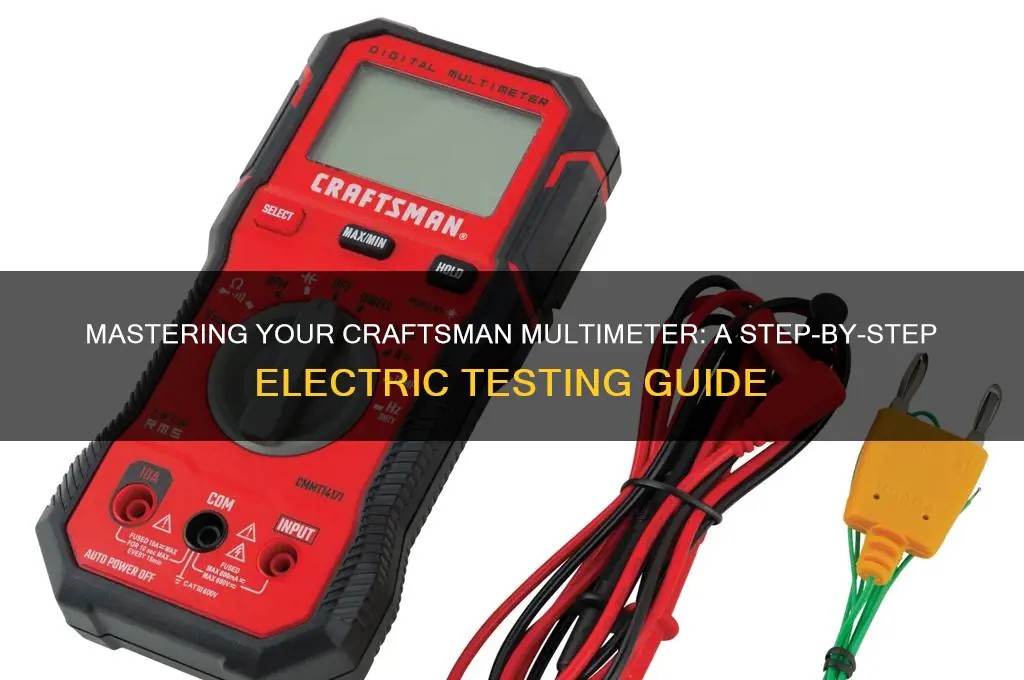

Using a Craftsman multimeter is an essential skill for anyone working with electrical systems, as it allows you to measure voltage, current, and resistance accurately. To begin, ensure the multimeter is set to the correct function—voltage (V), current (A), or resistance (Ω)—by turning the dial to the appropriate symbol. Next, insert the test leads into the corresponding ports: the black lead into the COM (common) port and the red lead into the port matching the selected function. Before testing, always check the range setting to avoid damaging the device; start with the highest range and adjust downward as needed. When measuring, touch the probes to the circuit or component, ensuring a secure connection, and read the display carefully. Always prioritize safety by turning off power to the circuit before testing and wearing protective gear if necessary. With practice, a Craftsman multimeter becomes a reliable tool for diagnosing and troubleshooting electrical issues efficiently.
Explore related products
What You'll Learn
- Understanding Multimeter Basics: Learn the display, buttons, and ports for accurate electrical measurements
- Safety Precautions: Follow guidelines to avoid electric shocks or device damage during use
- Measuring Voltage: Select voltage mode, connect probes, and read AC/DC voltage safely
- Testing Continuity: Use continuity mode to check circuit integrity and identify breaks
- Measuring Resistance: Switch to resistance mode, connect probes, and interpret ohm readings
Understanding Multimeter Basics: Learn the display, buttons, and ports for accurate electrical measurements
The Craftsman multimeter’s display is your window into electrical measurements, but it’s more than just numbers. Most models feature a backlit LCD screen that shows readings in volts, amps, or ohms, depending on the mode selected. Pay attention to the unit indicators (V, A, Ω) and the decimal point, as misreading these can lead to costly errors. For instance, confusing milliamps (mA) with amps (A) could result in overloading the device. Pro tip: Always check the display’s maximum digit count—if it reads “OL,” the input exceeds the meter’s range, and you need to adjust the settings.
Buttons are the control center of your multimeter, and understanding their functions is critical. The “SELECT” or “RANGE” knob is the most prominent, allowing you to switch between measurement types and manual ranges. For example, testing a 9V battery requires setting the knob to the 20V DC range for accuracy. Other common buttons include “HOLD” to freeze readings and “REL” for zeroing out baseline measurements. Caution: Avoid pressing multiple buttons simultaneously, as this can reset the device or trigger unintended modes.
Ports are where you connect the test leads, and their placement is deliberate. The “COM” (common) port is always used, while the “VΩmA” port is for voltage, resistance, and low current measurements. For high current (10A), use the dedicated 10A port, if available. Mismatched ports can damage the meter or skew results. Example: Testing a car battery requires the red lead in the 10A port for accurate amperage readings. Always inspect ports for debris before use, as even small particles can interfere with connections.
Mastering these basics transforms the multimeter from a confusing tool into a precise instrument. Start with simple tasks, like measuring household batteries or checking continuity in wires, to build confidence. Over time, you’ll instinctively know when to use auto-ranging versus manual settings or when to switch ports for high-current applications. Practical tip: Label your test leads with their corresponding ports to avoid mix-ups during quick tests. This foundational knowledge ensures safety, accuracy, and efficiency in every electrical measurement.
HDPE for Electrical Conduit: Benefits, Applications, and Safety Considerations
You may want to see also
Explore related products
Safety Precautions: Follow guidelines to avoid electric shocks or device damage during use
Electricity is unforgiving—one misstep can lead to shocks, burns, or permanent damage to your multimeter. Before touching any wires or components, ensure the device is set to the correct voltage range. Overloading the multimeter by selecting a range lower than the actual voltage can fry its internal components. For instance, if testing a household outlet (typically 120V in the U.S.), set the multimeter to at least 200V AC to provide a safety buffer. Always start with the highest range and work downward to avoid accidental overloads.
Your hands are the most vulnerable when using a multimeter. Wear insulated gloves and stand on a rubber mat to minimize the risk of electric shock, especially in damp or outdoor environments. Never touch exposed wires or terminals with bare skin. If the multimeter leads have frayed insulation or exposed metal, replace them immediately—compromised leads are a leading cause of accidents. Treat every live circuit as potentially hazardous, even if you assume it’s low voltage.
Before connecting the multimeter, visually inspect the test area for hazards like frayed wires, corroded terminals, or exposed components. De-energize the circuit whenever possible, but if that’s not an option, use one hand to operate the multimeter to reduce the risk of creating a path for current through your chest. Keep the multimeter and leads away from moving parts or hot surfaces, as heat can melt insulation and cause short circuits. Never probe high-energy systems (e.g., HVAC units or industrial machinery) without proper training.
Even after testing, residual charge can remain in capacitors, posing a shock risk. Always discharge components like capacitors by shorting their terminals with an insulated tool before handling. When finished, turn off the multimeter and remove the leads from the circuit before adjusting settings or ranges. Store the device in a dry, protective case to prevent damage from drops or environmental factors. Regularly inspect the multimeter for cracks, loose parts, or malfunctioning displays—a faulty device is as dangerous as improper use.
Una Corda on Electric Pianos: Exploring Soft Pedal Functionality
You may want to see also
Explore related products
Measuring Voltage: Select voltage mode, connect probes, and read AC/DC voltage safely
Voltage measurement is a fundamental task for any multimeter user, and the Craftsman multimeter makes this process straightforward and safe. To begin, ensure your multimeter is set to the correct voltage mode—either AC (alternating current) or DC (direct current). This selection is crucial because AC and DC voltages are measured differently, and using the wrong mode can lead to inaccurate readings or damage to the device. Most Craftsman multimeters have a rotary dial or button to switch between these modes, clearly labeled for ease of use.
Once the mode is selected, connect the probes to the appropriate ports. The red probe should be inserted into the port marked for voltage (often labeled "V"), while the black probe goes into the common port (labeled "COM"). These probes are your tools for establishing a connection with the circuit or power source you’re testing. For safety, always connect the probes to the circuit *after* the multimeter is set to the correct mode and range. This prevents accidental short circuits or overloading the device.
Reading voltage requires attention to detail. Start by touching the probes to the circuit or power source, ensuring a firm connection. The multimeter will display the voltage value on its screen. If the reading seems unusually high or low, double-check the range setting. Most multimeters allow you to manually adjust the range, but some Craftsman models have auto-ranging capabilities, which automatically select the appropriate scale. For household electrical systems, AC voltage typically ranges from 110V to 120V, while DC voltage in batteries is usually 1.5V (AA/AAA) or 9V.
Safety is paramount when measuring voltage. Always wear insulated gloves and ensure the probes are in good condition, with no exposed wires. Never measure voltage in wet or damp conditions, as this increases the risk of electric shock. Additionally, avoid touching the probe tips while they are connected to a live circuit. For high-voltage applications, such as testing a home’s electrical panel, consider using a non-contact voltage tester first to confirm the presence of voltage before using the multimeter.
In summary, measuring voltage with a Craftsman multimeter involves selecting the correct mode, connecting the probes securely, and interpreting the reading accurately. By following these steps and prioritizing safety, you can confidently diagnose electrical issues or verify power levels in various applications. Whether you’re troubleshooting a faulty appliance or testing a car battery, this skill is indispensable for any DIY enthusiast or professional electrician.
Electric Stove in Gas House: Compatibility, Safety, and Installation Tips
You may want to see also
Explore related products
Testing Continuity: Use continuity mode to check circuit integrity and identify breaks
One of the most critical functions of a Craftsman multimeter is its ability to test continuity, a process that ensures the integrity of electrical circuits. Continuity mode checks if a complete path exists for electrical current to flow, helping you identify breaks, loose connections, or faulty components. This feature is particularly useful when troubleshooting wiring, switches, fuses, or any circuit-based systems. By emitting a low-voltage signal, the multimeter detects whether the circuit is closed (continuous) or open (broken), often accompanied by an audible beep for clarity.
To test continuity, start by setting your Craftsman multimeter to the continuity mode, typically denoted by a symbol resembling a diode or a series of waves. Ensure the device you’re testing is powered off to avoid damage or inaccurate readings. Next, touch the probes together; if the multimeter beeps or shows a low resistance value (usually close to 0 ohms), it confirms the meter is functioning correctly. Now, apply the probes to the circuit or component you’re testing—one probe to each end of the segment in question. A beep or low resistance reading indicates continuity, meaning the circuit is intact. Conversely, no beep or a high resistance reading suggests a break or fault.
While continuity testing is straightforward, there are nuances to consider. For instance, testing across a switch should yield no continuity when the switch is off and continuity when it’s on. Similarly, fuses should show continuity if intact and none if blown. Always double-check connections and probe placement, as poor contact can lead to false readings. Additionally, be mindful of the environment; moisture or corrosion can interfere with results, so clean terminals or wires before testing.
The practical applications of continuity testing are vast. For DIY enthusiasts, it’s invaluable for diagnosing issues in household wiring, automotive circuits, or electronic devices. Professionals use it to verify the integrity of complex systems, ensuring safety and functionality. By mastering this feature of your Craftsman multimeter, you gain a powerful tool for both preventive maintenance and problem-solving, saving time and reducing guesswork in electrical troubleshooting.
Electric Throws: Energy Efficiency and Electricity Consumption Explained
You may want to see also
Explore related products
Measuring Resistance: Switch to resistance mode, connect probes, and interpret ohm readings
Resistance measurement is a fundamental skill when using a Craftsman multimeter, offering insights into the health of electrical circuits and components. To begin, ensure your multimeter is set to resistance mode, typically denoted by the omega (Ω) symbol. This mode allows the device to measure the opposition to current flow in a circuit, a critical parameter for diagnosing issues like faulty wires, damaged components, or improper connections. Once in resistance mode, the multimeter is ready to provide accurate ohm readings, but the process doesn’t end there—proper probe connection and interpretation are equally vital.
Connecting the probes correctly is the next crucial step. Start by turning off the power to the circuit or component you’re testing to avoid inaccurate readings or damage to the multimeter. Attach the black probe to the common (COM) port and the red probe to the ohms (Ω) port. Touch the probe tips to the ends of the component or circuit you’re testing, ensuring a secure connection. For example, when testing a resistor, place one probe on each lead. If testing continuity in a wire, touch one probe to each end. A steady reading on the display indicates a stable connection, while a fluctuating or infinite reading (often displayed as "OL") suggests an open circuit or improper contact.
Interpreting ohm readings requires understanding the context of the component being tested. Ideal resistors, for instance, should display a value close to their rated resistance, such as 10,000 ohms for a 10kΩ resistor. A reading significantly higher or lower indicates a faulty component. In wires or conductive paths, a reading close to zero ohms signifies good continuity, while a high resistance reading points to a break or poor connection. For safety-critical applications, such as testing a heating element or motor winding, consult the manufacturer’s specifications for acceptable resistance ranges.
Practical tips can enhance accuracy and efficiency. Always ensure the probes are clean and free of oxidation, as contaminants can skew readings. When testing components in-circuit, be aware that parallel pathways can affect the measurement, so isolate the component if possible. For high-resistance measurements (above 1 megohm), avoid touching the component or probe tips with your fingers, as body oils and moisture can introduce unintended parallel paths. Finally, if the multimeter displays "OL" in resistance mode, it indicates an open circuit, meaning no current can flow—a useful diagnostic for identifying breaks or disconnections.
In conclusion, measuring resistance with a Craftsman multimeter is a straightforward yet powerful technique for troubleshooting electrical systems. By switching to resistance mode, connecting the probes correctly, and interpreting ohm readings in context, users can diagnose issues with precision. Whether testing resistors, wires, or complex circuits, this method provides actionable data to ensure components function as intended. Mastery of this skill not only enhances efficiency but also reinforces safety by identifying potential hazards before they escalate.
