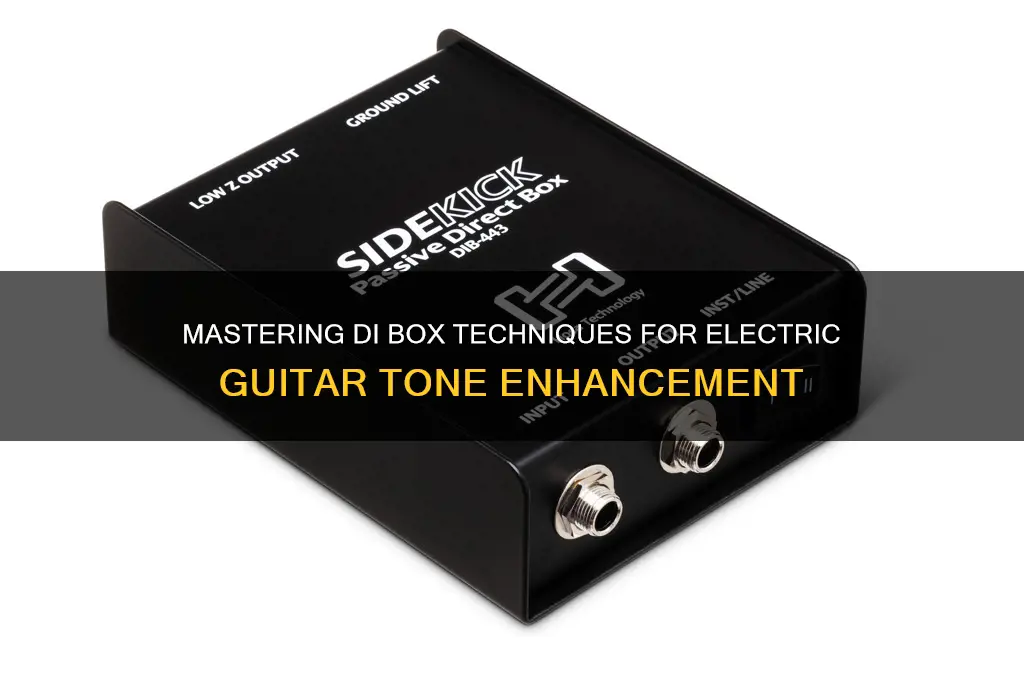

A DI (Direct Injection) box is an essential tool for electric guitarists looking to achieve a clean and professional sound when connecting their instrument to a mixing console or audio interface. It serves as an interface between the high-impedance signal from the guitar and the low-impedance input of the sound system, ensuring optimal signal transfer and minimizing noise. By using a DI box, guitarists can maintain the integrity of their tone, especially in live performances or studio recordings, where direct connection to the PA system or recording equipment is necessary. This setup is particularly useful for bypassing the need for a guitar amplifier in certain scenarios, providing a versatile solution for various musical applications. Understanding how to properly use a DI box can significantly enhance the overall sound quality and open up new possibilities for electric guitar players.
| Characteristics | Values |
|---|---|
| Purpose | To connect an electric guitar to a mixing console, audio interface, or PA system without impedance mismatch or signal loss. |
| DI Box Type | Passive or Active (Active recommended for longer cable runs or low-output guitars). |
| Input Connection | Connect the guitar's output to the DI box's Instrument Input (usually a 1/4" jack). |
| Output Connection | Use the XLR Output to connect to the mixer/interface via a balanced XLR cable. |
| Ground Lift Switch | Use if hum or buzz occurs; lifts the ground connection to eliminate noise. |
| Pad Switch | Engage the -20dB or -40dB pad if the guitar signal is too hot (overloading the input). |
| Polarity Switch | Use to reverse phase if needed (e.g., to fix phase cancellation issues). |
| Thru/Bypass Jack | Connects to an amplifier for monitoring while sending the signal to the mixer. |
| Impedance Matching | Ensures the guitar's high impedance signal is properly matched to the input device. |
| Signal Conversion | Converts unbalanced, high-impedance guitar signal to balanced, low-impedance for professional audio systems. |
| Power Requirements | Passive DI boxes require no power; Active DI boxes need a battery or phantom power. |
| Applications | Live performances, studio recording, or direct recording into DAWs. |
| Advantages | Reduces noise, improves signal quality, and provides isolation from ground loops. |
| Common Models | Radial ProDI, Countryman Type 85, Behringer DI100, etc. |
| Placement in Signal Chain | Place after the guitar and any effects pedals, but before the mixer/interface. |
Explore related products
What You'll Learn
Connecting guitar to DI box
A DI box, or direct injection box, is a simple yet powerful tool for electric guitarists seeking to capture their instrument's true tone. Connecting your guitar to a DI box is a straightforward process, but it's essential to understand the why and how to achieve the best results. The primary purpose of this connection is to convert the high-impedance, unbalanced signal from your guitar into a low-impedance, balanced signal suitable for direct input into mixing consoles, audio interfaces, or recording devices.
The Connection Process: A Step-by-Step Guide
Begin by locating the output jack on your electric guitar, typically found on the lower bout. Plug one end of a standard 1/4-inch instrument cable into this output. The other end of the cable should be connected to the input of the DI box, often labeled as 'Instrument In' or 'Hi-Z In'. This initial connection is the bridge between your guitar's raw signal and the DI box's transformative capabilities. Ensure the cable is securely inserted to avoid any signal loss or unwanted noise.
Next, you'll need to connect the DI box to your desired audio input device. Use an XLR cable for this purpose, plugging one end into the DI box's output, usually labeled as 'Balanced Out' or 'XLR Out'. The other end of the XLR cable connects to your mixer, audio interface, or recording equipment. This balanced connection is crucial for maintaining signal integrity, especially over long cable runs, as it effectively cancels out any electromagnetic interference.
Optimizing Your Setup: Practical Considerations
When connecting your guitar to a DI box, consider the following tips for optimal performance. Firstly, ensure your DI box is powered, either via a battery or phantom power from your mixer/interface. This is essential for active DI boxes, which require power to operate their internal circuitry. Passive DI boxes, on the other hand, do not need power but may offer fewer features.
Secondly, experiment with the DI box's ground lift switch, if available. This feature can help eliminate ground loops that cause unwanted hum. If you experience buzzing or humming, try engaging the ground lift to break the ground loop. Additionally, some DI boxes offer a pad switch, typically -20dB or -30dB, which reduces the input signal level, preventing distortion when dealing with hot signals.
The Benefits of DI Box Connection
Connecting your electric guitar to a DI box offers several advantages. It provides a clean, noise-free signal path, ensuring your guitar's tone remains intact without the colorations introduced by guitar amplifiers or speaker cabinets. This is particularly useful in recording scenarios where a pure, unaltered guitar signal is desired, allowing for more flexibility during the mixing process. Moreover, DI boxes often feature additional functionalities like thru outputs, enabling simultaneous connection to an amplifier for monitoring or live performances.
In summary, connecting your guitar to a DI box is a simple yet effective technique to capture your instrument's essence. By following these steps and considerations, guitarists can achieve professional-quality results, whether in the studio or on stage, all while maintaining the integrity of their electric guitar's unique voice.
AC vs DC: Powering Electromagnets – Which Current is Best?
You may want to see also
Explore related products
Setting input and output levels
A DI box acts as a crucial interface between your electric guitar's high-impedance signal and the balanced, low-impedance input of a mixing console or audio interface. Setting the input and output levels correctly ensures a clean, noise-free signal with optimal headroom and dynamic range. Start by connecting your guitar to the DI box's input and the DI box's output to your recording device or PA system. Most DI boxes feature a "Thru" output, allowing you to send the unprocessed signal to your guitar amp while routing the balanced signal to the mixer.
Analyzing Signal Flow and Level Matching
The input level on your DI box should match the output level of your guitar. If your guitar has active pickups or a high-output humbucker, the signal may be hotter, requiring you to reduce the input gain on the DI box to avoid clipping. Conversely, passive single-coil pickups may produce a weaker signal, necessitating a slight boost in input gain. Use the DI box's input level knob to adjust this, ensuring the signal peaks around -12 to -6 dB on your recording device's meter. This range provides ample headroom while capturing the guitar's full dynamic expression.
Practical Steps for Output Level Adjustment
Once the input level is set, focus on the output level. Most DI boxes offer a pad switch (e.g., -20 dB) to attenuate excessively hot signals, preventing distortion at the mixer or interface. Engage the pad if the output signal overloads the input stage of your recording device. For live applications, ensure the output level aligns with the mixer's input gain requirements, typically set to unity gain (0 dB) to maintain signal integrity. Use a reference track or a soundcheck to fine-tune the output level, ensuring the guitar sits well in the mix without competing frequencies.
Cautions and Troubleshooting Tips
Avoid setting the input or output levels too high, as this can introduce distortion or noise. Similarly, setting levels too low may result in a weak, unusable signal. If you notice a hum or buzz, check the ground lift switch on your DI box—this can eliminate ground loops caused by differing electrical systems. For stereo setups or dual-guitar rigs, use a DI box with multiple inputs or daisy-chain two units, ensuring each signal is independently leveled to maintain clarity and balance.
Properly setting input and output levels on your DI box transforms your electric guitar's signal from raw to refined. By understanding the interplay between your guitar's output, the DI box's gain staging, and the mixer's input requirements, you can achieve a clean, balanced sound suitable for both studio and live environments. Experiment with different settings during rehearsals or pre-production to find the sweet spot that complements your playing style and tonal preferences. With precision and attention to detail, your guitar will shine in any mix.
Electric Roaster vs. Crock Pot: Can They Be Used Interchangeably?
You may want to see also
Explore related products
Ground lift switch usage
A ground lift switch on a DI box is a critical tool for eliminating unwanted noise in your electric guitar signal chain. When you connect your guitar to a mixing console or audio interface, differing ground potentials between devices can create a ground loop, resulting in a persistent hum. Activating the ground lift switch breaks the ground connection between the DI box and the next device, effectively severing the loop and silencing the hum. This simple action can be the difference between a clean, professional sound and an amateurish, noisy recording.
Example: Imagine recording a pristine clean guitar tone, only to be met with a persistent 60Hz hum in the background. Engaging the ground lift switch on your DI box could instantly eliminate this issue, allowing your guitar's natural tone to shine through.
While the ground lift switch is a powerful tool, it's not a catch-all solution. Analysis: Lifting the ground can sometimes introduce other issues, such as a slight loss of signal strength or, in rare cases, a slight alteration in tone. This occurs because the ground connection also serves as a reference point for the audio signal. Takeaway: Use the ground lift switch judiciously. Only engage it when you're experiencing a noticeable hum, and always compare the sound with and without the switch activated to ensure you're achieving the best possible result.
Practical Tip: If you're unsure whether a ground loop is the source of your hum, try plugging your guitar into a different outlet or using a different cable. If the hum persists, then the ground lift switch is likely your best bet.
Steps to Using the Ground Lift Switch:
- Identify the Problem: Listen for a consistent, low-frequency hum in your guitar signal. This hum is often most noticeable during quiet passages or when the guitar is not being played.
- Locate the Switch: Most DI boxes have a clearly labeled "Ground Lift" switch, often located on the side or rear panel.
- Engage the Switch: Flip the switch to the "Lift" position.
- Listen and Compare: Play your guitar and listen carefully. The hum should be significantly reduced or eliminated. If the hum persists, try other troubleshooting methods.
Cautions:
- Safety First: Never touch exposed electrical components while the equipment is powered on.
- Signal Degradation: While rare, lifting the ground can slightly affect signal quality. If you notice any undesirable changes, try alternative solutions.
Using Wood Chips in Electric Smokers: Tips and Best Practices
You may want to see also
Explore related products
$36.99
Phantom power considerations
Phantom power, a 48-volt DC supply sent through XLR cables, is essential for powering condenser microphones and active DI boxes. When using a DI box for electric guitar, understanding its interaction with phantom power is crucial. Passive DI boxes, which require no external power, are unaffected by phantom power. However, active DI boxes, equipped with preamps and additional circuitry, often rely on it for operation. Before engaging phantom power, verify your DI box’s compatibility to avoid damage. Most active models are designed to handle 48 volts, but always check the manufacturer’s specifications to ensure safety.
The decision to use phantom power with an active DI box depends on your setup and desired tonal characteristics. Active DI boxes powered by phantom power often deliver cleaner, more consistent signal amplification compared to battery-powered units, which may degrade over time. For instance, the Radial J48 and Countryman Type 85 are popular active DI boxes that thrive on phantom power, offering low noise floors and enhanced headroom. If your mixing console or audio interface supports it, enabling phantom power can streamline your setup by eliminating the need for batteries or external power supplies.
One critical consideration is the signal chain and impedance matching. Phantom power does not directly affect the guitar’s signal but ensures the DI box’s preamp operates optimally. This is particularly beneficial when sending signals over long cable runs, where signal loss can occur. For example, when connecting a guitar to a distant mixing console, an active DI box powered by phantom power maintains signal integrity better than a passive alternative. However, if your guitar has active pickups or onboard preamps, the additional gain from phantom-powered DI boxes might introduce unwanted noise or distortion—test your setup to strike the right balance.
A common misconception is that phantom power can damage passive DI boxes or guitars. While passive DI boxes are immune to phantom power, guitars with passive pickups are unaffected since the power is only applied to the XLR side of the DI box. Still, exercise caution with vintage or high-impedance instruments, as some older models may have components sensitive to voltage fluctuations. If in doubt, use an isolation transformer or consult a technician to safeguard your gear.
In practice, enabling phantom power is straightforward but requires attention to detail. First, connect your guitar to the DI box’s input and the DI box’s XLR output to your audio interface or mixer. Ensure all equipment is powered off before making connections to prevent pops or damage. Once connected, power on your interface and engage phantom power from the source. Monitor the signal for clarity and adjust gain settings as needed. For live performances, always test your setup during soundcheck to confirm phantom power is functioning correctly and not causing interference. By mastering these considerations, you’ll harness phantom power effectively to elevate your electric guitar’s sound.
Can Women Safely Use Men's Electric Razors for Facial Hair?
You may want to see also
Explore related products
Balanced vs. unbalanced outputs
Electric guitar signals are inherently unbalanced, prone to noise and interference when transmitted over long distances. This is where a DI box becomes crucial, offering the option to convert unbalanced signals to balanced outputs. Balanced signals use two conductors carrying the same signal with opposite polarities, effectively canceling out external noise picked up along the cable. Unbalanced signals, on the other hand, rely on a single conductor and a ground, making them susceptible to hum and interference, especially in environments with high electromagnetic activity.
Consider a scenario where you’re connecting your guitar to a mixing console 50 feet away. Using an unbalanced output, you’re likely to encounter a noticeable buzz or hum, particularly if the cable runs near power sources or lighting rigs. By routing the signal through a DI box and switching to a balanced output, the noise is significantly reduced, ensuring a cleaner, more professional sound. This is achieved by the DI box’s active circuitry, which reconfigures the signal to maintain its integrity over longer cable lengths.
Choosing between balanced and unbalanced outputs isn’t just about noise reduction—it’s also about compatibility and signal quality. Balanced outputs are standard in professional audio setups, such as recording studios and live sound systems, where signal purity is paramount. Unbalanced outputs, while simpler and adequate for short distances, can degrade quickly in less-than-ideal conditions. For instance, if you’re recording direct-to-interface in a home studio, a balanced output from your DI box will ensure the signal remains pristine, even if your interface is several feet away.
To maximize the benefits of balanced outputs, pair your DI box with XLR cables, which are designed for balanced signals. Avoid using TS (Tip-Sleeve) cables, typically used for unbalanced signals, as they won’t take full advantage of the noise-canceling properties. Additionally, ensure your DI box is powered appropriately—passive DI boxes may not provide sufficient signal strength for long cable runs, while active DI boxes require phantom power or a battery to function optimally.
In summary, understanding the difference between balanced and unbalanced outputs is key to harnessing the full potential of a DI box for electric guitar. Balanced outputs offer superior noise rejection and signal clarity, making them ideal for professional applications, while unbalanced outputs suffice for shorter, less demanding setups. By selecting the right output type and using compatible cables, you can ensure your guitar’s tone remains intact, regardless of the environment.
Using Money Orders to Pay Your Electric Bill: What You Need to Know
You may want to see also
Frequently asked questions
A DI (Direct Injection) box is a device that converts the high-impedance, unbalanced signal from an electric guitar into a low-impedance, balanced signal suitable for mixing consoles, audio interfaces, or recording equipment. It helps reduce noise, improves signal quality, and allows for longer cable runs without signal degradation.
Plug your guitar into the input of the DI box using a standard 1/4" instrument cable. Then, connect the output of the DI box to your mixer, audio interface, or recording device using an XLR cable. Some DI boxes also have a "Thru" output, which lets you send the signal to an amplifier simultaneously.
While a DI box primarily serves to convert the signal, some models include features like pads, ground lifts, or even built-in preamps that can subtly affect tone. However, for significant tonal changes, you’re better off using pedals, amps, or software plugins. A DI box is more about signal integrity than tone shaping.
