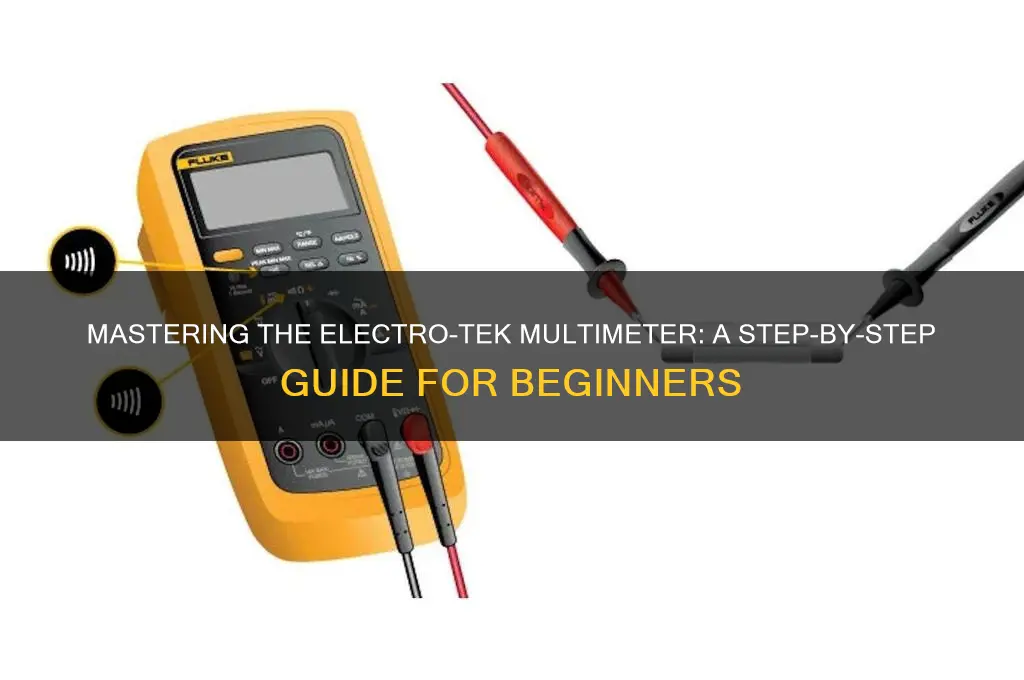

Using an Electro-Tek multimeter is a straightforward process that allows you to measure voltage, current, and resistance in electrical circuits. To begin, ensure the multimeter is set to the correct function—voltage (V), current (A), or resistance (Ω)—by turning the dial to the appropriate symbol. Next, connect the test leads: the black lead to the COM (common) port and the red lead to the port corresponding to the selected function. For voltage measurements, connect the leads in parallel with the circuit; for current, connect them in series; and for resistance, ensure the circuit is powered off before connecting the leads directly to the component. Always start with the highest range and adjust downward to avoid damaging the device. Finally, read the value displayed on the screen, ensuring it aligns with the selected unit of measurement. Following these steps ensures accurate and safe use of your Electro-Tek multimeter.
Explore related products
What You'll Learn
- Safety Precautions: Understand risks, wear PPE, avoid live circuits, inspect device, and follow guidelines
- Basic Setup: Select range, connect probes, power on, and calibrate for accurate readings
- Measuring Voltage: Choose AC/DC mode, connect parallel, read display, and ensure proper polarity
- Testing Resistance: Set to ohms, connect in series, interpret values, and check continuity
- Current Measurement: Use amperage mode, connect in series, observe limits, and avoid overloading
Safety Precautions: Understand risks, wear PPE, avoid live circuits, inspect device, and follow guidelines
Before handling an Electro-Tek multimeter, recognize the inherent risks of electrical measurements. Exposure to live circuits can lead to shocks, burns, or equipment damage. Understanding these dangers is the first step in mitigating them. For instance, a multimeter set to measure resistance while connected to a live circuit can cause a short, potentially damaging both the device and the user. Always assume wires and components are live unless proven otherwise through proper testing procedures.
Personal protective equipment (PPE) is non-negotiable when using a multimeter. Wear insulated gloves rated for electrical work, safety goggles to protect against sparks or debris, and non-conductive footwear. For high-voltage applications (above 600V), consider a full-body arc flash suit. These precautions may seem excessive for low-voltage tasks, but they create a habit of safety that scales to more hazardous environments. Remember, PPE is your last line of defense—not a substitute for careful practices.
Live circuits are the most common source of multimeter-related accidents. To avoid them, always de-energize the circuit before connecting the multimeter, unless the task explicitly requires live testing. When live testing is unavoidable, use one hand to minimize the risk of creating a path for current through your body. Keep the multimeter in its highest voltage range before connecting to the circuit, then adjust downward as needed to prevent overloading the device. Never touch probe tips together while connected to a live source, as this can cause arcing or damage.
A pre-use inspection of your Electro-Tek multimeter is critical to ensuring its reliability. Check for cracked casing, frayed probe wires, or loose connectors, as these can compromise insulation and accuracy. Verify the battery level and test the device on a known voltage source to confirm functionality. Look for certification labels (e.g., CAT III/IV ratings) to ensure the multimeter is suitable for the voltage level you’re working with. A faulty or mismatched device turns a routine measurement into a hazard.
Adhering to manufacturer guidelines and industry standards is the cornerstone of safe multimeter use. Refer to the Electro-Tek user manual for model-specific instructions, such as maximum input limits and probe compatibility. Follow the "Category" (CAT) ratings to match the multimeter to the application—for example, CAT III is suitable for distribution panels, while CAT IV is required for outdoor sources like utility meters. Ignoring these guidelines voids warranties and increases the risk of injury or equipment failure. Safety is not a suggestion; it’s a requirement.
