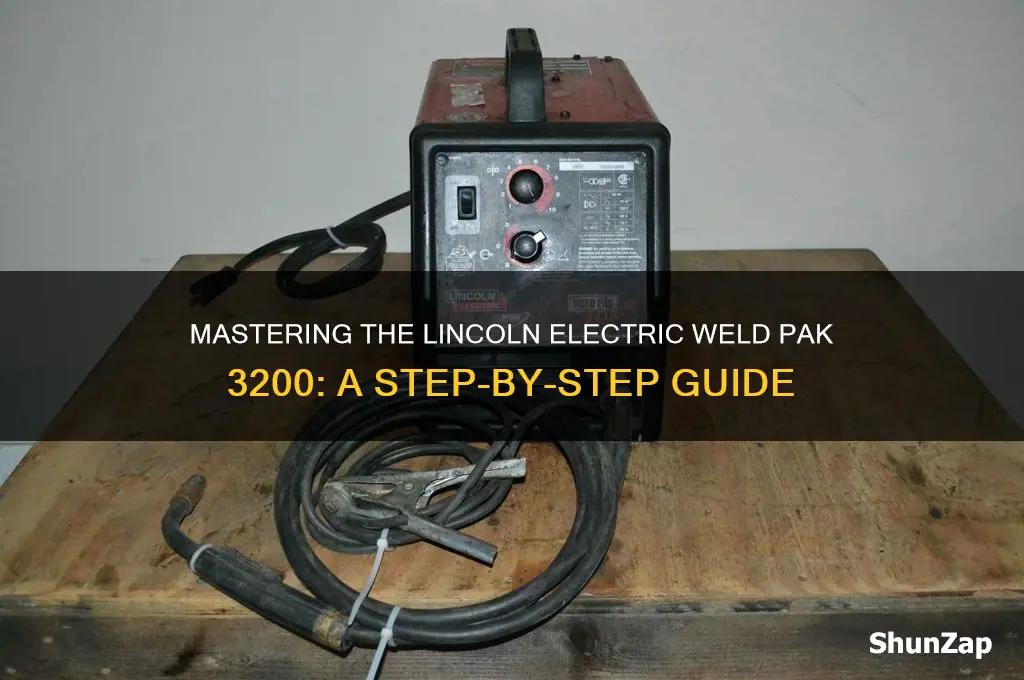

The Lincoln Electric Weld Pak 3200 is a versatile and powerful welding machine designed for both beginners and experienced welders, offering a range of features to handle various welding tasks efficiently. To use this machine effectively, start by ensuring it is properly set up in a well-ventilated area, with all safety gear, such as gloves, helmets, and protective clothing, in place. Connect the welder to a suitable power source and attach the appropriate welding cable and ground clamp to your workpiece. Adjust the amperage settings based on the thickness of the material and the type of welding rod being used, referring to the machine’s user manual for specific guidelines. Once set, strike an arc by lightly tapping the rod on the workpiece and maintaining a steady hand to create a clean, consistent weld bead. Practice proper technique, such as maintaining the correct angle and speed, to achieve optimal results with the Lincoln Electric Weld Pak 3200.
Explore related products
What You'll Learn
- Setup and Safety: Unbox, assemble, and inspect the welder. Ensure proper ventilation and wear protective gear
- Welding Techniques: Master MIG, flux-cored, and stick welding methods with the Weld Pak 3200
- Wire Feeding Adjustment: Set wire feed speed and voltage for optimal weld quality and material type
- Troubleshooting Tips: Identify and fix common issues like wire jams, poor welds, or machine errors
- Maintenance and Care: Clean the machine, replace consumables, and store properly to extend its lifespan
Setup and Safety: Unbox, assemble, and inspect the welder. Ensure proper ventilation and wear protective gear
Unboxing the Lincoln Electric Weld Pak 3200 is the first step toward mastering this versatile machine, but it’s not just about opening a box. Carefully remove the welder, ensuring no components are damaged during extraction. Inside, you’ll find the main unit, a welding gun, ground clamp, input power cord, and user manual. Lay out each piece methodically to verify nothing is missing or compromised. This initial inspection sets the stage for a seamless assembly process, preventing delays caused by overlooked defects or missing parts.
Assembly is straightforward but demands precision. Attach the welding gun and ground clamp to their respective ports, ensuring tight connections to avoid electrical hazards. Secure the input power cord to the welder’s terminal, following the manual’s polarity diagrams to prevent damage. Double-check all fittings—loose connections can lead to arcing or inconsistent performance. Think of this step as building a foundation: a sturdy setup ensures reliability and safety throughout your welding projects.
Inspection is non-negotiable. Examine the welder for cracks, dents, or exposed wiring. Test the controls—output knobs, switches, and indicators—to confirm they function as intended. A faulty component can turn a routine task into a dangerous situation. If anything seems amiss, address it before proceeding. This proactive approach not only safeguards your equipment but also protects you from potential accidents.
Ventilation is a silent guardian in welding safety. Welding fumes contain harmful particles that can cause respiratory issues if inhaled. Set up your workspace in an open area or use a fume extractor if indoors. Ensure airflow is directed away from your breathing zone. Poor ventilation isn’t just uncomfortable—it’s a health hazard. Treat it as critically as any other safety measure.
Protective gear is your last line of defense. Wear a welding helmet with auto-darkening lenses to shield your eyes from UV radiation and sparks. Flame-resistant clothing, leather gloves, and steel-toed boots are essential to prevent burns and injuries. Skip any piece of gear, and you risk severe harm. Think of it as suiting up for battle—every layer counts. By prioritizing setup and safety, you transform the Weld Pak 3200 from a tool into a trusted ally in your craft.
