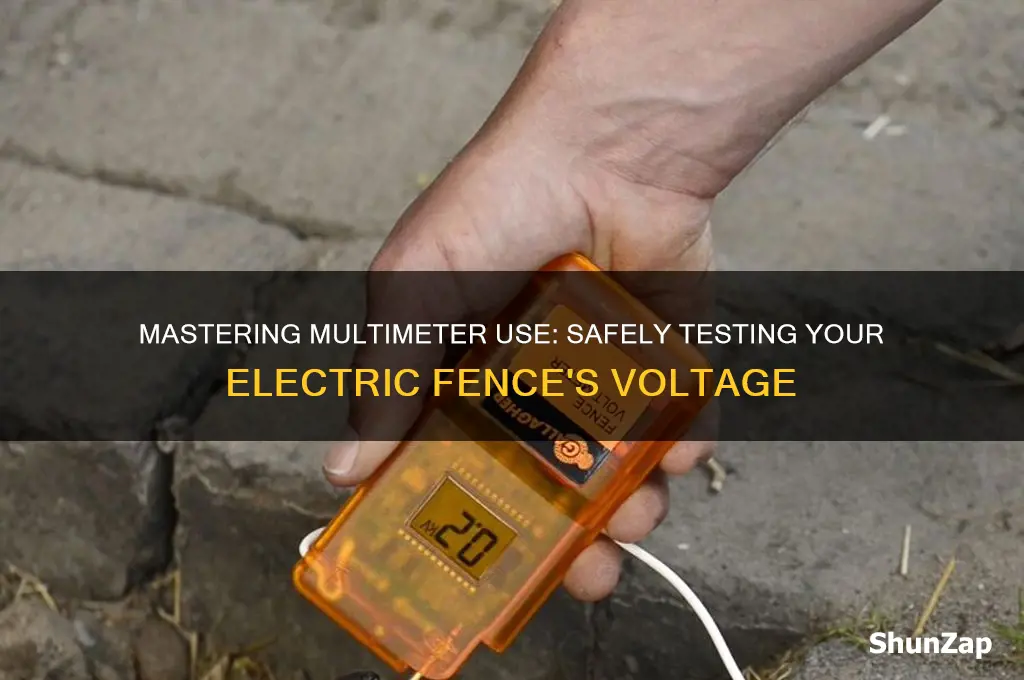

Mastering Multimeter Use: Safely Testing Your Electric Fence's Voltage

how to use a multimeter to check an electric fence

Using a multimeter to check an electric fence is a straightforward yet essential skill for ensuring the fence is functioning correctly and safely. A multimeter allows you to measure voltage, continuity, and resistance, which are critical for diagnosing issues such as breaks in the wire, faulty insulators, or problems with the energizer. To begin, ensure the multimeter is set to the appropriate voltage range for electric fences, typically AC voltage. Start by testing the output voltage at the energizer to confirm it’s working properly. Then, check the voltage along the fence line at various points to identify any drops or inconsistencies. Additionally, use the continuity setting to test for breaks in the wire or poor connections. Always prioritize safety by turning off the energizer before handling the fence and wearing insulated gloves to avoid shocks. This methodical approach ensures the electric fence remains effective and reliable for its intended purpose.

Characteristics Values
Purpose To measure voltage, continuity, or resistance of an electric fence system.
Required Tools Multimeter, insulated gloves, non-conductive tools.
Safety Precautions Wear insulated gloves, ensure fence is de-energized if possible, avoid contact with bare wires.
Multimeter Setting Set to AC voltage (V~), DC voltage (V-), or resistance (Ω) mode depending on the fence type.
Voltage Range Select a range higher than the expected fence voltage (e.g., 200V or 500V).
Testing Voltage Touch multimeter probes to fence wire and ground to measure voltage output.
Expected Voltage Range Typically 2,000–10,000 volts for electric fences.
Continuity Test Set multimeter to continuity mode (beep sound) to check for breaks in the fence wire.
Resistance Test Measure resistance to identify faults like shorts or high resistance points.
Grounding Check Test the grounding system by measuring resistance between ground rods and fence.
Frequency of Testing Test monthly or after repairs, storms, or suspected faults.
Common Issues Detected Low voltage, broken wires, poor grounding, vegetation contact, or insulator faults.
Safety Shutdown Disconnect power source before testing if possible.
Probe Placement Place one probe on the fence wire and the other on the ground or return wire.
Interpretation of Results Compare readings to expected values; low voltage indicates a fault.
Documentation Record readings for future reference and troubleshooting.
Professional Assistance Consult an electrician if readings are inconsistent or faults persist.

shunzap

Safety Precautions: Wear insulated gloves, ensure fence is off, and avoid wet conditions before testing

Before testing an electric fence with a multimeter, prioritize safety to prevent shocks or accidents. Always wear insulated gloves rated for electrical work, such as Class 00 rubber gloves with a minimum dielectric strength of 500 volts. These gloves act as a barrier between your skin and the fence’s charge, reducing the risk of injury. Ensure they fit snugly and are free of tears or punctures, as even small defects can compromise protection.

Verify the fence is completely powered off before proceeding. Locate the energizer unit and disconnect it from the power source, whether it’s a battery, solar panel, or mains supply. Wait at least 10 minutes to allow any residual charge in the fence to dissipate. Use a non-contact voltage tester to confirm the fence is de-energized before touching it. Skipping this step could expose you to a dangerous shock, even if the fence appears inactive.

Wet conditions amplify the risk of electrical accidents, as water conducts electricity and increases the likelihood of grounding. Avoid testing the fence during rain, in standing water, or when the ground is saturated. If the fence or surrounding area is wet, postpone testing until conditions are dry. Additionally, ensure your footwear has rubber soles to minimize conductivity and wear dry, non-conductive clothing to further reduce risk.

Combining these precautions—insulated gloves, a de-energized fence, and dry conditions—creates a safer environment for testing. While a multimeter is a valuable tool for diagnosing fence issues, its effectiveness depends on your ability to use it without endangering yourself. Treat each safety measure as non-negotiable, as shortcuts in this context can lead to serious injury or worse. Always err on the side of caution when working with electric fences.

shunzap

Setting Multimeter: Set to AC voltage mode, appropriate range for expected fence voltage

Electric fences operate on alternating current (AC), typically ranging from 2,000 to 10,000 volts. Before testing, your multimeter must be set to AC voltage mode to accurately measure this type of electrical output. Failure to do so could result in incorrect readings or damage to the device. Most multimeters have a symbol resembling a tilde (~) or the letters "ACV" to indicate this setting. Selecting the appropriate range is equally critical. If the fence voltage is unknown, start with the highest range (e.g., 2000V or higher) to prevent overloading the multimeter. Gradually decrease the range until the reading stabilizes within the device’s limits.

Consider the fence’s specifications for a more precise approach. For instance, a standard agricultural electric fence often operates around 8,000 volts. Setting the multimeter to a range of 10,000V ensures you capture the full voltage without risking damage. Conversely, if the fence is a low-power pet containment system, a range of 2,000V to 6,000V may suffice. Always consult the fence’s documentation or manufacturer guidelines for expected voltage levels. This step not only ensures accuracy but also protects your equipment from potential harm.

A common mistake is underestimating the fence’s voltage, leading to multimeter damage or inaccurate readings. For example, setting the range to 600V on a fence emitting 5,000V will overload the device, possibly causing permanent malfunction. Conversely, using an excessively high range (e.g., 20,000V for a 3,000V fence) reduces resolution, making it harder to detect minor fluctuations. Striking the right balance requires understanding both the multimeter’s capabilities and the fence’s expected output. If in doubt, err on the side of a higher range and adjust downward as needed.

Practical tip: Test the multimeter on a known voltage source (e.g., a household outlet) before approaching the fence to ensure it’s functioning correctly. Once set, touch the multimeter probes to the fence wire and ground simultaneously. A stable reading indicates proper fence operation, while erratic or zero readings suggest issues like broken wires, faulty energizers, or poor grounding. Remember, safety is paramount—wear insulated gloves, ensure the fence is deactivated if possible, and avoid touching metal parts while testing.

In summary, setting your multimeter to AC voltage mode and selecting the appropriate range is foundational for accurate electric fence testing. This step bridges the gap between theoretical knowledge and practical application, ensuring both safety and reliability. By aligning the multimeter’s settings with the fence’s voltage characteristics, you not only safeguard your equipment but also gain actionable insights into the fence’s performance. Master this technique, and you’ll diagnose issues with confidence, keeping your electric fence operational and effective.

shunzap

Connecting Probes: Touch red probe to fence wire, black to ground or neutral

The correct placement of multimeter probes is critical when testing an electric fence, as it directly influences the accuracy of your voltage readings. Begin by identifying the fence wire, typically the live conductor carrying the electric charge. Touch the red probe (positive) to this wire, ensuring a firm connection to capture the full voltage output. Simultaneously, ground the black probe (negative) by connecting it to a reliable earth point, such as a metal ground rod or a neutral reference. This setup mimics the path of current flow, allowing the multimeter to measure the potential difference between the fence and ground accurately.

Consider the analogy of a water hose to understand this process better. The red probe acts like the nozzle, measuring the pressure (voltage) at the source, while the black probe is the drain, providing a return path for the flow. Without proper grounding, the multimeter cannot complete the circuit, resulting in an inaccurate or nonexistent reading. For instance, if the black probe is not securely grounded, the displayed voltage may appear lower than the actual output, leading to false assumptions about the fence’s functionality.

Practical tips can enhance your probe connection technique. First, ensure both probes are clean and free of corrosion, as debris can distort readings. Use alligator clips or probe holders for hands-free testing, especially when dealing with high-voltage fences. If the fence wire is coated or insulated, scrape a small section clean to ensure direct metal-to-metal contact. For fences in damp or muddy conditions, verify the ground probe’s connection by testing multiple earth points, as poor soil conductivity can skew results.

A common mistake is reversing the probes, which, while not damaging to the multimeter in this case, can lead to misinterpretation of the reading. Unlike some electrical tests where polarity matters, electric fence voltage is typically AC, so the red and black probes serve distinct roles in circuit completion rather than indicating direction. However, consistency in probe placement builds muscle memory, reducing errors in future tests. Think of it as learning to tie a knot—the right technique becomes second nature with repetition.

Finally, safety should never be compromised. Always wear insulated gloves and stand on a dry, non-conductive surface when connecting probes. If the fence operates at voltages above 1000 volts, consider using specialized high-voltage probes designed to handle such levels. After testing, disconnect the probes in reverse order (black first, then red) to minimize the risk of arcing or accidental shocks. By mastering this probe connection technique, you ensure reliable diagnostics of your electric fence’s performance, safeguarding both livestock and property effectively.

shunzap

Reading Voltage: Observe display for voltage level, compare to expected range (2000-10000V)

Electric fences are designed to operate within a specific voltage range, typically between 2000 and 10000 volts. This range ensures the fence delivers a memorable shock without posing a lethal threat to animals or humans. When using a multimeter to check an electric fence, the voltage reading is your primary diagnostic tool. Set your multimeter to the appropriate voltage range—usually the highest AC voltage setting (often labeled as "V~" with a wavy line) to accommodate the fence's output. Touch the multimeter probes to the fence wire and ground, ensuring a solid connection. The display will immediately show the voltage level, allowing you to assess the fence’s performance.

A voltage reading within the 2000–10000V range indicates the fence is functioning correctly. However, deviations from this range signal potential issues. A reading below 2000V suggests insufficient power, possibly due to faulty energizers, poor grounding, or vegetation contacting the fence. Conversely, a reading above 10000V could indicate a malfunction in the energizer or a risk of electrical hazards. In either case, further investigation is necessary to identify and rectify the problem. Always prioritize safety by wearing insulated gloves and ensuring the fence is de-energized before making repairs.

Comparing the multimeter reading to the expected range provides actionable insights. For instance, if the voltage is consistently low, check the energizer’s output and the condition of the grounding rod. A high reading might require inspecting the energizer for overvoltage protection failures. Practical tip: Test the fence at different times of day, as voltage can fluctuate due to environmental factors like humidity or vegetation growth. Regular monitoring ensures the fence remains effective and safe.

Understanding voltage readings is not just about numbers—it’s about interpreting what those numbers mean for your fence’s functionality. For example, a voltage drop during rainy weather could indicate water infiltration in the energizer or poor insulation. Conversely, a sudden spike might suggest a short circuit in the fence line. By systematically comparing readings to the expected range, you can diagnose issues before they compromise the fence’s effectiveness. This proactive approach saves time and ensures the fence operates reliably year-round.

In summary, reading voltage with a multimeter is a straightforward yet critical step in maintaining an electric fence. The display provides immediate feedback, allowing you to compare the measured voltage against the operational range of 2000–10000V. Deviations from this range serve as red flags, guiding you to potential problems like faulty equipment or environmental interference. Armed with this knowledge, you can take targeted corrective actions, ensuring the fence remains a dependable barrier. Always approach this task with caution, prioritizing safety while leveraging the multimeter’s precision to keep your fence in optimal condition.

shunzap

Troubleshooting: Check for low voltage, indicating faults like breaks, poor grounding, or insulator issues

Low voltage readings on your electric fence are a red flag, signaling potential issues that compromise its effectiveness. A healthy fence should maintain a consistent voltage, typically between 2000 and 10,000 volts, depending on the system. Anything significantly lower warrants investigation.

Identifying the Culprits: A Systematic Approach

Begin by isolating the problem area. Use your multimeter to test voltage at various points along the fence line, starting at the energizer and moving outward. A sharp drop in voltage between two points pinpoints the likely location of the fault.

Common Offenders:

  • Breaks in the Wire: Physical damage, animal interference, or vegetation growth can sever the conductive wire, interrupting the flow of electricity. Inspect the fence line for visible breaks, kinks, or areas where the wire is touching the ground.
  • Poor Grounding: A weak ground connection acts like a bottleneck, restricting the flow of current. Ensure your ground rod is securely embedded in moist soil, free from rust or corrosion, and connected to the energizer with a low-resistance wire.
  • Insulator Issues: Insulators prevent the electric charge from leaking into fence posts or other conductive materials. Cracked, damaged, or dirty insulators can create pathways for current to escape, reducing overall voltage. Inspect insulators for wear and tear, ensuring they are clean and properly installed.

Troubleshooting Tips:

  • Isolate Sections: Temporarily disconnect sections of the fence to narrow down the problem area.
  • Check Connections: Tighten all wire connections and ensure they are free from corrosion.
  • Test Ground Resistance: Use your multimeter to measure the resistance between the ground rod and a known good ground point. High resistance indicates poor grounding.

Addressing low voltage promptly is crucial for maintaining the effectiveness of your electric fence. By systematically identifying and rectifying faults like breaks, poor grounding, or insulator issues, you ensure your fence remains a reliable deterrent, keeping your livestock safe and secure.

Frequently asked questions

Set your multimeter to measure AC voltage (V~), typically in the 200V or higher range, as electric fences usually operate at 2,000 to 10,000 volts.

Turn off the fence energizer, then use the multimeter probes to touch the fence wire and ground simultaneously. Ensure the probes are securely connected to get an accurate reading.

A typical electric fence should read between 2,000 and 10,000 volts. Lower readings may indicate a fault, such as a break in the wire or poor grounding.

Yes, but exercise extreme caution. Use insulated gloves and ensure the multimeter is rated for high voltage. However, turning off the energizer is safer and recommended.

Measure the resistance between the ground rod and a distant ground point using the multimeter’s ohms (Ω) setting. A reading below 10 ohms indicates a good ground system.
