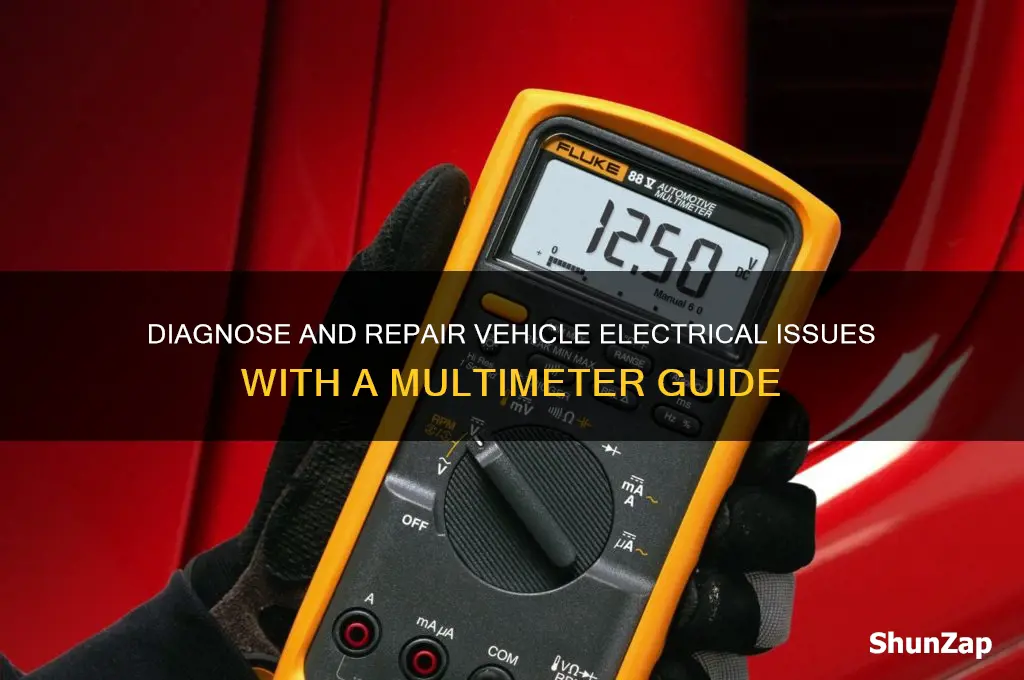

Using a multimeter to diagnose and fix vehicle electrical problems is an essential skill for any car enthusiast or DIY mechanic. A multimeter allows you to measure voltage, current, and resistance, enabling you to pinpoint issues such as dead batteries, faulty alternators, or short circuits in your vehicle’s wiring. By understanding how to properly connect the multimeter to various components like fuses, relays, and sensors, you can systematically test the electrical system to identify where the problem lies. This not only saves time and money but also empowers you to tackle common electrical issues with confidence, ensuring your vehicle runs smoothly and reliably.
Explore related products
What You'll Learn
- Testing Battery Voltage: Measure battery voltage to ensure it’s within the correct range for proper vehicle operation
- Checking Fuses: Use multimeter to identify blown fuses by testing continuity in the fuse circuit
- Verifying Wiring Continuity: Test wires for breaks or shorts by checking continuity from end to end
- Diagnosing Alternator Issues: Measure alternator output to ensure it’s charging the battery correctly under load
- Testing Relays and Switches: Check relay and switch functionality by measuring resistance or voltage drop in operation
Testing Battery Voltage: Measure battery voltage to ensure it’s within the correct range for proper vehicle operation
A dead battery is a common culprit behind vehicle electrical issues, but a weak or failing battery can be just as problematic. Before assuming the worst, testing battery voltage with a multimeter is a quick and easy way to diagnose the problem. This simple test can save you time and money by pinpointing whether the battery is indeed the source of your vehicle's electrical woes.
Steps to Test Battery Voltage:
- Prepare Your Multimeter: Set your multimeter to the DC voltage setting, typically denoted by a "V" with a straight line above it. Ensure the range is set to at least 20 volts to accommodate the expected reading.
- Locate the Battery Terminals: Identify the positive (+) and negative (-) terminals on your car battery. These are usually marked clearly.
- Connect the Multimeter: Touch the red (positive) probe of the multimeter to the positive terminal and the black (negative) probe to the negative terminal.
- Read the Voltage: Observe the reading on the multimeter display. A fully charged car battery should read between 12.6 and 12.8 volts when the engine is off. If the voltage is below 12.4 volts, the battery is discharged and likely needs charging or replacement.
A reading above 12.8 volts could indicate overcharging, which can damage the battery.
Cautions:
- Safety First: Always exercise caution when working with car batteries. Avoid contact with battery acid, and ensure the engine is off and the ignition is in the "off" position before testing.
- Clean Terminals: Dirty or corroded battery terminals can affect readings. Clean them with a wire brush or battery terminal cleaner before testing.
Testing battery voltage is a fundamental step in diagnosing vehicle electrical problems. By following these simple steps and understanding the expected voltage range, you can quickly determine if your battery is the source of the issue. Remember, a multimeter is a valuable tool for any car owner, allowing you to troubleshoot and potentially resolve electrical problems before they escalate.
Do Electrical Engineers Use IDEs? Exploring Tools for Circuit Design
You may want to see also
Explore related products
Checking Fuses: Use multimeter to identify blown fuses by testing continuity in the fuse circuit
Fuses are the unsung heroes of your vehicle's electrical system, silently safeguarding circuits from overcurrent damage. When a fuse blows, it interrupts the flow of electricity, rendering the associated component—be it headlights, radio, or fuel pump—inoperative. Identifying a blown fuse is the first step in restoring functionality, and a multimeter is your most reliable tool for this task. By testing continuity in the fuse circuit, you can pinpoint the culprit without relying on visual inspection alone, which often fails to detect subtle cracks or breaks in the fuse element.
To begin, locate the fuse box, typically found under the dashboard or in the engine compartment. Consult your vehicle’s manual to identify the fuse associated with the malfunctioning component. Set your multimeter to the continuity or resistance mode, indicated by a diode symbol or the word "ohms." Remove the fuse in question using a fuse puller or pliers, ensuring not to damage the fuse or its housing. Touch the multimeter probes to the fuse terminals—one probe on each end. A functional fuse will show low resistance (typically near 0 ohms) or emit a continuous beep, indicating a complete circuit. If the multimeter displays "OL" (open loop) or high resistance, the fuse is blown and needs replacement.
While testing, consider the fuse’s rating and the circuit’s current draw. A fuse rated for 10 amps should never be replaced with one rated higher, as this compromises safety. Conversely, using a lower-rated fuse may cause it to blow prematurely. Always replace fuses with the correct type and rating, typically found stamped on the fuse itself or in the vehicle manual. For blade-type fuses, ensure the new fuse fits snugly into the slot, as loose connections can lead to intermittent issues.
A common mistake is assuming a fuse is blown based solely on visual inspection. Fuses can appear intact while internally broken, making continuity testing essential. Additionally, if multiple fuses are blown, investigate the root cause—often a short circuit or overloaded system—rather than simply replacing them. For instance, a shorted wire in the headlight circuit could repeatedly blow fuses until the wiring issue is resolved.
In conclusion, using a multimeter to test fuse continuity is a precise and efficient method for diagnosing electrical problems in vehicles. It eliminates guesswork, ensures safety, and saves time compared to trial-and-error methods. By mastering this technique, you’ll not only fix immediate issues but also develop a deeper understanding of your vehicle’s electrical system, empowering you to tackle more complex repairs with confidence.
