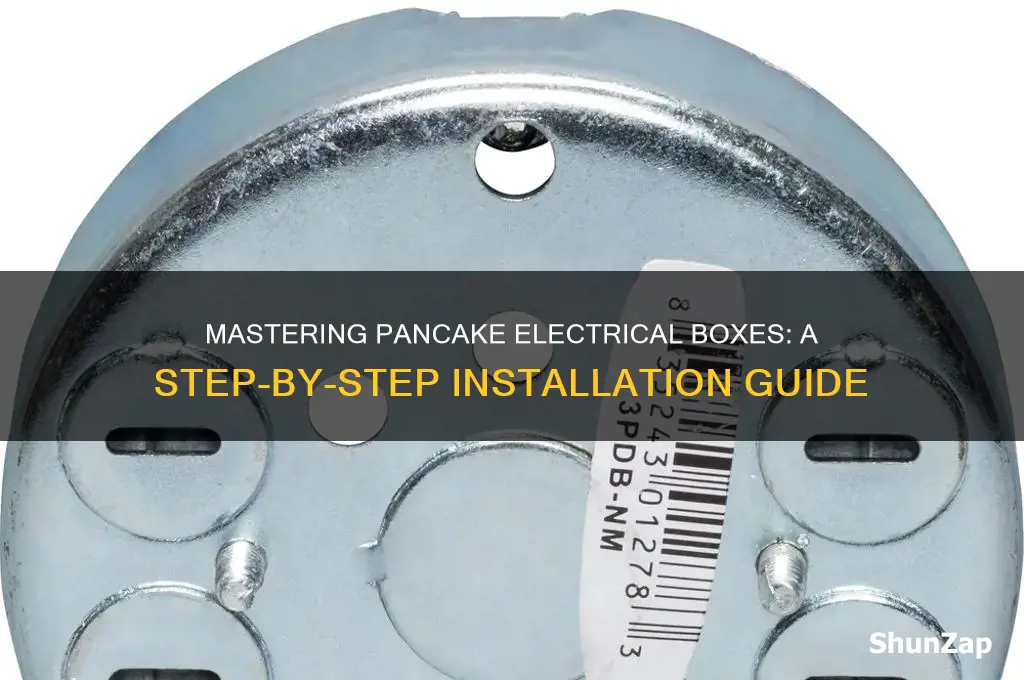

A pancake electrical box, also known as a low-profile or remodel electrical box, is a compact solution designed for installing switches and outlets in walls with limited space. To use a pancake electrical box, first ensure the power is turned off at the circuit breaker to avoid electrical hazards. Carefully cut a hole in the wall using the provided template or measurements, ensuring it aligns with the box's dimensions. Insert the box into the hole, securing it with the built-in clamps or screws provided, and ensure it sits flush against the wall surface. Connect the wires from the electrical circuit to the switch or outlet, following proper wiring techniques, and then mount the device into the box. Finally, attach the cover plate and restore power to test the installation, ensuring everything functions correctly and safely.
Explore related products
What You'll Learn
Understanding the Pancake Box Design
The pancake electrical box, a slim yet robust solution for modern electrical installations, derives its name from its flat, compact design, which allows it to sit nearly flush with the wall surface. This design innovation addresses a common pain point in traditional electrical boxes: the bulky protrusion that complicates drywall finishing and limits space in tight areas. By understanding the pancake box’s design, users can maximize its utility while avoiding common installation pitfalls. Its low-profile structure is achieved through a shallow depth, typically around 1/2 inch, compared to the 1 1/4 inches of standard boxes, making it ideal for retrofits and new constructions alike.
Analyzing the pancake box’s design reveals its strategic features. The box’s flat back and foldable metal tabs secure it firmly against the wall studs, ensuring stability without the need for excessive force. Its wire entry points are strategically placed to accommodate both Romex and conduit wiring, offering versatility for various electrical setups. However, the compact design demands precision during installation. Overloading the box with too many wires (more than 6 #12 THHN wires, for instance) can violate NEC Article 314.16(B) and compromise safety. Proper wire management, such as using cable clamps and avoiding sharp bends, is critical to maintaining functionality.
For practical application, consider these steps when using a pancake box. First, ensure the box is aligned with the wall studs and secured using the provided tabs, avoiding over-tightening to prevent warping. Second, strip wires to the appropriate length (typically 1/2 inch for residential connections) and insert them through the knockouts, ensuring no insulation damage. Third, connect devices like switches or outlets, leaving enough slack for adjustments. A pro tip: use a non-metallic pancake box for outdoor installations to resist corrosion, and always verify local code compliance, as some jurisdictions restrict their use in specific scenarios.
Comparatively, the pancake box’s design outshines traditional boxes in space-saving and aesthetic appeal but requires a more meticulous approach. Its shallow depth limits the number of wires and devices it can accommodate, making it unsuitable for complex circuits. For instance, while a standard box can handle up to 8 switches, a pancake box is best limited to 2-3 to avoid overcrowding. Additionally, its low profile can complicate access during troubleshooting, so labeling wires and maintaining a clear diagram is essential. Despite these considerations, the pancake box remains a game-changer for minimalist designs and tight spaces.
In conclusion, mastering the pancake box design hinges on recognizing its strengths and limitations. Its sleek profile and versatile wiring options make it a go-to choice for modern installations, but its compact nature demands careful planning and adherence to safety standards. By prioritizing precision, wire management, and code compliance, users can harness the full potential of this innovative electrical solution. Whether for a sleek kitchen backsplash or a cramped utility room, the pancake box proves that good design is as much about function as it is about form.
Solar Power Meets Cozy Nights: Using Electric Blankets with Solar Energy
You may want to see also
Explore related products
Wiring Connections and Terminals
Pancake electrical boxes, known for their slim profile, demand precise wiring connections and terminal management to ensure safety and functionality. Unlike deeper boxes, their compact design leaves little room for error, making proper wire stripping and terminal attachment critical. Strip wires to 5/16 inch (approximately 8 mm) to ensure they fit securely under screw terminals without extending beyond the box’s edges. Overstripping can lead to exposed conductors, while understripping risks loose connections that may overheat. Always use wire strippers with calibrated gauges to achieve consistency.
Terminals in pancake boxes often feature side-wire or back-wire options, each with distinct advantages. Side-wire terminals, where wires wrap around screws, offer better visibility and are ideal for heavier gauge wires (12 AWG or thicker). Back-wire terminals, where wires push into holes, save space but are prone to loosening over time, especially with thinner 14 AWG wires. For mixed-gauge installations, prioritize side-wire connections for larger wires and reserve back-wire for smaller ones. Always tighten screws firmly but avoid over-torquing, which can strip threads or damage wires.
A common mistake in pancake box wiring is neglecting wire bending and routing. After stripping, bend wires at a 90-degree angle to align with terminals, reducing strain and ensuring a compact fit. Use needle-nose pliers for precision, especially in tight spaces. Route wires along the box’s perimeter, securing them with cable clamps or electrical tape to prevent interference with the cover plate. Proper routing not only enhances aesthetics but also minimizes the risk of shorts caused by wire movement.
For multi-wire circuits, such as those in kitchens or bathrooms, derating terminals is essential. Pancake boxes often accommodate fewer wires than standard boxes, so avoid overloading terminals. If a terminal is rated for two wires, use pigtails (short wires connected to a wire nut) to combine conductors before attaching to the terminal. Label pigtails with circuit identifiers to simplify future troubleshooting. This method ensures compliance with NEC Article 300.14 and prevents overheating due to overcrowding.
Finally, test connections before installing the cover plate. Use a non-contact voltage tester to confirm power is off, then tug gently on each wire to ensure it’s secure. Loose connections are a leading cause of electrical failures in pancake boxes due to their limited space. Once verified, attach the cover plate with screws tightened just enough to hold it firmly—overtightening can crack the box or damage internal components. This meticulous approach ensures longevity and safety in pancake box installations.
Air Conditioning Power Source: Gas or Electricity Explained
You may want to see also
Explore related products
Mounting and Installation Steps
Mounting a pancake electrical box begins with selecting the right location. Unlike traditional boxes, pancake boxes are designed to be shallow, allowing them to fit in tight spaces where standard boxes cannot. Identify a spot on the wall where the box will align with the electrical cable and ensure it’s within reach of the device it will serve. Use a stud finder to locate wall studs, as securing the box to a stud provides stability. If a stud isn’t available, anchor the box to the drywall using appropriate toggle bolts or anchors rated for electrical installations. Always verify the location complies with local electrical codes, typically requiring boxes to be no more than 6 feet apart along a wall.
Next, mark the mounting holes and cut the opening for the box. Hold the pancake box against the wall at the desired height and trace its outline. Use a drywall saw or utility knife to carefully cut along the traced lines, ensuring the opening is clean and free of debris. For wood or plaster walls, a reciprocating saw may be necessary. Once the hole is cut, align the box with the opening and mark the screw holes. Drill pilot holes if mounting into wood or use a masonry bit for concrete or brick. Secure the box firmly with screws, ensuring it sits flush against the wall surface. Loose installations can lead to device instability or code violations.
Wiring the pancake box requires precision due to its compact design. Strip the electrical cable to expose the wires, typically leaving ½ inch of bare wire for connections. Insert the cable through the knockout hole in the back of the box, ensuring the sheath is clamped securely to prevent strain on the wires. Connect the wires to the device (switch, outlet, etc.) following the manufacturer’s instructions—typically black to brass, white to silver, and green or bare copper to the ground screw. Use wire nuts to secure connections and tuck the wires neatly into the box to avoid overcrowding. Overstuffing can damage wires or prevent the device cover from fitting properly.
Finally, attach the device and test the installation. Secure the switch or outlet to the pancake box using the provided screws, ensuring it’s level and firmly attached. Install the cover plate, which not only enhances aesthetics but also protects against accidental contact with live wires. Turn the power back on at the circuit breaker and test the device to confirm functionality. Use a non-contact voltage tester to verify all components are live as expected. If the device doesn’t work, turn off the power and recheck connections for errors, such as loose wires or incorrect polarity. A properly mounted and wired pancake box ensures safety, compliance, and long-term reliability.
Electric Vehicles and Tires: Are Specialized Options Necessary for EVs?
You may want to see also
Explore related products
Safety Precautions and Grounding
Before handling a pancake electrical box, ensure the power is completely shut off at the circuit breaker. This fundamental step prevents accidental shocks or short circuits during installation or maintenance. Always use a non-contact voltage tester to confirm that no live current is present in the wires connected to the box. Skipping this precaution can lead to severe injury or damage to the electrical system.
Grounding is a critical safety feature in pancake electrical boxes, as it provides a safe path for stray electrical currents to dissipate into the earth. To properly ground the box, connect the grounding wire (typically green or bare copper) to the grounding terminal inside the box. Ensure the connection is secure and free of corrosion, as a poor ground can render safety mechanisms ineffective. In older homes with outdated wiring, consult an electrician to upgrade the grounding system to meet current safety standards.
When installing devices in a pancake electrical box, avoid overcrowding, as it can compromise safety and functionality. Overstuffing the box with wires or devices increases the risk of overheating, arcing, or insulation damage. Follow the manufacturer’s guidelines for maximum fill capacity and use wire connectors appropriately. If the box feels cramped, consider using a larger box or splitting the circuit into multiple boxes to maintain safe wiring practices.
For outdoor or damp locations, select a pancake electrical box rated for such environments. These boxes are designed with weatherproof seals and corrosion-resistant materials to prevent moisture intrusion, which can cause electrical hazards. Additionally, use grounded outlets (GFCIs) in these areas to protect against shocks. Regularly inspect outdoor boxes for cracks, corrosion, or loose connections, especially after extreme weather events, to ensure ongoing safety.
Educate household members about the importance of not tampering with electrical boxes or their contents. Curious children or inexperienced adults may inadvertently create hazards by loosening wires or removing covers. Label the circuit breaker clearly to identify which switch controls the pancake box, and discourage the use of extension cords or adapters as permanent solutions. By fostering awareness and responsibility, you can minimize risks associated with improper use or maintenance.
Do All Light Bulbs Use Metal for Electrical Conduction?
You may want to see also
Explore related products
Troubleshooting Common Issues
Issue 1: Overheating During Operation
If your pancake electrical box feels unusually warm or emits a burning smell, immediately disconnect it from the power source. Overheating often stems from overloading the circuit or using incompatible devices. Check the total wattage of connected appliances against the box’s rated capacity, typically 15–20 amps for residential models. Avoid daisy-chaining multiple high-wattage devices like space heaters or microwaves. Inspect the box for dust or debris blocking ventilation ports, as poor airflow exacerbates heat buildup. If the issue persists, consult an electrician to verify wiring integrity or consider upgrading to a higher-capacity model.
Issue 2: Tripped Breakers or Blown Fuses
Frequent breaker trips or blown fuses signal a short circuit or ground fault within the pancake box. Start by unplugging all devices and resetting the breaker. Reintroduce appliances one at a time to identify the culprit. Faulty wiring, damaged cords, or malfunctioning devices are common causes. For ground faults, test the box’s GFCI (if equipped) by pressing the "Test" button and resetting. If the problem recurs, inspect the box for loose connections or exposed wires. Never bypass safety mechanisms like breakers; instead, replace damaged components or seek professional assistance.
Issue 3: Dead Outlets or Non-Responsive Ports
When outlets fail to deliver power, first verify the box’s main power switch is on and the circuit breaker hasn’t tripped. Test the outlet with a functioning device or voltage tester to confirm power loss. If other outlets in the vicinity work, the issue likely lies within the pancake box itself. Check for tripped GFCI outlets, which may require resetting. If the problem persists, examine the box’s internal wiring for loose connections or corrosion. Avoid probing with metal tools; use a non-contact voltage tester instead. Persistent dead outlets warrant an electrician’s inspection to rule out internal damage.
Issue 4: Audible Humming or Buzzing Noises
Unusual sounds from a pancake electrical box often indicate loose wiring or overloaded circuits. Humming can result from high-current draw, while buzzing suggests arcing or faulty components. Tighten terminal screws gently using a screwdriver, ensuring not to overtighten. If the noise persists, disconnect high-wattage devices and redistribute the load across multiple circuits. Arcing poses a fire risk, so immediately shut off power and inspect for damaged wires or burnt marks. Replace compromised components promptly, and consider installing an arc-fault circuit interrupter (AFCI) for added safety.
Issue 5: Physical Damage or Wear
Cracked housings, frayed cords, or exposed wires compromise the safety and functionality of a pancake electrical box. Inspect the unit regularly for signs of wear, especially in high-traffic areas or outdoor settings. Replace damaged power cords with manufacturer-approved alternatives, ensuring proper gauge and insulation. For cracked housings, discontinue use immediately, as exposed components increase shock and fire hazards. Store the box in a dry, debris-free environment to prevent corrosion or pest intrusion. When in doubt, prioritize replacement over repair to maintain compliance with electrical safety standards.
Using Gas Pipes for Electrical Grounding: Safe or Risky Practice?
You may want to see also
Frequently asked questions
A pancake electrical box is a low-profile electrical box designed to be installed in walls or ceilings where space is limited. It is commonly used for mounting switches, outlets, or other electrical devices in new construction or remodeling projects.
To install a pancake electrical box in drywall, cut a hole in the drywall using the provided template or box dimensions. Insert the box into the hole, ensuring it sits flush with the wall surface. Secure it with the built-in clamps or screws provided, and connect the wiring to the device before mounting it in the box.
Yes, pancake electrical boxes are often used in old work applications because of their slim design. They are ideal for retrofitting into existing walls without requiring extensive drywall removal or patching.
Most pancake electrical boxes can accommodate standard 12- or 14-gauge wires. However, always check the box specifications to ensure compatibility with your wiring and the number of conductors being used.
No, pancake electrical boxes are typically designed for indoor use only. For outdoor applications, use weatherproof electrical boxes that are specifically rated for exterior environments to ensure safety and compliance with electrical codes.
