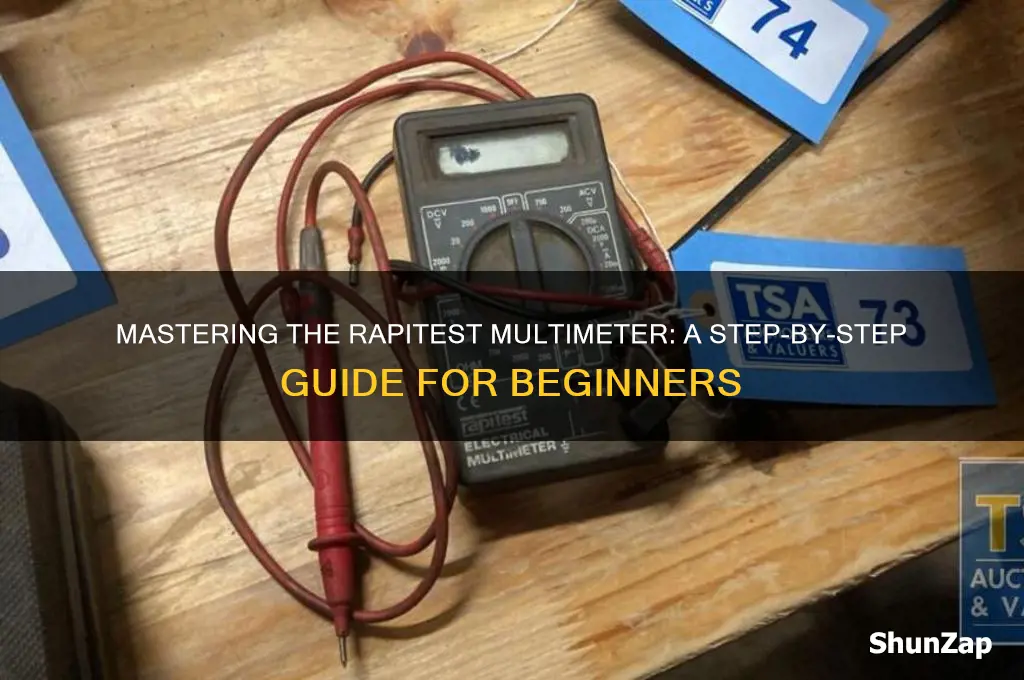

Using a Rapitest electrical multimeter is a straightforward process that allows you to measure voltage, current, and resistance in electrical circuits. To begin, ensure the multimeter is set to the correct function—voltage (V), current (A), or resistance (Ω)—by turning the dial to the appropriate symbol. Next, connect the test leads: the black lead to the common (COM) port and the red lead to the port corresponding to the selected function. For voltage measurements, connect the leads in parallel with the circuit; for current, connect them in series; and for resistance, ensure the circuit is de-energized before connecting the leads across the component. Always start with the highest range and adjust downward as needed to avoid damaging the device. Finally, read the display carefully, ensuring the value falls within the multimeter’s measurement range for accurate results.
Explore related products
What You'll Learn
- Safety Precautions: Essential safety tips to prevent electrical hazards while using the Rapitest multimeter
- Basic Functions: Understanding voltage, current, and resistance measurements with the device
- Battery Testing: Step-by-step guide to test battery health using the multimeter
- Continuity Check: How to verify circuit continuity and detect breaks or faults
- Advanced Features: Exploring diode testing, capacitance, and frequency measurement capabilities
Safety Precautions: Essential safety tips to prevent electrical hazards while using the Rapitest multimeter
Before handling any electrical equipment, including the Rapitest multimeter, ensure you’re in a dry environment and wearing non-conductive footwear. Moisture and conductive materials increase the risk of electric shock, making this a critical first step in your safety protocol. Always inspect the multimeter for visible damage, such as cracked casing or frayed wires, before use. A compromised device can lead to inaccurate readings or hazardous situations, so replace it immediately if defects are found.
When measuring voltage, never touch the metal probes with your hands while they are connected to a live circuit. Instead, hold the probes by their insulated grips and maintain a firm, controlled grip to avoid accidental slippage. Ensure the multimeter is set to the correct voltage range before connecting the probes to the circuit. Exceeding the device’s maximum voltage rating can cause internal damage or explosions, posing severe risks to the user and surroundings.
In high-energy environments, such as industrial settings or near power distribution systems, use a multimeter with a Category III or IV rating, as these are designed to handle transient voltage spikes. The Rapitest multimeter’s category rating should match the application’s electrical environment to prevent overloading. For instance, household measurements typically require a Category II rating, while commercial or outdoor measurements may demand higher protection.
Always de-energize the circuit whenever possible before connecting the multimeter. If working on live circuits is unavoidable, use one hand to minimize the risk of creating a path for current through your body. Keep a safe distance from exposed conductors and use insulated tools to reduce the likelihood of accidental contact. After completing measurements, disconnect the probes from the circuit before adjusting the multimeter’s settings to prevent arcing or short circuits.
Finally, store the Rapitest multimeter in a protective case when not in use to shield it from physical damage and environmental factors. Regularly test the device on a known voltage source to ensure its accuracy and functionality. By adhering to these safety precautions, you significantly reduce the risk of electrical hazards and ensure a safer testing experience.
Electric Guitar vs. Violin: Can They Share the Same Amplifier?
You may want to see also
Explore related products
Basic Functions: Understanding voltage, current, and resistance measurements with the device
Voltage, current, and resistance are the cornerstone measurements of any electrical multimeter, and the Rapitest device is no exception. Understanding these functions is crucial for diagnosing electrical issues, whether you're a professional electrician or a DIY enthusiast. Let's break down each measurement and how to use the Rapitest multimeter effectively.
Voltage Measurement: The Electrical Pressure Gauge
Imagine voltage as the pressure in a water pipe – it's the force that drives electrons through a circuit. To measure voltage with your Rapitest multimeter, follow these steps: set the dial to the V (voltage) symbol, typically represented by a V with a straight line above it for DC voltage or a wavy line for AC voltage. Touch the red probe to the positive side of the circuit and the black probe to the negative side. The display will show the voltage reading in volts (V). For instance, when testing a standard AA battery, you should see a reading close to 1.5V. Always ensure the circuit is de-energized before connecting the probes to avoid damage to the device or personal injury.
Current Measurement: Tracking the Flow of Electrons
Current is the rate of flow of electrons through a conductor, measured in amperes (A). To measure current, the Rapitest multimeter must be connected in series with the circuit. This means breaking the circuit and inserting the multimeter in the path of the current flow. Set the dial to the A (current) symbol, and connect the probes accordingly – red to the broken wire's end and black to the other. Be cautious with high-current circuits, as exceeding the multimeter's maximum current rating can lead to device damage. For low-current applications, such as testing a small LED circuit, you might use the mA (milliampere) setting for more precise readings.
Resistance Measurement: Assessing the Opposition to Current
Resistance, measured in ohms (Ω), is the opposition to the flow of electric current. It's a critical parameter for determining the health of components like resistors, wires, and even entire circuits. To measure resistance with the Rapitest multimeter, turn the dial to the Ω symbol. Connect the probes across the component or circuit you're testing. The display will show the resistance value. For example, a healthy resistor should show a value close to its rated resistance. If the reading is significantly off or shows 'OL' (open loop), the component may be faulty. Always ensure the circuit is powered off before measuring resistance to prevent inaccurate readings or damage to the multimeter.
Practical Tips for Accurate Measurements
To ensure accurate and safe measurements, consider the following tips: always start with the highest range setting and work your way down to avoid overloading the multimeter. For voltage measurements, use the appropriate AC or DC setting based on the power source. When measuring current, be mindful of the circuit's polarity to connect the probes correctly. For resistance measurements, ensure the component is isolated from the circuit to get a precise reading. Regularly check the multimeter's probes for damage or wear, as this can affect measurement accuracy. By mastering these basic functions and following best practices, you'll be well-equipped to tackle a wide range of electrical diagnostics with your Rapitest multimeter.
Using Stove Guard on Electric Stoves: Safety Tips and Best Practices
You may want to see also
Explore related products
Battery Testing: Step-by-step guide to test battery health using the multimeter
Testing a battery's health with a Rapitest electrical multimeter is a straightforward process that can save you from unexpected power failures. Begin by setting your multimeter to the DC voltage range, typically marked with a "V" symbol and a straight line, and ensure it’s set to a value higher than the battery’s rated voltage (e.g., 20V for a 12V battery). This step is crucial to avoid damaging the multimeter or getting inaccurate readings. With the multimeter prepared, you’re ready to assess whether your battery is holding its charge or nearing the end of its life.
Next, connect the multimeter probes to the battery terminals: touch the red probe to the positive terminal (+) and the black probe to the negative terminal (-). A healthy battery should read close to its rated voltage—for instance, a 1.5V AA battery should show around 1.5V, while a 12V car battery should read between 12.4V and 12.7V when fully charged. If the reading is significantly lower, it indicates the battery is discharged or damaged. For rechargeable batteries, a voltage below 10% of the rated value (e.g., 1.2V for a 1.2V NiMH battery) suggests it’s time for replacement.
To further evaluate battery health, perform a load test. Turn on the device powered by the battery or use the multimeter’s built-in load test feature if available. Observe the voltage drop under load; a healthy battery should maintain its voltage within 10% of the open-circuit reading. For example, a 12V battery under load should not drop below 10.8V. If the voltage plummets, the battery lacks the capacity to deliver consistent power, signaling it’s nearing failure.
Finally, consider the battery’s age and usage history alongside multimeter readings. Even if a battery tests within acceptable limits, frequent deep discharges or age over five years (for rechargeable batteries) can degrade performance. Regular testing every 3–6 months helps identify declining health early, allowing you to replace the battery before it fails completely. By combining multimeter data with contextual awareness, you can ensure your batteries remain reliable for their intended applications.
Electric Chainsaw Bar Oil: Essential Maintenance for Smooth Cutting Performance
You may want to see also
Explore related products
Continuity Check: How to verify circuit continuity and detect breaks or faults
A broken wire or a faulty connection can bring an entire circuit to a halt. Identifying these issues quickly and accurately is where the continuity check on your Rapitest multimeter becomes your secret weapon. This simple test verifies if electricity can flow uninterrupted through a circuit, pinpointing breaks or faults with a clear audible signal.
Imagine troubleshooting a malfunctioning lamp. Instead of blindly replacing components, a continuity check can tell you in seconds if the issue lies in a frayed cord, a loose connection, or a faulty switch.
Conducting the Continuity Check: A Step-by-Step Guide
- Safety First: Ensure the power to the circuit is completely off before proceeding. Even a small current can be dangerous.
- Multimeter Setup: Set your Rapitest multimeter to the continuity setting, often denoted by a symbol resembling a sound wave or a diode.
- Probe Placement: Touch the black probe (negative) to one end of the circuit element you're testing (e.g., a wire, switch, or fuse). Touch the red probe (positive) to the other end.
- Listen for the Beep: If the circuit is continuous, your multimeter will emit a steady beep. This indicates a clear path for electricity. No beep means a break or fault exists.
Pro Tip: For long wires, it can be helpful to have an assistant hold one probe while you move along the wire with the other, listening for the beep to pinpoint the exact location of the break.
Interpreting Results: Beyond the Beep
While the beep is the primary indicator, some multimeters also display a resistance value. A very low resistance (close to 0 ohms) confirms continuity. A high resistance reading or "OL" (open loop) indicates a break.
Caution: Don't rely solely on the resistance value. Always listen for the beep as the most reliable indicator of continuity.
Real-World Applications: Where Continuity Checks Shine
From diagnosing car electrical problems to troubleshooting household appliances, the continuity check is a versatile tool. It can identify:
- Broken wires: Frayed or severed wires are common culprits in electrical failures.
- Faulty switches: A switch that doesn't complete the circuit will prevent current flow.
- Bad fuses: A blown fuse will break the circuit, stopping the flow of electricity.
- Loose connections: Corroded or poorly connected terminals can disrupt continuity.
Mastering the continuity check on your Rapitest multimeter empowers you to diagnose electrical issues with confidence, saving time and frustration. It's a fundamental skill for any DIY enthusiast or professional electrician.
Pop Like a Pro: Mastering the Nostalgia Electric Popcorn Machine
You may want to see also
Explore related products
Advanced Features: Exploring diode testing, capacitance, and frequency measurement capabilities
Diode testing is a critical function of advanced multimeters like the Rapitest, allowing users to assess the health and functionality of diodes in electronic circuits. To perform this test, set the multimeter to the diode testing mode, typically denoted by a diode symbol. Connect the red probe to the anode and the black probe to the cathode of the diode. A healthy diode should show a forward voltage drop between 0.3V and 0.7V, depending on the diode type. If the reading is significantly higher or the multimeter displays "OL" (open loop), the diode may be faulty. This feature is particularly useful for troubleshooting power supplies, rectifiers, and signal processing circuits, ensuring components operate within expected parameters.
Capacitance measurement is another advanced capability that sets the Rapitest multimeter apart from basic models. To measure capacitance, select the capacitance mode, often marked with an "F" for farads, and connect the probes across the capacitor terminals. Ensure the capacitor is discharged before testing to avoid damaging the multimeter. Readings will display in microfarads (μF), nanofarads (nF), or picofarads (pF), depending on the range. This function is invaluable for verifying capacitor values in filters, timing circuits, and power supply smoothing applications. For example, a 10μF capacitor should read close to its rated value; deviations indicate degradation or failure, prompting replacement.
Frequency measurement is a less commonly used but highly specialized feature of the Rapitest multimeter, ideal for working with oscillators, signal generators, and communication circuits. Switch the multimeter to frequency mode, typically symbolized by a tilde (~) or "Hz," and connect the probes to the signal source. The multimeter will display the frequency in Hertz (Hz), Kilohertz (kHz), or Megahertz (MHz). Accuracy depends on signal stability and amplitude, so ensure the input signal is clean and within the multimeter’s specified range. This feature is particularly useful for tuning radio frequency (RF) circuits or verifying the output of microcontrollers and timers.
While these advanced features enhance the Rapitest multimeter’s versatility, they require careful handling and interpretation. For diode testing, avoid applying excessive voltage, as it can damage the diode or multimeter. When measuring capacitance, always discharge capacitors to prevent electrical shock or multimeter damage. For frequency measurements, ensure the signal level does not exceed the multimeter’s input limits, typically around 10V peak-to-peak. By mastering these capabilities, users can diagnose complex circuit issues with precision, making the Rapitest multimeter an indispensable tool for both hobbyists and professionals.
Can Electra Safely Treat Dogs? Exploring Its Use and Benefits
You may want to see also
Frequently asked questions
To turn on the Rapitest electrical multimeter, rotate the dial to the desired measurement function (e.g., voltage, current, resistance), then press the power button if applicable. Some models may activate automatically when the dial is moved.
Set the dial to the voltage (V) range suitable for your application (AC or DC). Insert the black probe into the COM port and the red probe into the VΩ port. Touch the probes to the circuit or power source, ensuring proper polarity, and read the value displayed on the screen.
Always ensure the device is set to the correct range for the measurement. Wear insulated gloves and avoid touching metal parts of the probes while testing live circuits. Double-check connections and turn off power when possible to prevent electrical hazards.
