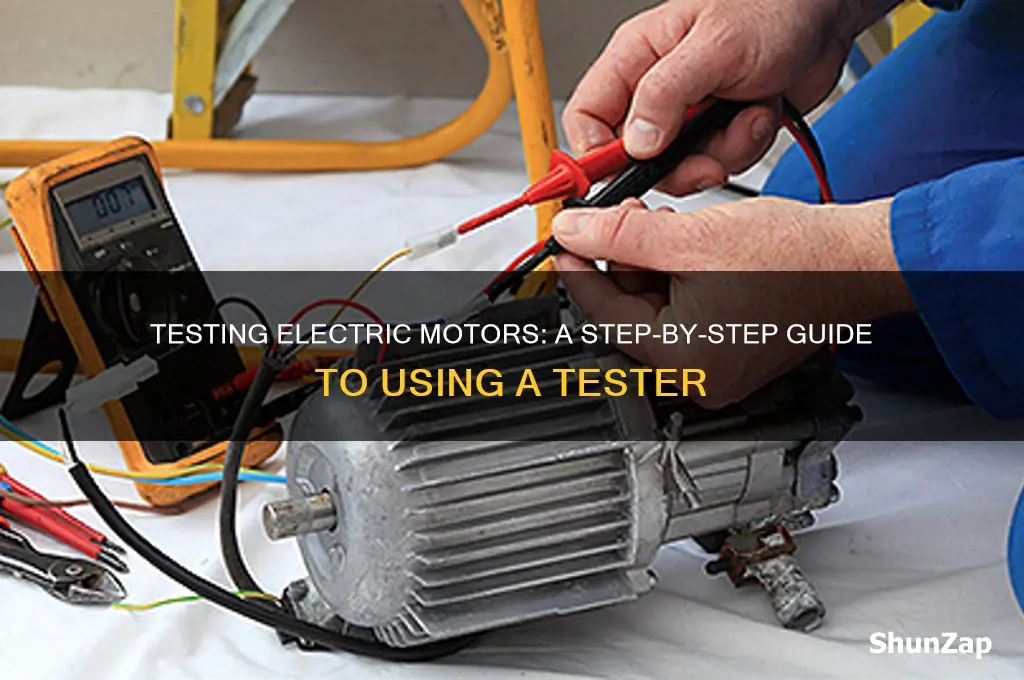

Checking an electric motor using a tester is a straightforward process that helps diagnose issues such as continuity, short circuits, or open circuits in the windings. Begin by ensuring the motor is disconnected from the power source to avoid electrical hazards. Use a multimeter set to the ohms (resistance) setting to test the motor windings. Connect the multimeter probes to the motor terminals and note the resistance readings; consistent values across all windings indicate proper functioning, while significant discrepancies suggest a fault. Additionally, check for continuity between windings and the motor frame to identify potential short circuits. Always refer to the motor’s specifications for expected resistance values and follow safety precautions throughout the testing process.
| Characteristics | Values |
|---|---|
| Tester Type | Multimeter (Digital or Analog) |
| Safety Precautions | Ensure motor is disconnected from power source, wear insulated gloves, work in a dry area |
| Motor Terminals | Identify T1, T2, T3 (or U, V, W) terminals |
| Test Type 1: Continuity Test | Check continuity between each pair of terminals (T1-T2, T2-T3, T1-T3). A beep or low resistance reading indicates good continuity. |
| Test Type 2: Resistance Test | Measure resistance between each pair of terminals. Compare readings to manufacturer's specifications or each other (should be roughly equal). |
| Test Type 3: Open Circuit Test | Check for infinite resistance between any terminal pair. Indicates an open circuit if found. |
| Test Type 4: Short Circuit Test | Check for very low resistance (close to 0) between any terminal pair. Indicates a short circuit if found. |
| Test Type 5: Capacitor Test (if applicable) | For capacitor-start motors, test the capacitor using the multimeter's capacitor setting. Replace if defective. |
| Expected Results | Balanced resistance readings (within 10% of each other) and no open/short circuits indicate a healthy motor winding. |
| Additional Notes | Test the motor at room temperature, as temperature affects resistance readings. Consult the motor's datasheet for specific resistance values. |
Explore related products
What You'll Learn
- Prepare Tester and Motor: Ensure tester is functional, motor is disconnected, and safety gear is worn
- Check Power Supply: Verify input voltage matches motor specifications using the tester
- Test Continuity: Check winding continuity to ensure no open or broken circuits
- Measure Resistance: Compare winding resistance readings against motor specifications for consistency
- Inspect Ground Faults: Use tester to detect any grounding issues in the motor
Prepare Tester and Motor: Ensure tester is functional, motor is disconnected, and safety gear is worn
Before testing an electric motor, the integrity of your tools and the safety of your environment are paramount. A malfunctioning tester can lead to inaccurate readings, wasted time, and potential damage to the motor. Start by verifying the tester’s functionality. Plug it into a live circuit or known power source to ensure the display responds correctly and the probes are not damaged. For digital multimeters, check the battery level and calibrate if necessary. Analog testers should have a smooth needle movement without sticking or erratic behavior. If the tester fails this check, replace it immediately—compromising on tool reliability is a recipe for error.
With the tester confirmed operational, shift focus to the motor itself. Disconnection from the power source is non-negotiable. Even if the motor appears inactive, residual charge or unexpected live wires can cause severe shocks or short circuits. Turn off the power supply at the circuit breaker or disconnect switch, then verify de-energization using the tester. Place one probe on the motor’s terminal and the other on a ground or neutral point. A reading of zero voltage confirms safety to proceed. If voltage is detected, retrace the disconnection steps or consult an electrician—never assume the motor is safe without verification.
Safety gear is the final line of defense against unforeseen hazards. Electric motor testing exposes you to risks like arc flashes, flying debris, or chemical spills, depending on the environment. At minimum, wear insulated gloves rated for electrical work (Class 00 or higher) and safety goggles to protect against sparks or particles. In industrial settings, add a face shield and flame-resistant clothing. Ensure all gear is in good condition—inspect gloves for tears and goggles for scratches. Remember, safety equipment is not optional; it’s a critical step that separates a routine check from a preventable accident.
The sequence of these preparations—tester functionality, motor disconnection, and safety gear—is deliberate. Each step builds on the last to create a secure testing environment. Skipping or rushing any part increases risk exponentially. For instance, testing a motor without proper disconnection can destroy the tester and endanger the user, while neglecting safety gear leaves you vulnerable to secondary hazards. Treat this preparation phase as a ritual, a systematic process that ensures accuracy, safety, and efficiency in diagnosing motor issues. By prioritizing these fundamentals, you transform a potentially hazardous task into a controlled, informative procedure.
Using Cast Iron on Electric Hobs: Safe, Effective, and Best Practices
You may want to see also
Explore related products
Check Power Supply: Verify input voltage matches motor specifications using the tester
Before troubleshooting an electric motor, ensure the power supply aligns with its requirements. A mismatch in voltage can lead to underperformance, overheating, or permanent damage. Use a multimeter—a versatile tester—to measure the input voltage accurately. Set the multimeter to the AC voltage range if the motor operates on alternating current, or DC for direct current. Connect the probes to the motor’s power terminals while it’s energized, but exercise caution to avoid electrical hazards. Compare the reading to the motor’s specification plate, typically located on its frame, which lists the rated voltage. For instance, a motor rated at 220V should show a reading within ±10% of this value, accounting for minor fluctuations in the power supply.
Analyzing voltage discrepancies reveals critical insights into motor issues. If the measured voltage is significantly lower than specified, the motor may run sluggishly or fail to start. Conversely, excessive voltage can cause insulation breakdown or winding burnout. For example, a 3-phase motor rated at 480V operating at 520V is at risk of premature failure. In such cases, check the power source for faults or consider installing a voltage regulator. If the voltage is correct but the motor still malfunctions, investigate other factors like mechanical load or internal faults.
To perform this check effectively, follow a systematic approach. First, ensure the motor is de-energized before connecting the multimeter to avoid short circuits. Select the appropriate voltage range on the tester to prevent overloading the device. For 3-phase motors, measure each phase-to-phase voltage and verify they are balanced, typically within 2% of each other. For single-phase motors, check the voltage between the hot and neutral wires. Document the readings for future reference or to share with technicians. This methodical process ensures accuracy and safety, reducing the risk of misdiagnosis.
Practical tips enhance the efficiency of this procedure. Always use a multimeter with a high enough voltage rating to handle the power supply safely. For motors in industrial settings, consider using a clamp meter to measure voltage without disconnecting wires, saving time and minimizing downtime. If the motor operates in a harsh environment, inspect the tester’s probes for damage before use. Additionally, wear insulated gloves and ensure the work area is dry to prevent electrical shocks. These precautions, combined with precise measurements, make voltage verification a cornerstone of motor diagnostics.
In conclusion, verifying the input voltage is a fundamental step in assessing an electric motor’s health. It bridges the gap between theoretical specifications and real-world performance, providing actionable data for troubleshooting. By mastering this technique with a tester, you can identify power supply issues before they escalate, ensuring the motor operates reliably and prolonging its lifespan. Whether you’re a technician or a DIY enthusiast, this skill is indispensable for maintaining electrical systems efficiently.
Did Gramophones Need Electricity? Unraveling the Power Behind Early Sound
You may want to see also
Explore related products
Test Continuity: Check winding continuity to ensure no open or broken circuits
A multimeter set to the continuity or resistance mode is your essential tool for verifying the integrity of an electric motor's windings. This test ensures that the motor's internal circuitry is complete, with no breaks or interruptions that could hinder its operation. Begin by isolating the motor from any power source to prevent electrical hazards. Access the motor's terminals, typically labeled as U, V, and W for three-phase motors or simply as 1 and 2 for single-phase motors. Touch the multimeter probes to the terminals, noting the resistance reading. A low resistance value, typically in the range of a few ohms, indicates continuity, while an infinite or significantly higher reading suggests an open circuit.
Consider the motor's specifications when interpreting results. For instance, a small DC motor might show a resistance of 2–5 ohms, while larger AC motors could range from 10 to 50 ohms. Discrepancies between windings can signal imbalances or damage. For example, if one winding reads 15 ohms while another reads infinity, the latter likely has a broken connection. Always compare readings across all windings to ensure consistency. If the motor has multiple speed or tap settings, test each configuration to verify continuity across all possible connections.
Practical tips can streamline this process. Label the terminals before disconnecting wires to avoid confusion during reassembly. Use a buzzer mode on your multimeter, if available, for a quick initial check—a continuous tone indicates a closed circuit. For motors with complex winding configurations, consult the manufacturer’s diagram to identify correct terminal pairings. If testing a three-phase motor, ensure all three windings are checked individually and in sequence to detect phase-to-phase faults.
Caution is paramount during this test. Avoid touching probe tips together while connected to the motor, as this can short the circuit. Never perform continuity tests on a live motor, as even residual charge can damage the multimeter or cause injury. If the motor has capacitors, discharge them first to prevent false readings or electrical shocks. For high-voltage motors, wear insulated gloves and ensure the work area is dry and well-ventilated.
In conclusion, testing winding continuity is a critical step in diagnosing motor health. It not only identifies open circuits but also highlights imbalances that could lead to overheating or failure. By systematically checking each winding and comparing results against specifications, you can pinpoint issues before they escalate. This straightforward yet vital procedure ensures the motor operates reliably, extending its lifespan and preventing costly downtime.
Do All Electric Devices Rely on Circuits? Unveiling the Truth
You may want to see also
Explore related products
Measure Resistance: Compare winding resistance readings against motor specifications for consistency
Resistance measurement is a critical diagnostic step when assessing the health of an electric motor. By comparing winding resistance readings against the motor's specifications, you can identify imbalances, short circuits, or open circuits that may indicate internal damage. This process requires a multimeter capable of measuring resistance (ohms) and a clear understanding of the motor's design, typically found in its datasheet or manual.
To begin, ensure the motor is de-energized and disconnected from any power source. Access the motor terminals, which are usually labeled U, V, and W for three-phase motors or simply 1 and 2 for single-phase models. Set your multimeter to the resistance (ohms) setting and touch the probes to the appropriate terminals. Record the resistance values for each winding. For a healthy motor, these readings should be consistent with each other and fall within the tolerance range specified by the manufacturer, typically ±10%.
A significant discrepancy between winding resistances—such as one reading being 20% higher or lower than the others—suggests a problem. For instance, a higher resistance could indicate a broken wire or poor connection, while a lower resistance might point to a short circuit. In three-phase motors, compare the U-V, V-W, and W-U readings; they should be nearly identical. If one phase deviates, focus your inspection on that winding.
Practical tips include taking measurements at the same temperature each time, as resistance increases with temperature. If the motor has been running, allow it to cool to ambient temperature before testing. Additionally, clean the terminal connections to ensure accurate readings, as corrosion or dirt can skew results. Always refer to the motor's specifications for exact tolerance values, as these can vary by design and manufacturer.
In conclusion, measuring winding resistance and comparing it against motor specifications is a straightforward yet powerful method for diagnosing electrical issues. It provides actionable insights into the motor's internal condition, helping you decide whether repairs or replacements are necessary. By mastering this technique, you can extend the lifespan of electric motors and prevent costly downtime.
Electricity's Cooling Potential: Exploring Innovative Energy-Efficient Solutions
You may want to see also
Explore related products
Inspect Ground Faults: Use tester to detect any grounding issues in the motor
Ground faults in electric motors can lead to hazardous conditions, including electrical shocks, fires, or equipment damage. Detecting these issues early is crucial for safety and motor longevity. A ground fault occurs when current leaks from the motor’s windings to the ground, bypassing the intended circuit. To identify such faults, a tester—specifically a megohmmeter or insulation tester—is an indispensable tool. By measuring the motor’s insulation resistance to ground, you can pinpoint weaknesses or failures in the motor’s protective barriers.
Begin by de-energizing the motor and ensuring it’s disconnected from the power source. Safety first: verify the absence of voltage using a multimeter before proceeding. Connect the tester’s positive lead to the motor’s windings and the negative lead to the motor’s frame or ground. Apply the recommended test voltage, typically 500V or 1000V for most motors, depending on the motor’s insulation rating. A reading below the minimum acceptable resistance—often 1 megohm for industrial motors—indicates a potential ground fault. Compare the results to the motor’s specifications or industry standards to assess severity.
Analyzing the results requires context. Low resistance readings may stem from moisture, contamination, or physical damage to the insulation. For instance, a motor exposed to humid environments might show temporary low resistance, which could improve after drying. However, consistent low readings suggest permanent insulation breakdown, necessitating repair or replacement. Conversely, abnormally high resistance could indicate open circuits, though this is less common in ground fault scenarios. Always cross-reference findings with environmental factors and the motor’s history.
Practical tips can enhance accuracy and safety. Clean the motor’s terminals and frame before testing to eliminate surface contaminants that could skew results. If the motor has been running, allow it to cool to avoid false readings caused by heat-induced insulation changes. For motors in hard-to-reach locations, consider using extension leads, but ensure they’re rated for high-voltage testing. Document each test result for trend analysis, as gradual declines in insulation resistance often precede catastrophic failures.
In conclusion, using a tester to inspect ground faults is a proactive measure that safeguards both equipment and personnel. By understanding the tester’s operation, interpreting results thoughtfully, and applying practical techniques, you can diagnose grounding issues before they escalate. Regular testing, especially in high-risk environments, ensures motors operate reliably and safely, minimizing downtime and repair costs. Treat this process as a critical component of your maintenance routine, not an optional task.
Electrical Tape vs. Solder: A Viable Alternative or Risky Choice?
You may want to see also
Frequently asked questions
Use a multimeter to check the motor’s continuity, resistance, and voltage. For more advanced testing, a megohmmeter (insulation tester) can assess the motor’s insulation resistance.
Set your multimeter to the ohms (resistance) setting and measure the resistance between the motor’s terminals. Compare the readings to the manufacturer’s specifications; consistent and expected values indicate proper winding function.
No continuity indicates an open circuit, which could be caused by a broken wire, faulty winding, or disconnected terminal. Further inspection or repair is necessary to identify and fix the issue.
