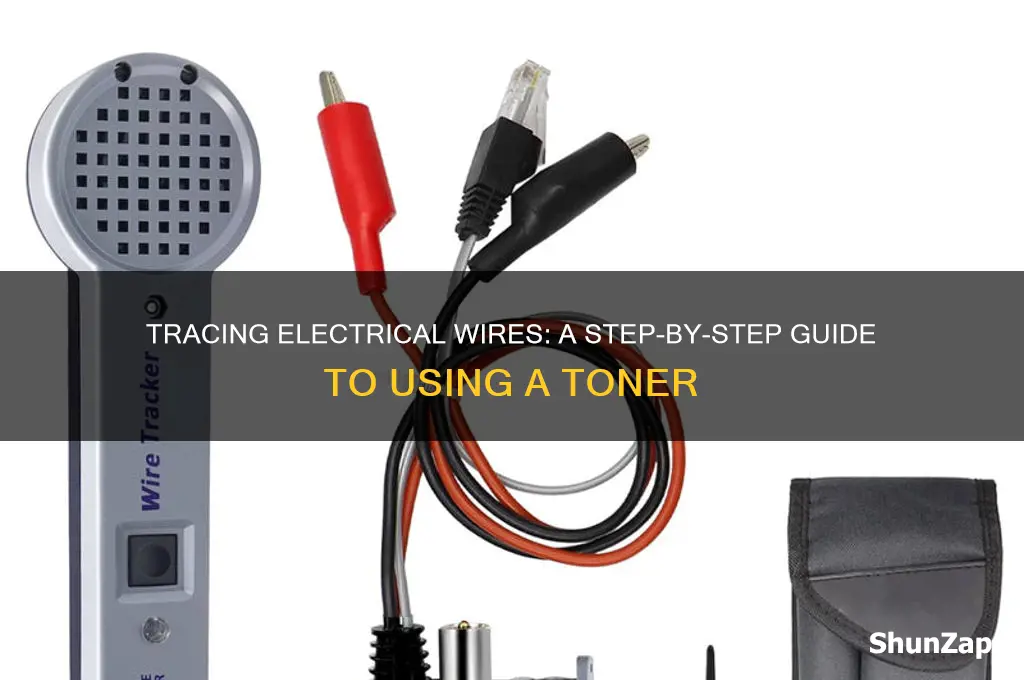

Using a toner to trace electrical wires is an essential skill for electricians and DIY enthusiasts alike, as it simplifies the process of identifying and locating specific wires within a complex network. A toner, also known as a circuit tracer or wire tracer, works by sending a signal through the wire, which is then detected by a probe or receiver. To begin, connect the toner's transmitter to the wire you want to trace, ensuring a secure and proper connection. Then, use the receiver to follow the signal along the wire's path, listening for the tone or observing visual indicators that confirm the wire's location. This method is particularly useful when dealing with hidden wires, bundled cables, or when trying to identify specific circuits in a crowded electrical system. By mastering the use of a toner, you can save time, reduce errors, and work more efficiently on various electrical projects.
| Characteristics | Values |
|---|---|
| Purpose | To identify and trace the path of electrical wires within walls, ceilings, or floors. |
| Tool Required | Toner (or tone generator) and probe (or amplifier). |
| Toner Function | Sends a specific frequency signal through the wire. |
| Probe Function | Detects the signal emitted by the toner to trace the wire. |
| Steps | 1. Identify the Wire: Locate the wire at the source (e.g., outlet, switch, or panel). 2. Connect the Toner: Attach the toner to the wire using clips or direct contact. 3. Activate the Toner: Turn on the toner to send the signal through the wire. 4. Use the Probe: Move the probe along the suspected path of the wire, listening for the signal or observing visual/audio indicators. 5. Follow the Signal: Trace the wire by following the strongest signal detected by the probe. |
| Signal Types | Audible beeps, visual LED indicators, or both. |
| Frequency Range | Typically operates between 10kHz to 30kHz, depending on the toner model. |
| Safety Precautions | Ensure power is off before connecting the toner to avoid electrical hazards. Use insulated tools and wear protective gear. |
| Applications | Residential wiring, commercial installations, and troubleshooting electrical faults. |
| Limitations | May not work through thick metal or heavily shielded areas. Signal strength diminishes with distance or interference. |
| Advanced Features | Some toners offer multiple frequencies to avoid interference and smart detection modes. |
| Maintenance | Regularly check toner and probe for damage. Replace batteries as needed. |
| Cost Range | Basic kits: $20–$50; Professional kits: $100–$300. |
| Brands | Fluke, Klein Tools, Greenlee, and Ideal Industries. |
| Alternatives | Wiremapper, cable trackers, or manual tracing with a stud finder and careful observation. |
Explore related products
What You'll Learn
- Prepare Toner & Probe: Connect toner to circuit, ensure power is off, and attach probe for tracing
- Identify Wire Pairs: Send signal through wire, use probe to detect matching pair in bundle
- Trace Wire Path: Follow detected signal along walls, floors, or ceilings to locate wire route
- Verify Connections: Check for breaks or faults by testing continuity with toner and probe
- Safety Precautions: Always de-energize circuits, wear protective gear, and avoid live wires during tracing
Prepare Toner & Probe: Connect toner to circuit, ensure power is off, and attach probe for tracing
Before attempting to trace electrical wires with a toner, the first critical step is to prepare your tools correctly. Start by connecting the toner to the circuit you intend to trace. This involves attaching the toner’s transmitter to the wire or circuit breaker at the source. Ensure the connection is secure, as a loose link can lead to inaccurate results. Most toners come with alligator clips or terminal connectors for this purpose, making the process straightforward even for beginners.
Safety is paramount when working with electrical systems. After connecting the toner, double-check that the power is off to the circuit you’re testing. Use a non-contact voltage tester to confirm there is no live current, as working on a powered circuit can result in electrical shock or damage to the toner. If you’re unsure, consult a professional or refer to your electrical panel’s labeling to identify the correct breaker.
Once the toner is connected and safety is confirmed, attach the probe to the receiving end of the toner. This probe is your tracing tool, designed to detect the signal emitted by the toner through the wires. Hold the probe firmly but gently against the wires you suspect are part of the circuit. The probe’s sensitivity varies by model, so refer to the manufacturer’s instructions for optimal usage. For example, some probes require direct contact, while others can detect signals through insulation.
A practical tip is to organize wires before tracing, especially in complex setups like junction boxes or behind walls. Labeling wires or grouping them by function can streamline the process and reduce confusion. Additionally, if you’re working with older wiring, be cautious of degraded insulation, which can interfere with the toner’s signal. In such cases, testing shorter segments of wire at a time can yield more accurate results.
In conclusion, preparing your toner and probe involves a blend of precision, safety, and practical foresight. By connecting the toner securely, ensuring power is off, and attaching the probe correctly, you set the stage for effective wire tracing. These steps, though seemingly simple, are foundational to achieving reliable results and avoiding potential hazards.
