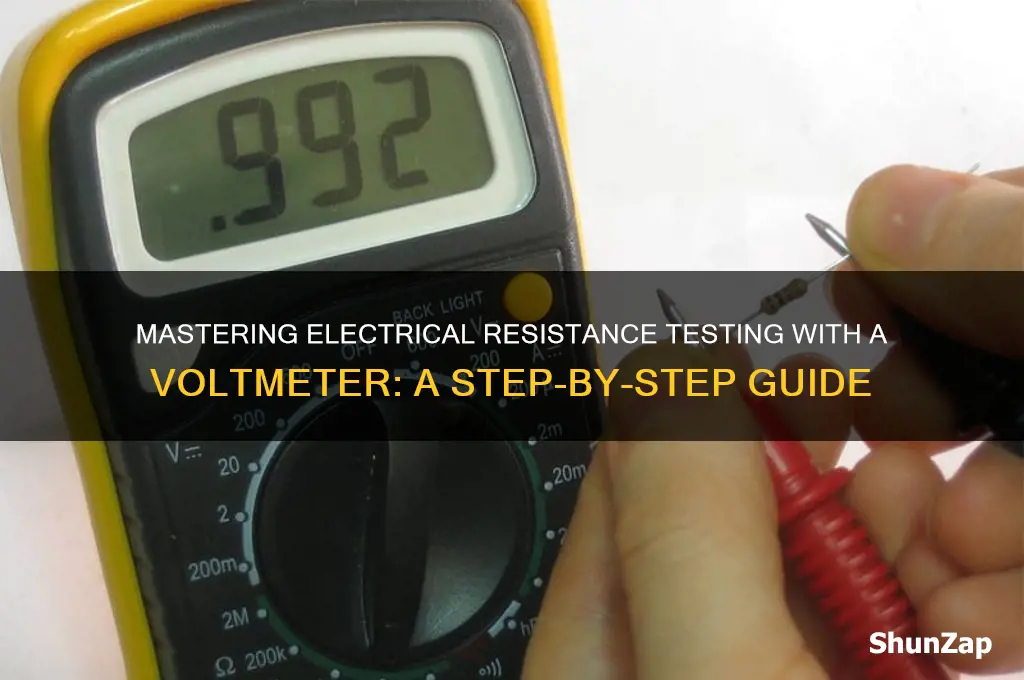

Using a voltmeter to test electrical resistance involves a straightforward process that leverages Ohm’s Law, which states that resistance (R) equals voltage (V) divided by current (I). To begin, ensure the circuit is de-energized for safety. Set the voltmeter to measure voltage and connect it in parallel with the component being tested. Simultaneously, use an ammeter to measure the current flowing through the circuit, connecting it in series. With both voltage and current readings, calculate resistance by dividing the voltage by the current. Alternatively, if your multimeter has a resistance (ohms) setting, simply connect the probes across the component, and the device will display the resistance value directly. Always ensure proper probe placement and adherence to safety guidelines to obtain accurate results.
| Characteristics | Values |
|---|---|
| Tool Required | Voltmeter (with resistance/ohms measurement capability) |
| Measurement Unit | Ohms (Ω) |
| Circuit State | Power must be turned off to the circuit being tested |
| Connection Method | Connect voltmeter in parallel with the component to measure voltage drop |
| Resistance Calculation | Use Ohm's Law: ( R = \frac ) (Resistance = Voltage / Current) |
| Range Setting | Set the voltmeter to the appropriate resistance range (e.g., 200Ω, 2kΩ) |
| Accuracy | Depends on voltmeter quality; digital multimeters are more accurate |
| Safety Precautions | Ensure no live voltage is present; use insulated tools |
| Component Removal | For accurate measurement, remove the component from the circuit |
| Zero Adjustment | Adjust the voltmeter to zero before taking measurements |
| Typical Applications | Testing resistors, wires, or circuit continuity |
| Limitations | Not suitable for very low resistance values (<1Ω) or high-power circuits |
| Alternative Method | Use an ohmmeter or multimeter with dedicated resistance measurement mode |
Explore related products
What You'll Learn
- Safety Precautions: Ensure power is off, wear protective gear, and handle probes carefully to avoid shocks
- Setting Up the Voltmeter: Select resistance mode, adjust range, and connect probes correctly for accurate readings
- Testing Circuit Resistance: Place probes across the component, read the value, and compare to expected resistance
- Identifying Faults: Look for infinite or zero resistance readings, indicating open or short circuits respectively
- Post-Test Procedures: Power down, disconnect probes, and store the voltmeter safely after completing the test
Safety Precautions: Ensure power is off, wear protective gear, and handle probes carefully to avoid shocks
Before you even think about connecting a voltmeter to a circuit, verify that the power is completely off. This isn't just a suggestion—it's a non-negotiable rule. Residual charge or live wires can deliver a dangerous shock, even if the main power source seems inactive. Use a non-contact voltage tester to confirm the absence of voltage. If you're working on a complex system, like a car battery or household wiring, double-check by testing multiple points. Assume nothing; treat every wire as live until proven otherwise.
Protective gear isn't optional when testing electrical resistance. Insulated gloves rated for electrical work are your first line of defense, reducing the risk of shock if accidental contact occurs. Safety goggles are equally critical, as short circuits can propel hot debris or molten metal unexpectedly. For high-voltage environments (above 50 volts), consider a full-body arc flash suit. These precautions may seem excessive for small projects, but the consequences of skipping them can be severe—burns, injuries, or worse.
Probes are the voltmeter's interface with the circuit, and mishandling them can lead to disaster. Always hold probes by their insulated grips, never near the metal tips. When connecting, apply gentle pressure to ensure contact without damaging the test points. Avoid letting probes touch each other while in use, as this can create a short circuit, potentially damaging the meter or the circuit. Store probes in their protective caps when not in use to prevent accidental contact with live wires or conductive surfaces.
Even with power off, capacitors in the circuit can hold a charge, posing a shock hazard. Before touching any component, discharge capacitors using a insulated screwdriver or a specialized tool. If you're working on a device with large capacitors (like a TV or microwave), wait at least 10 minutes after powering down to allow residual charge to dissipate. Ignoring this step can result in a painful jolt, even in a supposedly "safe" environment.
Finally, treat every measurement as a potential hazard. Never work alone when dealing with high-voltage systems, and keep a clear, well-lit workspace to minimize errors. If you're unsure about any step, stop and consult a professional. Safety isn't about fear—it's about respect for the power you're handling. One mistake can have irreversible consequences, so approach every test with caution and preparation.
Mastering the Pit Boss Electric Smoker: A Step-by-Step Guide
You may want to see also
Explore related products
Setting Up the Voltmeter: Select resistance mode, adjust range, and connect probes correctly for accurate readings
To measure electrical resistance accurately with a voltmeter, the first critical step is selecting the correct mode. Most multimeters, which often double as voltmeters, have a dedicated resistance mode, typically denoted by the Greek letter omega (Ω). This mode reconfigures the device’s internal circuitry to apply a small, known voltage across the component being tested and measure the resulting current, using Ohm’s Law (*R = V/I*) to calculate resistance. Failure to switch to this mode will yield nonsensical readings, as the voltmeter defaults to measuring voltage, not resistance. Always ensure the dial is firmly set to the resistance range before proceeding.
Once the resistance mode is selected, adjusting the range is the next pivotal step. Multimeters offer multiple resistance ranges (e.g., 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ) to accommodate components with varying resistance values. Start with the highest range and gradually decrease it until the reading stabilizes without overloading the meter. For instance, testing a 10kΩ resistor should begin at the 20kΩ range, then step down to 2kΩ if needed. Overloading the meter by selecting too low a range can damage the device or the component. Conversely, too high a range may reduce precision. This iterative process ensures both safety and accuracy.
Proper probe connection is equally essential for reliable resistance measurements. Most multimeters come with red (positive) and black (negative) probes. For resistance testing, the circuit must be de-energized, meaning power is disconnected from the component being tested. Connect the probes directly across the component’s terminals, ensuring a secure contact. Loose connections introduce extraneous resistance, skewing results. For surface-mount components, use probe tips or alligator clips for stability. Avoid touching the probe tips together while connected to the circuit, as this can short the component and invalidate the reading.
A practical tip for beginners is to verify the meter’s accuracy before testing unknown components. With the probes disconnected, switch to the resistance mode and touch the probe tips together. The display should read close to zero ohms (0Ω), indicating a direct connection. If the reading is significantly off, the meter may need calibration or battery replacement. This simple check ensures the setup is functioning correctly before proceeding with critical measurements. Mastery of these steps—selecting the resistance mode, adjusting the range, and connecting probes correctly—transforms the voltmeter into a precise tool for diagnosing electrical circuits.
Mastering Clear Coat Application with Wagner Electric Sprayer: A Guide
You may want to see also
Explore related products
Testing Circuit Resistance: Place probes across the component, read the value, and compare to expected resistance
To accurately measure electrical resistance in a circuit, position the voltmeter probes directly across the component you’re testing. This ensures the meter reads the resistance of the specific part, not the entire circuit. For instance, if testing a resistor, touch the red probe to one end and the black probe to the other. This method isolates the component, providing a precise measurement. Always ensure the circuit is de-energized before testing to avoid damage to the meter or the component.
The value displayed on the voltmeter after placing the probes is the resistance in ohms (Ω). Compare this reading to the expected resistance, typically found on the component’s datasheet or marked directly on it. For example, a 10kΩ resistor should read close to 10,000Ω. If the measured value deviates significantly, the component may be faulty or the circuit could have an issue. Minor discrepancies are normal due to tolerance levels, usually ±5% for standard resistors.
When testing, be mindful of the component’s orientation and the meter’s settings. Some multimeters require switching to a resistance (Ω) mode, while others auto-detect. For capacitors or diodes, the approach differs slightly, as these components have polarity or nonlinear resistance. Always consult the component’s specifications to interpret the reading correctly. For instance, a diode’s forward-biased resistance should be low, while reverse-biased resistance should be high.
Practical tips include using probes with sharp tips for secure contact, especially on small surface-mount components. If testing in-circuit, be aware that parallel pathways can skew readings. To isolate the component fully, desolder or disconnect one of its leads temporarily. For high-resistance components (e.g., megohm ranges), ensure your hands don’t bridge the probes, as body resistance can affect the measurement. Regularly calibrate your meter for consistent accuracy, particularly in professional or critical applications.
Mastering Multimeter Use: Safely Testing Electrical Sockets Step-by-Step
You may want to see also
Explore related products
Identifying Faults: Look for infinite or zero resistance readings, indicating open or short circuits respectively
A voltmeter, when used in resistance mode, becomes a powerful tool for diagnosing electrical faults. Infinite resistance readings are a red flag, signaling an open circuit where the flow of current is completely blocked. Imagine a broken wire or a loose connection—these disruptions sever the conductive path, causing the meter to display "OL" (open loop) or a similar indicator. Conversely, zero resistance readings point to short circuits, where current bypasses the intended path, often due to damaged insulation or component failure.
To identify these faults, set your voltmeter to the resistance (ohms) setting and ensure the circuit is de-energized. Touch the probes across the component or section of the circuit you’re testing. If the meter shows infinite resistance, trace the circuit for breaks, corrosion, or disconnected terminals. For zero resistance, inspect for physical damage, melted wires, or components touching where they shouldn’t. Always compare readings to known good values or a circuit diagram for accuracy.
Consider a practical example: testing a household lamp. If the bulb doesn’t light, measure resistance across the filament. A reading of zero suggests the filament is shorted, while infinite resistance indicates a broken filament. This approach applies to larger systems too—automotive wiring, HVAC controls, or electronic boards. Pairing resistance testing with visual inspection accelerates fault localization, saving time and reducing guesswork.
While voltmeters are versatile, they’re not infallible. False readings can occur due to probe contamination, meter calibration issues, or testing energized circuits. Always double-check connections and verify the meter’s accuracy with a known resistor. For high-voltage systems, use insulated probes and follow safety protocols. By mastering resistance testing, you transform the voltmeter from a mere measurement tool into a diagnostic powerhouse, pinpointing faults with precision.
Electric Lighters for Blunts: Safe, Effective, or Just a Trend?
You may want to see also
Explore related products
Post-Test Procedures: Power down, disconnect probes, and store the voltmeter safely after completing the test
After completing your resistance test with a voltmeter, the final steps are crucial to ensure safety, accuracy, and longevity of the device. Powering down the voltmeter immediately after use prevents accidental readings or damage from residual current. Most digital multimeters (DMMs) have an auto-off feature, but manually turning it off is a best practice, especially in high-humidity environments where corrosion risks are higher. For analog voltmeters, switch the power selector to the "Off" position or remove the battery if it’s not being used for extended periods. This simple action minimizes battery drain and reduces the chance of internal component wear.
Next, disconnect the test probes from the circuit and the voltmeter itself. Start by removing the probes from the test points, ensuring no arcing occurs—a common risk when dealing with high-voltage circuits. Then, unplug the probe leads from the voltmeter’s input jacks. Be gentle but firm; tugging too hard can damage the connectors, while leaving them partially inserted risks inaccurate readings in future tests. A practical tip: always twist the probe tips slightly while pulling to ensure a clean break, especially if the probes have accumulated dust or oxidation.
Storage is often overlooked but critical. Store the voltmeter in a dry, temperature-controlled environment, ideally between 0°C and 40°C (32°F and 104°F), to prevent internal condensation or battery leakage. Use a protective case or padded bag to shield it from physical shocks, which can misalign internal components. For probes, avoid coiling them tightly around the device—this can strain the wires and affect flexibility. Instead, loosely wrap them or use a probe holder. If the voltmeter has a stand or tilt feature, utilize it to keep the device upright, reducing strain on the display and buttons.
Finally, consider a post-test inspection as part of your routine. Check the probes for fraying or exposed wires, and inspect the voltmeter’s display for cracks or fading. Clean the device with a soft, dry cloth, avoiding solvents or water that could seep into the casing. For voltmeters used in industrial settings, a monthly calibration check ensures accuracy, while hobbyists can perform this step quarterly. By treating these procedures as non-negotiable, you not only protect your investment but also maintain a safe testing environment for future use.
Creative Ways to Straighten Hair Without Electricity Using a Flat Iron
You may want to see also
Frequently asked questions
A voltmeter is not directly used to measure resistance; instead, it is used in conjunction with a known current or as part of a multimeter to apply Ohm's Law (R = V/I) to calculate resistance.
To test resistance, use a multimeter set to the resistance (ohms) mode. Connect the multimeter probes across the component or circuit you want to test, ensuring the power is off to avoid damage.
A voltmeter alone cannot measure resistance. You need a multimeter with resistance measurement capability or additional tools like a current source and a voltmeter to apply Ohm's Law.
Ensure the circuit is de-energized before testing to prevent damage to the meter or components. Use the correct range on the multimeter, and avoid touching the probes together while connected to a power source.
