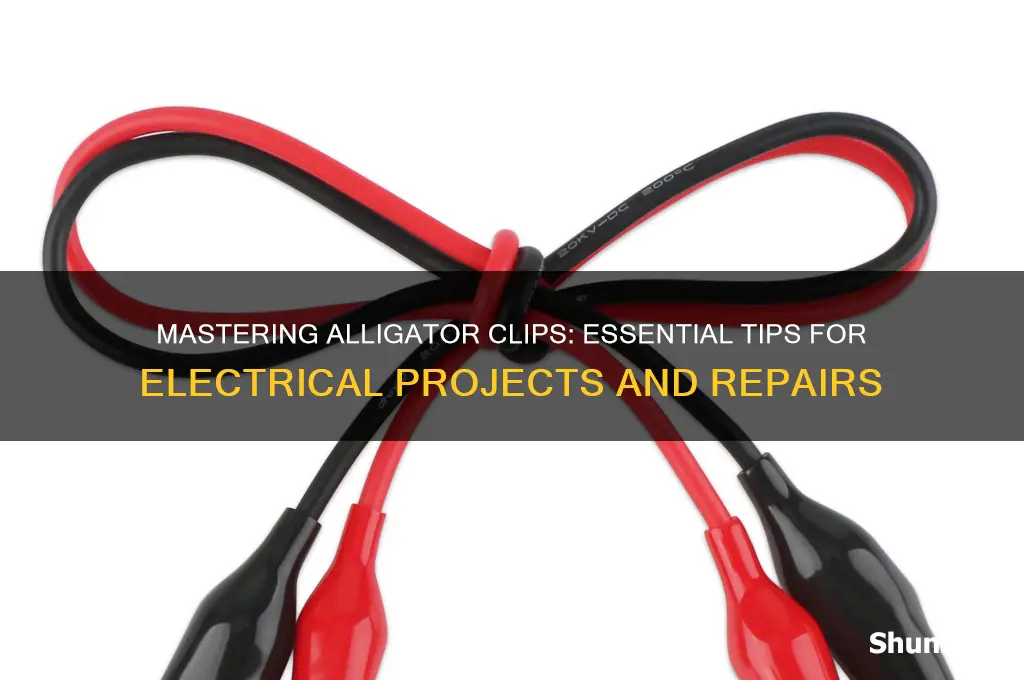

Alligator clips are versatile and essential tools in electrical work, commonly used for establishing temporary connections between wires, components, or circuits. These clips feature serrated jaws that securely grip conductors, ensuring reliable contact for testing, prototyping, or troubleshooting. To use alligator clips effectively, start by selecting the appropriate size and type for your application, ensuring the jaws are clean and free of debris. Connect one end of the clip to the desired component or wire, then attach the other end to the target circuit or device. Always verify polarity and voltage compatibility to prevent damage or accidents. Alligator clips are particularly useful in educational settings, laboratories, and DIY projects, offering a quick and reusable solution for electrical connections without the need for soldering or permanent modifications.
| Characteristics | Values |
|---|---|
| Purpose | Connect electrical components temporarily for testing, prototyping, or educational purposes |
| Material | Typically made of metal (e.g., copper, steel) with a plastic or rubber insulated handle |
| Jaw Type | Serrated or flat jaws for secure grip on wires, components, or terminals |
| Clip Mechanism | Spring-loaded for easy opening and closing, ensuring firm contact |
| Insulation | Handles are insulated to prevent electrical shock and short circuits |
| Size | Available in various sizes (e.g., mini, standard, large) for different applications |
| Color Coding | Often color-coded (e.g., red for positive, black for negative) for polarity identification |
| Compatibility | Works with wires, component leads, breadboards, multimeters, and power supplies |
| Current Rating | Varies by size and material; typically rated for low to moderate currents (e.g., 5-10A) |
| Voltage Rating | Suitable for low-voltage applications (e.g., 12V-24V); check specifications for high-voltage use |
| Temperature Resistance | Handles are heat-resistant, but metal parts may heat up under high current |
| Flexibility | Jaws can rotate or swivel for easy positioning in tight spaces |
| Safety | Always ensure power is off before connecting or disconnecting clips |
| Applications | Circuit testing, battery connections, automotive diagnostics, educational experiments |
| Maintenance | Keep jaws clean and free of corrosion for reliable connections |
| Storage | Store in a dry place to prevent rust and damage to insulation |
Explore related products
What You'll Learn
- Connecting Wires: Attach clips to wire ends for secure, temporary electrical connections in circuits
- Testing Continuity: Use clips with multimeters to check if circuits are complete or broken
- Powering Devices: Connect clips to batteries or power sources for testing small electronics
- Grounding Components: Attach one clip to ground for safe testing of live circuits
- Prototyping Circuits: Use clips on breadboards or strips for quick, adjustable circuit designs
Connecting Wires: Attach clips to wire ends for secure, temporary electrical connections in circuits
Alligator clips are indispensable for creating secure, temporary electrical connections in circuits, especially when testing or prototyping. To connect wires effectively, start by stripping about 1/4 inch of insulation from each wire end using a wire stripper. Ensure the exposed conductor is clean and free of debris to guarantee a reliable connection. Next, open the jaws of the alligator clip by squeezing the spring-loaded handle and insert the bare wire end into the clip’s serrated jaws. Release the handle to allow the clip to grip the wire firmly. This method ensures a stable connection without soldering, making it ideal for quick adjustments or temporary setups.
When attaching alligator clips to wire ends, consider the clip’s size and jaw strength relative to the wire gauge. For example, smaller clips with finer jaws are better suited for 22–28 AWG wires commonly found in breadboard circuits, while larger clips handle thicker wires like 12–18 AWG used in power applications. Always match the clip to the wire size to avoid damage or poor connectivity. Additionally, use insulated clips to prevent short circuits, especially in dense or high-voltage setups. This attention to detail ensures safety and efficiency in your electrical connections.
A practical tip for enhancing wire connections with alligator clips is to twist the exposed wire ends slightly before insertion. This increases the contact area between the wire and the clip’s jaws, improving conductivity and reducing the risk of accidental disconnection. For added security, consider using double clips on each wire end, particularly in high-vibration environments like automotive or robotics projects. While alligator clips are temporary solutions, these techniques maximize their reliability, making them a versatile tool for hobbyists and professionals alike.
Comparing alligator clips to other temporary connection methods, such as terminal blocks or solderless connectors, highlights their unique advantages. Unlike terminal blocks, which require screws and specific mounting, alligator clips offer instant connectivity without tools. Solderless connectors, while reusable, often lack the flexibility to connect wires of varying gauges or to components directly. Alligator clips bridge this gap, allowing for quick connections to wires, components, or test equipment. Their simplicity and adaptability make them a go-to choice for troubleshooting, experimentation, and educational settings.
In conclusion, attaching alligator clips to wire ends is a straightforward yet powerful technique for creating secure, temporary electrical connections. By stripping wires properly, matching clip size to wire gauge, and employing practical tips like twisting wire ends, you can ensure reliable performance in any circuit. Whether prototyping a new design or testing an existing one, alligator clips provide the flexibility and convenience needed for efficient electrical work. Master this method, and you’ll find it an essential skill in your toolkit.
