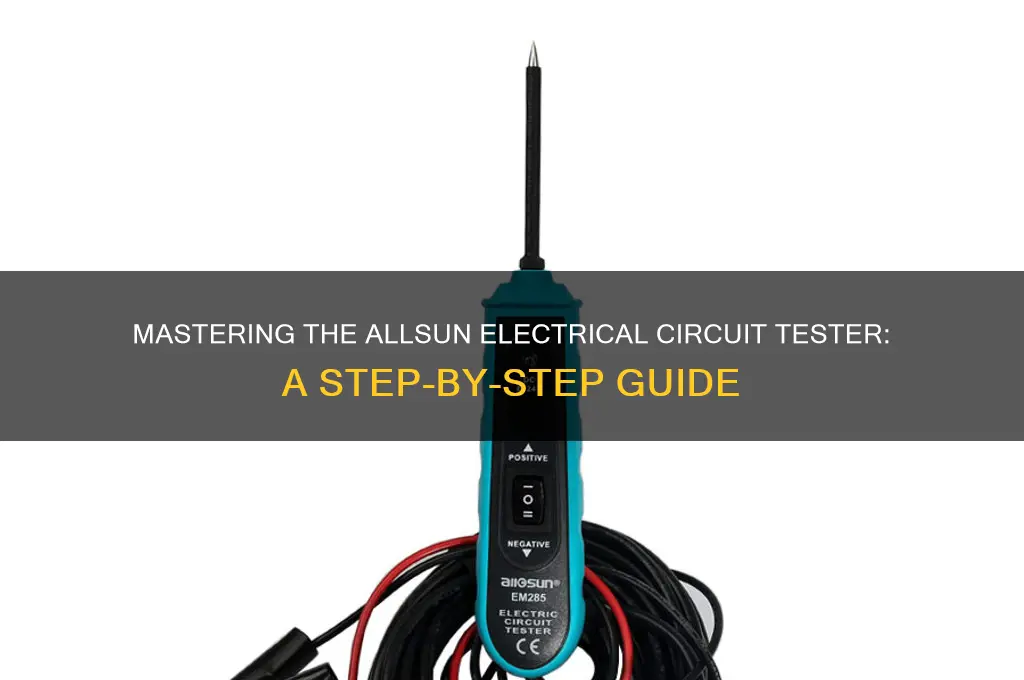

The Allsun Electrical Circuit Tester is a versatile and user-friendly tool designed to simplify the process of diagnosing and troubleshooting electrical circuits. Whether you're a professional electrician or a DIY enthusiast, this device allows you to quickly identify issues such as open circuits, short circuits, and faulty wiring. To use the Allsun Electrical Circuit Tester, start by ensuring the power to the circuit is turned off for safety. Connect the tester to the circuit or component you want to test, following the manufacturer’s instructions for proper placement. Activate the tester and observe the indicator lights or digital display, which will provide clear feedback on the circuit’s condition. Its compact design and intuitive interface make it an essential tool for anyone working with electrical systems, ensuring accuracy and efficiency in every test.
Explore related products
What You'll Learn
- Safety Precautions: Essential steps to ensure safe usage of the Allsun Electrical Circuit Tester
- Tester Components: Overview of the device’s parts and their specific functions
- Testing Procedures: Step-by-step guide to test circuits accurately and efficiently
- Interpreting Results: How to read and understand the tester’s indicators and readings
- Maintenance Tips: Proper care and storage to prolong the tester’s lifespan
Safety Precautions: Essential steps to ensure safe usage of the Allsun Electrical Circuit Tester
Before operating the Allsun Electrical Circuit Tester, inspect the device for any visible damage, such as frayed wires, cracked casing, or loose components. Even minor defects can compromise safety, potentially leading to electrical shocks or inaccurate readings. If any issues are detected, refrain from using the tester and seek professional repair or replacement. This initial check is a critical first step to ensure the tool is in optimal condition for safe and effective use.
When testing live circuits, always wear insulated gloves and ensure your work area is dry to minimize the risk of electrical hazards. The Allsun tester is designed to handle standard household voltages (typically 110V to 250V), but it’s essential to verify compatibility with the specific circuit you’re testing. Avoid using the device in wet or damp environments, as moisture can conduct electricity and increase the likelihood of accidents. Additionally, never touch exposed wires or terminals directly; rely solely on the tester’s probes to make contact with the circuit.
One common mistake is overloading the tester by connecting it to high-voltage systems or industrial circuits beyond its capacity. The Allsun tester is not intended for use with voltages exceeding 500V or in commercial/industrial settings. Always double-check the circuit’s voltage range before testing and use a more specialized tool if necessary. Misapplication can damage the device and pose serious safety risks, including electrical fires or explosions.
Finally, establish a habit of de-energizing the circuit whenever possible before testing. While the Allsun tester is designed for live circuit testing, working on a de-energized system adds an extra layer of safety. If live testing is unavoidable, maintain focus and avoid distractions to prevent accidental contact with live components. After use, store the tester in a dry, secure location, away from children or untrained individuals, to prevent misuse and ensure longevity.
