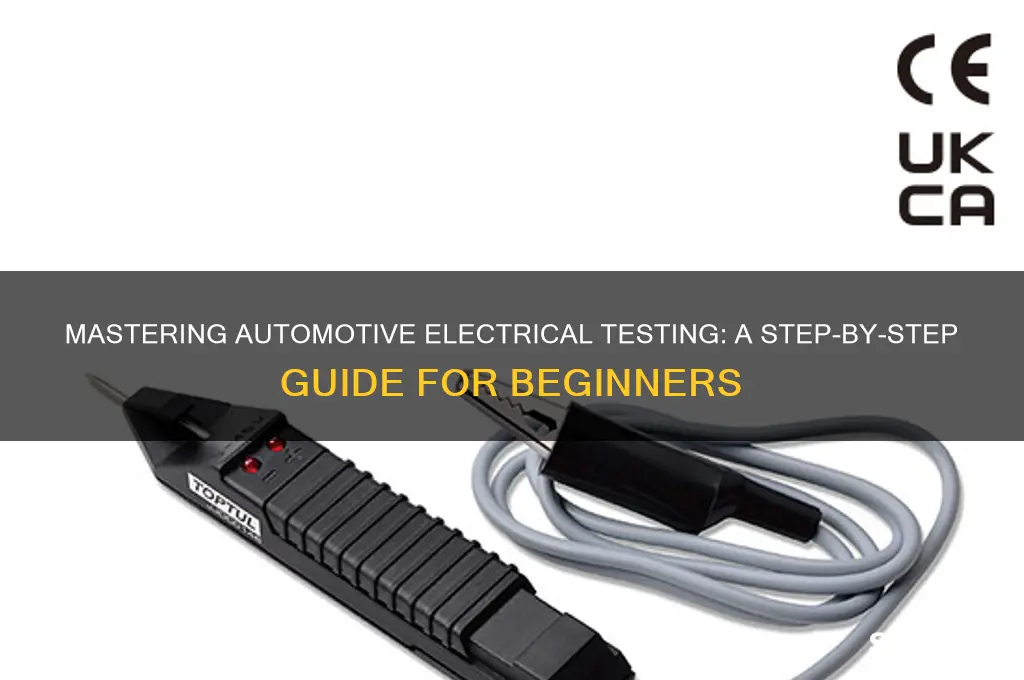

Using an automotive electrical tester is an essential skill for diagnosing and troubleshooting electrical issues in vehicles. This handheld tool helps identify problems such as short circuits, open circuits, and faulty components by measuring voltage, resistance, and continuity. To begin, ensure the vehicle is turned off and the tester is set to the appropriate function, such as voltage or continuity mode. Connect the tester’s leads to the circuit or component being tested, following the manufacturer’s instructions. For voltage testing, place the red lead on the positive terminal and the black lead on the ground; for continuity, ensure the circuit is disconnected and touch the leads to both ends of the wire or component. Interpret the readings based on the tester’s display, comparing them to expected values for a functioning system. Always prioritize safety by wearing insulated gloves and avoiding contact with live circuits. With practice, an automotive electrical tester becomes a powerful tool for efficiently resolving electrical problems in vehicles.
Explore related products
What You'll Learn
- Understanding Tester Functions: Learn basic operations, modes, and symbols for accurate electrical system diagnostics
- Safety Precautions: Follow guidelines to prevent shocks, short circuits, and damage during testing
- Testing Voltage: Measure battery, alternator, and circuit voltage levels for proper functionality
- Continuity Checks: Verify wire integrity and connections using the continuity test feature
- Troubleshooting Common Issues: Identify faults like blown fuses, bad grounds, or faulty components
Understanding Tester Functions: Learn basic operations, modes, and symbols for accurate electrical system diagnostics
Automotive electrical testers are indispensable tools for diagnosing vehicle electrical systems, but their effectiveness hinges on understanding their functions. These devices typically feature multiple modes—such as voltage, resistance, continuity, and diode testing—each designed to evaluate specific electrical parameters. For instance, the voltage mode measures the electrical potential between two points, while the continuity mode checks if a circuit is complete. Familiarizing yourself with these modes ensures you select the right one for the task, preventing misdiagnosis and saving time.
Symbols on the tester’s display or interface are another critical aspect to master. Common symbols include a battery icon for voltage, an ohm sign (Ω) for resistance, and a diode arrow for polarity checks. Misinterpreting these symbols can lead to incorrect readings. For example, confusing the resistance symbol with the continuity symbol might cause you to overlook an open circuit. Always refer to the tester’s manual to decode symbols accurately, as designs vary across brands.
Practical application requires a systematic approach. Start by identifying the electrical issue—whether it’s a dead battery, faulty wiring, or a malfunctioning component. Then, select the appropriate mode and connect the tester probes to the circuit or component. For instance, when testing a fuse, use the continuity mode and touch one probe to each end of the fuse. A beep or low resistance reading indicates a functioning fuse, while no beep suggests a break. Always ensure the vehicle is off and the ignition is disconnected before testing live circuits to avoid short circuits.
Advanced testers often include additional features like waveform analysis or temperature measurement, which can be overwhelming for beginners. Focus on mastering the basics first. Practice on known-good circuits to familiarize yourself with expected readings. For example, a healthy car battery should read between 12.6 and 12.8 volts when fully charged. Gradually incorporate more complex functions as your confidence grows.
In conclusion, understanding the basic operations, modes, and symbols of an automotive electrical tester is foundational for accurate diagnostics. By systematically learning these elements and practicing on real-world scenarios, you’ll transform the tester from a mere tool into a powerful ally in troubleshooting electrical issues. Always prioritize safety and refer to the manual when in doubt, ensuring both your vehicle and the tester remain in optimal condition.
Using TECs for Electricity Generation: A Viable Green Energy Solution?
You may want to see also
Explore related products
Safety Precautions: Follow guidelines to prevent shocks, short circuits, and damage during testing
Before engaging with any automotive electrical system, disconnect the battery to eliminate the risk of accidental shocks or short circuits. This simple step is often overlooked but serves as the foundation for safe testing. Even with the ignition off, residual charge in the system can pose a hazard, particularly in modern vehicles with complex electronics. Always use insulated tools and wear rubber gloves to further minimize the risk of electrical contact.
Consider the tester itself as a critical safety tool. Ensure it is rated for the voltage range you’ll encounter in automotive systems, typically 6 to 24 volts. Inspect the tester for damaged leads, exposed wires, or malfunctioning components before use. A faulty tester can not only compromise your safety but also lead to inaccurate readings, potentially causing misdiagnosis and further damage. Calibrate the tester if necessary, following the manufacturer’s guidelines, to ensure precision and reliability.
When testing live circuits, proceed with caution and follow a systematic approach. Start by identifying the circuit you’re testing and verify that all loads are disconnected to avoid unintended activation of components like motors or lights. Use the tester’s probes sparingly, applying only enough pressure to make contact without damaging connectors or terminals. Avoid touching probes together while connected to power, as this can cause short circuits that damage both the tester and the vehicle’s electrical system.
Environmental factors play a significant role in safety during electrical testing. Work in a dry, well-lit area, away from flammable materials or liquids that could exacerbate hazards in case of a mishap. If testing outdoors, be mindful of weather conditions—moisture or rain can increase the risk of electrical shock. Additionally, ensure proper ventilation when working near batteries to avoid inhaling potentially harmful fumes, especially in enclosed spaces like garages.
Finally, adopt a mindset of vigilance and preparedness. Even experienced technicians can encounter unexpected situations, so stay alert and avoid distractions. Keep a fire extinguisher rated for electrical fires within reach as a precautionary measure. If you’re unsure about any step, consult the vehicle’s manual or seek guidance from a professional. Safety isn’t just about following rules—it’s about understanding the risks and taking proactive steps to mitigate them.
Tantalum's Solar Potential: Harnessing Sunlight for Electricity Generation?
You may want to see also
Explore related products
$119 $124.64
Testing Voltage: Measure battery, alternator, and circuit voltage levels for proper functionality
Voltage testing is the cornerstone of automotive electrical diagnostics, offering a window into the health of your vehicle's power systems. A multimeter, the quintessential electrical tester, becomes your stethoscope, allowing you to listen to the heartbeat of your battery, alternator, and circuits.
Understanding Voltage Thresholds: Think of voltage as the pressure in your car's electrical system. A healthy 12-volt battery should read between 12.6 and 12.8 volts when fully charged and at rest. During engine operation, the alternator takes over, maintaining voltage between 13.5 and 14.5 volts. Deviations from these ranges signal potential issues: a sagging voltage points to a weak battery or alternator, while excessive voltage can damage components.
Testing the Battery: With the engine off, connect your multimeter's red lead to the battery's positive terminal and the black lead to the negative terminal. A reading within the 12.6-12.8 volt range indicates a healthy battery. For a more comprehensive test, perform a load test under simulated starting conditions, aiming for a voltage drop no lower than 9.6 volts.
Assessing the Alternator: Start the engine and recheck the voltage. It should now fall within the 13.5-14.5 volt range, confirming the alternator is charging effectively. If the voltage remains stagnant or drops below 13 volts, suspect a faulty alternator or loose connections.
Circuit Troubleshooting: Voltage testing extends beyond the battery and alternator. Use your multimeter to trace voltage drops along specific circuits, identifying faulty fuses, corroded connections, or broken wires. This pinpoint accuracy saves time and frustration compared to shotgun repairs.
Mastering voltage testing empowers you to diagnose electrical gremlins before they escalate into costly repairs. Remember, safety first: always disconnect the battery before working on electrical systems, and consult your vehicle's manual for specific voltage specifications. With practice, your multimeter will become an indispensable tool, ensuring your vehicle's electrical system hums along smoothly.
Mastering Your American Heritage Electric Oven: Tips and Tricks
You may want to see also
Explore related products
Continuity Checks: Verify wire integrity and connections using the continuity test feature
A broken wire or a loose connection can cripple your vehicle's electrical system, often manifesting as intermittent issues that are notoriously difficult to diagnose. The continuity test feature on your automotive electrical tester is your first line of defense against such problems. By verifying the integrity of wires and connections, this test ensures that electrical current flows uninterrupted from point A to point B, a fundamental requirement for any functioning circuit.
Understanding how to perform a continuity check effectively can save you hours of troubleshooting and prevent unnecessary component replacements.
To execute a continuity check, start by isolating the circuit you're testing. Turn off the ignition and disconnect the battery to prevent accidental shorts or damage to sensitive components. Set your multimeter to the continuity or resistance mode, typically denoted by a diode symbol or an ohms (Ω) sign. Touch the probes together; a beep or a reading close to zero ohms indicates the tester is functioning correctly. Now, connect one probe to each end of the wire or across the connection you're testing. A consistent beep or a low resistance reading confirms continuity, meaning the circuit is complete. Conversely, no beep or a high resistance reading suggests an open circuit, indicating a break in the wire or a faulty connection.
While the process seems straightforward, several factors can influence the accuracy of your continuity check. For instance, the length and gauge of the wire affect resistance readings; longer or thinner wires naturally have higher resistance. Always compare your readings to known good values or consult the vehicle's service manual for reference ranges. Additionally, environmental conditions like temperature and corrosion can impact results. Clean connection points and ensure they are free of rust or debris before testing. If you're working with multiple wires in a harness, label them to avoid confusion and ensure you're testing the correct pair.
One practical tip is to use the continuity test to trace wires through complex harnesses. By connecting one probe to a known point and moving the other probe along the wire, you can pinpoint breaks or damaged sections. This method is particularly useful when dealing with hidden or inaccessible wiring. Another application is verifying the integrity of ground connections, which are often overlooked but critical for proper circuit operation. By testing continuity between the ground point and the vehicle's chassis, you can quickly identify poor grounding issues that might cause erratic behavior in electrical components.
In conclusion, mastering the continuity test feature of your automotive electrical tester empowers you to diagnose and resolve wiring issues with confidence. It’s a skill that transforms guesswork into precision, allowing you to tackle electrical problems methodically and efficiently. Whether you're a professional mechanic or a DIY enthusiast, incorporating continuity checks into your diagnostic routine will undoubtedly enhance your ability to maintain and repair vehicle electrical systems. With practice, you'll develop a keen sense for interpreting results and identifying the root causes of electrical faults, making this tool an indispensable asset in your automotive toolkit.
Using Electric Wheelchairs in Rainy Weather: Safety Tips and Precautions
You may want to see also
Explore related products
Troubleshooting Common Issues: Identify faults like blown fuses, bad grounds, or faulty components
Automotive electrical systems are complex networks where a single fault can cascade into multiple symptoms, making diagnosis a challenge. An electrical tester becomes your detective tool, pinpointing issues like blown fuses, bad grounds, or faulty components with precision.
Step-by-Step Fault Isolation:
- Blown Fuses: Start by checking the fuse box diagram in your vehicle’s manual. Use the tester’s continuity setting to verify if the fuse conducts electricity. A broken circuit indicates a blown fuse. Replace it with the correct amperage and retest. If the new fuse blows immediately, trace the circuit for short circuits or overloaded components.
- Bad Grounds: Poor grounding causes erratic behavior in lights, gauges, or motors. Connect the tester’s negative lead to the battery’s negative terminal and the positive lead to the suspected ground point. A voltage drop exceeding 0.1V suggests a faulty ground. Clean the connection or replace the grounding wire.
- Faulty Components: Test components like switches, relays, or sensors for continuity or resistance. For example, a fuel pump relay should show near-zero resistance when activated. If readings deviate from specifications (found in repair manuals), replace the component.
Cautions and Practical Tips:
Always disconnect the battery before probing high-voltage circuits to avoid shorts. Use the tester’s diode or voltage mode to check for polarity and prevent damage to sensitive electronics. For intermittent faults, wiggle wires or components while testing to expose loose connections.
Analyzing Symptoms vs. Causes:
A dim headlight could stem from a blown fuse, corroded ground, or a failing alternator. Systematically test each possibility, starting with the simplest (fuses) and progressing to complex diagnostics. This methodical approach saves time and prevents unnecessary part replacements.
Comparative Advantage of Testers:
Unlike trial-and-error methods, an electrical tester provides objective data, reducing guesswork. For instance, a multimeter with a min-max recording function captures voltage fluctuations during driving, ideal for diagnosing intermittent faults. Investing in a quality tester pays off in accuracy and efficiency.
Mastering the use of an automotive electrical tester transforms troubleshooting from a frustrating guessing game into a logical process. By identifying blown fuses, bad grounds, or faulty components with confidence, you not only save on repair costs but also ensure your vehicle’s reliability and safety.
Glass Top Stoves and Canning: Safe Practices for Preserving Food
You may want to see also
Frequently asked questions
An automotive electrical tester is a handheld device used to diagnose electrical issues in vehicles. It can test voltage, continuity, resistance, and current flow in circuits, helping identify problems like faulty wires, bad fuses, or malfunctioning components.
To use the tester safely, first disconnect the battery to avoid electrical shocks or short circuits. Follow the tester’s instructions for the specific test (e.g., voltage, continuity). Connect the tester probes to the circuit or component being tested, and interpret the results based on the tester’s display or indicator.
While an electrical tester is versatile, it may not diagnose all issues. It’s best for testing basic electrical parameters like voltage and continuity. For complex problems, such as sensor malfunctions or computer-controlled systems, additional diagnostic tools or professional expertise may be required.
