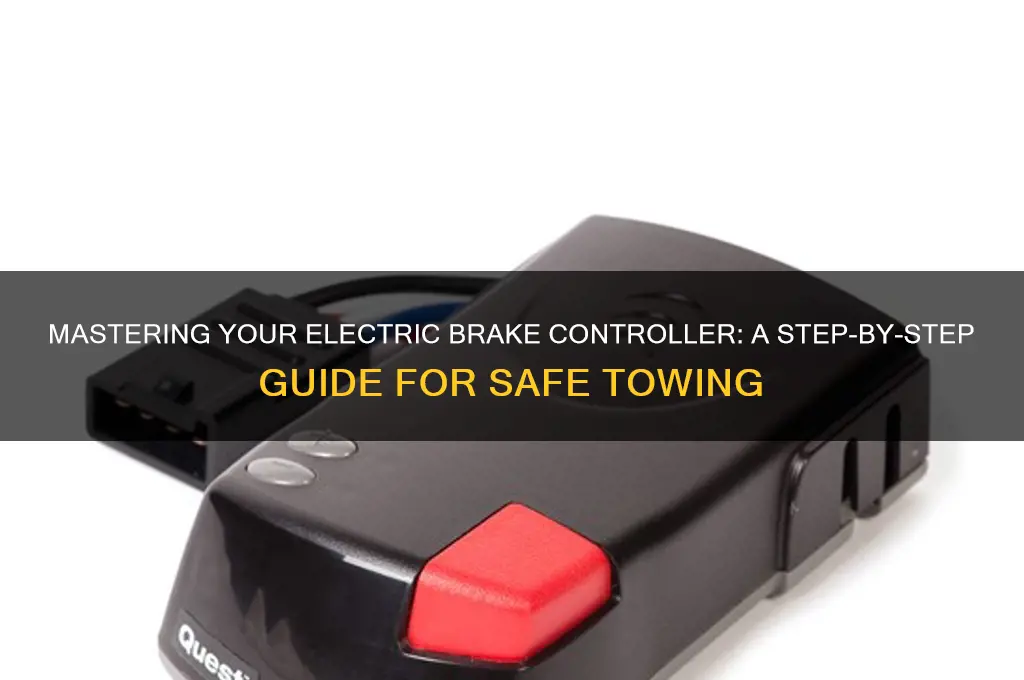

An electric brake controller is an essential device for safely towing trailers equipped with electric brakes, as it allows the driver to manually apply the trailer brakes in sync with the tow vehicle. Properly using an electric brake controller involves several key steps: first, ensure the controller is correctly installed and connected to the trailer’s braking system. Next, adjust the gain or power setting to match the trailer’s weight and braking needs, typically starting at a lower setting and increasing as necessary. During driving, use the manual override feature to apply the trailer brakes when slowing down or stopping, ensuring smooth and controlled deceleration. Regularly monitor the controller’s display for feedback on brake activation and make adjustments as needed to maintain optimal performance. Familiarizing yourself with the controller’s features and practicing in a controlled environment will enhance safety and confidence when towing.
| Characteristics | Values |
|---|---|
| Purpose | Controls the electric brakes on a trailer to ensure safe stopping. |
| Compatibility | Works with trailers equipped with electric brakes. |
| Installation | Requires proper wiring between the controller, vehicle, and trailer. |
| Adjustment | Gain (sensitivity) and braking power can be adjusted via the controller. |
| Activation | Activates when the vehicle's brake pedal is pressed. |
| Manual Override | Includes a manual slide or button for emergency braking. |
| Display | Shows braking intensity, often with LED indicators or a digital screen. |
| Power Source | Draws power from the vehicle's electrical system (12V). |
| Safety Features | Overload protection, short-circuit prevention, and automatic reset. |
| Maintenance | Regularly check wiring, connections, and controller functionality. |
| Legal Requirements | Must comply with local regulations for trailer brake systems. |
| Types | Time-delayed, proportional (inertia-based), and hybrid controllers. |
| Common Brands | Tekonsha, Reese, Curt, and Draw-Tite. |
| Wiring Connections | Typically uses a 4-7 pin connector for trailer wiring. |
| Testing | Test brakes before each trip using the manual override feature. |
| Troubleshooting | Check for loose connections, blown fuses, or controller malfunctions. |
| User Manual | Always refer to the manufacturer's instructions for specific models. |
Explore related products
What You'll Learn
- Understanding Brake Controller Types: Learn differences between time-delayed and proportional controllers for optimal trailer braking
- Installation Basics: Properly connect the controller to your vehicle’s wiring system for safe operation
- Setting Gain/Sensitivity: Adjust gain to match trailer weight and road conditions for smooth braking
- Testing the Controller: Perform manual and automatic tests to ensure accurate brake activation
- Maintenance Tips: Regularly inspect wires, clean connections, and verify settings to maintain reliability
Understanding Brake Controller Types: Learn differences between time-delayed and proportional controllers for optimal trailer braking
Electric brake controllers are essential for safe towing, but not all controllers are created equal. The two primary types—time-delayed and proportional—operate differently, each with distinct advantages and limitations. Understanding these differences ensures you select the right controller for your towing needs, optimizing both safety and performance.
Time-delayed controllers are the simpler, more cost-effective option. They apply a preset amount of braking power to the trailer after a predetermined delay, which you manually adjust based on the trailer’s weight and road conditions. For instance, if you’re towing a 3,000-pound trailer, you’d set the controller to apply brakes at a lower intensity compared to a 6,000-pound load. The delay allows the tow vehicle’s brakes to engage first, preventing trailer sway. However, this system lacks adaptability—it doesn’t adjust to sudden stops or varying terrain, making it less ideal for hilly or unpredictable driving conditions.
In contrast, proportional controllers offer dynamic braking by applying trailer brakes in proportion to the tow vehicle’s deceleration. This means if you slam on the brakes, the trailer responds with equal urgency, reducing the risk of jackknifing or loss of control. These controllers use an internal accelerometer to detect the vehicle’s movement, ensuring smoother and more responsive braking. While they’re pricier than time-delayed models, they’re the preferred choice for frequent or heavy-duty towing, especially in mountainous regions or areas with frequent stops.
Choosing between the two depends on your towing frequency and environment. For occasional, light-duty towing on flat terrain, a time-delayed controller suffices. However, if you regularly tow heavy loads or navigate challenging landscapes, investing in a proportional controller is a wise decision. Proper installation and calibration are critical for both types—refer to your controller’s manual for specific gain and sensitivity settings. Regularly test the system before trips to ensure consistent performance, and always adjust settings based on trailer weight and road conditions.
Ultimately, the right brake controller enhances safety and control, turning a potentially stressful towing experience into a smooth, confident journey. By understanding the nuances of time-delayed and proportional controllers, you’re better equipped to make an informed choice, ensuring optimal trailer braking every time you hit the road.
Harnessing Wind Power: A Step-by-Step Guide to Windmill Electricity Generation
You may want to see also
Explore related products
Installation Basics: Properly connect the controller to your vehicle’s wiring system for safe operation
Electric brake controllers are essential for safe towing, but their effectiveness hinges on proper installation. Connecting the controller to your vehicle’s wiring system isn’t just about functionality—it’s about ensuring reliability and preventing hazards like electrical shorts or trailer brake failure. Start by identifying your vehicle’s wiring harness, typically located under the dashboard near the steering column. Most modern vehicles have a dedicated port for brake controllers, often labeled or marked in the owner’s manual. If your vehicle lacks this, you’ll need to tap into the wiring for the stoplight switch, battery, and ground. Always use a wiring harness adapter specific to your vehicle’s make and model to simplify the process and avoid splicing wires, which can void warranties or cause malfunctions.
The installation process begins with disconnecting the vehicle’s battery to prevent electrical mishaps. Next, mount the brake controller in a convenient location, such as beneath the dashboard, ensuring it’s within easy reach but doesn’t obstruct driving. Secure it firmly using screws or mounting brackets provided by the manufacturer. Once mounted, connect the controller to the vehicle’s wiring harness adapter, matching wires by function: typically, a black wire for ground, a red wire for power, and a blue or white wire for the trailer brakes. Double-check connections to ensure they’re tight and correctly aligned. Incorrect wiring can lead to erratic brake behavior or damage to the controller, so precision is critical.
A common oversight during installation is neglecting to test the system before towing. After connecting the controller, reconnect the battery and turn on the ignition. Activate the manual brake control lever on the controller and observe the trailer’s brake lights to confirm they illuminate. If your controller has a display, verify it shows the correct voltage output when the brakes are applied. For vehicles with integrated towing systems, ensure the controller syncs with the vehicle’s computer by following the manufacturer’s pairing instructions. Testing under no-load conditions allows you to troubleshoot issues like weak brake response or electrical faults before hitting the road.
While DIY installation is feasible, certain scenarios warrant professional assistance. If your vehicle lacks a dedicated wiring port and requires tapping into existing circuits, consult a technician to avoid damaging sensitive components. Similarly, if your trailer uses a different braking system (e.g., hydraulic or electric-over-hydraulic), compatibility issues may arise, necessitating expert intervention. Even with a successful installation, periodic inspections are crucial. Check for loose connections, frayed wires, or corrosion around the controller and trailer plug, especially after exposure to moisture or rough terrain. Proper maintenance ensures the system remains safe and functional over time.
In summary, installing an electric brake controller demands attention to detail and adherence to vehicle-specific guidelines. Using the correct wiring harness, testing the system thoroughly, and addressing compatibility concerns upfront can prevent accidents and extend the life of your towing setup. Whether you tackle the installation yourself or seek professional help, the goal is the same: a secure, reliable connection that enhances safety for both driver and cargo. Treat this step as the foundation of your towing system—skimp on it, and the entire structure risks collapse.
Mastering the Chicago Electric Soldering Gun: A Step-by-Step Guide
You may want to see also
Explore related products
Setting Gain/Sensitivity: Adjust gain to match trailer weight and road conditions for smooth braking
Adjusting the gain or sensitivity on your electric brake controller is a critical step in ensuring safe and smooth braking while towing. The gain setting determines how aggressively the trailer brakes engage in response to your vehicle’s braking action. Too little gain, and the trailer may push your vehicle, increasing stopping distance and reducing control. Too much gain, and the trailer brakes can lock up, causing skidding or uneven wear. The key is to calibrate the gain to match the trailer’s weight and current road conditions, creating a harmonious braking system between your vehicle and trailer.
To begin adjusting the gain, start with the controller set to its lowest sensitivity level. Drive to a safe, open area and perform a test stop at about 20 mph. Gradually increase the gain setting in small increments, testing the brakes after each adjustment. Observe how the trailer responds: does it slow smoothly in sync with the vehicle, or does it lag or jerk? For lighter trailers (under 3,000 lbs), a lower gain setting (around 2-3 on a 1-10 scale) often suffices, while heavier loads (over 5,000 lbs) may require a higher setting (6-8). Always refer to your controller’s manual for specific recommendations.
Road conditions play a significant role in gain adjustment. On dry, flat roads, a moderate gain setting works well. However, slippery or hilly terrain demands a more nuanced approach. In wet or icy conditions, reduce the gain slightly to prevent skidding, as trailer brakes are more prone to locking up when traction is compromised. Conversely, when descending steep grades, increase the gain to provide more braking power and reduce strain on your vehicle’s brakes. A good rule of thumb is to adjust the gain by 10-20% based on road conditions, testing after each change.
A practical tip for fine-tuning gain is to use the “swing test.” Park on level ground, apply the manual brake control to engage the trailer brakes, and attempt to rock the trailer back and forth. If the brakes are properly adjusted, the trailer should resist movement without locking up. This test ensures the gain is set to provide adequate stopping power without over-braking. Repeat this test after significant changes in trailer load or driving conditions to maintain optimal performance.
Ultimately, setting the gain is a balance of art and science. It requires patience, observation, and a willingness to experiment. Over time, you’ll develop a feel for how your trailer responds under different conditions, allowing you to make quick, confident adjustments. Remember, the goal is not just to stop the trailer but to do so in a way that feels seamless, as if the trailer and vehicle are one unit. Master this, and you’ll enjoy safer, more controlled towing experiences, regardless of the load or road ahead.
Using Cooking Bags in Electric Roasters: Tips and Safety Guide
You may want to see also
Explore related products
Testing the Controller: Perform manual and automatic tests to ensure accurate brake activation
Before hitting the road with your trailer, ensuring your electric brake controller is functioning correctly is paramount. Testing the controller through both manual and automatic methods guarantees that your braking system will respond accurately when needed, enhancing safety for both you and other road users.
Manual Testing: Precision in Your Hands
Begin by disconnecting the trailer from the vehicle to isolate the brake controller’s functionality. With the ignition on, manually activate the controller using its slider or button. Gradually increase the braking force and observe the trailer’s response. A properly functioning system should engage the trailer brakes smoothly and proportionally to the input. Listen for unusual noises, such as grinding or squealing, which could indicate mechanical issues. Repeat this process at varying levels of force to ensure consistency. This hands-on approach allows you to pinpoint any discrepancies in brake activation before real-world driving conditions.
Automatic Testing: Simulating Real-World Scenarios
Reconnect the trailer and perform automatic tests while the vehicle is in motion. Start by driving at a moderate speed (20–30 mph) and apply the brakes gently. The controller should activate the trailer brakes in sync with the vehicle’s deceleration, maintaining stability and preventing sway. Next, conduct an emergency stop from a higher speed (40–50 mph) to test the system’s responsiveness under stress. Observe whether the trailer brakes lock up prematurely or fail to engage, both of which could compromise safety. Automatic testing replicates actual driving conditions, providing a comprehensive assessment of the controller’s performance.
Comparative Analysis: Manual vs. Automatic
While manual testing offers precision and control, automatic testing reveals how the system behaves under dynamic conditions. Manual tests are ideal for diagnosing specific issues, such as delayed activation or uneven braking force. In contrast, automatic tests highlight coordination between the vehicle and trailer, ensuring the controller adapts to varying speeds and loads. Combining both methods provides a holistic evaluation, addressing potential failures before they escalate.
Practical Tips for Effective Testing
Always test the controller on a flat, dry surface to eliminate external variables. Ensure the trailer’s brake system is properly adjusted and free of debris. For automatic tests, use a straight, low-traffic road to minimize risks. If discrepancies arise, consult the controller’s manual or a professional technician. Regular testing, especially before long trips, ensures consistent performance and prolongs the life of your braking system.
Testing your electric brake controller is not just a procedural step—it’s a critical safety measure. By performing both manual and automatic tests, you verify the system’s accuracy, responsiveness, and reliability. This dual approach not only safeguards your journey but also instills confidence in handling diverse driving conditions. Remember, a well-tested brake controller is the cornerstone of safe towing.
Using Multipurpose Cleaner on GE Electric Ovens: Safe or Risky?
You may want to see also
Explore related products
Maintenance Tips: Regularly inspect wires, clean connections, and verify settings to maintain reliability
Electric brake controllers are essential for safe towing, but their reliability hinges on consistent maintenance. Overlooking this aspect can lead to malfunctions, reduced braking efficiency, or even hazardous situations. Regular inspections, cleaning, and setting verifications are not just routine tasks—they are critical to ensuring your brake controller performs optimally when you need it most.
Begin with a thorough inspection of the wiring harness. Look for frayed wires, exposed conductors, or signs of corrosion, especially near the trailer connector. Moisture and road debris can accelerate wear, so pay close attention to areas prone to damage. Replace any compromised wires immediately, using marine-grade heat shrink tubing to seal connections and prevent future issues. Inspect the ground wire connection to the vehicle’s chassis as well; a loose or corroded ground can cause erratic controller behavior.
Cleaning connections is equally vital. Use an electronic contact cleaner and a small brush to remove dirt, grease, and oxidation from terminals and plugs. For stubborn corrosion, a mixture of baking soda and water can neutralize acidity before rinsing and drying thoroughly. Apply dielectric grease sparingly to protect connections from moisture, but avoid overusing it, as excess can attract debris. Clean the brake controller’s mounting area too, ensuring no dust or debris interferes with its operation.
Verifying settings is the final step in maintaining reliability. After cleaning and inspecting, reconnect the trailer and test the controller’s output using a brake controller tester or by manually activating the trailer brakes. Adjust the gain or braking intensity according to the load and road conditions, ensuring the trailer brakes engage smoothly without locking up. Periodically check the controller’s display for error codes or unusual readings, consulting the manual for troubleshooting guidance.
By integrating these maintenance practices into your towing routine, you not only extend the lifespan of your electric brake controller but also enhance safety and performance. Think of it as preventive care for your towing setup—a small investment of time that pays off in reliability and peace of mind.
Can Humanity Survive Without Electricity? Exploring a Powerless Future
You may want to see also
Frequently asked questions
An electric brake controller is a device installed in a towing vehicle that activates the brakes of the trailer in sync with the tow vehicle. It is necessary for safe towing because it ensures the trailer brakes apply at the same time as the vehicle’s brakes, improving stopping power and control.
To install an electric brake controller, first mount the unit in a convenient location on your dashboard. Connect the controller to the vehicle’s battery, brake switch, and trailer wiring harness. Follow the manufacturer’s instructions for specific wiring diagrams and ensure all connections are secure. Test the system before towing.
Adjust the brake controller’s gain or power setting to match the trailer’s weight and braking needs. Start with a low setting and gradually increase it while testing the brakes in a safe, open area. Ensure the trailer brakes activate smoothly and proportionally to the tow vehicle’s brakes. Fine-tune the settings until you achieve balanced braking performance.
