Otis Singleton

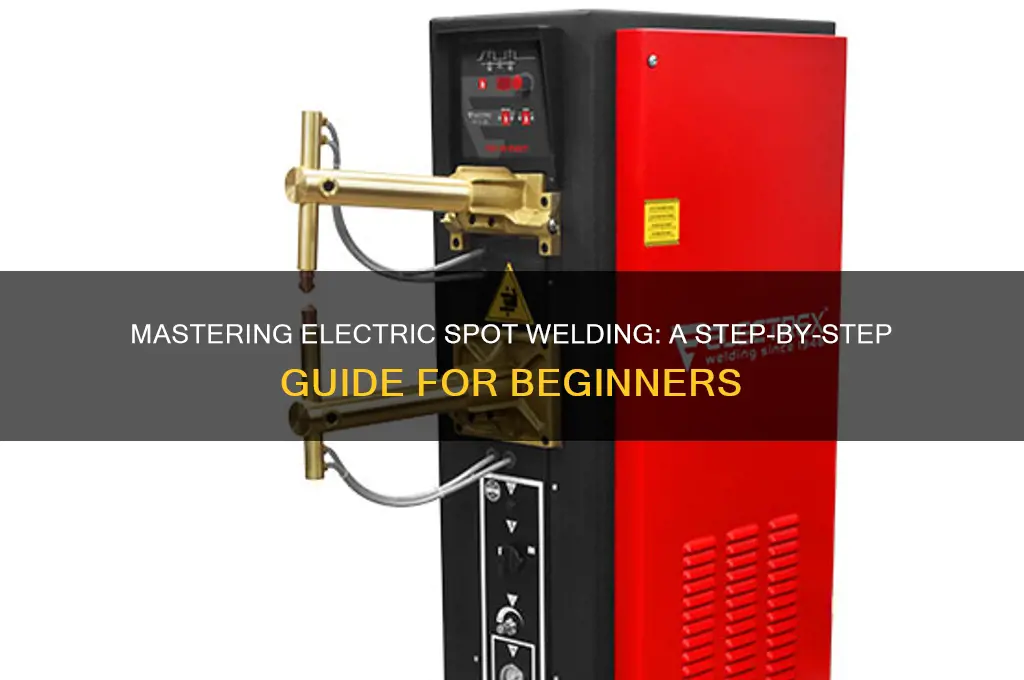

Using an electric spot welder requires careful preparation and attention to safety to achieve strong, reliable welds. Begin by ensuring the welder is properly set up and grounded, with all components inspected for damage or wear. Clean the metal surfaces to be welded, removing any rust, paint, or contaminants to ensure good conductivity. Adjust the electrode pressure and welding current according to the thickness and type of metal being joined. Position the workpieces securely between the electrodes, ensuring proper alignment. Once ready, activate the welder for the predetermined duration, typically a fraction of a second, allowing the electric current to generate heat and fuse the metals together. After welding, release the pressure and inspect the joint for quality. Always wear protective gear, including gloves and safety glasses, to shield against sparks and electrical hazards.
Explore related products
What You'll Learn
- Safety Gear and Precautions: Wear protective gear, ensure proper ventilation, and inspect the welder before use
- Setting Up the Machine: Connect power, adjust amperage, and clean electrodes for optimal performance
- Preparing Materials: Clean metal surfaces, align pieces, and clamp securely for accurate welding
- Welding Technique: Apply pressure, activate the welder, and hold until the cycle completes
- Post-Weld Inspection: Check weld strength, clean residue, and verify joint integrity for quality assurance
Safety Gear and Precautions: Wear protective gear, ensure proper ventilation, and inspect the welder before use
Electric spot welding generates intense heat, sparks, and fumes, making protective gear non-negotiable. Start with a welding helmet featuring an auto-darkening lens rated for arc eye protection. Leather welding gloves resistant to heat and sparks are essential, as are flame-retardant clothing and closed-toe leather boots. For eye and face protection, safety goggles or a face shield complement the helmet, especially when grinding or removing slag. Hearing protection, such as earplugs or earmuffs, guards against the welder’s high-pitched hum. This gear isn’t optional—it’s your first line of defense against burns, debris, and long-term health risks.
Proper ventilation is critical to disperse toxic fumes produced during spot welding. Always operate the welder in a well-ventilated area, preferably with open windows or doors. If working indoors, use a fume extractor or air filtration system to maintain air quality. Welding without adequate ventilation can lead to metal fume fever, a flu-like condition caused by inhaling zinc or copper oxide fumes. For small-scale projects, a simple exhaust fan may suffice, but larger operations require industrial-grade ventilation systems. Never weld in confined spaces without ensuring a constant flow of fresh air.
Before activating the spot welder, conduct a thorough inspection to prevent malfunctions and accidents. Check the power cord for fraying or damage, and ensure the electrodes are clean and properly aligned. Verify that the pressure adjustment mechanism is functioning smoothly and the timer settings are accurate. Inspect the cooling system, if applicable, to prevent overheating. Loose connections or worn components can cause electrical shorts or inconsistent welds. A pre-use checklist, such as testing the foot pedal and confirming ground connectivity, ensures the welder operates safely and efficiently.
Combining these precautions creates a safer welding environment, but consistency is key. Establish a routine: gear up fully, verify ventilation, and inspect the welder every time. Skip one step, and you risk injury or equipment damage. For instance, neglecting ventilation in a garage workshop can lead to fume buildup, while ignoring a cracked electrode can cause arcing or poor weld quality. Treat safety as a habit, not a checklist, and your spot welding projects will be both productive and hazard-free.
Using Electric Files on Metal: Benefits, Techniques, and Safety Tips
You may want to see also
Explore related products
Setting Up the Machine: Connect power, adjust amperage, and clean electrodes for optimal performance
Before firing up your electric spot welder, proper setup is crucial for safety, precision, and longevity. Begin by connecting the machine to a dedicated power source capable of handling its amperage requirements. Most industrial spot welders operate between 5,000 and 25,000 amps, so ensure your circuit breaker can accommodate this load. Use heavy-duty cables and secure connections to prevent overheating or electrical hazards.
Once powered, adjust the amperage settings based on the material thickness and type. For instance, 18-gauge steel typically requires 2,500–3,500 amps, while thicker materials like 10-gauge may demand up to 10,000 amps. Refer to the manufacturer’s guidelines or conduct test welds to fine-tune the settings. Overloading the machine with excessive amperage can damage the electrodes or warp the workpiece, while insufficient power results in weak, incomplete welds.
Electrode maintenance is often overlooked but critical for consistent performance. Clean the electrodes before each use to remove oxidation, debris, or residual material buildup. Use a fine-grit emery cloth or dedicated electrode cleaning stone to restore their smooth, flat surface. Dirty or pitted electrodes reduce conductivity, increase resistance, and compromise weld quality. For prolonged use, consider rotating or replacing electrodes to maintain optimal contact and heat distribution.
Finally, inspect the machine’s cooling system, as spot welders generate intense heat during operation. Ensure water or air cooling systems are functioning properly to prevent overheating. Regularly check coolant levels and clean filters to avoid blockages. By meticulously connecting power, calibrating amperage, and maintaining electrodes, you’ll maximize the efficiency and lifespan of your spot welder while achieving professional-grade results.
Using a Bass Amp with Electric Guitar: Pros, Cons, and Tips
You may want to see also
Explore related products
Preparing Materials: Clean metal surfaces, align pieces, and clamp securely for accurate welding
Clean metal surfaces are the foundation of a strong weld. Oxidation, grease, or debris act as barriers, preventing the electric current from flowing efficiently and creating a weak bond. Think of it like trying to glue two dusty surfaces together – the adhesive won’t penetrate properly. Use a wire brush or sandpaper to remove rust and paint, followed by a wipe with acetone or a degreaser to eliminate oils. This ensures the welder’s electrodes make direct contact with the metal, allowing the heat and pressure to fuse the pieces effectively.
Alignment is critical for both aesthetics and structural integrity. Misaligned pieces result in uneven pressure distribution during welding, leading to weak spots or incomplete fusion. Imagine trying to staple two sheets of paper together when they’re slightly offset – the staple won’t hold. Use a square, ruler, or jig to position the metal pieces precisely. For complex shapes, consider tack welding (a quick, temporary weld) to hold components in place before spot welding. This prevents shifting during the final weld, ensuring a clean, professional finish.
Clamping is the unsung hero of spot welding. Insufficient clamping pressure causes arcing, where the electric current jumps through the air instead of the metal, creating a weak or non-existent weld. Too much pressure, however, can deform thin materials. Aim for firm, even pressure that holds the pieces together without bending them. Use clamps specifically designed for spot welding, ensuring they’re clean and in good condition. For thicker materials, increase clamping force gradually, testing on scrap metal to find the optimal balance.
The interplay of these steps – cleaning, aligning, and clamping – determines the success of your weld. Skipping any one step compromises the entire process. For instance, perfectly aligned and clamped pieces will still fail if the surfaces are contaminated. Conversely, clean, well-clamped metal is useless if misaligned. Master these preparatory steps, and you’ll achieve consistent, high-quality spot welds every time. Remember, in spot welding, precision in preparation is just as important as the welding itself.
Do Boiling Water Taps Consume Excessive Electricity? Energy Usage Explained
You may want to see also
Explore related products
Welding Technique: Apply pressure, activate the welder, and hold until the cycle completes
Mastering the technique of applying pressure, activating the welder, and holding until the cycle completes is crucial for achieving strong, consistent spot welds. This three-step process forms the core of electric spot welding, ensuring proper fusion of materials without overheating or damaging the workpieces.
Step-by-Step Execution: Begin by positioning the electrodes firmly against the metal surfaces to be joined. Apply steady, even pressure, typically ranging from 200 to 1,000 pounds, depending on material thickness and type. This pressure ensures intimate contact between the metals and the electrodes, facilitating efficient heat transfer. Once pressure is applied, activate the welder by depressing the foot pedal or trigger. The machine will deliver a controlled burst of electrical current, melting the metal at the point of contact. Hold the pressure and current for the duration of the welding cycle, which usually lasts between 0.05 to 0.5 seconds, depending on the welder’s settings and material requirements. Releasing pressure prematurely can result in weak or incomplete welds.
Analyzing the Science Behind the Technique: The success of this method hinges on the balance between pressure, current, and time. Pressure ensures the electrodes maintain contact with the metal, while the current generates heat through resistance, melting the metal at the interface. Holding the pressure and current until the cycle completes allows the molten metal to solidify, forming a robust bond. Over-application of pressure or current can lead to expulsion of molten metal, while insufficient pressure or time results in cold welds. Understanding these variables enables precise control over the welding process, ensuring optimal results.
Practical Tips for Consistency: Always pre-clean the metal surfaces to remove oxides, oils, or contaminants that can hinder conductivity and weld quality. Use a wire brush or solvent for thorough cleaning. For thin materials, reduce pressure and current to prevent burn-through, while thicker materials may require higher settings. Practice on scrap pieces to calibrate the welder’s settings for your specific application. Additionally, ensure the electrodes are clean and properly aligned to maximize contact efficiency. Regularly inspect and replace worn electrodes to maintain consistent performance.
Comparative Advantage Over Other Methods: Unlike MIG or TIG welding, spot welding is faster, more energy-efficient, and requires minimal post-weld cleanup. Its precision makes it ideal for joining thin sheets or delicate components without warping. However, it demands strict adherence to the apply-activate-hold technique to avoid defects. Compared to manual methods, the automated nature of electric spot welders reduces operator fatigue and increases repeatability, making it a preferred choice in high-volume manufacturing environments.
Takeaway for Effective Spot Welding: The apply-activate-hold technique is deceptively simple yet demands attention to detail. By mastering pressure application, timing, and machine settings, you can achieve professional-grade spot welds consistently. Remember, precision in each step directly translates to weld strength and durability. Whether you’re working on automotive panels, electronics enclosures, or metal artwork, this technique is your foundation for success in electric spot welding.
Mastering the Electric Smoker: Tips for Perfectly Smoked Meats
You may want to see also
Explore related products
Post-Weld Inspection: Check weld strength, clean residue, and verify joint integrity for quality assurance
After the electric spot welder has done its job, the real test begins—ensuring the weld meets the required standards. Post-weld inspection is a critical step that bridges the gap between a completed weld and a reliable joint. Start by assessing weld strength, which can be done through non-destructive testing methods like tensile or shear tests. For instance, a tensile test applies force to the weld until it breaks, providing a quantitative measure of its strength. Aim for a minimum tensile strength of 70% of the base metal’s strength, as recommended by industry standards like AWS D8A.W2.
Cleaning residue is equally vital, as leftover flux, spatter, or discoloration can compromise the weld’s appearance and functionality. Use a wire brush or stainless steel brush to remove surface impurities, followed by a solvent wipe to eliminate oils or contaminants. For precision work, a mild abrasive pad can smooth the weld area without damaging the joint. Avoid harsh chemicals that may corrode the metal, especially in applications like automotive or aerospace where material integrity is paramount.
Verifying joint integrity goes beyond visual inspection. Employ tools like a magnifying glass or borescope to examine the weld for cracks, porosity, or incomplete fusion. For critical applications, advanced techniques such as ultrasonic testing or dye penetrant inspection can detect subsurface defects. A common rule of thumb is to inspect 10–20% of welds randomly, but high-risk projects may require 100% inspection. Document findings meticulously, as this data is invaluable for quality control and future process improvements.
Finally, consider the context of the weld. A spot weld on a household appliance may tolerate minor imperfections, but a weld in a structural beam demands flawless execution. Tailor your inspection methods to the application’s requirements, balancing thoroughness with efficiency. By systematically checking strength, cleaning residue, and verifying integrity, you ensure the weld not only looks good but performs reliably under stress. This meticulous approach transforms a simple weld into a cornerstone of quality assurance.
Can Non-Tesla EVs Use Tesla Superchargers? Compatibility Explained
You may want to see also
Frequently asked questions
Always wear protective gear, including welding gloves, safety glasses, and a welding helmet. Ensure the work area is well-ventilated, and keep flammable materials away. Inspect the welder for damaged cords or faulty components before use, and disconnect power when not in operation.
Refer to the material thickness and type to determine the appropriate amperage and timing. Start with the manufacturer’s recommended settings and adjust based on test welds. Thicker materials typically require higher amperage and longer weld times.
Weak or inconsistent welds may result from improper electrode pressure, incorrect amperage, or dirty surfaces. Ensure the electrodes are clean and properly aligned, apply consistent pressure, and clean the workpieces to remove oxides or contaminants before welding.
