Beatrice Lang

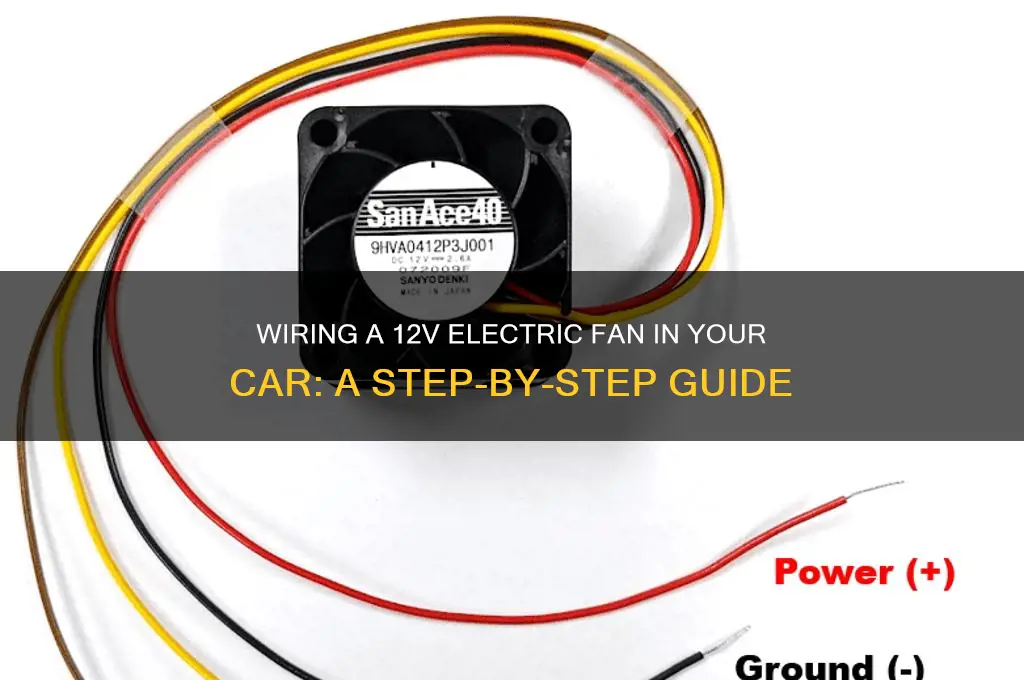

Wiring a 12V electric fan in a car is a practical upgrade that can improve cooling efficiency, especially in older vehicles or those with high-performance engines. To begin, gather the necessary tools and materials, including the fan, a relay, a fuse, wiring, and connectors. Start by locating a suitable power source, such as the battery or a fused accessory circuit, and ensure the fan’s amperage rating matches the circuit’s capacity. Install a relay to protect the fan and switch from high current draw, connecting the relay’s power input to the battery and its ground to the chassis. Wire the fan to the relay’s output and add an inline fuse for safety. Finally, connect a switch to control the fan’s operation, ensuring all connections are secure and insulated. This setup ensures reliable performance while minimizing the risk of electrical issues.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire cutters, crimpers, connectors, 12V fan, relay, fuse, switch, and wiring loom
- Locate Power Source: Identify a 12V switched power source in the car’s fuse box or battery
- Install Relay: Connect relay to power, ground, and fan, ensuring proper wiring for safety
- Add Switch: Wire a toggle switch to control fan activation, linking it to the relay
- Test & Secure: Verify fan operation, secure all connections, and tidy wiring with zip ties
Gather Tools & Materials: Wire cutters, crimpers, connectors, 12V fan, relay, fuse, switch, and wiring loom
Before you embark on wiring a 12V electric fan in your car, it’s crucial to assemble the right tools and materials. This ensures a smooth, safe, and efficient installation process. Start with wire cutters, which will allow you to trim wires to the exact length needed, preventing clutter and potential short circuits. Pair these with crimpers, essential for securely attaching connectors to wires, ensuring a reliable electrical connection. Without these two tools, your wiring job could end up sloppy or unsafe.
Next, gather connectors compatible with your car’s wiring system. These come in various types, such as spade, bullet, or butt connectors, depending on your fan and vehicle setup. A 12V fan is the centerpiece of your project, so choose one with the appropriate CFM (cubic feet per minute) rating for your cooling needs. Don’t overlook the relay, a critical component that protects your car’s electrical system by handling the high current draw of the fan. Without a relay, you risk overloading your switch or wiring.
Safety should never be an afterthought, so include a fuse in your materials list. A 10-20 amp fuse, depending on your fan’s specifications, will protect the circuit from overcurrent. A switch is equally important, allowing you to control the fan manually or integrate it with your car’s thermostat. Finally, a wiring loom keeps everything organized, protecting wires from heat, moisture, and abrasion. Skipping this step could lead to premature wire failure or even fire hazards.
When sourcing these materials, prioritize quality over cost. Cheap connectors or a low-grade relay might save you a few dollars upfront but could fail under stress, leaving you with a non-functional fan or worse, a damaged vehicle. Always refer to your fan’s manual for specific wiring diagrams and fuse ratings. With the right tools and materials in hand, you’re well-prepared to tackle the wiring process confidently and safely.
Illinois' Shift: When the Electric Chair Was Retired for Good
You may want to see also
Explore related products
Locate Power Source: Identify a 12V switched power source in the car’s fuse box or battery
The first step in wiring a 12V electric fan in your car is pinpointing a reliable power source that activates when the ignition is on. This ensures your fan operates only when the vehicle is running, preventing battery drain. The fuse box is often the ideal location, as it houses numerous switched circuits tied to the ignition. Look for a fuse labeled for accessories or use a multimeter to test each slot, identifying one that powers on with the key but shuts off when the engine is off. This method is both safe and efficient, leveraging existing systems without overloading circuits.
While the fuse box is the preferred choice, the battery can serve as a direct power source in simpler installations. However, this approach requires a relay to switch the fan on and off with the ignition. Connect the relay’s control wire to an ignition-switched source, such as the radio or accessory fuse, ensuring the fan activates only when needed. Avoid tapping directly into the battery without a relay, as this risks continuous power draw, potentially draining the battery overnight. Always fuse the connection at the battery terminal to protect against shorts.
For those seeking precision, a multimeter is an indispensable tool. Set it to measure voltage and probe the fuse box slots with the ignition off, noting which fuses are live (indicating constant power). Then, turn the ignition on and retest to identify newly powered fuses, signaling switched circuits. This method eliminates guesswork and ensures compatibility with your vehicle’s electrical system. Pair this with a fuse tap adapter for a clean, plug-and-play connection that maintains the factory appearance.
A common mistake is overlooking the amperage rating of the chosen circuit. Most accessory fuses are rated for 10–15 amps, sufficient for a single fan but not multiple devices. If your fan draws more than 10 amps, consider wiring it directly to the battery with a relay and a dedicated fuse holder. Use 14–12 gauge wire for runs under 10 feet and 10 gauge for longer distances to minimize voltage drop. Always consult the fan’s specifications to match the wiring to its power requirements.
Finally, safety and longevity should guide your decision. Switched power from the fuse box is the most integrated solution, minimizing risk and maintaining warranty compliance. If opting for a battery connection, insulate all terminals, secure wires away from moving parts, and use heat shrink tubing to protect connections. Test the setup before finalizing it, ensuring the fan operates only when the ignition is on. This attention to detail prevents electrical faults and ensures your fan enhances, rather than complicates, your vehicle’s performance.
Why Electric Traction Powers Modern Transportation: Efficiency and Benefits Explained
You may want to see also
Explore related products
Install Relay: Connect relay to power, ground, and fan, ensuring proper wiring for safety
Installing a relay is a critical step when wiring a 12V electric fan in a car, as it protects the fan and ensures the system operates safely and efficiently. A relay acts as a switch, allowing a low-current circuit (like your fan switch) to control a high-current circuit (the fan motor). Without it, the fan’s amperage draw could overload the switch, leading to failure or even fire hazards. Start by selecting a relay rated for your fan’s amperage—typically 30–40 amps for most automotive fans. Ensure the relay has four or five pins: 85 (coil ground), 86 (coil power), 87 (normally open contact), 30 (power input), and optionally 87a (normally closed contact, if present).
Begin by connecting the relay to power. Attach pin 30 to a switched 12V power source, such as the accessory wire in your fuse box or a dedicated fan fuse. This ensures the fan only receives power when the ignition is on. Next, connect pin 87 to the fan’s positive terminal. This wire carries the high-current load from the relay to the fan. Use 14–16 gauge wire for this connection, depending on the fan’s amperage, and always fuse the power wire near the battery to prevent short circuits. Ground the fan directly to the chassis using a clean metal surface and a short, thick wire (10–12 gauge) to minimize voltage drop.
Now, wire the relay’s control circuit. Connect pin 86 to the fan switch’s output wire, which provides power to the relay coil when the switch is activated. This signal triggers the relay to close the high-current circuit. Ground pin 85 to the chassis or a reliable ground point to complete the coil circuit. Use 18–20 gauge wire for these low-current connections. Double-check that all connections are secure and insulated with heat shrink or electrical tape to prevent shorts.
Safety is paramount when wiring a relay. Always disconnect the battery before starting work to avoid accidental shorts. Test the system with a multimeter to confirm proper voltage at each connection point before reattaching the battery. If the fan doesn’t operate, check for loose connections, blown fuses, or incorrect relay pin assignments. A well-installed relay not only protects your fan but also integrates seamlessly into your vehicle’s electrical system, ensuring longevity and reliability.
Finally, consider adding a diode across the fan’s terminals (cathode to positive, anode to negative) to suppress voltage spikes caused by the fan’s motor winding when power is cut. This small step can prevent damage to the relay and other electronics. By following these steps and prioritizing safety, you’ll create a robust and efficient fan circuit that enhances your vehicle’s cooling system without compromising its electrical integrity.
Why I Switched to an Electric Razor: My Personal Experience
You may want to see also
Explore related products
Add Switch: Wire a toggle switch to control fan activation, linking it to the relay
Integrating a toggle switch into your 12V electric fan setup offers precise control over fan activation, ensuring it operates only when needed. Begin by selecting a SPST (single-pole, single-throw) toggle switch, which is ideal for this application due to its simplicity and reliability. Mount the switch in a convenient location, such as the dashboard or under the hood, ensuring it’s easily accessible but won’t interfere with driving. Use a 14-gauge wire to connect one terminal of the switch to the relay’s control pin (typically pin 86), and the other terminal to the positive terminal of the 12V power source. This setup allows the switch to activate the relay, which in turn powers the fan. Always secure connections with heat shrink tubing or electrical tape to prevent shorts.
The relay acts as the intermediary between the switch and the fan, handling the high current required to operate the fan while the switch manages the low-current control signal. When wiring the relay, ensure the power wire from the battery (fused with a 20A inline fuse) connects to pin 30, and the fan’s positive lead connects to pin 87. Ground both the relay (pin 85) and the fan to the chassis or battery negative terminal. This configuration ensures the fan only draws power when the switch is activated, preventing unnecessary drain on the battery. Test the setup by toggling the switch on and off to confirm the fan responds correctly.
One common mistake is bypassing the relay and connecting the switch directly to the fan, which can overload the switch and cause failure. The relay’s purpose is to handle the fan’s high amperage, while the switch merely triggers the relay. For added safety, incorporate a fuse holder inline with the power wire to protect against short circuits. If your fan draws more than 20A, adjust the fuse rating accordingly, but ensure it matches the fan’s specifications. Label wires during installation to avoid confusion, especially if working with multiple components.
A practical tip is to use a waterproof switch if mounting it under the hood, as exposure to moisture can cause corrosion and malfunction. Additionally, consider adding an LED indicator light wired in parallel with the switch to visually confirm when the fan is active. This not only enhances functionality but also adds a professional touch to your installation. By carefully linking the toggle switch to the relay, you gain full control over fan operation while maintaining a safe and efficient electrical system.
Efficient Electric Car Charging: Tips, Methods, and Best Practices
You may want to see also
Explore related products
Test & Secure: Verify fan operation, secure all connections, and tidy wiring with zip ties
Once your 12V electric fan is wired, the critical final step is to ensure everything functions correctly and is securely installed. Begin by testing the fan’s operation. Turn the ignition on and activate the fan switch or relay. Listen for smooth, consistent rotation and check for proper airflow. If the fan doesn’t start or operates erratically, double-check your wiring for loose connections, reversed polarity, or insufficient power supply. Use a multimeter to verify that 12 volts are reaching the fan motor. Testing under load (e.g., with the engine running) can reveal issues that might not appear during a static test.
Securing connections is just as vital as testing. Vibrations from the engine and road can loosen terminals over time, leading to intermittent operation or failure. Tighten all screw terminals and crimped connections, ensuring they’re snug but not over-tightened, which can damage wires. Apply dielectric grease to terminal contacts to prevent corrosion, especially in humid environments. For soldered connections, inspect for cold joints or cracks, and reheat if necessary. A loose connection isn’t just a nuisance—it’s a potential fire hazard.
Tidying wiring with zip ties isn’t merely about aesthetics; it’s about safety and longevity. Loose wires can chafe against sharp edges, melt on hot engine components, or get caught in moving parts. Bundle wires neatly, following the natural contours of the engine bay. Use heat-resistant zip ties rated for automotive applications, and avoid over-tightening, which can damage insulation. Route wires away from exhaust manifolds, alternators, and other heat sources. Aim for a professional, organized look that’s easy to inspect and troubleshoot later.
A practical tip: label wires during the initial wiring phase to avoid confusion during testing and securing. For example, mark the positive and negative leads to the fan, relay, and switch. This small step saves time and reduces errors when verifying connections. Additionally, consider adding a fuse inline with the fan’s power supply—typically a 10–20 amp fuse, depending on the fan’s draw—to protect against short circuits.
In conclusion, testing, securing, and tidying are non-negotiable steps in wiring a 12V electric fan. They transform a functional installation into a reliable, safe, and professional one. Skipping these steps risks not only fan failure but also potential damage to your vehicle. Treat this phase as the final polish on your project, ensuring your fan operates flawlessly for years to come.
The Evolution of Electric Vehicles: Understanding SOC
You may want to see also
Frequently asked questions
Use 14-16 gauge stranded copper wire, rated for automotive use, to handle the current and vibrations in a vehicle.
Connect the fan’s positive wire to a switched 12V power source (like the fuse box) and the negative wire to a good ground point, such as the chassis or battery negative terminal.
Yes, a relay is recommended to prevent overloading the switch or wiring. It allows the fan to draw power directly from the battery while using a low-current switch to activate it.
Use a fan controller or thermostat to regulate the fan’s speed or turn it on/off based on temperature. Alternatively, wire it to a manual switch for basic operation.
