Wiring a new garage for an electric car is a crucial step in ensuring your EV charging setup is safe, efficient, and compliant with local codes. This process involves assessing your garage’s electrical capacity, selecting the appropriate charging station, and upgrading your electrical panel if necessary to handle the additional load. Key considerations include choosing between Level 1 (120V) or Level 2 (240V) charging, installing dedicated circuits, and ensuring proper grounding and wiring to meet the demands of your electric vehicle. Hiring a licensed electrician is highly recommended to guarantee the work meets safety standards and to avoid potential hazards. Proper planning and execution will not only future-proof your garage but also enhance your EV ownership experience.
| Characteristics | Values |
|---|---|
| Electrical Service Upgrade | May require upgrading to 100A or 200A panel, depending on EV charger needs. |
| Circuit Breaker Size | Typically 40A or 50A double-pole breaker for Level 2 chargers. |
| Wiring Type | 8-gauge or 6-gauge stranded copper wire for Level 2 charging. |
| Outlet Type | NEMA 14-50 (common) or hardwired charger connection. |
| Voltage Requirement | 240V for Level 2 charging (faster than 120V Level 1). |
| Charger Power Output | 7.7 kW to 19.2 kW for Level 2 chargers (varies by model). |
| Charging Time | 4-8 hours for a full charge (depends on EV battery size and charger power). |
| Permits Required | Local electrical permits may be needed for installation. |
| Dedicated Circuit | Required for EV chargers to ensure consistent power delivery. |
| Grounding | Proper grounding is essential for safety (follow NEC guidelines). |
| Location of Charger | Near the parking spot, with easy access to the EV charging port. |
| Smart Charger Features | Optional: Wi-Fi connectivity, scheduling, and energy usage monitoring. |
| Cost Estimate | $500-$2,500 (includes charger, wiring, and installation). |
| Compatibility | Ensure charger is compatible with your EV model (e.g., J1772, CCS, Tesla). |
| Future Proofing | Consider higher amperage wiring (e.g., 50A) for future EV upgrades. |
| Safety Standards | Must comply with National Electrical Code (NEC) and local regulations. |
Explore related products
What You'll Learn
Planning Circuit Layout
Effective circuit layout begins with understanding the power demands of your electric vehicle (EV) charger. Most Level 2 chargers, the standard for home garages, require a dedicated 240-volt circuit with a minimum of 40 amps. This translates to a circuit breaker rated for 50 amps to account for potential surges. For high-power chargers or future-proofing, consider a 60-amp breaker and wiring sized accordingly. Consult your EV’s manual or manufacturer for specific requirements, as some models may demand higher amperage.
The placement of your charger is critical for both functionality and safety. Position it near where your car will park, minimizing cable length to reduce voltage drop and tripping hazards. Ensure the charger is at least 18 inches off the ground to comply with most building codes and to protect it from water damage. If your garage has a subpanel, locate the charger circuit breaker nearby for easier access and maintenance. Avoid running wires through areas prone to moisture or extreme temperatures, such as near water heaters or exterior walls without proper insulation.
Wiring selection is as important as the circuit breaker. Use 6-gauge copper wire for a 50-amp circuit or 4-gauge for a 60-amp setup. Aluminum wiring is generally discouraged due to its higher resistance and potential for overheating. Conduit is recommended to protect wires from physical damage and simplify future upgrades. Label all wires clearly at both ends to avoid confusion during installation or troubleshooting. If your garage is detached, factor in the additional length and potential voltage drop, which may require larger wire gauges.
Load management is often overlooked but essential, especially in older homes. Ensure your main electrical panel can handle the additional load of an EV charger. If your panel is near capacity, consider upgrading it or installing a subpanel in the garage. Smart chargers with load-balancing capabilities can prevent overloading by communicating with your home’s electrical system. For households with multiple EVs or high energy usage, consult an electrician to assess your overall electrical infrastructure.
Finally, local codes and permits are non-negotiable. Research your area’s electrical codes, as requirements for grounding, GFCI protection, and wiring methods can vary. Obtain the necessary permits before starting work, and schedule inspections at key stages to ensure compliance. While DIY installation is possible for experienced homeowners, hiring a licensed electrician is recommended to avoid costly mistakes and ensure safety. Proper planning and adherence to regulations will not only protect your investment but also provide peace of mind for years to come.
High Energy Consumption: Top UK Appliances Draining Your Electricity Bills
You may want to see also
Explore related products
Choosing Correct Wire Gauge
Selecting the right wire gauge is critical for safely and efficiently powering your electric vehicle (EV) charger. The gauge, measured in American Wire Gauge (AWG), determines the wire's diameter and current-carrying capacity. A lower AWG number indicates a thicker wire, capable of handling higher amperage without overheating. For most home EV chargers, 6 AWG wire is a common choice, supporting up to 50 amps, which aligns with Level 2 charging requirements. However, if your charger demands more power or your garage is far from the electrical panel, you may need 4 AWG or even 2 AWG to minimize voltage drop and ensure optimal performance.
Consider the distance between your electrical panel and the garage when choosing wire gauge. Voltage drop becomes a significant concern as the length increases, especially with thinner wires. A general rule of thumb: for runs over 50 feet, upgrade to a thicker gauge to maintain efficiency. For example, a 100-foot run at 50 amps may require 3 AWG wire instead of 6 AWG to keep voltage drop within acceptable limits (typically under 3%). Online voltage drop calculators can help you determine the exact gauge needed based on your setup.
While thicker wires are safer and more efficient, they come with higher costs and installation challenges. 10 AWG wire, often used for lighter applications, is insufficient for EV charging and could pose a fire hazard under high loads. Conversely, 2 AWG wire, though overkill for most residential setups, provides ample capacity for future upgrades or high-power chargers. Balance your current needs with potential future demands to avoid costly rewiring later.
Always consult local electrical codes and a licensed electrician to ensure compliance and safety. DIY installations without proper knowledge can void warranties or create hazards. For instance, using 8 AWG wire for a 40-amp charger might seem cost-effective but could violate NEC (National Electrical Code) requirements, which mandate 6 AWG or thicker for such applications. Prioritize safety and long-term reliability over short-term savings.
In summary, choosing the correct wire gauge involves assessing your charger’s amperage, the distance from the panel, and future scalability. While 6 AWG is a standard choice for Level 2 chargers, longer runs or higher power demands may necessitate thicker options like 4 AWG or 2 AWG. Always adhere to codes, use voltage drop calculations, and consult professionals to ensure a safe and efficient installation.
Why Electric Cars Accelerate Faster: Unlocking Instant Torque Power
You may want to see also
Explore related products

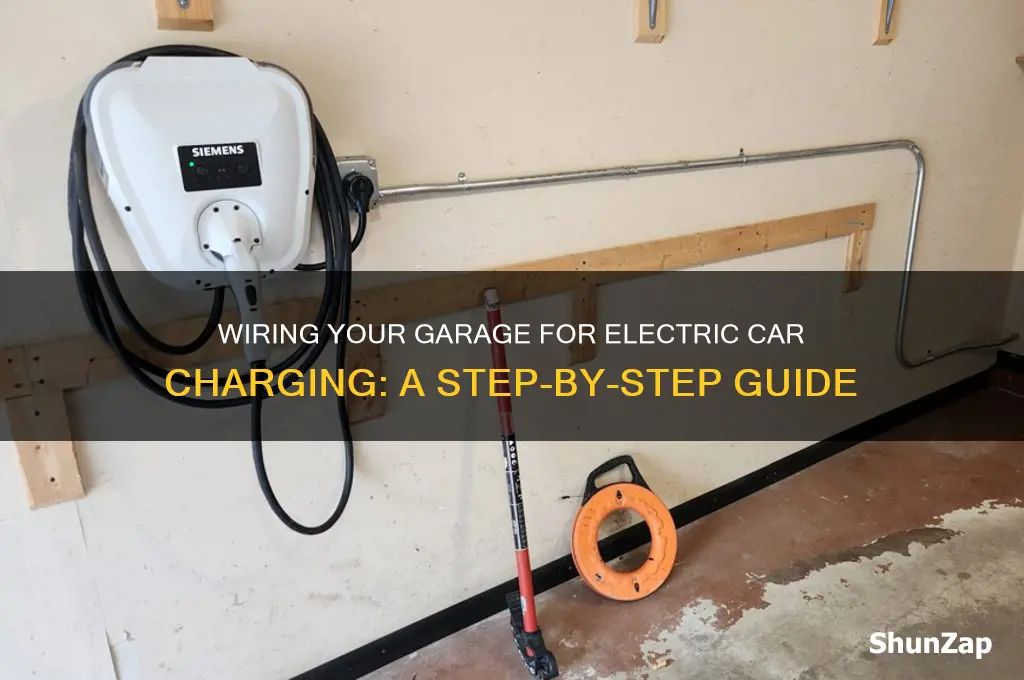

Installing Charging Station
Installing a charging station in your garage is a pivotal step in transitioning to electric vehicle (EV) ownership. The process begins with selecting the right charger, typically categorized as Level 1 (120V) or Level 2 (240V). Level 1 chargers use a standard household outlet and provide about 5 miles of range per hour, suitable for occasional use. Level 2 chargers, however, require a dedicated 240V circuit and deliver up to 30 miles of range per hour, making them ideal for daily drivers. Assess your driving habits and garage’s electrical capacity before deciding.
Once you’ve chosen the charger, planning the installation is critical. Start by identifying the optimal location for the charging station—ideally near where your car will park, with easy access to the electrical panel. Ensure the area is well-ventilated and protected from weather elements. Next, consult a licensed electrician to evaluate your home’s electrical system. Upgrading the panel or adding a subpanel may be necessary if your current setup can’t handle the additional load. Permits and inspections are often required, so factor in local regulations to avoid delays.
The installation itself involves running a dedicated circuit from the electrical panel to the charging station. For Level 2 chargers, this typically requires 40-50 amp wiring, depending on the model. Conduit or cable trays may be used to protect the wiring and comply with safety standards. The charging station is then mounted securely on the wall, with the charging cable positioned for convenience. Proper grounding and weatherproofing are essential to prevent hazards and ensure longevity.
Beyond the technical aspects, consider smart features that enhance usability. Many modern chargers offer Wi-Fi connectivity, allowing you to monitor usage, schedule charging during off-peak hours, and integrate with renewable energy systems. Some models even include load balancing to prevent overloading your electrical system. While these features add to the cost, they provide long-term value by optimizing efficiency and reducing energy bills.
Finally, test the charging station thoroughly after installation. Verify that it communicates correctly with your EV and delivers the expected charging speed. Keep the user manual and warranty information handy for future reference. Regularly inspect the station for wear or damage, and schedule professional maintenance as needed. With a well-installed charging station, your garage becomes a reliable hub for powering your electric vehicle, simplifying the transition to sustainable transportation.
Global Biomass Electricity Usage: Understanding Its Share in World Energy
You may want to see also
Explore related products
Grounding and Safety Measures
Proper grounding is the unsung hero of any electrical installation, especially in a garage housing an electric vehicle (EV) charger. Without it, you risk electrical shocks, equipment damage, and even fires. The National Electrical Code (NEC) mandates a dedicated grounding electrode system for EV charging stations, typically a ground rod driven at least 8 feet into the earth. This provides a direct path for stray electrical currents to dissipate harmlessly, preventing them from energizing your car, tools, or even the concrete floor.
Think of grounding as a safety net, catching potential electrical faults before they escalate into disasters.
While a grounding electrode is essential, it's just one piece of the puzzle. Equally crucial is the grounding conductor, a bare copper wire connecting the charger, electrical panel, and grounding electrode. This conductor must be sized appropriately for the charger's amperage, typically #6 AWG for a 50-amp charger. Skimping on wire gauge or using inferior materials like aluminum can compromise the grounding system's effectiveness, leaving you vulnerable to electrical hazards. Remember, a weak link in the grounding chain renders the entire system unreliable.
Regularly inspect your grounding connections for corrosion or looseness, ensuring they remain secure and conductive.
Don't underestimate the importance of GFCI (Ground Fault Circuit Interrupter) protection. These devices constantly monitor the flow of electricity, instantly shutting off power if they detect a leakage current as small as 4-6 milliamperes. This rapid response can prevent severe shocks or electrocution, especially in damp environments like garages. Install GFCI breakers in your electrical panel for the EV charger circuit and consider GFCI outlets for any additional garage receptacles. While GFCIs add a layer of protection, they shouldn't replace proper grounding. Think of them as a backup system, not a substitute for a robust grounding infrastructure.
Finally, remember that safety is a holistic approach. Beyond grounding and GFCIs, ensure your garage wiring meets all local codes and regulations. Use conduit to protect wires from damage, keep combustibles away from electrical panels, and label all circuits clearly. Regularly inspect your electrical system for signs of wear and tear, and never attempt DIY electrical work unless you're a qualified electrician. By prioritizing grounding and implementing comprehensive safety measures, you can confidently charge your EV knowing you've minimized the risks associated with electricity.
Electric Car Charging Options in Big Bend National Park: What to Expect
You may want to see also
Explore related products
Connecting to Main Panel
Before connecting your garage's electric vehicle (EV) charger to the main panel, assess your electrical system's capacity. Most homes have a 100- or 200-amp service, but charging an EV can draw 30 to 50 amps, depending on the charger level. A Level 2 charger, which is common for home installations, typically requires a dedicated 40- to 50-amp circuit. Verify your panel has enough available amperage and space for a new double-pole breaker. If not, upgrading the main panel or subpanel may be necessary, adding significant cost and complexity to the project.
Once you confirm compatibility, the next step is installing the dedicated circuit. Begin by turning off the main breaker to ensure safety. Run a 240-volt cable (typically 6- or 8-gauge wire, depending on the charger’s requirements) from the main panel to the garage. Use conduit to protect the wiring, especially if running it underground or through unfinished areas. At the panel, connect the wires to a double-pole breaker, ensuring the breaker’s amperage matches the charger’s specifications. Proper grounding is critical—attach the ground wire to the panel’s grounding bar and the neutral wire to the neutral bar, following local electrical codes.
A common mistake in this process is underestimating the importance of load management. If your home’s electrical usage is already high, adding an EV charger could overload the system. Consider installing a load management device or smart charger that communicates with your home’s electrical system to prevent overloading. Some advanced chargers can throttle back during peak usage times, ensuring your circuit breaker doesn’t trip. This not only protects your electrical system but also optimizes charging efficiency.
Finally, after the physical connection is complete, test the circuit thoroughly. Use a voltage tester to confirm the charger is receiving the correct 240 volts. Plug in the EV and monitor the system during the first few charging sessions to ensure there are no overheating issues or tripped breakers. If problems arise, consult a licensed electrician to troubleshoot. Proper installation not only ensures safety but also maximizes the lifespan of your EV and charging equipment.
Top UK Home Electricity Consumers: What Drains Your Energy Most?
You may want to see also
Frequently asked questions
You’ll need a dedicated 240-volt circuit with at least 40-amp capacity for most Level 2 chargers. Use 8-gauge or 6-gauge stranded copper wire for safety and efficiency.
Yes, most local building codes require a permit for electrical work. Check with your local municipality or hire a licensed electrician to ensure compliance.
While DIY installation is possible if you’re experienced with electrical work, hiring a licensed electrician is recommended to ensure safety, compliance with codes, and proper installation.
The distance depends on your garage layout, but the wiring should be as direct as possible to minimize voltage drop. Most installations are within 50 feet of the panel.
Ensure the circuit is GFCI-protected, use weatherproof materials if the charger is near moisture, and install the charger at least 12 inches off the ground to prevent water damage. Always turn off power before working on the wiring.
