Wiring electric brakes on a car is a crucial task for ensuring safe towing, as it allows the trailer’s braking system to synchronize with the vehicle’s. The process involves connecting the brake controller, typically mounted under the dashboard, to the trailer’s electric brake system via a dedicated wiring harness. Key steps include identifying the correct wires for power, ground, and brake output, ensuring proper grounding to prevent malfunctions, and using a breakaway kit for emergency situations. It’s essential to follow the manufacturer’s instructions and local regulations, as improper installation can lead to unsafe towing conditions. Testing the system thoroughly before use is also vital to confirm functionality and reliability.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire, connectors, brake controller, multimeter, wire strippers, electrical tape, and safety gear
- Locate Brake Wiring Harness: Identify the car’s wiring harness for trailer brakes near the rear
- Connect Brake Controller: Install the brake controller under the dashboard and link it to the harness
- Wire Trailer Connector: Attach wires to the trailer connector, ensuring proper color-coded connections for brakes and lights
- Test Brake System: Verify functionality using a multimeter and perform a road test for safety
Gather Tools & Materials: Wire, connectors, brake controller, multimeter, wire strippers, electrical tape, and safety gear
Before you embark on wiring electric brakes for your car, it’s critical to assemble the right tools and materials. Skipping this step can lead to frustration, wasted time, and potential safety hazards. Start with the essentials: wire (typically 12-gauge for most applications), connectors (weatherproof and compatible with your vehicle’s wiring harness), and a brake controller (choose one that matches your trailer’s brake system and your vehicle’s electrical capacity). These components form the backbone of your project, ensuring reliable communication between your car and trailer brakes.
Next, consider the tools that will make your job precise and efficient. A multimeter is indispensable for testing voltage, continuity, and ground connections, preventing misdiagnosis of electrical issues. Wire strippers are equally crucial; using a knife or pliers risks damaging the wire, leading to poor connections. Opt for a stripper with adjustable settings to accommodate different wire gauges. Electrical tape, while often overlooked, is vital for insulating spliced wires and preventing short circuits. Its durability in outdoor conditions ensures longevity, especially when paired with heat-shrink tubing for added protection.
Safety gear isn’t just a formality—it’s a necessity. Wear insulated gloves to protect against accidental shocks, particularly when working near the battery or under the dashboard. Safety goggles shield your eyes from debris when stripping wires or drilling holes for mounting the brake controller. A fire extinguisher should be within reach, as electrical work carries a risk of sparks or overheating. These precautions may seem excessive, but they’re far less costly than dealing with injuries or vehicle damage.
Finally, organize your workspace to streamline the process. Lay out all tools and materials within arm’s reach to avoid mid-task interruptions. Label wires with their intended connections (e.g., “trailer ground,” “brake output”) to prevent confusion later. If you’re working outdoors, check the weather forecast—moisture can compromise electrical connections. By treating this preparatory step as seriously as the wiring itself, you’ll set the stage for a smooth, error-free installation.
AC vs. Air Compressor: Which Consumes More Electricity?
You may want to see also
Explore related products
Locate Brake Wiring Harness: Identify the car’s wiring harness for trailer brakes near the rear
The first step in wiring electric brakes on your car is locating the brake wiring harness, a critical component often tucked away near the rear of the vehicle. This harness is specifically designed to interface with trailer brake systems, ensuring seamless communication between your car and the trailer’s braking mechanism. Typically, manufacturers place this harness near the rear bumper or under the vehicle’s frame, close to the taillights or hitch assembly. Identifying it requires a keen eye and possibly a flashlight, as it’s often concealed by protective coverings or bundled with other wires.
Analyzing the harness’s location reveals its strategic placement. Proximity to the rear ensures minimal signal loss and reduces the need for lengthy wiring runs, which can introduce interference or voltage drop. Most modern vehicles come pre-equipped with this harness, even if the car wasn’t initially configured for towing. If your vehicle lacks one, aftermarket kits are available, though factory-installed harnesses are preferred for their seamless integration and reliability. Understanding this placement is key to avoiding unnecessary modifications or costly mistakes during installation.
To locate the harness, start by consulting your vehicle’s manual, which often includes diagrams or descriptions of its position. If the manual isn’t available, inspect the area around the rear bumper, hitch, or taillights. Look for a bundled set of wires with a connector plug, often wrapped in protective sheathing. In some cases, the harness may be labeled or color-coded for easy identification. If you’re still unsure, online forums or manufacturer-specific resources can provide vehicle-specific guidance.
A practical tip for verification is to use a multimeter to test for continuity between the harness and the brake controller (if already installed). This ensures the harness is functional and correctly wired. If the harness is damaged or inaccessible, consider consulting a professional to avoid compromising safety. Proper identification of this component sets the foundation for a successful electric brake installation, ensuring your trailer responds reliably to your car’s braking system.
Who Uses Electric Acoustic Guitars? Exploring Diverse Players and Genres
You may want to see also
Explore related products
Connect Brake Controller: Install the brake controller under the dashboard and link it to the harness

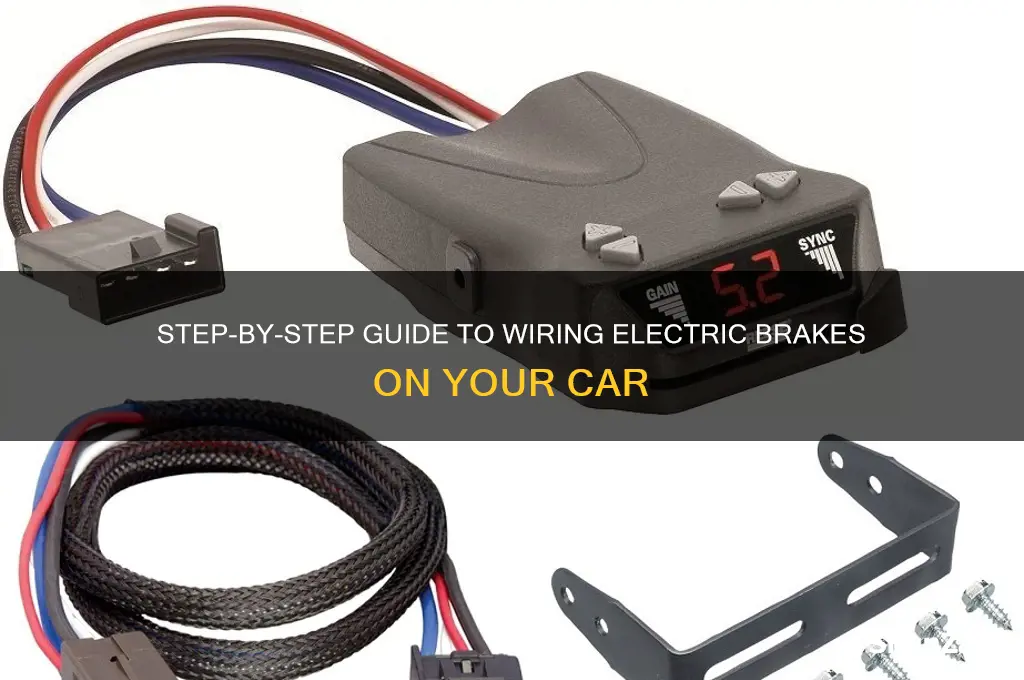

Installing the brake controller under the dashboard is a pivotal step in wiring electric brakes on a car, as it acts as the central command for brake activation. Begin by selecting a location that’s easily accessible yet out of the driver’s line of sight, such as beneath the dash near the steering column. Most brake controllers come with mounting hardware, so use a drill and screwdriver to secure it firmly. Ensure the controller is level and stable to prevent vibration-related damage during driving. This placement not only ensures functionality but also keeps the interior aesthetics intact.
Once mounted, the next critical task is linking the brake controller to the vehicle’s harness. Start by identifying the correct wires: the power wire (usually red), the ground wire (black), and the brake output wire (often blue). Connect the power wire to a 12-volt constant power source, such as the battery or a fused accessory circuit, to ensure the controller operates even when the ignition is off. Ground the black wire to a clean, unpainted metal surface on the vehicle’s chassis for a reliable electrical connection. Finally, attach the brake output wire to the trailer brake wire in the harness, typically found near the rear of the vehicle.
A common oversight is neglecting to install a fuse in the power wire, which can lead to electrical shorts or controller damage. Always use a fuse rated for the controller’s amperage, typically 10–15 amps, and place it within 12 inches of the power source. This safeguards the system and complies with safety standards. Additionally, use dielectric grease on all connections to prevent corrosion, especially in vehicles frequently exposed to moisture or road salt.
For a seamless integration, consider using a vehicle-specific wiring harness adapter, available for many modern cars. These plug directly into the factory wiring, eliminating the need for splicing and reducing the risk of errors. If an adapter isn’t available, carefully strip and solder the wires, then cover them with heat-shrink tubing for a professional finish. Test the connections with a multimeter to ensure continuity before proceeding.
In conclusion, connecting the brake controller to the harness is a blend of precision and practicality. By following these steps—mounting the controller securely, linking wires correctly, and incorporating safety measures—you’ll ensure a reliable and efficient electric brake system. This process not only enhances towing safety but also extends the lifespan of your braking components, making it a worthwhile investment for any towing setup.
Electric Car MOT Requirements: What You Need to Know
You may want to see also
Explore related products
Wire Trailer Connector: Attach wires to the trailer connector, ensuring proper color-coded connections for brakes and lights
The trailer connector is the nerve center of your trailer’s electrical system, bridging the car’s power to the trailer’s brakes and lights. Properly attaching wires here is critical—a single misconnection can lead to brake failure or lighting malfunctions. Most connectors follow a standardized color-coding system: white for ground, brown for tail lights, yellow for left turn/brake, green for right turn/brake, and blue or red for electric brakes. Deviations exist, so always verify with your trailer’s manual or manufacturer specifications.
Begin by stripping the ends of each wire to expose ½ inch of clean copper, ensuring a secure connection. Use a wire stripper to avoid nicking the strands, which can weaken the connection. Insert each wire into its corresponding terminal on the trailer connector, tightening the screws firmly but not excessively to prevent damage. For added reliability, apply dielectric grease to the terminals to repel moisture and corrosion, a common culprit in trailer electrical failures.
A common mistake is overlooking the ground wire, which is essential for completing the circuit. Attach the white ground wire to a clean, unpainted metal surface on the trailer frame, using a self-tapping screw or ring terminal. Inadequate grounding results in dim lights or non-functional brakes, so test the connection with a multimeter to confirm continuity. If your trailer uses a different color scheme, label each wire with its function before disconnecting the old harness to avoid confusion.
For trailers with electric brakes, the blue or red wire carries the brake signal from the car’s controller. Ensure this wire is connected to the correct terminal on the trailer connector and that the brake magnets are properly grounded. Test the brake system by activating the manual override on the controller while monitoring the trailer’s response. If the brakes fail to engage, recheck the connections and inspect for frayed wires or loose terminals.
Finally, secure the trailer connector with zip ties or electrical tape to prevent wires from snagging or pulling loose during travel. Periodically inspect the connector for signs of wear, corrosion, or damage, especially after exposure to water or road salt. A well-wired trailer connector not only ensures safety but also extends the lifespan of your trailer’s electrical components, saving time and money on repairs.
Christiana Mall Electric Car Charging Stations: Availability and Locations
You may want to see also
Explore related products
Test Brake System: Verify functionality using a multimeter and perform a road test for safety
Once the wiring for your electric brakes is complete, the critical next step is to ensure everything functions as intended. This involves a two-pronged approach: a meticulous multimeter test followed by a real-world road test.
Skipping this verification process could lead to dangerous brake failure or inconsistent performance while towing.
Begin by setting your multimeter to the appropriate voltage range, typically 12V DC, to match your vehicle's electrical system. With the ignition on, connect the multimeter's positive lead to the brake controller's output wire and the negative lead to a good ground point. Activate the manual brake control on your trailer brake controller and observe the multimeter reading. You should see a voltage corresponding to the controller's setting. For example, if your controller is set to 50% power, you should see around 6V at the output. If the reading is significantly lower or non-existent, check for loose connections, damaged wires, or a faulty brake controller.
A systematic approach, testing each wire connection individually, will help pinpoint the source of any issues.
Next, move to the trailer brakes themselves. With the trailer connected and the parking brake engaged, have an assistant depress the brake pedal while you visually inspect the trailer brakes for activation. You should see the brake magnets engage and hear a distinct clicking sound. If one or more brakes fail to activate, recheck the wiring connections at the brake assemblies and ensure the magnets are properly adjusted.
Remember, uneven brake activation can lead to trailer sway, a dangerous situation while towing.
The final, and arguably most crucial, step is the road test. Find a safe, open area free from traffic and pedestrians. Start with low-speed stops, gradually increasing your speed and braking force. Pay close attention to the trailer's response, ensuring it slows down evenly and in sync with the tow vehicle. Listen for any unusual noises, such as grinding or squealing, which could indicate improper brake adjustment or worn components.
This comprehensive testing procedure, combining multimeter verification and real-world road testing, is essential for ensuring the safety and reliability of your electric brake system. By meticulously checking each component and observing the system's performance under various conditions, you can confidently hit the road knowing your trailer brakes are up to the task. Remember, a well-maintained and properly functioning brake system is not just a legal requirement but a vital aspect of responsible towing.
Electric Vehicles: Are They Really Environmentally Friendly?
You may want to see also
Frequently asked questions
You will need a wiring harness kit, brake controller, 12-gauge wire, wire connectors, electrical tape, a circuit tester, wire strippers, and a screwdriver. Ensure the kit is compatible with your vehicle and trailer.
Locate the battery’s positive terminal and connect the brake controller’s power wire using a fuse holder and a 30-amp fuse. Then, ground the controller by attaching the ground wire to a clean metal surface on the car’s chassis.
Splice the electric brake wire into the rear taillight harness, specifically the wire that controls the brake lights. This ensures the brakes activate when the brake pedal is pressed. Use wire connectors and electrical tape for a secure connection.
With the car running and the trailer connected, activate the manual brake control on the brake controller. Check if the trailer brakes respond. Also, test the brake lights to ensure they work properly. Use a circuit tester to verify all connections are live and functioning.
