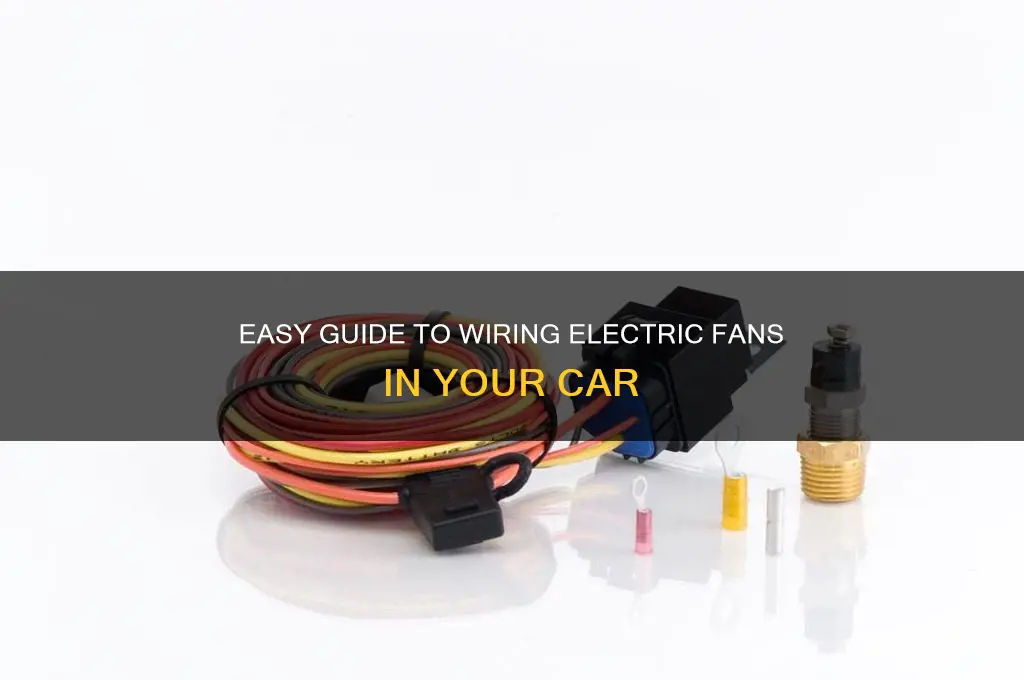

Wiring electric fans in a car is a popular upgrade for improving cooling efficiency, especially in high-performance or older vehicles. This process involves replacing the mechanical fan with an electric one, which is controlled by a thermostat or a manual switch to activate when needed. Proper installation requires understanding the electrical system, selecting the right fan and relay kit, and ensuring the wiring is correctly connected to the battery, fuse box, and temperature sensor. Careful attention to wiring diagrams and safety precautions, such as using appropriate gauge wires and securing connections, is essential to prevent overheating or electrical failures. This upgrade not only enhances engine cooling but also reduces parasitic drag, improving overall performance and fuel efficiency.
Explore related products
What You'll Learn
- Gather Tools & Materials: Wire cutters, crimpers, connectors, fan kit, relay, fuse, multimeter, electrical tape
- Locate Power Source: Identify 12V switched power source (e.g., alternator, fuse box) for fan connection
- Install Relay: Connect relay to power, ground, and fan, ensuring proper wiring for high current
- Wire Fan to Relay: Attach fan’s positive lead to relay output and ground to chassis
- Test & Secure Wiring: Verify fan operation, insulate connections, and secure wires to prevent damage
Gather Tools & Materials: Wire cutters, crimpers, connectors, fan kit, relay, fuse, multimeter, electrical tape
Before diving into the wiring process for electric fans on your car, it’s crucial to assemble the right tools and materials. This step ensures efficiency, safety, and a professional finish. Start with wire cutters, which are essential for trimming excess wiring and stripping insulation. Opt for a high-quality pair with ergonomic handles to minimize hand fatigue during intricate cuts. Next, crimpers are indispensable for securing connectors to wires, creating reliable joints that withstand vibration and heat. Choose a ratcheting crimper for consistent pressure and a secure crimp every time.
The connectors themselves are the backbone of your wiring setup. Select weatherproof, heat-resistant connectors to ensure longevity, especially in the engine bay where temperatures fluctuate. Your fan kit should include the fans, mounting hardware, and basic wiring, but double-check compatibility with your vehicle’s make and model. A relay is critical for managing the high current draw of electric fans, acting as a switch between the battery and the fans to prevent overloading the wiring harness. Pair it with a fuse rated for the fan’s amperage (typically 30–40 amps) to protect against short circuits.
A multimeter is your diagnostic lifeline, allowing you to test voltage, continuity, and resistance in your wiring. Invest in a digital multimeter with auto-ranging for ease of use, and familiarize yourself with its functions before starting. Lastly, electrical tape is a versatile tool for insulating connections and bundling wires neatly. Use it sparingly but effectively, ensuring no exposed wires remain. Together, these tools and materials form the foundation of a safe, efficient electric fan installation.
Comparing this setup to makeshift alternatives highlights its importance. Skipping the relay, for instance, risks melting wires or damaging the fan motor. Using inferior connectors can lead to corrosion or loose connections over time. By investing in the right tools and materials upfront, you save time, money, and potential headaches down the road.
In practice, organize your workspace with all tools within reach before beginning. Lay out wires and components in the order they’ll be installed to streamline the process. For beginners, label wires with their intended connections to avoid confusion. Remember, precision in this stage directly impacts the performance and reliability of your electric fans. Treat this preparation as the cornerstone of your project, and the wiring itself will follow smoothly.
Electric Striker Size Guide for 3-Way Fridges: What You Need
You may want to see also
Explore related products
Locate Power Source: Identify 12V switched power source (e.g., alternator, fuse box) for fan connection
The first step in wiring electric fans to your car is pinpointing a reliable 12V switched power source. Unlike constant power sources (which remain active even when the engine is off), switched sources activate only when the ignition is on, preventing battery drain. This ensures your fans operate efficiently without compromising your vehicle’s electrical system.
Analyzing your vehicle’s electrical layout reveals several potential candidates for this connection. The alternator, for instance, generates power while the engine runs, making it a logical choice. However, tapping directly into the alternator requires caution to avoid overloading its output. Alternatively, the fuse box offers a safer, more accessible option. Most modern vehicles have dedicated accessory fuse slots, often labeled as "ACC" or "AUX," designed for aftermarket additions like electric fans.
When selecting a power source, consider the fan’s amperage draw. A typical 12-inch electric fan consumes around 10–12 amps, while dual-fan setups can exceed 20 amps. Ensure the chosen source and wiring can handle this load without overheating or blowing fuses. For high-draw setups, consult your vehicle’s manual or a professional to verify compatibility.
A practical tip: Use a multimeter to test potential power sources before connecting the fans. Set the multimeter to DC voltage, touch the probes to the source’s positive and negative terminals, and turn the ignition on. A reading of 12–14V confirms a switched power source. This step eliminates guesswork and ensures a proper connection.
In conclusion, identifying the right 12V switched power source is critical for a safe and functional electric fan installation. Whether you opt for the alternator, fuse box, or another switched circuit, prioritize compatibility, safety, and ease of access. A well-chosen power source not only powers your fans effectively but also protects your vehicle’s electrical system from unnecessary strain.
Electric Car Seat Manual Override: Fact or Fiction?
You may want to see also
Explore related products
Install Relay: Connect relay to power, ground, and fan, ensuring proper wiring for high current
Relays are essential when wiring electric fans on a car because they handle high-current loads without overloading the vehicle’s wiring or switches. Acting as a bridge, the relay connects the fan to the battery’s power while isolating the control circuit, ensuring safety and efficiency. Without a relay, the fan’s current draw could melt wires, blow fuses, or damage the fan switch. This component is particularly critical for high-amperage fans, such as those used in performance or heavy-duty vehicles.
To install a relay, begin by identifying its terminals: typically, these are labeled as 30 (power), 87 (load), 85 (ground), and 86 (trigger). Connect the 30 terminal to a fused 12V power source, such as the battery or a dedicated fuse box. This ensures the relay receives constant power when the ignition is on. Next, attach the 87 terminal to the fan’s positive wire, allowing the relay to control power delivery to the fan. Ground the 85 terminal to the chassis or a clean metal surface to complete the relay’s internal circuit. Finally, connect the 86 terminal to the fan switch or ECU signal wire, which triggers the relay when activated.
Proper wiring is crucial to prevent overheating or failure. Use 12-14 gauge wire for high-current connections (power and fan) and 16-18 gauge wire for the trigger circuit. Always include an inline fuse (rated for the fan’s amperage) between the battery and the relay’s 30 terminal to protect against short circuits. Secure all connections with heat-shrink tubing or electrical tape, and route wires away from hot surfaces or moving parts. Test the setup by activating the fan switch; the relay should click, and the fan should operate smoothly.
A common mistake is neglecting the ground connection, which can cause intermittent fan operation or relay failure. Ensure the ground point is free of paint or rust for a solid connection. Additionally, avoid daisy-chaining multiple fans to a single relay unless the relay is rated for the combined amperage. For dual-fan setups, consider using a dual-pole relay or two separate relays to manage each fan independently. This approach enhances reliability and prevents overloading.
In summary, installing a relay for electric fans is a straightforward yet critical step in ensuring safe and efficient operation. By correctly connecting the relay to power, ground, and the fan, you protect your vehicle’s electrical system while maximizing the fan’s performance. Attention to wire gauge, fusing, and grounding will prevent common issues and extend the lifespan of your cooling system. Whether upgrading to a high-performance fan or replacing an old setup, a properly installed relay is the backbone of a reliable installation.
Electric Car Repairs: Costly Maintenance or Affordable Ownership?
You may want to see also
Explore related products
Wire Fan to Relay: Attach fan’s positive lead to relay output and ground to chassis
Wiring an electric fan to a relay is a critical step in ensuring your cooling system operates efficiently and safely. The process begins by connecting the fan’s positive lead to the relay’s output terminal. This setup allows the relay to act as a high-current switch, controlled by a low-current signal from your vehicle’s electrical system. By doing this, you prevent excessive load on the fan switch or ECU, which are not designed to handle the fan’s amperage directly. Grounding the fan’s negative lead to the chassis is equally important. This provides a stable return path for the current, reducing the risk of electrical interference and ensuring the fan operates reliably.
Consider the relay as the intermediary between your fan and the power source. Its primary function is to manage the high current draw of the fan without overburdening the control circuit. When selecting a relay, ensure it’s rated to handle the fan’s amperage, typically ranging from 20 to 40 amps for most electric fans. The relay’s output terminal is where the fan’s positive lead connects, while the ground wire attaches directly to a clean, unpainted metal surface on the chassis. This grounding point should be free of rust or paint to ensure a solid electrical connection.
A common mistake is neglecting proper grounding, which can lead to erratic fan behavior or even damage. To avoid this, use a wire brush to clean the grounding area before attaching the wire. Secure the connection with a ring terminal and a bolt, ensuring it’s tight enough to maintain contact but not so tight as to strip the threads. Additionally, use heat shrink tubing or electrical tape to insulate the connection, protecting it from moisture and corrosion.
For those new to automotive wiring, start by mapping out the circuit before making any connections. Label wires clearly to avoid confusion, and test the setup with a multimeter before powering the system. If the fan doesn’t operate as expected, check for loose connections, blown fuses, or a faulty relay. Remember, the goal is to create a robust, fail-safe system that enhances your vehicle’s cooling performance without compromising safety.
In conclusion, wiring an electric fan to a relay is a straightforward yet essential task. By connecting the fan’s positive lead to the relay’s output and grounding it to the chassis, you ensure efficient operation and protect your vehicle’s electrical system. Attention to detail, proper grounding, and the use of appropriate components are key to a successful installation. This method not only improves cooling but also extends the lifespan of your fan and related components.
Should You Keep Your Electric Car Plugged In Overnight?
You may want to see also
Explore related products
Test & Secure Wiring: Verify fan operation, insulate connections, and secure wires to prevent damage
Once your electric fans are wired, the critical next step is testing and securing the wiring to ensure reliability and safety. Begin by verifying fan operation. Turn on the ignition and check if the fans activate as expected, either manually through a switch or automatically via a temperature sensor. Listen for unusual noises and observe if the fans spin smoothly. If they fail to start or operate erratically, recheck your wiring connections and ensure the relay or controller is functioning correctly. A multimeter can help diagnose voltage issues at the fan terminals, confirming whether power is reaching the unit.
Insulating connections is equally vital to prevent short circuits and corrosion. Use heat-shrink tubing or electrical tape to cover exposed wires and terminals, ensuring no bare metal is visible. For high-temperature areas near the engine, opt for heat-resistant insulation rated for at least 200°F (93°C). Apply dielectric grease to connectors to repel moisture and improve conductivity. Double-check that insulation doesn’t interfere with wire flexibility or cooling, as overheating can degrade the material over time.
Securing wires is the final safeguard against damage from vibration, heat, or moving parts. Use zip ties or adhesive clips to route wires away from sharp edges, exhaust components, and rotating machinery. Ensure wires are taut but not stretched, allowing for slight movement without strain. For added protection, wrap high-risk areas with split loom tubing or braided sleeving. Pay special attention to wires passing through the firewall or near the radiator, as these areas are prone to wear and tear.
A systematic approach to testing and securing wiring not only ensures your electric fans function optimally but also extends their lifespan. Neglecting this step risks intermittent failures, electrical fires, or costly repairs. By verifying operation, insulating connections, and securing wires, you create a robust system that withstands the rigors of daily driving and extreme conditions. This attention to detail separates a makeshift setup from a professional-grade installation.
Electric Car Battery Sizes: Understanding Their Capacity and Dimensions
You may want to see also
Frequently asked questions
Choose a fan that matches your car’s cooling needs, considering factors like CFM (cubic feet per minute) rating, size, and whether it’s a puller or pusher type. Ensure it’s compatible with your radiator and engine bay space.
Connect the fan’s power wire to a switched 12V source and the ground wire to the chassis. Use a fan controller or relay to trigger the fan based on the thermostat’s temperature sensor, ensuring it turns on when the engine reaches the desired temperature.
While possible, it’s not recommended. Wiring directly to the battery bypasses safety features and can drain the battery. Instead, use a relay and fuse to protect the circuit and connect to a switched power source.
Wire the fan to a switched 12V source (e.g., the ignition switch) instead of a constant power source. This ensures the fan only operates when the engine is running, preventing battery drain.
