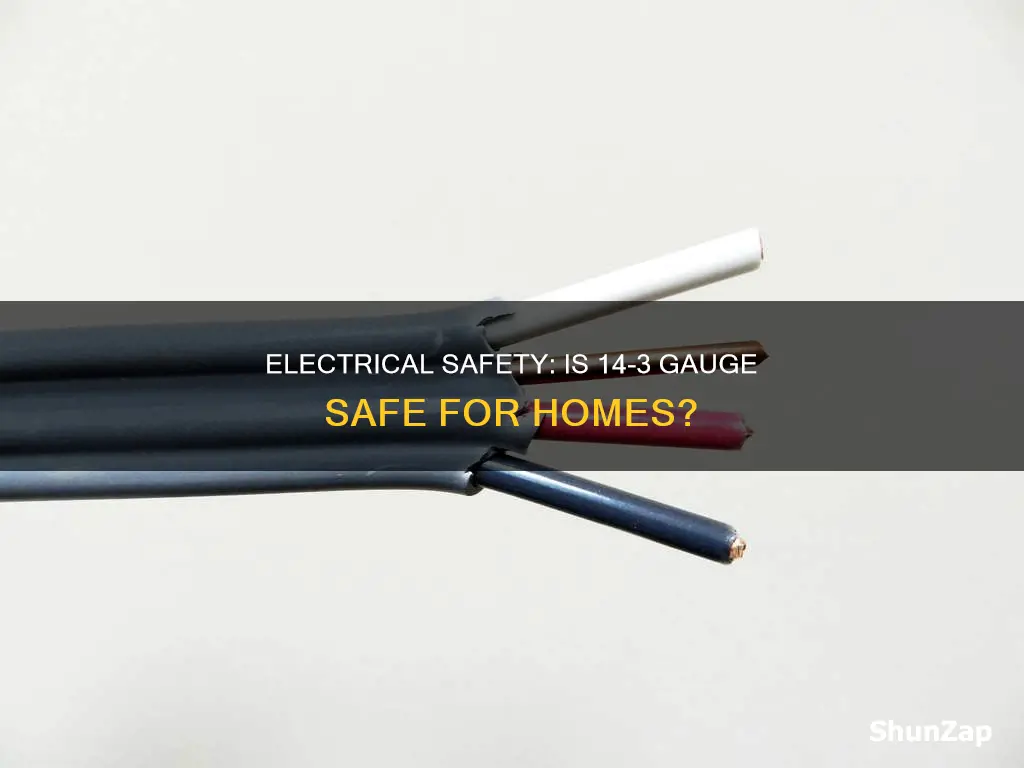

14/3 wire is a common type of wiring used in residential settings, especially in kitchens. It is often used for lighting and standard electrical outlets and can be useful for multibranch circuits. It is rated for up to 15 amps, making it unsuitable for larger appliances or circuits requiring 20 amps or more. 14/3 wire includes one black hot wire, one neutral white wire, and an additional red hot wire, which can be used as a second hot wire or a traveller wire in 3-way switch applications. This configuration allows for control of lighting from multiple locations, which is not possible with 14/2 wire.
Explore related products
What You'll Learn
14/3 wire is suitable for residential electrical use in kitchens
14/3 wire is a common choice for residential electrical wiring, and it can be suitable for use in kitchens, depending on the specific requirements of your electrical project.
When discussing residential electrical wiring, the conversation typically revolves around NM (non-metallic) cable, which is the most prevalent type for indoor use. 14 AWG wire, which includes both 14/2 and 14/3 configurations, is rated for up to 15 amps, making it suitable for general lighting, standard electrical outlets, and small appliances in residential settings.
The key difference between 14/2 and 14/3 wires lies in the number of conductors they possess. 14/2 wire features two conductors, including a black hot wire, a white neutral wire, and a bare copper ground wire. On the other hand, 14/3 wire introduces an additional conductor, resulting in a total of three: a black hot wire, a white neutral wire, and a red hot wire, which can function as either a second hot wire or a traveller wire in 3-way switch applications. This extra conductor in 14/3 wire enables control of lighting from multiple locations, a capability absent in 14/2 wire.
In the context of kitchen wiring, 14/3 wire is often used, especially for split-receptacle applications. Its versatility allows for the operation of two circuits within a single cable, as long as electrical codes are carefully followed. This feature can be advantageous when dealing with the unique layout and requirements of a kitchen.
However, it is important to consult qualified electricians for specific advice and to ensure compliance with electrical codes and safety standards.
Electric Blanket Placement: Mattress Protector First?
You may want to see also
Explore related products
It is also used for 3-way light switches
14/3 wire is suitable for residential electrical wiring. It is rated for up to 15 amps, which is enough for general lighting and standard electrical outlets in residential settings. It is also used for 3-way light switches, which allow you to control a light or other electrical fixtures from two separate locations. This is useful for scenarios where light control from two points is desired, such as both ends of a staircase or a room with two entrances.
A 3-way switch has three screw terminals: two "traveler" terminals and one "common" terminal, along with a ground terminal. It is larger than a standard single-pole switch due to the additional internal connections. The switch toggle does not have ON or OFF markings because the on/off state depends on the position of the other switch in the circuit. The circuit is complete when both toggles are in the same position, and the light fixture will be illuminated. When the toggles are in opposite positions, the circuit is interrupted and the light fixture turns off.
The 14/3 wire has three conductors: one hot wire (black), one neutral wire (white), and an additional red hot wire. This red hot wire is used as a second hot or a traveller wire in 3-way switch applications. This additional wire allows for control of lighting from multiple locations, which is not possible with a 14/2 wire.
It is important to note that the choice between 14/2 and 14/3 wires depends on the specific requirements of the electrical project. 14/3 wire can be used to run two circuits in a single cable, but this must be done carefully to adhere to electrical codes.
Fixing Your Torque Electric Scooter: A Step-by-Step Guide
You may want to see also
Explore related products
14/3 wire is used for multi-branch circuits
14/3 wire is commonly used for multi-branch circuits, also known as multi-wire branch circuits (MWBC). This type of wiring allows for two circuits to be run through a single cable, with each hot wire connected to a different breaker. This configuration enables the control of lighting or appliances from multiple locations, making it suitable for installations that require two hot wires, such as split receptacles or three-way switches.
The use of 14/3 wire in multi-branch circuits offers both functional and economic advantages. From a functional perspective, it allows for greater flexibility in controlling lighting and appliances. For example, in a kitchen setting, a kettle and toaster can be plugged into the same receptacle, with the top plug on one circuit and the bottom plug on another. This setup ensures that both devices can be used simultaneously without overloading the circuit.
Additionally, 14/3 wire is commonly used in multi-branch circuits due to its cost-effectiveness. By utilising a single cable for two circuits, installation costs are reduced when compared to running two separate cables. This configuration also helps to optimise space within electrical boxes, as the use of #14 wire results in less crowded panels and easier wire management.
However, it is crucial to exercise caution when employing 14/3 wire in multi-branch circuits to ensure compliance with electrical codes. Proper handling of neutral and ground connections is essential, particularly when dealing with the neutral load. As long as the two hot wires are on separate legs, the load on the neutral is the difference between the loads on each circuit, preventing overload.
The choice between using 14/2 and 14/3 wire depends on the specific requirements of the electrical project. While 14/3 wire offers the advantage of multiple control points and split functionalities within the same circuit, 14/2 wire is more commonly used for basic household electrical circuits that power lights, outlets, and non-major appliances. Ultimately, the selection of wire type should be guided by safety considerations and the specific layout and needs of the electrical system.
Electric Drums: Authentic Sound or Synthetic Beat?
You may want to see also
Explore related products
It is safe for up to 15 amps, unlike 14/2 wire
When it comes to residential electrical wiring, the most common type used is non-metallic (NM) cable, and the two most common configurations for 14 AWG cables in home wiring are 14/2 and 14/3. The difference between the two lies in the number of conductors they contain. 14/2 wire includes two conductors—one hot wire (usually in black) and one neutral wire (in white)—along with a ground wire (bare copper). On the other hand, 14/3 wire has an additional conductor, with a total of three: one hot wire (black), one neutral wire (white), and an extra red hot wire. This additional red wire is used as a second hot wire or a traveller wire in 3-way switch applications.
Both 14/2 and 14/3 wires are designed to safely handle up to 15 amps of current, which is typically sufficient for lighting and general outlets in a residential setting. They are, however, unsuitable for larger appliances or circuits requiring 20 amps or more, which would need thicker wire, such as 12-gauge wire. 14 AWG wire is the most popular type of cable for lighting and small appliances in residential settings. It is safe to use for up to 15 amps, unlike 14/2 wire, which is only suitable for circuits that do not require multiple hot or traveller wires.
The choice between 14/2 and 14/3 wires depends on the specific electrical requirements of your project, particularly the configuration of switches and outlets. 14/2 wire is commonly used for household lighting and outlet circuits that do not require multiple control points. It is typically used for simple circuits and standard household outlets, powering lights, outlets, and non-major appliances. 14/3 wire, on the other hand, is used when multiple control points or split functionalities are needed within the same circuit. It can be used to run two circuits in a single cable, with each hot wire on a different breaker, allowing for control of lighting from multiple locations.
While 14/3 wire is often used in kitchens and 14/2 wire in other areas of the house, the choice between the two comes down to the specific layout and requirements of the electrical system. It is important to carefully follow electrical codes when using 14/3 wire to run two circuits in one conduit, especially concerning handling neutral and ground connections. Although 14/3 wire provides flexibility with its additional conductor, it is essential to consider the specific needs of your electrical project to determine which wire configuration is most suitable.
Loading Sandpaper: Electric Sander Basics
You may want to see also
Explore related products
14/3 wire is more expensive than 14/2 wire
14 AWG wire is rated for up to 15 amps, which is adequate for most general lighting and standard electrical outlets in residential settings. This wire gauge is the most popular type of cable for lighting and small appliances. The most common configurations for 14 AWG cables in home wiring are 14/2 and 14/3.
The 14/2 wire is the more commonly used wire for residential electrical wiring. It contains two conductors—one hot wire (usually black) and one neutral wire (white)—along with a ground wire (bare copper). It is typically used for simple circuits and standard household outlets.
The 14/3 wire is less commonly used for residential electrical wiring. It contains three conductors: one hot wire (black), one neutral wire (white), and an additional red hot wire. This wire is used as a second hot wire or a traveller wire in 3-way switch applications. Like the 14/2 wire, it also includes a ground wire.
The 14/3 wire is more expensive than the 14/2 wire because it contains an additional conductor. The number of conductors in a wire is a key factor in determining its price. The 14/3 wire can be used to run two circuits in a single cable, with each hot wire on a different breaker. This makes it useful in installations that require two hot wires, such as split receptacles, or for wiring three-way switches where multiple switches control a single light or set of lights.
The choice between the 14/2 and 14/3 wires depends on the specific requirements of the electrical project. If multiple control points or split functionalities within the same circuit are needed, the 14/3 wire is the better option. However, for most basic household electrical circuits, the 14/2 wire is sufficient.
Understanding Electrical Resistance: Units and Measurements
You may want to see also
Frequently asked questions
14 3 wiring is used for residential electrical wiring, powering lights, outlets, and non-major appliances. It is also used for multibranch circuits and 3-way switches.
14 2 wiring is the most common type of wiring used for indoor residential electrical wiring. It contains two conductors—one hot wire (usually black) and one neutral wire (white)—along with a ground wire (bare copper). 14 3 wiring contains an additional conductor, with one hot wire (black), one neutral wire (white), and an additional red hot wire, which is used as a second hot or a traveler wire in 3-way switch applications.
14 3 wiring offers more flexibility than 14 2 wiring, allowing for control of lighting from multiple locations and the ability to run two circuits in a single cable. It also reduces the number of wire connections under one wire nut.
While most electricians would advise against using a 20 amp breaker with #14 wire, there are specific scenarios where it is allowed, such as when multiple motors or loads are on a single branch circuit. However, it is generally recommended to use a 15 amp breaker with 14 gauge wire.
