Electrical connectors are devices that join electrical conductors to create an electrical circuit. They are an essential part of modern life, powering everything from light bulbs to mobile phones. Electrical connectors can be divided into four basic categories: inline or cable connectors, chassis or panel connectors, PCB mount connectors, and splice or butt connectors. These connectors can be further classified by their voltage rating, operating temperature, and current rating. They may also have locking mechanisms to prevent inadvertent disconnection. Understanding the different types of electrical connectors and how they work is crucial for anyone working with electrical devices or circuits.
Explore related products
$14.59 $24.99
$26.21 $27.59
What You'll Learn
- Terminal blocks connect individual wires without physically joining ends
- Electrical connectors are electromechanical devices that join conductors
- Connectors are categorised as inline/cable, chassis/panel, PCB mount, and splice/butt
- Connectors can have locking mechanisms to prevent accidental disconnection
- Connectors are rated for voltage, current, and operating temperature

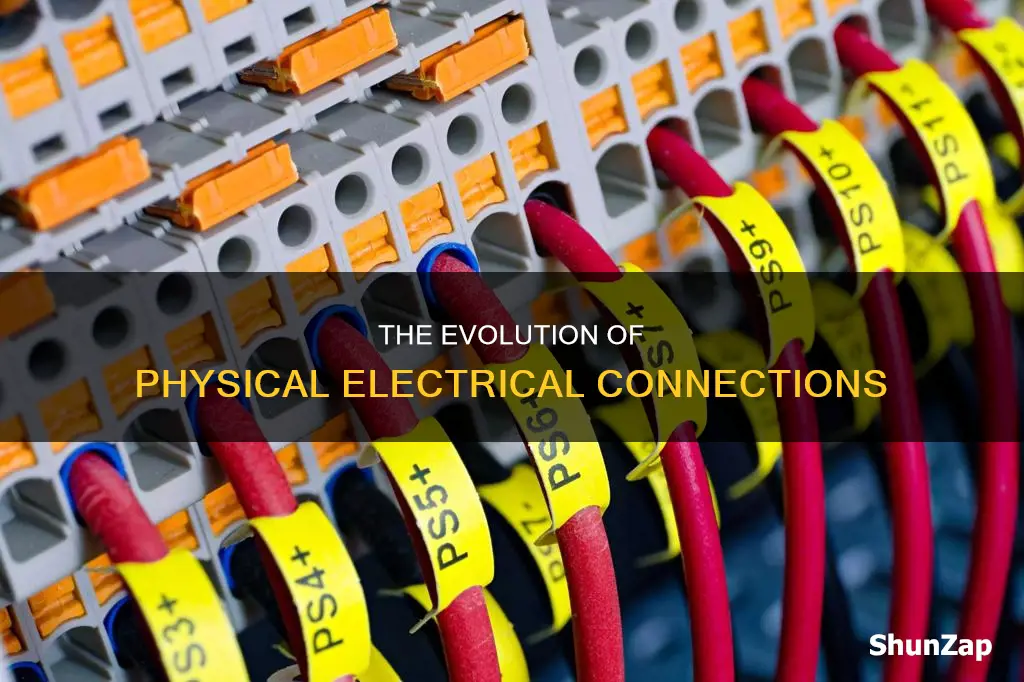

Terminal blocks connect individual wires without physically joining ends
Electrical connectors are differentiated by their function and can be divided into four basic categories: inline or cable connectors, chassis or panel connectors, PCB mount connectors, and splice or butt connectors. Terminal blocks, also called terminal boards or strips, are a type of electrical connector that provides a convenient means of connecting individual electrical wires without a splice or physically joining the ends. They are components with an insulated frame that have the sole purpose of securing two or more wires together.
Terminal blocks are one of the most flexible types of electrical connectors available as they are readily available for a wide range of wire sizes and terminal quantities. They also provide flexibility in terms of wiring modifications, as wires can be removed or added quickly. This makes them a much better solution for connecting wires than soldering or twisting them together and wrapping them with electrical tape.
There are several types of terminal blocks, each with its own unique method of connecting wires. The most commonly used type is the screw-in terminal block, which uses screws as the method for holding the wires. It is important to be careful when using this type of terminal block, as over-tightening the screws can damage the wires and result in poor or dangerous connections. Another common type is the spring-loaded terminal block, which is similar to the push-fit or push-in terminal block, where a connection is made by simply inserting the wires.
The choice of terminal block depends on various factors such as the size of the cable, whether it is single-core or multi-core, current and voltage requirements, mechanical strength, and the environment in which it will be used. For example, screw terminals work well with multi-core wires, while push-fit connectors are better suited for single-core wires. In a naval environment, the salty air could be detrimental to the metal contacts of the terminal block.
Electrical Tech: Greener Innovations for Our Planet
You may want to see also
Explore related products
Electrical connectors are electromechanical devices that join conductors
- Inline or cable connectors are permanently attached to a cable and can be plugged into another terminal, such as a stationary instrument or another cable.
- Chassis or panel connectors are permanently attached to a piece of equipment, allowing users to connect a cable to a stationary device.
- PCB mount connectors are soldered to a printed circuit board, providing a point for cable or wire attachment, such as pin headers, screw terminals, or board-to-board connectors.
- Splice or butt connectors, including insulation displacement connectors, permanently join two lengths of wire or cable.
Electrical connectors typically consist of two classes of materials: conductors and insulators. Conductors are materials that allow the flow of electricity, while insulators have high electrical resistance and prevent the flow of electricity. Various types of connections are used in electrical connectors, including screw connections, plug and socket connectors, soldered joints, and crimped connections. Screw connections are commonly used for semi-permanent wiring and connections inside devices due to their simplicity and reliability. Plug and socket connectors often have a gender, with a male component (plug) connecting to a female component (socket). Soldered joints are created by melting a filler metal onto an electrical joint, providing a robust and reliable connection when executed correctly. However, they are generally slower to make than crimped connections.
To protect the connector and cable from environmental or mechanical stress and electromagnetic interference, backshells are often used. They come in various sizes, shapes, materials, and levels of protection. Some connector housings also feature locking mechanisms to prevent accidental disconnection or poor environmental sealing. These locking mechanisms can include locking levers, jackscrews, screw-in shells, push-pull connectors, and toggle or bayonet systems.
Electric Hookups: Are They Available?
You may want to see also
Explore related products
Connectors are categorised as inline/cable, chassis/panel, PCB mount, and splice/butt
Connectors are passive components that are categorised as inline/cable, chassis/panel, PCB mount, and splice/butt.
Inline or cable connectors are permanently attached to a cable, allowing it to be plugged into another terminal, such as a stationary instrument or another cable. They are commonly used in Ethernet patch cables and extension cords.
Chassis or panel connectors are permanently attached to a piece of equipment, enabling users to connect a cable to a stationary device. These connectors are often found in devices like smartphones and are secured to an equipment panel, external case, or enclosure. Panel mounting requires a hole in the surface or panel for the connector to be placed through or against.
PCB mount connectors are soldered to a printed circuit board (PCB), providing a point for cable or wire attachment. They include pin headers, screw terminals, and board-to-board connectors. PCB surface mounting involves using the terminating leads of the connector to fasten it to the circuit board's contact pad. PCB through-hole soldering involves placing the connector leads through holes in the board before soldering them in place.
Splice or butt connectors, also known as insulation displacement connectors, are used to permanently join two lengths of wire or cable. They eliminate the need for physically joining wire ends or splicing.
In addition to these categories, connectors can also be characterised by their pinout, connection method, materials, size, contact resistance, insulation, mechanical durability, ingress protection, lifespan, and ease of use. Some connectors have locking mechanisms to prevent accidental disconnection or poor sealing, while backshells provide protection from environmental and mechanical stress and electromagnetic interference.
Electrician's Toolbox: Essential Tools for Electrical Work
You may want to see also
Explore related products
Connectors can have locking mechanisms to prevent accidental disconnection
Connectors are an essential component of electrical systems, facilitating the transfer of power, data, and audiovisual signals. Given the critical role they play, it is imperative to prevent their accidental disconnection. This is where locking mechanisms come into play, ensuring that connectors remain securely fastened and mitigating the risk of unintended detachment.
Locking mechanisms are designed to hold the mating halves of connectors firmly together, providing a reliable and continuous connection. This mechanical system is a crucial safeguard against accidental uncoupling, enhancing the overall reliability of the electrical system. The specific design of these locking mechanisms can vary, each offering distinct advantages and application suitability.
One such design is the bayonet coupling system, which operates by aligning a plug with a receptacle and rotating it until a distinct click is heard. This type of locking mechanism is commonly employed in circular connectors and is highly resistant to vibration and shock, making it a popular choice for outdoor and industrial environments. The bayonet system offers a quick and secure method of engagement, requiring only a simple one-third turn to lock or unlock the connector.
Another locking mechanism is the spring latch, which prevents the separation of two components once they are joined. Spring compression holds the parts securely in place, and a specific force or directional action is required to release the connector. Spring latches come in various styles, including bolts and toggles, and can be crafted from different materials, with metal, especially steel, being a common choice for circular connectors used in field conditions.
Additionally, push-pull connectors offer a secure and straightforward method of connection. The two halves of the connector are designed with an internal latch system that prevents accidental disconnection. This mechanism is widely used in medical and military applications, where a fast yet dependable connection is of paramount importance. To disconnect, a deliberate action of squeezing and pulling is necessary, reducing the likelihood of unintended disconnection.
In conclusion, locking mechanisms play a vital role in maintaining the integrity of electrical connections by preventing accidental disconnection. The availability of various locking designs allows for the selection of the most suitable mechanism depending on the specific application requirements, ensuring optimal performance and reliability.
Understanding Electricity Pricing: Calculating Your Power Bill
You may want to see also
Explore related products
Connectors are rated for voltage, current, and operating temperature
Connectors are an essential component of electrical circuits, facilitating the flow of electricity and enabling various applications. They are designed to pass current with minimal interference and provide convenient reusable separation points in circuits. When selecting connectors, it is crucial to consider their voltage, current, and temperature ratings to ensure optimal performance and safety.
Voltage ratings are critical when choosing a connector. The maximum voltage rating indicates the highest voltage the connector can safely handle, preventing issues like flashovers or arc flashes that could damage the system or lead to fires. The working voltage rating, typically recommended at one-third or half of the maximum rating, provides guidelines for the stable operation of the connector. It is important to note that voltage fluctuations can occur, and selecting the right connector with the appropriate voltage rating helps prevent flashovers.
Current ratings are another vital consideration for connectors. A connector should be able to handle a high amount of current while offering minimal resistance. Wire gauge influences the current-carrying capacity, with thicker wires requiring connectors with higher maximum and working voltages. When examining current ratings, it is essential to consider both the rating of the contact and the connector as a whole.
Temperature ratings are also essential for connectors. Thermal tests help determine the performance and integrity of connectors under various temperature conditions. Standards like MIL-DTL-38999 provide pass criteria for thermal cycling tests, ensuring that connectors remain functional without detrimental issues such as blistering, peeling, or separation of plating.
By selecting connectors with appropriate voltage, current, and temperature ratings, users can ensure safe and efficient operation within their intended voltage and current ranges. These ratings help prevent issues like flashovers, ensure stable connections, and maintain connector integrity under different temperature conditions. Therefore, understanding these ratings is crucial when working with electrical connectors.
Electrical Giant Yesss: Branching Out Across the Nation
You may want to see also
Frequently asked questions
Examples include terminal blocks, electrical connectors, and phone connectors.
Terminal blocks, also known as terminal boards or strips, are a convenient means of connecting individual electrical wires without physically joining their ends. They are one of the most flexible types of electrical connectors available as they are offered in a wide range of wire sizes and terminal quantities.
Electrical connectors are electromechanical devices used for joining electrical conductors (e.g. wires, cables) to create an electrical circuit. They are typically assigned a gender, with the male component, or plug, connecting to the female component, or socket.
