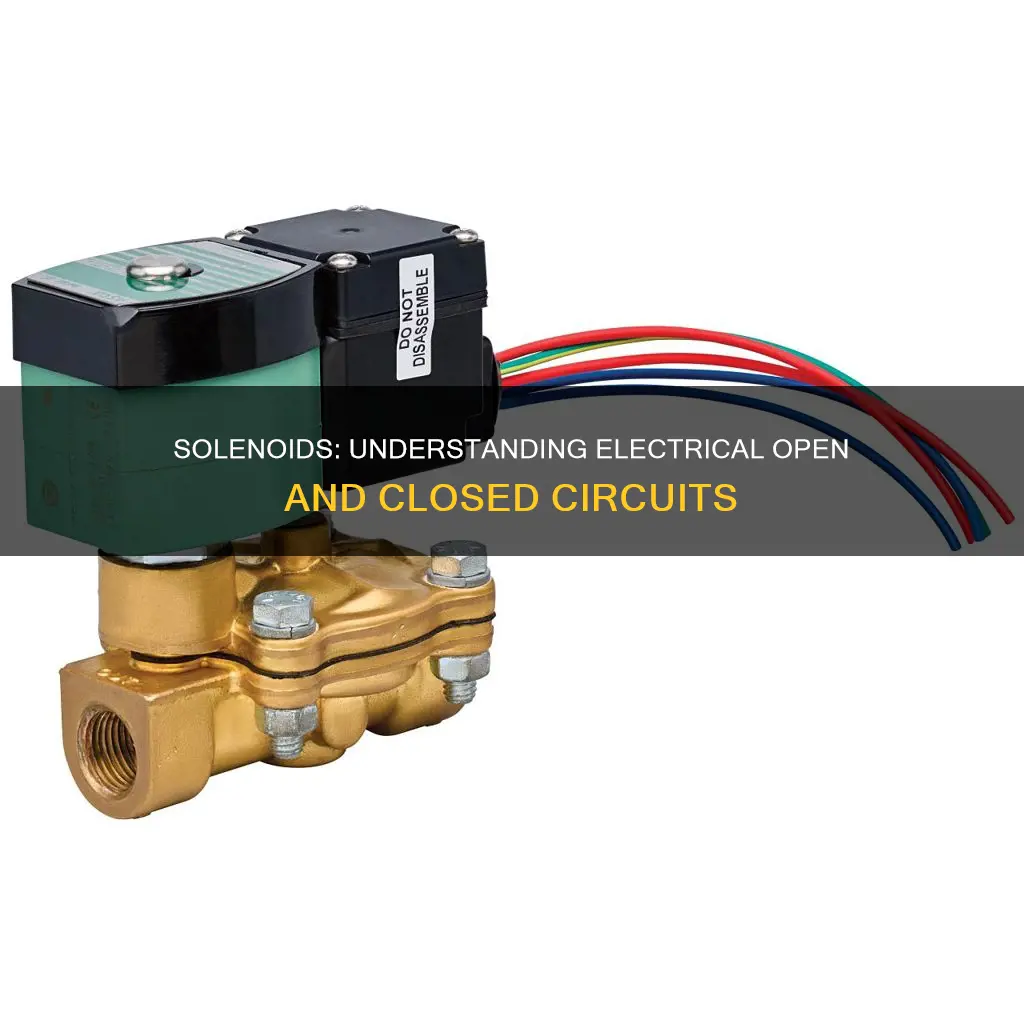

Solenoids are electromechanical devices that use a coil of wire, a movable core, and electrical current to create a magnetic field that produces mechanical motion. This motion can be used to perform tasks such as opening and closing valves. There are two types of solenoid valves: normally open (NO) and normally closed (NC). The difference between the two is that NO valves allow fluid flow when de-energized, while NC valves block flow in the same state. This means that NO valves are open when no electricity is supplied, while NC valves are closed when no electricity is supplied.
Characteristics and Values of Solenoids
| Characteristics | Values |
|---|---|
| Electrical requirement | Requires electricity to create a magnetic field to function |
| Function | Regulate the flow of gasses or liquids |
| Default state | Normally open or normally closed |
| Normally open (NO) valve | Allows fluid flow when de-energized |
| Normally closed (NC) valve | Blocks flow when de-energized |
| Use case for NO valve | Applications where the valve is open most of the time and safety systems like fire suppression |
| Use case for NC valve | Applications requiring frequent opening and closing, fuel delivery systems, and critical systems where flow must stop during power failures |
| Fail open | Corresponds to NO valve, remains open when de-energized |
| Fail closed | Corresponds to NC valve, remains closed when de-energized |
Explore related products
$21.99
What You'll Learn
Normally open (NO) solenoid valves
Solenoids are electrically controlled valves that can be used to control the flow of liquids or gases. They have a default mechanical position and only move when a current is supplied to create a magnetic field that actuates the valve. When the current is turned off, the solenoid valve returns to its default position.
The design of a basic NO solenoid valve involves an armature positioned high up in the coil. When the valve is energized, the armature is pulled down towards the center of the coil, and a plunger or piston attached to the armature moves down, closing the valve. When the valve is de-energized, a spring pushes the armature back up, opening the valve again.
NO solenoid valves are suitable for applications where continuous flow is required and the valve only needs to be closed occasionally. They are also used as safety devices to maintain low pressure in a system. In contrast, normally closed (NC) solenoid valves are used in applications where it is critical to stop the flow in the event of a power failure, such as in fluid control systems, pneumatic systems, and fuel delivery systems.
The choice between NO and NC solenoid valves depends on various factors, including operational requirements, safety considerations, and energy efficiency. It is important to select the appropriate type of valve for the specific application to ensure effective and safe operation.
Building an Electric Goat Fence: A Step-by-Step Guide
You may want to see also
Explore related products
Normally closed (NC) solenoid valves
Solenoid valves are electrically controlled valves that use a current to create a magnetic field that actuates the valve. They have a default mechanical position and only move when a current is supplied. There are two types of solenoid valves: normally open and normally closed. Normally closed (NC) solenoid valves are valves that block flow when there is no power supplied to the valve. When power is supplied, the valve opens and allows flow. These valves are commonly used in industrial applications and can be made from various materials such as brass, stainless steel, or resin.
NC solenoid valves are available in different designs, such as the 2-way or 3-way valve, and can be used with different media such as air, water, oil, or gas. For example, the 840 Series Pneumatic Solenoid Valves are 2/2 NC type valves that are designed for flow and pressure regulation of non-corrosive gases. They have an orifice size of 0.05 to 2 mm and can handle pressures up to 70 bars.
Another example of an NC solenoid valve is the Hex Body 53 Style, which is a 2- or 3-way valve available in three different porting styles. These valves are compatible with various media, including air, water, oil, and heated water. The body materials for these valves can include aluminum, resin, stainless steel, or CAC408.
The BERMAD S-400-3W is another type of NC solenoid valve that is a compact 3-way solenoid pilot valve. It is designed to control valves independently or in combination with other control circuit accessories. This valve has a low power requirement and can seal a 6-bar flow rate with a minimum power of 3W.
NC solenoid valves are also available in brass, such as the 3/4" Solenoid Valve 230V Normally Closed offered by EC Products UK. These valves are suitable for air, gas, and water applications and come complete with a coil and connector. They have a pressure range of 0.5 to 15 bar max and can operate at media temperatures from -10˚C to +160˚C max.
Exploring the Electric Circus: How Many Groups Exist?
You may want to see also
Explore related products
Fail open/fail closed solenoids
Solenoids are simple parts with a basic function: they open and close. However, they can cause a lot of problems when they malfunction. A solenoid valve will usually have a default mechanical position and will only move when a current is supplied to create a magnetic field that actuates the valve.
There are two types of solenoid valves: fail-open and fail-closed. Fail-open solenoids will have a default mechanical position and will open when a current is supplied. Conversely, fail-closed solenoids will have a default mechanical position and will close when a current is supplied. The type of valve being used determines whether it is fail-open or fail-closed.
Fail-open and fail-closed solenoids are very common in industry. On one side of the actuator, there is a solenoid that will drive the valve open or closed. On the other side of the actuator is a spring that will either open or close the valve, depending on which fail position is desired.
There are also two-coil solenoid valves that require power to shift from one position to the other and will maintain that position when power is removed.
Electrical Materials: Examples and Their Uses
You may want to see also
Explore related products
Manual override solenoids
Solenoids are electrically controlled valves that can be used to control the flow of liquids or gases in construction machinery. They have a default mechanical position and only move when a current is supplied to create a magnetic field that actuates the valve. When the current is cut off, the solenoid valve returns to its default position.
However, in emergency situations or special operations, it may be necessary to bypass the automatic control system and directly operate the solenoid valve. This is where the manual override function comes into play. Manual override allows the operator to take direct control of the solenoid valve, bypassing the automated control system. This is particularly important in large machinery as a backup means of control.
There are several ways to manually override a solenoid valve, depending on its design. One common method is through a handle that can be rotated, pushed, pulled, or cranked to change the state of the valve. Another common approach is via a push-button that switches the state of the solenoid valve. Some solenoid valves also have screw adjustment mechanisms that allow for fine-tuning the valve status by turning a screw, which is useful for specific flow requirements.
HydraForce, for example, offers a range of manual override options for their solenoid valves. Their manual override "M" option for two-position pull-type solenoid valves involves pushing a knurled button to activate one coil function and pulling a knob to activate the other coil function. For three-position push/pull-type solenoid valves, they offer a manual override "K" option, where the user starts from a neutral position, pushes the button in, and twists it clockwise 90 degrees to activate one coil function, or pulls and twists 90 degrees counterclockwise to activate the other coil function.
In conclusion, while solenoids typically operate through electrical control, they can be manually overridden in certain situations. This manual intervention allows operators to directly control the solenoid valve, bypassing the automated control system and ensuring appropriate measures can be taken in emergencies or for specific operational needs.
Victorian Era Electricity: The Spark of Innovation
You may want to see also
Explore related products
Bi-stable or latching solenoid valves
A solenoid is a type of actuator that uses an electric current to generate a magnetic field that actuates a valve. Solenoids are typically used in valves that are momentary in nature, meaning they only move when a current is supplied to them. When the current is removed, the valve returns to its default mechanical position.
Now, let's discuss bi-stable or latching solenoid valves in detail:
Advantages of Bi-stable or Latching Solenoid Valves:
One of the main advantages of these valves is their energy efficiency. By requiring only a short burst of electricity to change positions, they consume significantly less power than traditional solenoid valves, which need a continuous power supply to remain open or closed. This makes them ideal for remote areas or applications where power is restricted to battery supply, such as public toilet cistern water refill systems.
Another benefit of bi-stable or latching solenoid valves is reduced coil heat generation. Traditional solenoid valves generate heat when energized, which can be problematic in certain applications, such as those involving heat-sensitive chemicals or hard water that can cause limescale buildup and valve failure. Bi-stable valves, on the other hand, are only energized for a very short time, making it highly unlikely for them to generate excessive heat.
Types and Availability:
The Safe Way to Dehorning Cattle with Electric Tools
You may want to see also
Frequently asked questions
A solenoid is an electromechanical device that uses a coil of wire, a movable core, and electrical current to create a magnetic field that produces mechanical motion.
A normally open solenoid valve (also known as NO) is open when de-energized, allowing media to flow through it. When the valve is energized, the armature is pulled down towards the centre of the coil, closing the valve.
A normally closed solenoid valve (also known as NC) is closed when de-energized, preventing media from flowing through it. When the valve is energized, the armature moves up, opening the valve.
