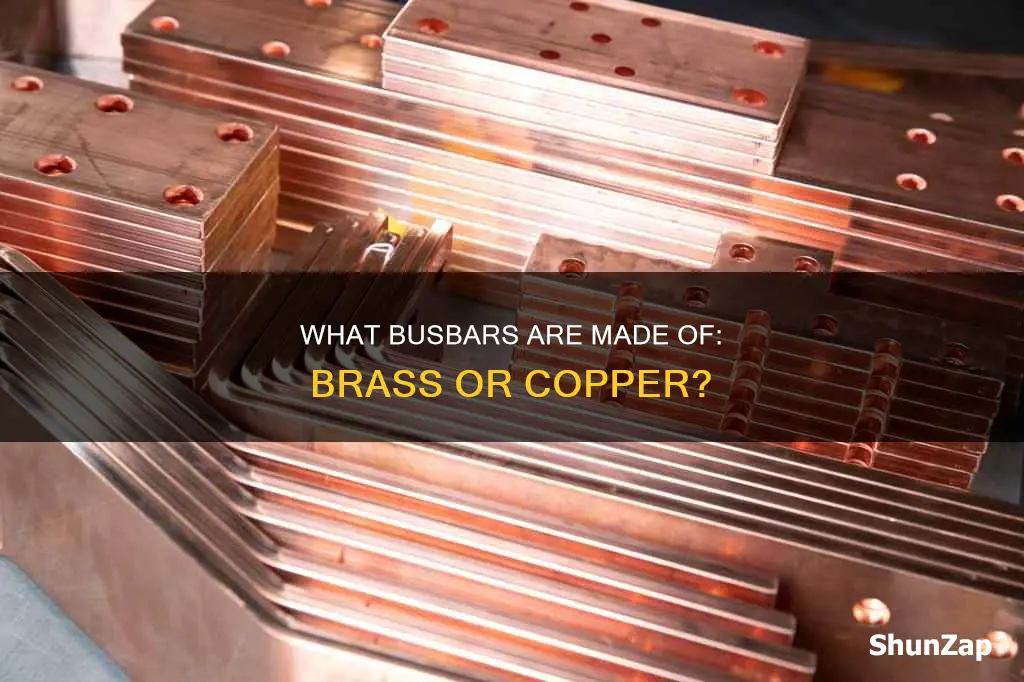

Busbars are metallic strips or bars used for distributing electric power from a supply point to several output circuits. They are typically housed inside switchgear, panel boards, and busway enclosures for local high-current power distribution. Busbars are usually made of metals with high electrical conductivity, such as copper, brass, or aluminum. Copper busbars are more popular than brass busbars because copper has higher electrical conductivity and lower resistance than brass, although the performance difference between the two is marginal.
| Characteristics | Values |
|---|---|
| Material | Copper, Brass, or Aluminum |
| Use | To ground and conduct electricity |
| Shape | Flat strips, solid bars, and rods |
| Advantages of Copper | Better conductivity, malleable, ductile, higher resilience to temperature, better resistance to damage, versatile |
| Disadvantages of Copper | Quickly corrodes when exposed to air, higher density, more expensive |
| Advantages of Brass | Optimal balance between conductivity and strength, sturdy |
| Disadvantages of Brass | Performance is marginally lower than copper |
| Advantages of Aluminum | Lightweight, affordable, recyclable, good heat dissipation |
| Disadvantages of Aluminum | Requires more surface area for conductivity, larger components |
Explore related products
What You'll Learn
Copper is a better conductor than brass
Bus bars are short strips of conductive metal for high-current electric connections. Copper is one of the most conductive metals found on Earth, and it's better at conducting electricity and heat than brass. Copper has remarkably high electrical conductivity, low resistance, and impressive tensile strength when moulded into the desired form. Copper is also more resilient to high temperatures and provides extra protection in the event of a short circuit.
Copper is the standard by which electrical materials are rated and conductivity ratings are expressed relative to copper. Brass is only 28% as conductive as copper. Copper is also a very soft metal, and while its ductility is good for wires and other flexible connectors, it lacks the mechanical strength required for pins. Brass, on the other hand, is denser and tougher than copper and can withstand pressures caused by repetitive motions, making it ideal for large industrial machinery.
Another reason why brass is preferred over copper in some applications is that it is easier to manufacture. Brass casts well, is easy to machine, and the huge range of brasses available allow manufacturers to tailor its properties to the application. Brass also has somewhat better corrosion resistance than copper.
Despite copper's superior conductivity, the performance advantage over brass is marginal and may not be noticeable in practice. Therefore, brass can be a good alternative to copper in certain applications due to its other desirable properties.
Donating Electric Wheelchairs: Helping Our Veterans Move Freely
You may want to see also
Explore related products
Copper is more malleable and ductile than brass
Busbars are short strips of conductive metal used for high-current electric connections. They are used to distribute power from a supply point to several output circuits. Copper busbars are popular as the metal is soft, malleable, and ductile, with very high thermal and electrical conductivity. Copper is also more malleable and ductile than brass.
Copper is one of the most conductive metals and is better at conducting electricity and heat than brass. It has remarkably high electrical conductivity, low resistance, and impressive tensile strength when molded into the desired form. Copper's proportions enable higher currents to easily pass through the material, and it has lower electrical resistance, lower power loss, lower voltage drop, and higher ampacity when compared to other metals.
Copper's malleability and ductility make it easier to mold into the desired form for busbars. Its high conductivity and malleability make it a versatile material for busbars, which can be designed for nearly any application. Copper is also more resilient to high temperatures and provides extra protection in the event of a short circuit.
While brass is also a conductive metal used for busbars, it is not as malleable or ductile as copper. Brass is a combination of metals, including copper, which gives it improved conductivity over other metals. However, the addition of other metals makes brass less malleable and ductile than copper.
Overall, copper is the preferred choice for busbars due to its high conductivity, malleability, and ductility. While brass is also an effective material, it is slightly less conductive and more challenging to work with due to its lower malleability and ductility.
Electricity Billing: PSC or Municipal Electric?
You may want to see also
Explore related products
Copper is more expensive than brass
Busbars are short strips of conductive metal for high-current electric connections. They are used within electrical installations for distributing power from a supply point to several output circuits. Copper bus bars are better at conducting electrical currents than brass bus bars because copper is one of the most conductive metals found on the planet. Copper is also more malleable, ductile, and has higher tensile strength.
However, copper is more expensive than brass. Brass is a non-ferrous alloy made primarily from copper and zinc, which are more affordable. The simpler manufacturing process and lower material costs contribute to the comparatively lower price of brass. Brass with a higher zinc content will be less expensive, while brass with a higher copper content will be more expensive.
Copper is a valuable metal and is a commodity for many purposes. It is used in a wide range of applications, from electrical wiring to plumbing, and its price reflects this. Recycling copper can help to reduce costs, but it is still a more expensive option than brass.
Brass is also a widely used metal, but it is less expensive than copper. It is often chosen for its aesthetic appeal and functionality in decorative items. Brass also has better corrosion resistance than copper, making it suitable for outdoor applications.
While copper bus bars may be more conductive, brass bus bars are still a good option for electrical connections. They provide a balance between conductivity and strength, and their performance is only marginally lower than that of copper bus bars.
Greenhouses: Plumbing, Electricity, and Other Requirements
You may want to see also
Explore related products
Brass is sturdier than copper
Bus bars (or busbars) are short strips of conductive metal used for high-current electric connections. They are used within electrical installations for distributing power from a supply point to several output circuits. Copper is the most popular metal for bus bars because it is highly conductive, malleable, ductile, and has low resistance.
However, brass, an alloy of copper and zinc, is also used for bus bars. Brass is sturdier than copper because it is harder and has higher machinability, weldability, yield strength, and shear strength. The more zinc the brass alloy contains, the harder it is. Brass also has better corrosion resistance than copper.
Despite these advantages, copper is still considered a better material for bus bars because it is a better conductor of electricity and heat. Copper is also more malleable and ductile than brass, making it easier to work with.
Nevertheless, the performance difference between copper and brass bus bars is marginal and may not be noticeable in practice. Therefore, brass bus bars can be a good alternative to copper bus bars, especially considering that copper is generally more expensive than brass.
In summary, while copper is a more conductive metal, brass is sturdier and more cost-effective, making it a viable option for bus bars depending on the specific requirements and constraints of a project.
Electric Bicycles: New Jersey's Legal Landscape Explored
You may want to see also
Explore related products
Brass is better than copper in some electrical applications
Brass and copper are both popular choices for electrical applications, including busbars. While copper is the better conductor of electricity, brass has several advantages over copper in some electrical applications.
Brass is an alloy of copper and zinc, and its properties can be altered by varying the amounts of these metals or by adding other metals. Brass is harder than copper, and the more zinc it contains, the harder it becomes. Brass is also more formable and has a lower melting point than copper. Brass is highly resistant to corrosion, a property that can be enhanced by adding manganese to the alloy. Brass is also non-ferromagnetic, making it easy to separate for recycling.
Brass's greater hardness, formability, and corrosion resistance make it a more suitable material than copper for some applications. For example, brass is commonly used for bolts and other threaded components in electrical systems. Its non-ferromagnetic property also makes it useful for applications where magnetic interference must be avoided.
The choice between brass and copper depends on the specific requirements and environmental conditions of the application. While copper is the superior conductor, brass's greater strength, formability, and corrosion resistance may make it the better choice for certain electrical applications.
Best Electric Weed Wackers: Picking the Right One
You may want to see also
Frequently asked questions
Busbars (also known as bus bars or buss bars) are short strips of conductive metal used for high-current electric connections and power distribution.
Busbars are typically made of copper, brass, or aluminium.
Copper is a better conductor of electricity than brass, but the performance difference is marginal and likely won't be noticeable. Copper is also more malleable and ductile, making it easier to work with.
Copper has lower electrical resistance, lower power loss, lower voltage drop, and higher ampacity when compared to aluminium by volume. Copper is also more resilient to high temperatures and provides extra protection during short circuits.
Aluminium is significantly lighter than copper, making it preferable when the lightweight property is essential, such as in aircraft. Aluminium is also more commonly used in overhead utility transmission lines. Additionally, aluminium is more cost-effective than copper.
