Otis Singleton

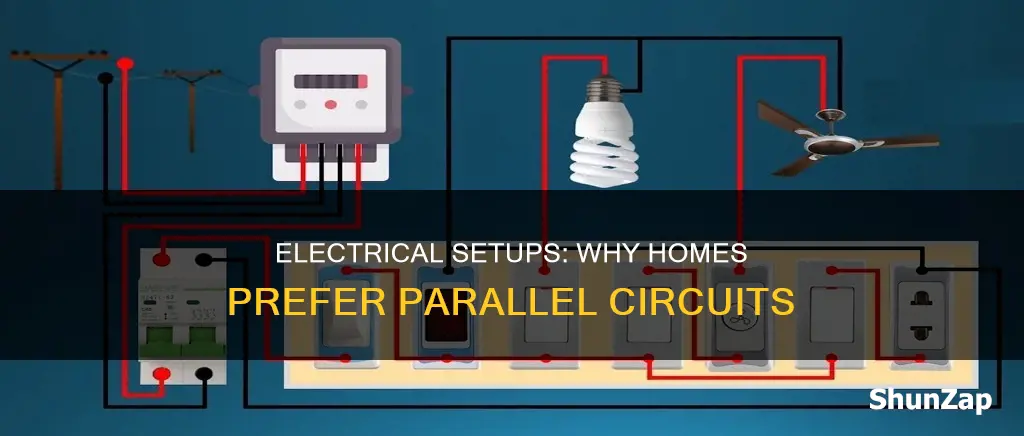

Household wiring is typically set up in parallel, rather than in series, to allow for the independent operation of each device. In a series circuit, all devices are connected in a single pathway, meaning that if one device fails, the current stops and all devices lose power. This is not a practical setup for household wiring, as it would mean that if one light bulb blew out, all the lights in the house would go out. Parallel circuits, on the other hand, allow for multiple sockets and enable devices to be turned on and off independently, with their power consumption managed individually.
| Characteristics | Values |
|---|---|
| Circuit type | Parallel |
| Circuitry | Allows for multiple sockets and switches |
| Voltage | Remains constant for all elements |
| Current | Increases as more elements are added |
| Heat | Increases as more elements are added |
| Safety | More effectively integrated with safety devices such as circuit breakers and fuses |
| Device failure | Does not affect the rest of the circuit |
| Device control | Devices can be turned on and off independently |
| Power consumption | Can be managed individually for each device |
| Wiring | Requires pigtailing wires and adding wire nuts |
| Cost | Higher than series circuits |
Explore related products
What You'll Learn
Household wiring is constructed in parallel to ensure independent operation of devices
Household wiring is constructed in parallel to ensure that each device can operate independently. In a series circuit, electrical devices are connected sequentially, meaning that the same current passes through all components in a single pathway. As such, if one device fails or is turned off, the current stops and all devices downstream lose power. This is not a practical setup for household wiring, as it would mean that if one lightbulb blew out, all the lights in the house would go out.
In a parallel circuit, each device is connected to the power source independently, allowing for convenient control of electricity. If one device fails or is removed, the current can still flow to the other devices, and their power consumption can be managed individually. This aligns with the variable electricity needs of different appliances and allows for a safer and more efficient electrical system.
Parallel circuits are also preferred because they ensure that all appliances receive the same voltage. In a series circuit, the voltage level drops as each element passes through, resulting in variable voltages across each device. This is not ideal for consistent lighting or appliance use, as the first lightbulb might be bright, but the last one could be dimmer.
Safety is another reason why parallel wiring is used in households. While it is true that, in a parallel circuit, the overall resistance of the circuit decreases as more devices are added, which could lead to a higher current, household wiring is designed with safety devices such as circuit breakers and fuses to prevent overloading and potential fires. These safety features are more effectively integrated into parallel circuits.
In summary, household wiring is constructed in parallel to ensure independent operation of devices, provide a constant voltage to all appliances, and allow for safer and more efficient electricity distribution.
Assembling Your Greenworks Electric Mower: A Step-by-Step Guide
You may want to see also
Explore related products
$78.87 $115.2
Series circuits are rare in house wiring
Series and parallel circuits have distinct characteristics, and the latter is predominantly used in house wiring.
In a series circuit, the current follows a single path, and if one part of the circuit fails, the entire circuit fails. This is not a viable option for house wiring, where multiple sockets and appliances need to be connected to the mains. In a series circuit, if one light bulb burns out, the entire string of lights goes dark. This is why series circuits are rarely used in house wiring.
On the other hand, a parallel circuit allows multiple devices to tap into the circuit independently. In this setup, if one device fails, it does not affect the entire circuit. This is the preferred method for house wiring, as it allows for multiple sockets and various electrical devices to be connected to the mains.
The voltage level in a series circuit drops as each element draws power, while in a parallel circuit, the voltage supplying each element remains constant. This is another reason why parallel circuits are preferred in houses, as each appliance receives a constant voltage.
While series circuits are rare in house wiring, they are sometimes used in specific applications. For example, a series circuit can be used with a GFCI (ground-fault circuit interrupter) receptacle to protect other standard receptacles located downstream. In this case, if the GFCI fails, only the outlets connected to it will stop working, while the rest of the house remains unaffected.
In summary, series circuits are rarely used in house wiring due to their limitations in accommodating multiple devices and their inability to provide a constant voltage to each appliance. Parallel circuits are preferred as they allow for more flexibility in connecting various devices and maintaining a constant voltage for each appliance.
Electricity and Fire: Advanced Energy Evolution
You may want to see also
Explore related products
Parallel circuits are safer and more efficient
Most home electrical wiring is set up in parallel circuits. This is because, in a series circuit, if one component fails, the rest of the components downstream will also not work. In a parallel circuit, if one component fails, electricity can still flow through more than one path, so the other components won't be affected.
The ability to isolate individual components in a parallel circuit makes it more reliable. For instance, in a factory setting, if someone shuts off a conveyor belt, it won't impact the performance of other equipment on the factory floor. Parallel circuits also allow for several sockets, which wouldn't be possible in a series circuit.
However, there are some disadvantages to parallel circuits. They tend to have longer cables and wires, which can be expensive and take up more space. They are also more complex to design, and the voltage cannot increase without the resistance in the circuit decreasing. Despite these drawbacks, parallel circuits are incredibly useful for everyday applications and are found in many industrial processes. They provide safety, reliability, and the ability to handle disruptions within a system.
Fuel Cells: Powering the Future with Hydrogen
You may want to see also
Explore related products
$24.99 $27.99
Series circuits are simpler to wire
Household electrical circuits are usually wired in parallel. This is because parallel circuits are safer and more reliable, and they allow for multiple sockets. However, series circuits are simpler to wire.
In a series circuit, the components are connected end-to-end, forming a single pathway for the current to flow through. This means that the same current flows through each component. If any component is broken or removed, the entire circuit stops working.
An example of a series circuit is a power strip, which uses one switch to control several appliances and devices on parallel circuitry. Series circuits are also used in strings of holiday lights or landscape luminaries. If one bulb in the string fails, the entire string will go dark.
Another instance where a series circuit may be used in a household is when a single GFCI (ground-fault circuit interrupter) receptacle is used to protect other standard receptacles located downstream. If the GFCI fails, all of the downstream outlets connected to it will also stop working.
Electric Roller Garage Doors: Are They Secure?
You may want to see also
Explore related products
Parallel circuits are the backbone of household electrical systems
Household electrical systems are predominantly wired using parallel circuits. This is because parallel circuits allow for convenient electricity control and distribution throughout a household.
In a series circuit, all the devices are connected in a single pathway, meaning the same current flows through all the components sequentially. If one device fails, the current stops, and all the devices lose power. This is not practical for household wiring, as it would mean that if one light bulb blew out, all the lights in the house would go out.
In a parallel circuit, each device is connected to the power source independently. If one device fails, the current can still flow to the other devices. This means that devices can be turned on and off independently, and their power consumption can be managed individually. Parallel circuits also ensure that all appliances receive the same voltage, which is not the case in a series circuit.
Safety is another reason why parallel circuits are preferred for household wiring. In a series circuit, the total resistance is the sum of individual resistances, which affects the overall current and can result in variable voltages across each device. In a parallel circuit, the overall resistance of the circuit decreases as more devices are added, which could lead to a higher current. However, household wiring is designed with safety devices such as circuit breakers and fuses to prevent overloading and potential fires. These safety features are more effectively integrated into parallel circuits.
The Humane Way: Electric Slaughter for Domesticated Animals
You may want to see also
Frequently asked questions
A series circuit is a closed circuit where the current follows one path. If one part of the circuit fails, the entire circuit fails. A parallel circuit remains intact even if one device fails. Devices tap into the circuit, and their power consumption can be managed individually.
Parallel wiring allows for each device to have the same voltage as the power source, and enables the convenient control and distribution of electricity throughout a household. Safety is another reason why parallel wiring is used. In a series circuit, if one light bulb blew out, all the lights in the house would go out.
While it is rare, there is one instance where a series circuit may be used in a house. This is when a single GFCI (ground-fault circuit interrupter) receptacle is used to protect other standard receptacles located downstream of the GFCI.
