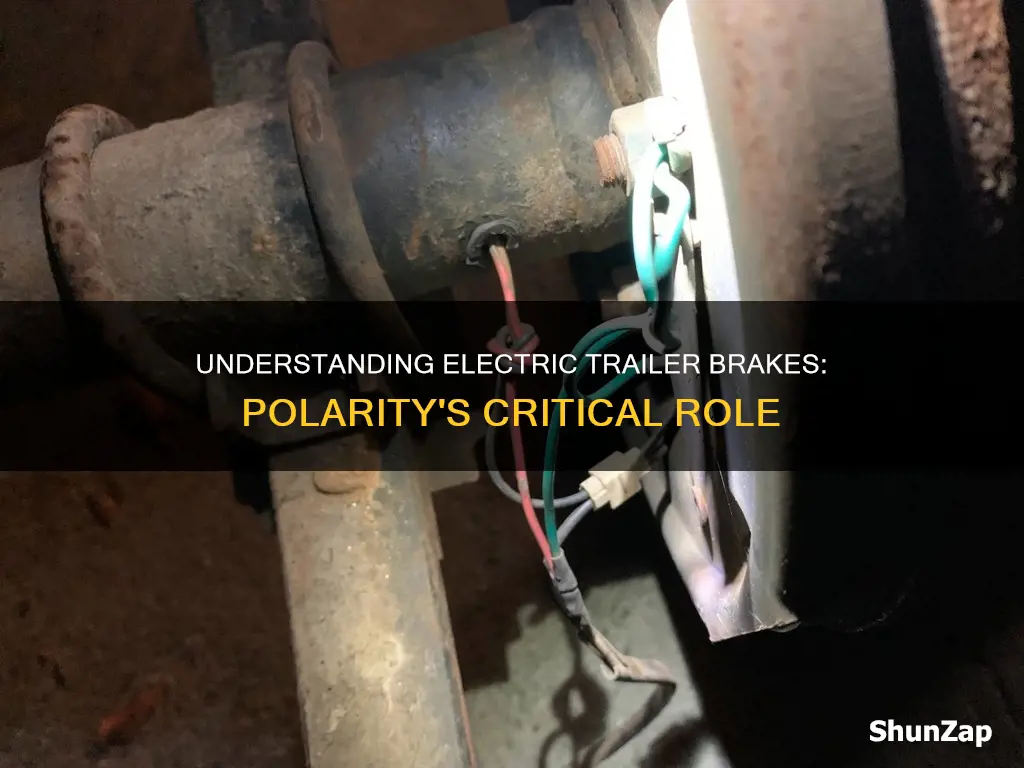

Electric trailer brakes are a common and reliable way to control your trailer while towing, especially for utility and smaller equipment trailers. They are also economical, but the installation process can be confusing, especially when it comes to the polarity of the brake magnets. The brake magnets in electric trailer brakes are non-polarized, meaning that either of the two leads can be used for grounding to the trailer frame or for connection to the trailer brake controller circuit. This is why brake assemblies and replacement magnets have the same wire color for both leads. However, it is important to ensure that all of the brakes are wired the same way to avoid confusion in case of an electric brake failure.
Explore related products
What You'll Learn
Electric trailer brake magnets are non-polarized
The magnets work like a common resistor. One wire is attached to the power and one is attached to the ground wire. It is recommended to run a common ground wire from the plug to the magnets. The brakes should be wired in parallel, not in series.
When installing an electric brake assembly, it is important to make sure that all of the brakes are wired the same. This means that all of the wires of one colour should be common to either the hot wire or the ground. For example, if your brakes have a blue and a black wire, then all of the blue wires should be connected to the hot wire, and all of the black wires should be connected to the ground.
The main thing to remember when wiring trailer brakes is to ensure that the wires are not crossed. This is why it is often easier to have two different-coloured wires, as it makes it easier to keep them straight. However, as mentioned, the colour of the wires does not matter in terms of polarity, as the magnets are non-polarized.
